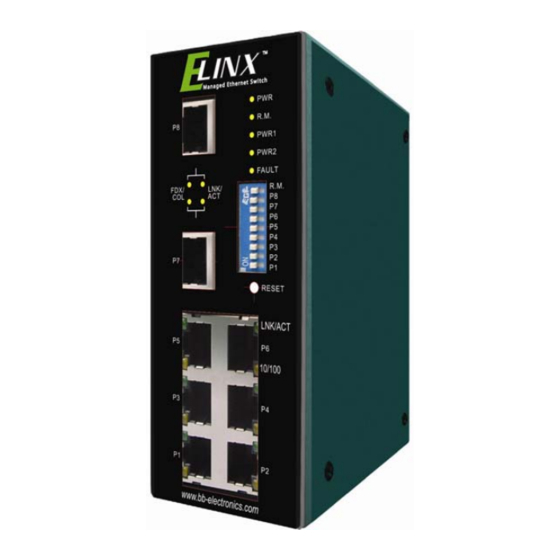

Product Description
Model EIR508-2xx-T
Documentation Number: EIR508-2xx-T 0708m
707 Dayton Road -- P.O. Box 1040 -- Ottawa, IL 61350 USA
Phone (815) 433-5100 -- General Fax (815) 433-5105
Phone (815) 433-5100 -- General Fax (815) 433-5105
Website:
www.bb-elec.com
Sales e-mail:
orders@bb-elec.com
-- Fax (815) 433-5109
Technical Support e-mail:
support@bb.elec.com
-- Fax (815) 433-5104
European Headquarters
B&B Electronics
Westlink Commercial Park -- Oranmore, Co. Galway, Ireland
Phone +353 91-792444 -- Fax +353 91-792445
Website:
www.bb-europe.com
Sales e-mail:
sales@bb-europe.com
Technical Support e-mail:
support@bb-europe.com
© 2008 B&B Electronics Mfg. Co. Inc. - Revised February 2008
1
Manual Documentation Number: EIR508-2xx-T 0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EIR508-2-T Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for B&B Electronics EIR508-2-T Series

  • Page 1 Product Description Model EIR508-2xx-T Documentation Number: EIR508-2xx-T 0708m 707 Dayton Road -- P.O. Box 1040 -- Ottawa, IL 61350 USA Phone (815) 433-5100 -- General Fax (815) 433-5105 Phone (815) 433-5100 -- General Fax (815) 433-5105 Website: www.bb-elec.com Sales e-mail: orders@bb-elec.com -- Fax (815) 433-5109 Technical Support e-mail:...
  • Page 2 Eight Port Managed Industrial Ethernet Switches User Manual Manual Documentation Number: EIR508-2xx-T 0708m B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...
  • Page 3 This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4: Table Of Contents

    Content Introduction ..............8   Features ..............8   Package Contents ............ 9   Hardware Description ..........10   Physical Dimension (W x H x D) ......10   Front Panel ............. 10   Reset Button ..............10   Bottom View ............11  ...
  • Page 5 Network Application ..........23   X-Ring Application ..........23   Coupling Ring Application ........24   Dual Homing Application ........25   Web-Based Management ........26   About Web-based Management ......26   Preparing for Web Management ......26   System Login ............
  • Page 6 Power Alarm Configuration ..........42   IP Configuration............43   SNTP Configuration ..........44   IP Security .............. 47   RSTP Configuration ..........48   System Configuration ............48   Per Port Configuration ............49   X-Ring ..............51   QoS Configuration ..........
  • Page 7 Save Configuration ..........61   Rate Control ............61   System Log ............62   System Log ..............62   Event Configuration ............63   Trouble shooting ............65   Technical Specifications ......... 66   Manual Documentation Number: EIR508-2xx-T 0708m B&B Electronics Mfg Co Inc –...
  • Page 8: Introduction

    Introduction The Elinx EIR508 series of Industrial Managed Ethernet Switches provide powerful functionality in a small package. Designed for industrial applications, these switches are highly reliable Features Conforms to IEEE 802.3 10Base-T, 802.3u 100Base-TX/100Base-FX 6 10/100TX and 2 100FX ports (fiber models only) 8 10/100TX ports (all copper model) Auto MDI/MDI-X Store-and-Forward switching architecture...
  • Page 9: Package Contents

    Package Contents One Industrial Ethernet Switch One Quick Start Guide One CD ROM containing users manual One DIN-Rail Clip (attached to the switch) One panel mount plate and six screws If any item is damaged or missing, contact B&B Electronics. Manual Documentation Number: EIR508-2xx-T 0708m B&B Electronics Mfg Co Inc –...
  • Page 10: Hardware Description

    Hardware Description Physical Dimension (W x H x D) 2.3 x 5.7 x 4.3 in (5.8 x 14.5 x 10.9 cm) Front Panel Front Panel of the industrial switch Reset Button The reset button is used to restart the reboot the switch or restore it to the factory default configuration.
  • Page 11: Bottom View

    Bottom View The bottom panel of the industrial switch has one terminal block connector within two DC power inputs and fault relay contacts. Bottom Panel of the industrial switch Manual Documentation Number: EIR508-2xx-T 0708m B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 12: Dip-Switch

    DIP-switch The nine position DIP-switch is used to configure the relay alarm ring master mode. The default value for each position is OFF. Software configuration is also required for the alarm relay. The alarm relay contacts are normally open. DIP Switch No Status Description Disable port 1 Alarm...
  • Page 13 Enable port 6 Alarm. Disable port 7 Alarm Enable port 7 Alarm. Disable port 8 Alarm Enable port 8 Alarm. Disable the ring master function Enable the switch as the ring master in the X-Ring group [NOTE] Restart the switch after the X-Ring DIP switch is set. [NOTE] The Alarm Relay Output requires software configuration in addition to the DIP Switch setting.
  • Page 14: Led Indicators

    LED Indicators There are 7 diagnostic LEDs located on the front panel. They provide real time status information. Status Meaning Green The switch is on Power The switch is off or no power input is available. Green Power source 1 is available. Power 1 Power source 1 is not available.
  • Page 15: Ports

    Ports RJ-45 ports There are 5 (or 8) 10/100Mbps auto-sensing ports for 10Base-T or 100Base-TX device connection. The ports are auto-sensing and auto MDI/MDIX. RJ-45 Pin Assignments Pin Number Assignment All copper ports on this switch support automatic MDI/MDI-X operation. Straight-through cables can be used for all network connections.
  • Page 16 Straight Through Cable Schematic Cross Over Cable Schematic Fiber Port (Fiber Models Only) There are two 100Base-FX ports. Depending on the model, the fiber ports have either SC or ST type connectors and use multi-mode (2Km) or single mode (30Km) cable. Connect the fiber ports as described below.
  • Page 17: Cabling

    Cabling Use Category 5 cabling for RJ-45 port connections. The cable must be less than 328 ft (100 meters) long. Use 9/125 um cable for single-mode fiber. Distances up to 30 Kilometers are supported. Use 50/125 or 62.5/125 cable for multi-mode fiber. Distances up to 2Km are supported.
  • Page 18: Wiring The Fault Alarm Contact

    Wiring the Fault Alarm Contact The fault alarm contact is located in the middle of terminal block connector as shown below. Insert the wires and set the Dipswitch to “ON”. When a power source fails or a link fault occurs the relay contacts will close. 1A@24V Insert the wires into the fault alarm contact [NOTE] Use12~ 24 AWG wire.
  • Page 19: Mounting Installation

    Mounting Installation DIN-Rail Mounting Rear Panel of the switch DIN-Rail 1. Use the screws to screw the DIN-Rail to the industrial switch 2. To remove the DIN-Rail, reverse the step 1. Manual Documentation Number: EIR508-2xx-T 0708m B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 20 First, insert the top of DIN-Rail into the track. Then, lightly push the DIN-Rail into the track. Ensure the DIN-Rail is tightly secured on the track. To remove the industrial switch from the track, reverse steps above. Manual Documentation Number: EIR508-2xx-T 0708m B&B Electronics Mfg Co Inc –...
  • Page 21: Panel Mounting

    Panel Mounting 1. Remove the DIN-Rail. 2. Place the panel mount plate on the rear panel of the industrial switch. 3. Attach the plate with the screws provided. 4. Use the hook holes at the corners of the plate to mount the switch to the panel.
  • Page 22: Hardware Installation

    Hardware Installation Installation Steps 1. Unpack the switch 2. Ensure the DIN-Rail is tightly screwed to the switch. If it is not, refer to DIN-Rail Mounting section. If panel mounting is desired, refer to Panel Mounting Section. 3. Mount the switch. 4.
  • Page 23: Network Application

    Network Application X-Ring Application The EIR508 series of Industrial Switches incorporate the X-Ring Protocol to ensure network reliability and system restoration within 300 ms in the event of a connection failure. The X-Ring algorithm is similar to the spanning tree protocol (STP) algorithm but it has faster recovery time.
  • Page 24: Coupling Ring Application

    Coupling Ring Application If the network has more than one X-Ring group, the coupling ring function is used to connect them and add redundancy. This ensures that transmissions between the two ring groups will not fail. The figure below is an example of the coupling ring application.
  • Page 25: Dual Homing Application

    Dual Homing Application The Dual Homing function is used to prevent a connection loss between the X-Ring group and the upper level/core switch. Assign a port in each X-ring group to be the Dual Homing ports The Dual Homing function can only be used when the X-Ring function is active.
  • Page 26: Web-Based Management

    Web-Based Management About Web-based Management The switch has an embedded HTML web site residing in flash memory. This site offers advanced management features and allows the switch to be configured from anywhere on the network. The web site is designed for Internet Explorer 6.0 and uses Java Applets to reduce bandwidth consumption, enhance access speed, and present an intuitive user interface.
  • Page 27 Launch Internet Explorer on the PC. Enter “http:// “+” the IP address of the switch”, in the address window and then Press “Enter”. The login screen will appear. Enter the user name and password. Press “Enter” or ”OK”, the home screen will appear. Function Menu Bar Home Interface Panel Figure Display...
  • Page 28: Port Status

    Port status Shows the status of each port Port: Displays the port number Type: Displays the speed and mode, ex: 100TX = 100Mbps Link: Displays the ports status (up or down) State: Displays the ports status (disabled or enabled). Unlinked is displayed as “off ”...
  • Page 29: Port Statistics

    Click the desired port on the Panel figure. The single port information window will display the current port information. Port information interface Port Statistics Displays port statistics. Manual Documentation Number: EIR508-2xx-T 0708m B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 30: Port Control

    Click Clear button to reset. Port Statistics Interface Port Control Use to set up the port. Select the port by scrolling down the Port column. The current port information will be displayed in the table below. State: Enables or disables the port. Negotiation: Sets the negotiation mode to Auto, Nway (specify the speed/duplex of the port and enable auto-negotiation), or Forced.
  • Page 31: Switch Setting

    Port Control interface Switch Setting Used to assign the system name, location and to view system information System Name: Assigns a name to the switch. The maximum length is 64 bytes System Location: Assigns a physical location for the switch. The maximum length is 64 bytes System Description: Displays the description of switch.
  • Page 32: Port Mirroring

    Port Mirroring Port mirroring is a method to monitor traffic in switched networks. This is accomplished by mirroring the traffic going in and out of the monitored ports to a specifically designated port (the mirror port). Port Mirroring Mode: Sets the mirror mode. Select disable to disable port mirroring.
  • Page 33: Vlan Configuration

    VLAN configuration A Virtual LAN (VLAN) can be thought of as a broadcast domain that exists within a switch or a defined set of switches. By grouping switch ports into VLANs, traffic flooding is limited since devices can only communicate directly with devices belonging to the VLAN.
  • Page 34 VLAN – PortBase interface Click to add a new VLAN group. The EIR508 series supports up to 64 VLAN Enter Group name, VLAN ID and select the members of VLAN group Click Apply Manual Documentation Number: EIR508-2xx-T 0708m B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 35 VLAN—PortBase Add interface The VLAN group will be displayed after it is clicked Click to view the next VLAN Group Next Page Use the button to delete unwanted VLANs Delete to modify existing VLANs Edit [NOTE] If the configuration is not saved, it will be lost when the switch is powered off Manual Documentation Number: EIR508-2xx-T 0708m B&B Electronics Mfg Co Inc –...
  • Page 36: 802.1Q Vlan

    802.1Q VLAN Tagged-based VLAN is an IEEE 802.1Q specification which allows VLANs to be created across devices from different venders. IEEE 802.1Q VLAN uses a technique to insert a “tag” into the Ethernet frame. The tag contains a VLAN Identifier (VID). When the 802.1Q VLAN is enabled, all ports on the switch belong to a default VLAN (VID 1).
  • Page 37 number in Management VLAN ID column, check the box, and click the apply button. Example: If the management VLAN ID is 101 and the VLAN Group ID 101 includes ports 1, 2, and 4, only ports 1, 2, and 4 can perform remote management functions on the switch.
  • Page 38 7. Select outgoing frames as VLAN tagged or untagged and then click Apply Port VID: Configure port VID settings 1. Port VLAN ID: Enter the port VLAN ID 2. Click Apply 3. To reset back to default value, click button Default Manual Documentation Number: EIR508-2xx-T 0708m B&B Electronics Mfg Co Inc –...
  • Page 39: Alert

    802.1q VLAN – Port VLAN ID interface [NOTE] If the configuration is not saved, it will be lost if the switch is powered off. Alert Email Alert Configuration When a specified event occurs, the switch will send an alert email. Email Alert: Enables or disable the function SMTP Server IP Address: Enter the mail server IP address Authentication: Mark the check box to enable and configure the email...
  • Page 40 Mail Account: Enter the email address used to send the alert. Ex: Switch@123.com. This account must exist on the mail server. Password: The email account password Confirm Password: Confirm the password E-mail Address of Recipient 1 ~ 4: Enter up to 4 e-mail accounts to receive the alert Click Apply...
  • Page 41: Event Configuration

    Event Configuration System event selection: 4 selections – Device cold start, Power status, SNMP Authentication Failure, and X-Ring topology changes. Mark the checkbox to select the event. When the selected events occur, the system will send out an email alert. Device cold start: Sends an alert when the device executes a cold start.
  • Page 42: Power Alarm Configuration

    Event Configuration interface Power Alarm Configuration The power alarm enables the relay alarm. Mark the check box and click the Apply button Power Alarm interface Manual Documentation Number: EIR508-2xx-T 0708m B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 43: Ip Configuration

    IP Configuration DHCP Client: Use to enable or disable the DHCP client function. When the DHCP client function is enabled, the industrial switch will be assigned an IP address from the network DHCP server. After the “Apply” button is clicked, dialog box will indicate that the user that when the DHCP client is enabled, the current IP will lost and the new IP must be looked up on the DHCP server.
  • Page 44: Sntp Configuration

    SNTP Configuration SNTP (Simple Network Time Protocol) allows the switch to synchronize its time with an SNTP Server. SNTP Client: Enables or Disable SNTP Daylight Saving Time: Enables or disables daylight saving time. When enabled, the daylight saving time period must be entered. UTC Time zone: Used to calculate local time.
  • Page 45 Daylight ALA - Alaskan -9 hours 3 am Standard HAW - Hawaiian -10 hours 2 am Standard Nome, Alaska -11 hours 1 am CET - Central European FWT - French Winter MET - Middle European +1 hour 1 pm MEWT - Middle European Winter SWT - Swedish Winter...
  • Page 46 Guam Standard, Russia Zone 9 IDLE - International Date Line NZST - New +12 hours Midnight Zealand Standard NZT - New Zealand SNTP Sever IP: Enter the IP address of the SNTP server Switch Timer: Displays the switch’s current time Daylight Saving Period: Enter the daylight savings period.
  • Page 47: Ip Security

    IP Security IP security function grants 10 specific IP addresses permission to access the switch through a web browser for the switch management. Enable the IP Security: Mark the check box to enable. Security IP 1 ~ 10: Enter up to 10 specific IP Addresses. Click Apply [NOTE] If the configuration is not saved, it will be lost when the...
  • Page 48: Rstp Configuration

    RSTP Configuration The Rapid Spanning Tree Protocol (RSTP) is an evolution of Spanning Tree Protocol (STP). It provides a faster spanning tree convergence after a topology change. The switch will auto detect a device that is running STP or RSTP protocol. System Configuration Modify RSTP state.
  • Page 49: Per Port Configuration

    RSTP– System Configuration Interface Per Port Configuration Configure path cost and priority of every port Select the port in Port column Path Cost: The cost of the path to the other bridge from this transmitting bridge at the specified port. Enter a number 1 through 200000000 Priority: Network priority.
  • Page 50 (i.e. it is served by a shared medium LAN segment). This function allows the P2P status of the link to be manipulated administratively. True is P2P enabling. False is P2P disabling. Admin Edge: The port directly connected to end stations cannot create a bridging loop.
  • Page 51: X-Ring

    X-Ring X-Ring provides network redundancy similar to the Spanning Tree and Rapid Spanning Tree Protocols. However, recovery time is greatly reduced when the X-Ring protocol is used. The protocol identifies one switch as the Ring Master. Packets are blocked from the redundant path unless a ring member becomes disconnected from the rest of the network.
  • Page 52: Qos Configuration

    function. Coupling port: Assign the member port. Control port: Set the switch as the master switch in the coupling ring. Enable Dual Homing: Set up one of port to be the Dual Homing port. In an X-Ring group, only one can be a Dual Homing port. This function will only work when the X-Ring function is enabled.
  • Page 53 queue packets at the same time. Use the strict priority scheme: The highest queue will always be processed first. Priority Type: Every port has 5 priority types Port-base: The port priority will follow the default port priority assigned – High, middle, low, or lowest. COS only: The port will follow the COS priority assigned.
  • Page 54 QoS configuration Interface Manual Documentation Number: EIR508-2xx-T 0708m B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...
  • Page 55: Igmp

    IGMP The Internet Group Management Protocol (IGMP) is an internal protocol of the Internet Protocol (IP) suite. IP manages multicast traffic by using switches, routers, and hosts that support IGMP. Enabling IGMP allows the ports to detect IGMP queries and report packets and manage IP multicast traffic through the switch.
  • Page 56: Security Manager

    Security Manager Use to change the web management login user name and password. User name: Enter the new user name (The default is “root”) Password: Enter the new password (The default is “root”) Confirm password: Re-type the new password Click Apply Security Manager Interface [NOTE] If the configuration is not saved, it will be lost when the switch...
  • Page 57: System Options

    SNMP Management interface System Options Name: Enter a name for the switch Location: Enter the switch physical location Contact: Enter the name of contact person or organization Community strings Serve as a password. Strings: Enter the name of the string RO: Read only.
  • Page 58: Trap Manager

    Trap Manager A trap manager is a management station that receives traps (the system alerts generated by the switch). If there is no trap manager defined, traps will not be issued. Create a trap manager by entering the IP address of the station and a community string.
  • Page 59: Tftp Backup Configuration

    TFTP Backup Configuration Save current flash ROM value to the TFTP server. TFTP Server IP Address: Enter the TFTP server IP Backup File Name: Enter the file image name Click Apply TFTP Backup Configuration interface TFTP Update Firmware Use to update firmware. Ensure the TFTP server is ready and the firmware image is stored on the TFTP server.
  • Page 60: Factory Default

    Factory Default Reset the Switch to the default configuration. NOTE: The IP Address, subnet mask, default gateway, username, and password will remain as configured by the user. Click Default Factory Default interface System Reboot Reboot the Switch Click Reboot System Reboot interface Manual Documentation Number: EIR508-2xx-T 0708m B&B Electronics Mfg Co Inc –...
  • Page 61: Save Configuration

    Save Configuration Save the configuration to flash memory. If the switch is powered off without saving the configuration, all changed configuration will lost. Click Save Flash Save Configuration Interface Rate Control Set up every port’s bandwidth rate and packet limitation type Limit Packet type: Select the packet type to filter.
  • Page 62: System Log

    Rate Control Interface [NOTE] 1. If the configuration is not saved, it will be lost when the switch is powered off. 2. QoS and Rate control cannot exist at the same. System Log Set up system log events and view the system log events System Log Use to view the system events.
  • Page 63: Event Configuration

    System Log Configuration interface Event Configuration Select the system log events. When a selected event occurs, the system will log the information. System event selection: 4 selections – Cold start, Power status, SNMP Authentication Failure, and X-Ring topology change. Mark the checkbox to select the event.
  • Page 64 X-Ring topology change: A log entry will be made when the X-Ring topology changes. Port event selection: Select port specific events to log. 3 selections – Link UP, Link Down, and Link UP & Link Down. Link UP: The system will produce a log message when the port comes up.
  • Page 65: Trouble Shooting

    Trouble shooting Verify the power supply is correct (12 to 48 VDC). Do not exceed 48 VDC. Ensure the proper cable is used for RH-45 connections: 100Ω Category 3, 4, or 5 cable for 10Mbps connections or 100Ω Category 5 cable for 100Mbsp connections.
  • Page 66: Technical Specifications

    Technical Specifications The 6 10/100TX plus 2 100FX with X-Ring managed industrial switch technical specification is following. IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet IEEE802.3x Flow Control and Back-pressure Standard IEEE802.1d spanning tree / IEEE802.1w rapid spanning tree IEEE802.1p class of service IEEE802.1Q VLAN Tag...
  • Page 67 Up to 3 Trap stations Cold start Port link Up Port link down SNMP Trap Authentication Failure Private Trap for power status Port Alarm configuration Fault alarm, X-Ring Store and forward switching architecture Technology 14,880 pps for 10Base-T Ethernet port 148,800 pps for 100Base-TX/FX Fast Ethernet Transfer Rate port...
  • Page 68 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m) Network Cable 100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m) SC (Multi-mode): 50/125um or 62.5/125um SC (Single mode): 9/125um Available distance: 2KM (Multi-mode) / Optical cable 30KM (single-mode) Wavelength: 1310nm (multi-mode/ single mode) 1.6Gbps...
  • Page 69 IEEE802.1p class of service Class of service Per port provides 4 priority queues. The quality of service determined by port, Tag Quality of service and Ipv4 Type of service. IEEE802.1d spanning tree Spanning tree IEEE802.1w rapid spanning tree. IGMP v1 and Query mode IGMP Up to 256 groups.
  • Page 70 Ingress packets filter and egress packet limit. The egress rate control supports all of packet type and the limit rates are 128kbps, 256Kbps, 512Kbps, 1MB, 2MB, 4MB, and 8MB. Ingress filter packet type combination rule Bandwidth control for Broadcast/Multicast/Unknown Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all of packet.
  • Page 71 CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4 Safety CE/EN60950-1 IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) Stability testing IEC60068-2-6 (Vibration) Manual Documentation Number: EIR508-2xx-T 0708m B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
