D I S A S S E M B L Y A N D A S S E M B L Y

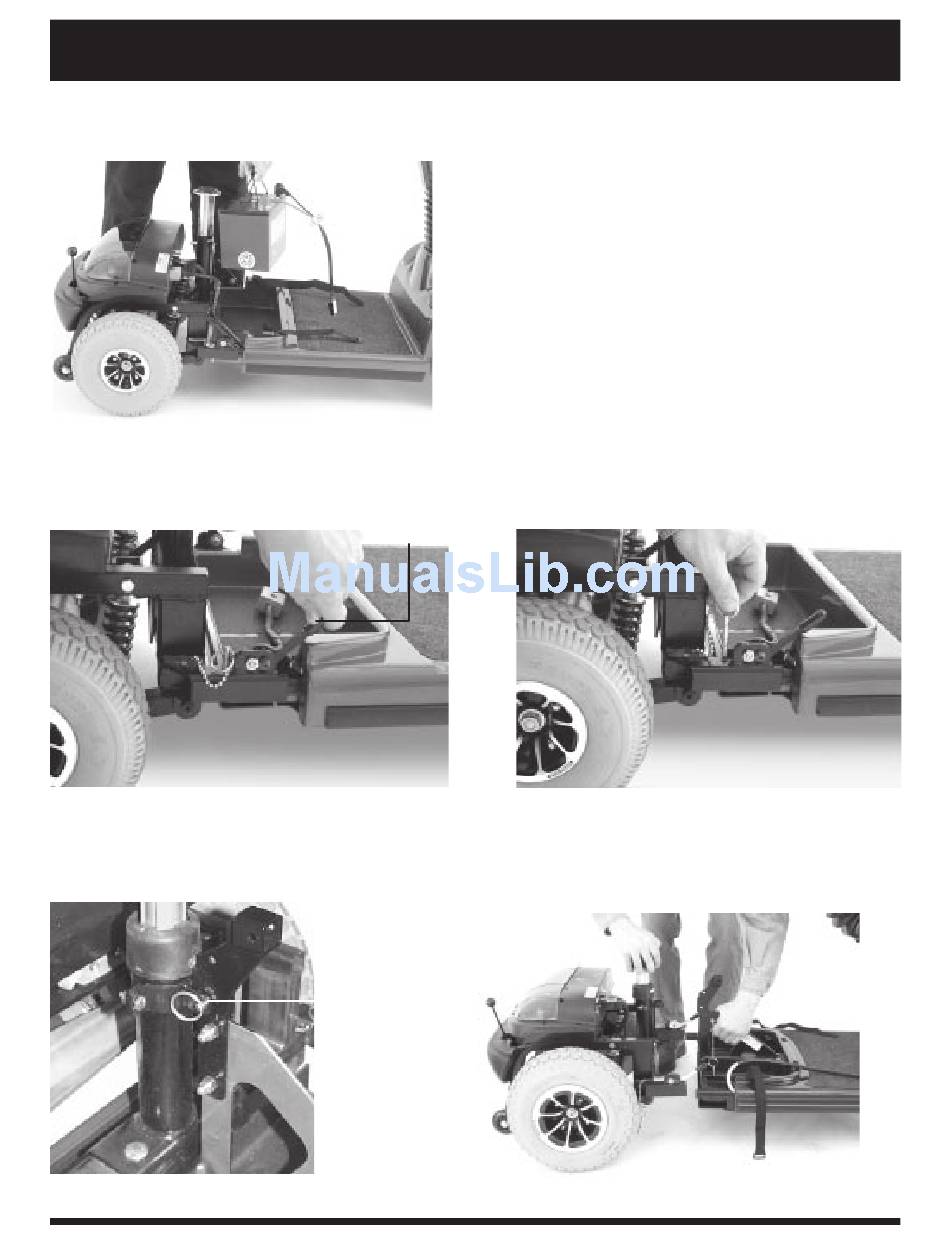

8. Lift both batteries off of the Hurricane. See figure 22.
FIGURE 22. BATTERY REMOVAL
9. Push the locking cam levers forward and remove the ball detent pins. See figures 23 and 24.
UNLOCKED POSITION
FIGURE 23. LOCKING CAM LEVERS
FIGURE 24. BALL DETENT PINS
11. Gently slide the two sections of the Hurricane apart.
10. Remove the docking device ball detent pin.
See figure 25.
See figure 26.
BALL DETENT PIN
FIGURE 25. DOCKING DEVICE BALL DETENT PIN
FIGURE 26. FRAME SEPARATION
