I V .
TILLER
Your Hurricane is equipped with an ergonomically enhanced pivoting tiller. This infinitely adjustable tiller is where
the following components are located: the key, key switch, 6.5 - 13 km/h (4-8 mph) switch, and the tiller
adjustment lever. See figure 6A.
4-8 MPH SWITCH

TILLER ADJUSTMENT LEVER

Tiller Adjustment Lever
This lever allows you to adjust the tiller to a number of positions between the forward stop and the Hurricane deck.
See figure 6A.
n Pull up on the tiller adjustment lever to move the tiller to a comfortable position.
n Release the tiller adjustment lever and the tiller remains in that position.
Key Switch
To turn the Hurricane on, fully insert the key and turn it clockwise. To turn the Hurricane off, turn the key counterclock-
wise. See figure 6A.
4 mph - 8 mph Switch
This switch limits the Hurricane’s top speed to either 6.5 or 13 km/h (4 or 8 mph) depending on where the
Hurricane’s preset maximum speed is set. See figure 6A.
n With the switch set to 6.5 km/h (4 mph), the Hurricane’s top speed is 6.5 km/h (4 mph).
n With the switch set to 13 km/h (8 mph), the Hurricane’s top speed is 13 km/h (8 mph).
When driving indoors, keep the 6.5-13 km/h (4-8 mph) switch set to 6.5 km/h (4 mph).
20
Y O U R
H U R R I C A N E

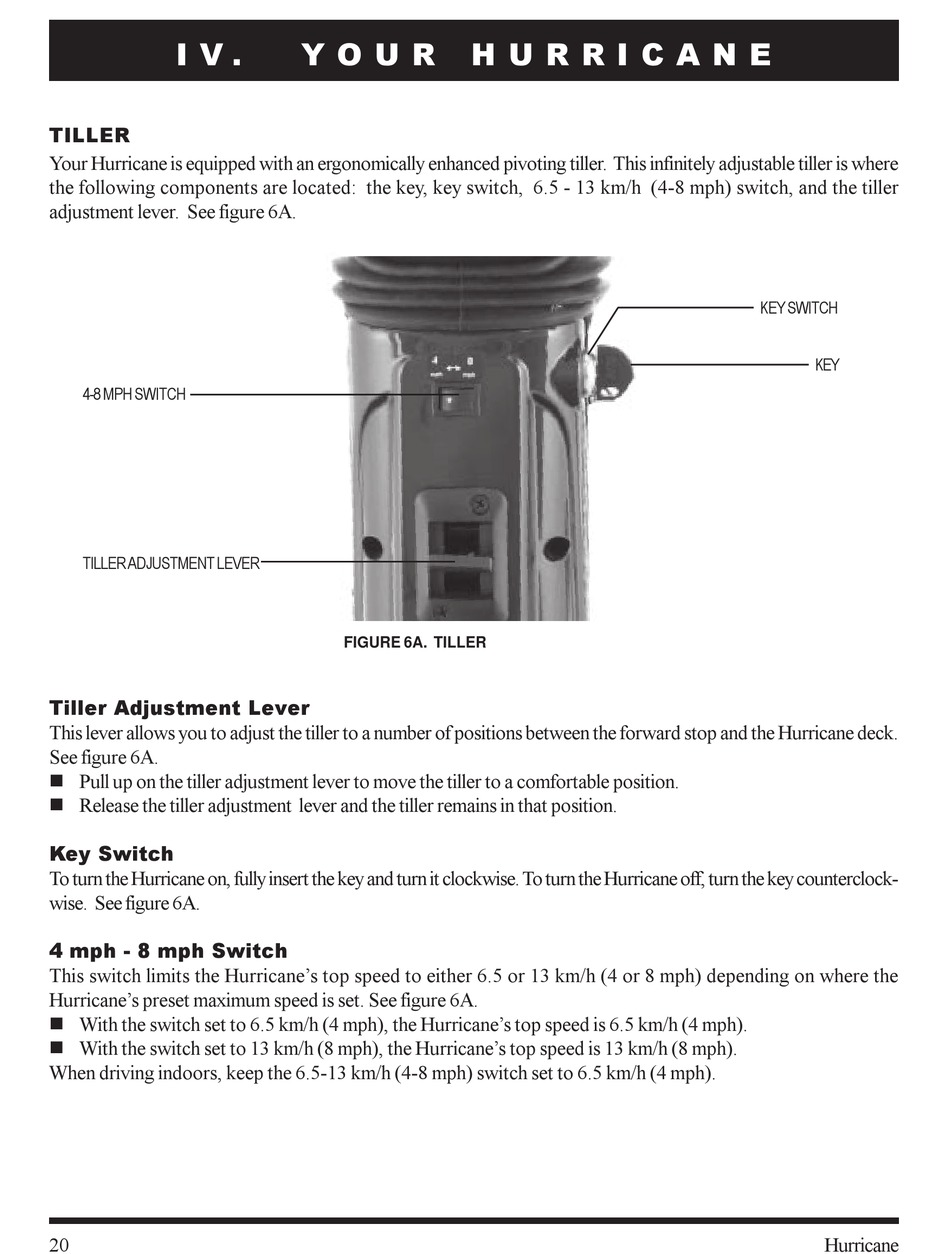

FIGURE 6A. TILLER
KEY SWITCH
KEY
Hurricane
