Bell Phones Excursion 39606 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®

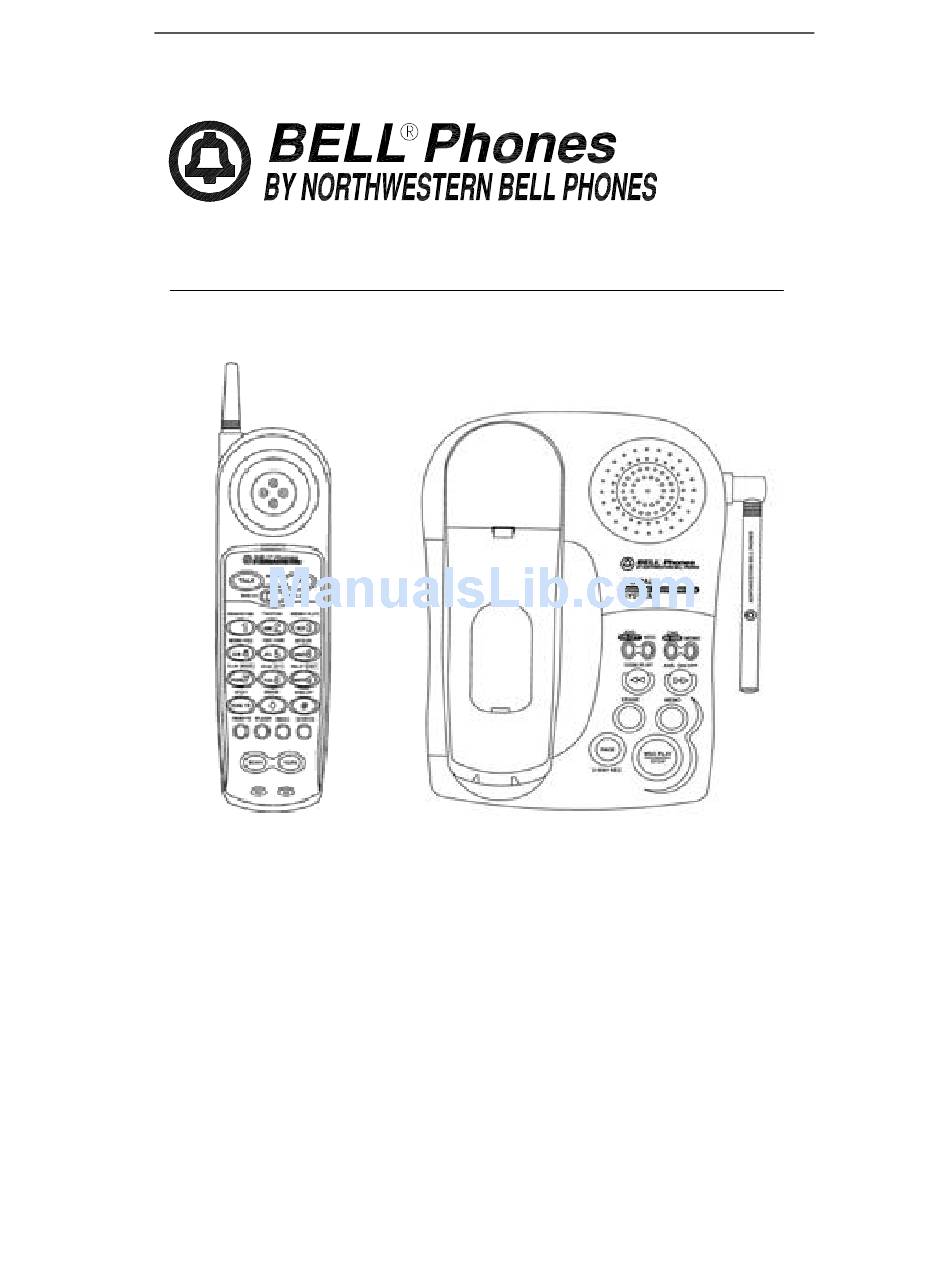

Excursion
39606
®
Congratulations on your selection of the Excursion
39606
from Northwestern Bell Phones. This quality 900MHz
cordless telephone with digital answering system, like all
®
Genuine BELL
products, has been designed to give you
many years of continuous service and represents the best
value for your money. It requires little maintenance and is
easy to setup and operate.

Advertisement

Table of Contents
loading

Related Manuals for Bell Phones Excursion 39606

Summary of Contents for Bell Phones Excursion 39606

  • Page 1 Excursion 39606 ® Congratulations on your selection of the Excursion 39606 from Northwestern Bell Phones. This quality 900MHz cordless telephone with digital answering system, like all ® Genuine BELL products, has been designed to give you many years of continuous service and represents the best value for your money.

  • Page 2: Important Service Information

    IMPORTANT SERVICE INFORMATION Read this manual before attempting to setup or use this instrument. It contains important information regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing and proof of purchase to simplify and accelerate any needed action.

  • Page 3: Carton Contents

    CARTON CONTENTS RECHARGEABLE Ni-Cd HANDSET BASE UNIT BATTERY PACK ADAPTER TELEPHONE WALL MOUNT BELT CLIP (9VAC, 400mA) LINE CORD BRACKET (Short & Long) Model No: Serial No: Excursion® ® 39205 NAME: ADDRESS: Model No: Serial No: ACCESSORY USER’ S MANUAL WARRANTY CARD ORDER FORM...

  • Page 4: Save These Instructions

    SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning.
  • Page 5 SAVE THESE INSTRUCTIONS BATTERY SAFETY INSTRUCTION CAUTION : To reduce the risk of fire or injury to persons, read and follow these instructions: Use only the following type and size of handset battery pack: Cordless Telephone Battery Pack DC3.6V, 450mAh, Ni-Cd Battery Pack Manufacturer: Sanik Battery Co.

  • Page 6: Installation Precautions

    SAVE THESE INSTRUCTIONS INSTALLATION PRECAUTIONS Never install telephone wiring during a lightning storm. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.
  • Page 7 television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measure: • Reorient and relocate the receiving antenna. • Increase the separation between the equipment and receiver. •...

  • Page 9: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SERVICE INFORMATION………………………………..……………………….. CARTON CONTENTS……………………………………………………………………………… IMPORTANT SAFETY INSTRUCTIONS………………………………………………………… BATTERY SAFETY INSTRUCTION………………………….…………………………….….… INSTALLATION PRECAUTIONS……………………….……………………….……….……… FCC NOTICE……………...………………………………………………………………………… DESCRIPTION……………………………………………………………………………………… MOUNTING POSITION……………………………………………………………………………. BELT CLIP INSTRUCTION…………….………………………………………………………… CONNECTING THE HEADSET………………..………………………………………………… POWER INSTALLATION………………………………………………...…..…………………… INITIAL SETUP……………………………………………………………………….….………… TELEPHONE OPERATION……………………….……………………………………………… TO PLACE A CALL……………………………………………………………………… TO RECEIVE A CALL………..…………………………………………………………. LAST NUMBER REDIAL………..………………………………………………………...

  • Page 10: Description

    DESCRIPTION CONTROLS’ LOCATION AND FUNCTION (Figure 1) HANDSET CONTROLS - Cordless Telephone Antenna RING ON / RING OFF Switch: Turns the handset ringer ON or OFF. TALK Button: Press to answer an incoming call or to place a call. Press to end a call. MEMO (Memory) Button: Used to store up to 10 telephone numbers into memory and you can then dial any of the stored phone numbers.
  • Page 11 IN USE / BATT LOW LED Indicator: Flashes when an incoming call is received and during paging condition. During TALK mode, the IN USE LED indicator remains lit steadily. The BATT LOW LED blinks when the handset battery power is low. Retainer Slot: It allows the handset to hang on the base unit.
  • Page 12 BASE UNIT (Rear View) BASE UNIT (Side View) 13,14 11,12 BASE UNIT (Bottom View) (Figure 3) ® RINGS (TS / 6 / 2) Switch: Selects the number of rings before the Excursion 39606 automatically answers the call and used to activate the Toll Saver (TS) feature. VOLUME Control: Adjusts the base unit speaker volume level.

  • Page 13: Mounting Position

    MOUNTING POSITION DESKTOP USE: Install and attach the wall mount bracket onto the bottom of the base at the position as shown in Figure 4. Connect the telephone line cord to the TEL LINE jack on the rear of the base unit and connect the opposite end to the telephone modular jack.

  • Page 14: Belt Clip Instruction

    BELT CLIP INSTRUCTION Clamp the belt clip at the back of the handset as shown in Figure 7. Belt Clip Handset (Figure 7) CONNECTING THE HEADSET For hands free conversation, a headset (not included) is connected to the headset jack as shown in Figure 8.

  • Page 15: Initial Setup

    1. Plug the adapter into a standard AC outlet. 2. Insert the small plug into the adapter jack on the rear of the base as shown in Figure 9. (Figure 9) HANDSET BATTERY INSTALLATION CAUTION: Use only the Nickel Cadmium (Ni-Cd) battery type included with this unit. Use of other battery types may cause injuries or damage.

  • Page 16: Telephone Operation

    Tuesday = 3, etc.). The unit will then prompt “Enter new time.” After hearing a long beep, enter the new hour (01-12). After two beeps, enter the new minute (00-59). After two beeps, press 1 for AM, or press 2 for PM. The unit will announce the new day and time followed by a long beep and will prompt “Please enter next command.”...

  • Page 17: Mixed Mode Dialing

    You can store up to 10 telephone numbers (up to 24 digits each) into memory, and you can then dial any of the stored phone numbers. STORING TELEPHONE NUMBERS INTO MEMORY Make sure the handset is in standby mode. Press and release the MEMO button. Enter the telephone number you want to store (maximum of 24 digits).

  • Page 18: Paging Function

    When the handset battery voltage level is low, the handset will emit two beeps every 1 minute while the handset BATT LOW LED indicator will flash. Return the handset on the base cradle to charge. PAGING FUNCTION Press the PAGE button located on the base which simultaneously sends a signal to the handset.

  • Page 19: Outgoing Message (Ogm)

    any new message(s) in the Message (MSG) box. You can hang up before the unit answers and save the cost of the call. OUTGOING MESSAGE (OGM) ® This is the announcement callers will hear when Excursion 39606 answers a call. The ®...

  • Page 20: Erasing Messages

    B. SKIPPING MESSAGES Press the (Skip) button on the base unit during message playback to skip the next message. C. PREVIOUS MESSAGES Press ( (Previous) button once on the base unit during message playback to skip backward one message. D. STOP MESSAGE PLAYBACK Press the STOP button to stop message playback.

  • Page 21: Two- Way Recording

    FROM THE HANDSET (In the Base Unit Cradle) ® When the Excursion 39606 answers a call, you will hear your OGM followed by the caller's message through the base unit’s speaker. If you decide to take the call, simply pick up the handset and press the TALK button. Begin speaking and the ICM recording is stopped.
  • Page 22 After a successful password entry, the Remote Operation function is on. Once you have activated the Remote Operation function either by handset or through a tone ® dialing phone to call the Excursion 39606: ® The Excursion 39606 will announce the total number of new message(s) in Message (MSG) box.

  • Page 23: Improving Cordless Reception

    G. OGM RECORDING Press the 5 key. The unit will prompt “Please record your announcement after the beep. To stop recording, press star (*).” After hearing a long beep, begin your announcement. The maximum recording time is 30 seconds. ® Press star (*) to stop recording and the Excursion 39606 will automatically playback once for your review.

  • Page 24: Maintenance

    CHARGING ® Make sure the adapter and telephone line cord is connected to the Excursion 39606. Place the handset on the base cradle. The CHG (Charge) LED indicator of the base unit will light steadily. Leave the handset charging on the base for 14 hours continuously to get a maximum charge.

  • Page 25: Technical Information

    • Cannot access The password you have entered may be incorrect. Enter the Remote Operation correct password during OGM playback or within 7 seconds after the OGM has finished playing. • Excessive static Ensure that the antenna is not touching another metal object. •...
  • Page 26 Distributed Exclusively Worldwide by Unical Enterprises, Inc., Industry, California USA 39606K/02220A-1 www.nwbphones.com...
