Bell Phones 36077 Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

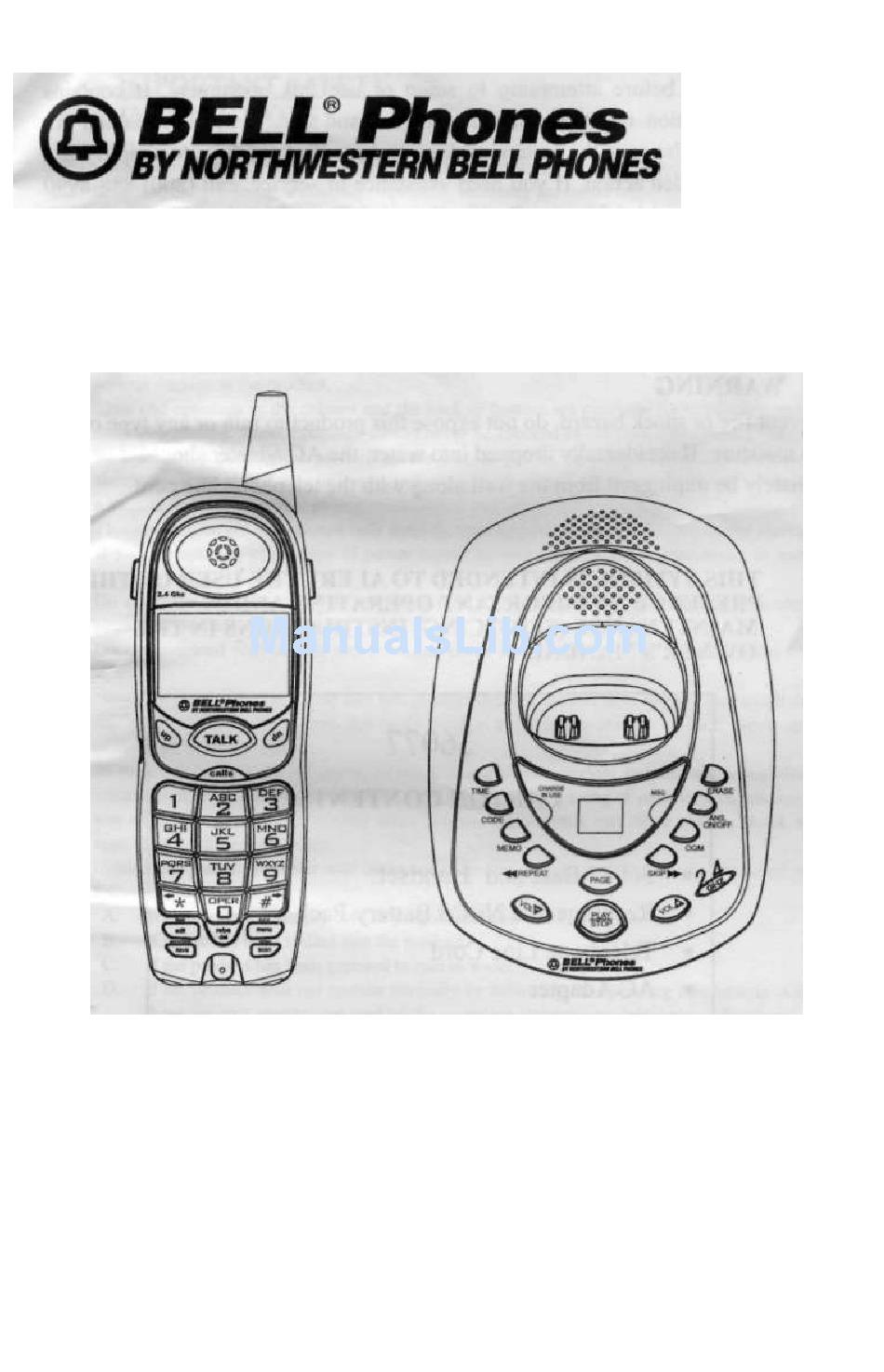

Congratulations on your selection of the 36077 from
Northwestern Bell Phones. This quality 2.4GHz cordless
telephone with Digital Answering System and Call Waiting
Caller ID, like all Genuine BELL® products, has been
designed to give you many years of continuous service and
represents the best value for your money. It requires little
maintenance and is easy to setup and operate.
36077

Advertisement

Table of Contents
loading

Related Manuals for Bell Phones 36077

Summary of Contents for Bell Phones 36077

  • Page 1 36077 Congratulations on your selection of the 36077 from Northwestern Bell Phones. This quality 2.4GHz cordless telephone with Digital Answering System and Call Waiting Caller ID, like all Genuine BELL® products, has been designed to give you many years of continuous service and represents the best value for your money.

  • Page 2: Important Service Information

    THIS SYMBOL IS INTENDED TO ALERT THE USER OF THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE OWNER'S MANUAL. 36077 CARTON CONTENTS • 36077 Base and Handset • Rechargeable Ni-Cd Battery Pack • Telephone Line Cord • AC Adapter •...

  • Page 3: Installation Precautions

    SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning.

  • Page 4: Maintenance

    Never install telephone wiring during a lightning storm. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. Use caution when installing or modifying telephone lines.
  • Page 5 Privacy of communications may not be ensured when using this phone. Changes or modifications not expressly approved in writing by Northwestern Bell Phones may void the user's authority to operate this equipment.
  • Page 7 DESCRIPTIONS 030506A-1...

  • Page 8: Installation

    ERASE Button - Press to erase a single message or all messages in order to conserve message space in memory. Memo Button - Press to record Memo message. OGM Button - Press to record Outgoing Message(OGM). TIME SET Button - Press to set the day and time stamp. CODE Button - Press to set the password for remote operation.

  • Page 9: Power Connection

    (Figure 1) Insert the Ni-Cd battery into the battery compartment. Replace the battery compartment cover by sliding it up towards the handset. NOTE: type size of Ni-Cd battery pack, 3.6V, 450mAh. recommended that the Ni-Cd battery pack should be fully charged overnight prior to initial use.

  • Page 10: Initial Setup

    (Figure3) HEADSET CONNECTION One of the special features of your phone is that your handset could utilize a headset (not included) for hands-free communication. Insert the small plug at the end of your headset cord to the headset jack at the side of the handset as shown in Figure 4. Follow the procedures discussed in "Placing a Call"...

  • Page 11: Receive A Call

    RECEIVE A CALL NOTE: If you are expecting incoming calls, the handset must be programmed to RING ON mode. If the handset is on the base: When the phone rings, simply pick up the handset from the base cradle if the unit is set to auto-answer ON mode.

  • Page 12: Blocked Calls

    You an assign PREFERRED CALL which will generate a special ringer sound at start of the second ring to any welcome caller in the Phonebook. Press the SAVE/PHONE BOOK button. Press the UP or DN button to find the one you need. Press the MENU/ MUTE button once.

  • Page 13: Viewing The Phonebook

    VIEWING THE PHONEBOOK This Phonebook lets you scroll through the list to find the person you need for one touch dialing. You can store up to 20 names and telephone numbers in the Memory. Press the SAVE/PHONE BOOK button. Press the UP or DN button to find the one you need , press the SHIFT RIGHT button if the name or telephone number is more than 11 digits.
  • Page 14 Press the TALK button to dial out the telephone number. Start your conversation. To end your conversation, either press the TALK button or place the handset on the base unit. NOTE: Be sure to check that the line is not in use by another extension. DELETING A STORED NUMBER Press the SAVE/PHONE BOOK button.

  • Page 15: Caller Id Operation

    IMPORTANT: Subscription to Caller ID (CID)/Call Waiting ID services from your local phone company is required for using the Caller ID/Call Waiting ID features of the 36077. Your new 36077 telephone gives you the ultimate in cordless telephone sound quality with the luxury of Caller ID and Call Waiting ID.

  • Page 16: Caller Id Display

    segment of LCD Display and NEW CALL LED indicator will flash if there is new call(s). When you receive a call, the system displays the caller information sent by the telephone company, called a Call Record. The Call Record consists of the following information: The caller's name(if available) The caller's telephone number The time and date of a call...

  • Page 17: Call Waiting

    Display shows when a voice mail message has been received and is stored by message waiting service provided by the phone company. Display shows when the incoming call is a priority call. This is displayed when CALLS button is pressed and there is no Caller ID date stored.

  • Page 18: Selective Deleting In The Caller List

    Press OPTION button Press OPTION button Press TALK button to dial out or press CALLS button to cancel dialing. To end you conversation, either press the TALK button or place the handset on the base unit. SAVING THE NAME AND NUMBER FROM THE CALLER LIST INTO PHONE BOOK Press the CALLS button.
  • Page 19 PROGRAMS OPERATION This unit contains the following special Programs: RING ON/OFF PBX MODE ON/OFF LANGUAGE PAUSE TIME FIRST RING ON/OFF MSG WAITING TIME SET AUTO ANSWER ON/OFF AREA CODE PRIVATE RING ON/OFF CONTRAST UNAVAILABLE RING ON/OFF PBX NUMBER A. RING ON/OFF To turn on or off the ringing sound.

  • Page 20: Pbx Mode

    from your local telephone company. E. AREA CODE 1. Press and hold the MENU/ MUTE button. 2. Press the TELEPHON KEYPAD #5 button. 3. Press the EDIT/FLASH button. 4. Use the TELEPHONE KEYPAD buttons to enter the three digit area code. 5.

  • Page 21: Auto Answer On/Off

    The 36077 features a sophisticated Digital Answering System. Incoming Mcssages(ICMs), Outgoing Message(OGM) and Memo messages are stored electronically into digital memory. Messages are accessed instantly and arranged compactly in this memory. The 36077 can store 15 minutes of message(ICMs, OGM and Memos Combined).

  • Page 22: Setting Code

    2 ring by setting the RINGS switch on the Toll Saver (TS) position. If your 36077 fails to answer on the 2 ring , then you know that you do not have any new incoming Message(s)(ICM). You can hang up before the unit answers and save the cost of the call.
  • Page 23 NOTE: The factory preset password is "159". OUTGOING MESSAGE (OGM) This is the announcement callers will hear when 36077 answers a call. The 36077 also has a default OGM (factory preset) which is active when there is no OGM present.

  • Page 24: Play Messages

    After a successful password entry , the Remote Operation function is on. Once you have activated the Remote Operation function through a tone dialing phone to call the 36077. The 36077 will announce the total number of new message(s) in Message (MSG) box.

  • Page 25: Improving Cordless Reception

    The following tabic lists announcements made after you have pressed 9: Action Message main menu Repeat message Repeats the current message To skip message Skips forward to the next message Delete message Deletes current message To stop function Stops current function During message or memo playback Key press Replay previous message...

  • Page 26: Technical Information

    12 hours. Once the Ni-Cd battery is fully discharged, you may now charge the battery to its full capacity. CHARGING Make sure the adapter and telephone line cord are connected to the 36077. Place the handset on the base cradle. The CHARGE LED indicator of the base unit will light steadily.

  • Page 27: Telephone Unit Troubleshooting Table

    TROUBLESHOOTING A. TELEPHONE UNIT TROUBLESHOOTING TABLE SYMPTOM SOLUTION • Check the telephone line cord connectors at both ends that they are pushed in No dial firmly until they click. tone • If you had a power failure or had unplugged the base unit, replace the handset on the base unit for two to five seconds to reset the system.
  • Page 28 B. CALLER ID SYSTEM TROUBLESHOOTING TABLE SYMPTOM SOLUTION The Caller ID • Check the power connection. panel is blank • Check the telephone line cord connections. • Check the batteries for proper installation. The Caller ID does • The Caller ID unit will not function until you have Caller ID service not show the caller's provided by your local phone company.
