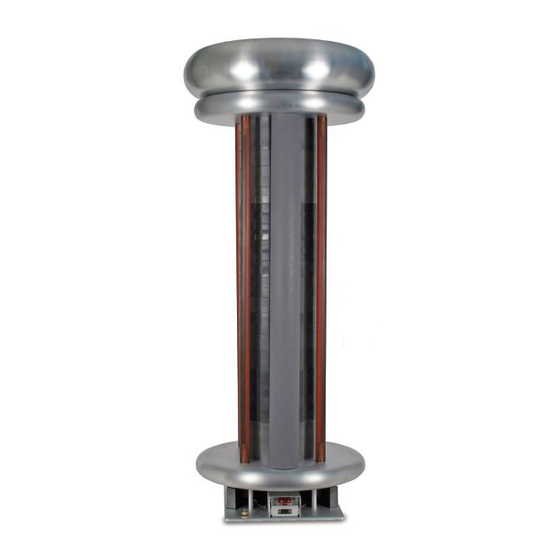

  • Page 1 Instruction Manual SLS SERIES High Voltage Power Supply MODEL : SERIAL# : DATE : SPELLMAN HIGH VOLTAGE ELECTRONICS CORPORATION 475 Wireless Blvd. Hauppauge, New York, 11788 +1(631) 630-3000*FAX: +1(631) 435-1620* E-mail: sales@spellmanhv.com Website: www.spellmanhv.com 118131-001 Rev A SLS MANUAL...

  • Page 2: Power Supply

    Slow start times: 6 seconds standard. Corporate Headquarters www.spellmanhv.com 128016-001 REV. F Hauppauge, New York USA Spellman High Voltage is an ISO 9001:2008 and ISO 14001:2004 registered company +1-631-630-3000 FAX: +1-631-435-1620 e-mail: sales@spellmanhv.com Copyright © 2004 Spellman High Voltage Electronics Corp.
  • Page 3 CONNECTION TO HV TRANSFORMER ASSEMBLY 160kV Model Corporate Headquarters www.spellmanhv.com 128016-001 REV. F Hauppauge, New York USA Spellman High Voltage is an ISO 9001:2008 and ISO 14001:2004 registered company +1-631-630-3000 FAX: +1-631-435-1620 e-mail: sales@spellmanhv.com Copyright © 2004 Spellman High Voltage Electronics Corp.

  • Page 4: Important Safety Precautions

    CAUTION notes in the text indicate procedures to be followed to avoid possible damage to equipment. Copyright © 2000, Spellman High Voltage Electronics Corporation. All Rights Reserved. This information contained in this publication is derived in part from proprietary and patent data. This information has...

  • Page 5: Wichtige Sicherheitshinweise

    WICHTIGE SICHERHEITSHINWEISE SICHERHEIT DIESES HOCHSPANNUNGSNETZTEIL ERZEUGT LEBENSGEFÄHRLICHE HOCHSPANNUNG. SEIN SIE SEHR VORSICHTIG BEI DER ARBEIT MIT DIESEM GERÄT. Das Hochspannungsnetzteil muß immer geerdet sein. Berühren Sie die Stecker des Netzteiles nur, wenn das Gerät ausgeschaltet ist und die elektrischen Kapazitäten des Netzteiles und der angeschlossenen Last entladen sind. Die internen Kapazitäten des Hochspannungsnetzteiles benötigen ca.
  • Page 6 PRECAUTIONS IMPORTANTES POUR VOTRE SECURITE CONSIGNES DE SÉCURITÉ ETTE ALIMENTATION GÉNÈRE DES TENSIONS QUI SONT DANGEUREUSES ET PEUVENT ÊTRE FATALES OYEZ EXTRÊMENT VIGILANTS LORSQUE VOUS UTILISEZ CET ÉQUIPEMENT Les alimentations haute tension doivent toujours être mises à la masse. Ne touchez pas les connectiques sans que l’équipement soit éteint et que la capacité à la fois de la charge et de l’alimentation soient déchargées.
  • Page 7 IMPORTANTI PRECAUZIONI DI SICUREZZA SICUREZZA QUESTO ALIMENTATORE GENERA TENSIONI CHE SONO PERICOLOSE E POTREBBERO ESSERE MORTALI. PONI ESTREMA CAUTELA QUANDO OPERI CON QUESO APPARECCHIO. Gli alimentatori ad alta tensione devono sempre essere collegati ad un impianto di terra. Non toccare le connessioni a meno che l’apparecchio sia stato spento e la capacità interna del carico e dell’alimentatore stesso siano scariche.

  • Page 8: Table Of Contents

    Table of Contents PAGE 1. INTRODUCTION Description of the SLS Series ................1 Standard Features ....................2 1.2.1 Remote Operating Features ..............2 1.2.2 System Status and Fault Diagnostic Display ........2 Options .........................3 Interpreting the Model Number ................4 2. INSPECTION & INSTALLATION Initial Inspection ....................5 Mechanical Installation ..................5...
  • Page 9 High Voltage Dividers ..................22 7. REPLACEMENT PARTS Replacement Parts ....................23 Correspondence and Ordering Spare Parts ............23 8. FACTORY SERVICE 8.1 Warranty Repairs ....................24 8.2 Factory Service Procedures .................24 8.3 Ordering Options and Modifications ..............24 8.4 Shipping Instructions ...................24 SLS SERIES MANUAL 118132-001 RevA...

  • Page 10: List Of Figures

    LIST OF FIGURES Figure 2.1 SLS Series Dimensions ................6 Figure 3.1 SLS Series Typical Operating Set Up ............10 Figure 3.2A Wiring Diagram for Remote Programming via Voltage Source ....12 Figure 3.2B Wiring Diagram for Remote Programming via External Resistance ..12 Figure 3.3...

  • Page 11: Introduction

    (minimum of 1 inch for each 10kV of high without damage or interruptions. voltage). The SLS Series offer outputs from 160kV to 360kV via d) Make certain the entire high voltage stack an inverter chassis and separate high voltage “stack”...

  • Page 12: Standard Features

    The 1.2 Standard Features unit will not operate unless the interlock circuit is The SLS Series incorporates several standard features closed. During high voltage operation, opening the designed to optimize user satisfaction and safety.

  • Page 13: Options

    With few exceptions, these options and modifications can be retrofitted to your Arc Trip power supply at the factory. For price and retrofit arrangements, contact the Spellman Sales Department. Constant Power Control SS(X) Non-Standard Slow Start (X = seconds) No Slow Start...

  • Page 14: Interpreting The Model Number

    4. the option codes for all options that are included. Custom units have an X number after the option codes. 2000 / AT / X (#) Series Option Polarity Name Custom “X” Maximum Maximum Number Voltage Power SLS SERIES MANUAL 118132-001 RevA...

  • Page 15: Inspection & Installation

    Assure adequate air insulation spacings are used in the setup and mounting of the stack assembly Units in the SLS Series are typically comprised to two (minimum of 1 inch for each 10kV of high parts: the inverter rack and the high voltage output stack.
  • Page 16 Figure 2.1 – SLS Series Typical Dimensions (SLS180P2000 shown) SLS SERIES MANUAL 118132-001 RevA...

  • Page 17: Operating Instructions

    B) Check the input voltage rating on the nameplate of should be illuminated. the supply and make certain that this is the rating of the available power source. Standard SLS Series Depress and hold the green HIGH VOLTAGE OFF units operate on 220Vac, three phase.

  • Page 18: Standard Features

    NOTE: The SLS Series is equipped with a slow start 3.2 Standard Features circuit that ramps the output up to its maximum Whenever possible, electrical isolation should be used setting in approximately 6 seconds after the red when interfacing with any high voltage power supply.
  • Page 19 During high voltage status: voltage control or current control. See Figure operation if these connections are opened the unit 3.8 on page 17 for the recommended interface. will revert to the HIGH VOLTAGE OFF mode. SLS SERIES MANUAL 118132-001 RevA...

  • Page 20: Table 3.1 System Cables

    Figure 3.1 -- Typical Operating Setup Item Description Inverter Output Cable Feedback Cable Ground Cable Load Return Cable (customer provided) System Ground Cable (customer provided) Table 3.1 System Cables SLS SERIES MANUAL 118132-001 RevA...
  • Page 21 Remote PS Fault 0 = Fault, +15V, 0.1 Ma Max = No Fault +15V Output +15V, 100mA Max Power Supply Common Signal Ground Shield Return Chassis Ground Table 3.2 - Rear Panel Interface 25 pin Mini D SLS SERIES MANUAL 118132-001 RevA...
  • Page 22 Figure 3.2A -- Wiring Diagram for Remote Programming via Voltage Figure 3.2B -- Wiring Diagram for Remote Programming via External Potentiometers SLS SERIES MANUAL 118132-001 RevA...

  • Page 23: Figure 3.3 Remote Monitor Test Points

    Opening S1 will disable HIGH VOLTAGE ON and 25mA max., and are only to be used for contact switch the unit to the HIGH VOLTAGE OFF mode. closure. Figure 3.4 Remote Control Of High Voltage On and High Voltage Off Interface SLS SERIES MANUAL 118132-001 RevA...

  • Page 24: Figure 3.5 External Inhibit Interface Circuit

    Figure 3.5 -- External Inhibit Interface Circuit Figure 3.6 -- External Interlock Interface SLS SERIES MANUAL 118132-001 RevA...
  • Page 25 Figure 3.7 -- Remote High Voltage On and Remote High Voltage off Indicator SLS SERIES MANUAL 118132-001 RevA...
  • Page 26 Figure 3.8 -- Remote Mode Indicators Interface SLS SERIES MANUAL 118132-001 RevA...

  • Page 27: Principles Of Operation

    Chapter 4 RINCIPLES PERATION The SLS Series of high voltage power supplies utilizes WARNING sophisticated power conversion technology. A variety of analog, digital and power conversion techniques are used. The intention of the Principles of Operation is to The energy levels used and generated by the...

  • Page 28: Inverter

    PWB also provides circuitry for sensing simultaneous DVM’s. This allows the user to preset the desired output conduction and overcurrent conditions in the inverter. before energizing high voltage. SLS SERIES MANUAL 118132-001 RevA...

  • Page 29: Front Panel Assembly

    Due to the many variations of models and options provided in the SLS Series, details of actual circuits used The resonant control circuitry consists of a voltage to may differ slightly from the above descriptions. Consult frequency and a voltage to pulse width converter.

  • Page 30: Adjustable Overload Trip

    5.2 200Vac Single Phase Input--200 The Power Supply will generate programmed SLS Series power supplies with the 200Vac input option High Voltage whenever the circuit breaker is in will operate from an input voltage of 200Vac 10%, the ON position, and line voltage is applied.

  • Page 31: External Fault Relay

    SLS Series power supply. A standard SLS power supply will revert to the 5.8 Custom Designed Models-X# “power down”...

  • Page 32: Sls Series Manual 118132-001 Reva

    High voltage test procedures are described in Bulletin The data sheet for Spellman’s series of HVD dividers can STP-783, Standard Test Procedures for High Voltage be viewed by clicking here.

  • Page 33: Correspondence And Ordering Spare Parts

    7.1 Replacement Parts 7.2 Correspondence and Ordering Spare Parts Contact the Spellman Customer Service Department for parts lists for specific models. Each power supply has an identification label on the rear of the chassis that bears its model and serial number.

  • Page 34: Factory Service Procedures

    The Warranty is void if the unit is worked into Spellman’s power supplies by our factory. For prices on by other than Spellman personnel. See the Warranty in and arrangements, contact the Spellman Sales Department. the rear of this manual for more information. Follow the return procedures described in Section 8.2.
  • Page 35 The buyer’s sole remedy for a claimed breach of this warranty, and Spellman’s sole liability is limited, at Spellman’s discretion, to a refund of the purchase price or the repair or replacement of the power supply at Spellman’s cost. The buyer will be responsible for shipping charges to and from Spellman’s plant. The buyer will not be entitled to make claim for, or recover, any anticipatory profits, or incidental, special or consequential damages resulting from, or in any way relating to, an alleged breach of this warranty.

This manual is also suitable for:

Sls160*2000Sls200*2000Sls260*2000Sls300*2000Sls360*2000
