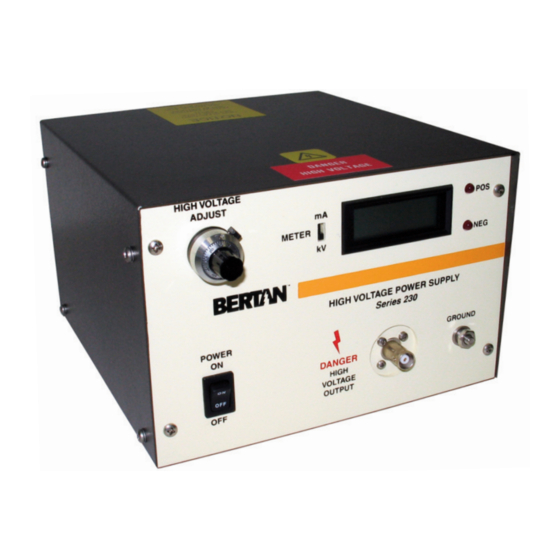

Spellman 230 Series Instruction Manual

Bertan bench top high voltage power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

R
Instruction Manual
230 SERIES
Bench Top High Voltage Power Supply
SPELLMAN
HIGH VOLTAGE ELECTRONICS
CORPORATION
One Commerce Park
Valhalla, New York, 10595
+1(914) 686-3600 * FAX: +1(914) 686-2870
E-mail:
sales@spellmanhv.com
Website:
http://www.spellmanhv.com
230 Series User's Manual
118127-001 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 230 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spellman 230 Series

Summary of Contents for Spellman 230 Series

  • Page 1 Instruction Manual 230 SERIES Bench Top High Voltage Power Supply SPELLMAN HIGH VOLTAGE ELECTRONICS CORPORATION One Commerce Park Valhalla, New York, 10595 +1(914) 686-3600 * FAX: +1(914) 686-2870 E-mail: sales@spellmanhv.com Website: http://www.spellmanhv.com 230 Series User’s Manual 118127-001 Rev A...

  • Page 2: High Voltage

    0.01%/hour, 0.02% per 8 hours after a 1/2 hour warm up e-mail: sales@spellmanhv.com +1-631-630-3000 FAX: +1-631-435-1620 +44 (0)1798 877000 FAX: +44 (0)1798 872479 www.spellmanhv.com 128051-001 REV.D JAPAN +81 (0)48-447-6500 FAX: +81 (0)48-447-6501 CHINA +86 (0)512-67630010 FAX: +86 (0)512-67630030 Spellman High Voltage is an ISO 9001:2000 and ISO 14001:2004 registered company...
  • Page 3 BACK VIEW e-mail: sales@spellmanhv.com +1-631-630-3000 FAX: +1-631-435-1620 +44 (0)1798 877000 FAX: +44 (0)1798 872479 www.spellmanhv.com 128051-001 REV.D JAPAN +81 (0)48-447-6500 FAX: +81 (0)48-447-6501 CHINA +86 (0)512-67630010 FAX: +86 (0)512-67630030 Spellman High Voltage is an ISO 9001:2000 and ISO 14001:2004 registered company...

  • Page 4: Important Safety Precautions

    CAUTION notes in the text indicate procedures to be followed to avoid possible damage to equipment. Copyright © 2000, Spellman High Voltage Electronics Corporation. All Rights Reserved. This information contained in this publication is derived in part from proprietary and patent data. This information has...

  • Page 5: Wichtige Sicherheitshinweise

    WICHTIGE SICHERHEITSHINWEISE SICHERHEIT DIESES HOCHSPANNUNGSNETZTEIL ERZEUGT LEBENSGEFÄHRLICHE HOCHSPANNUNG. SEIN SIE SEHR VORSICHTIG BEI DER ARBEIT MIT DIESEM GERÄT. Das Hochspannungsnetzteil muß immer geerdet sein. Berühren Sie die Stecker des Netzteiles nur, wenn das Gerät ausgeschaltet ist und die elektrischen Kapazitäten des Netzteiles und der angeschlossenen Last entladen sind. Die internen Kapazitäten des Hochspannungsnetzteiles benötigen ca.
  • Page 6 PRECAUTIONS IMPORTANTES POUR VOTRE SECURITE CONSIGNES DE SÉCURITÉ ETTE ALIMENTATION GÉNÈRE DES TENSIONS QUI SONT DANGEUREUSES ET PEUVENT ÊTRE FATALES OYEZ EXTRÊMENT VIGILANTS LORSQUE VOUS UTILISEZ CET ÉQUIPEMENT Les alimentations haute tension doivent toujours être mises à la masse. Ne touchez pas les connectiques sans que l’équipement soit éteint et que la capacité à la fois de la charge et de l’alimentation soient déchargées.
  • Page 7 IMPORTANTI PRECAUZIONI DI SICUREZZA SICUREZZA QUESTO ALIMENTATORE GENERA TENSIONI CHE SONO PERICOLOSE E POTREBBERO ESSERE MORTALI. PONI ESTREMA CAUTELA QUANDO OPERI CON QUESO APPARECCHIO. Gli alimentatori ad alta tensione devono sempre essere collegati ad un impianto di terra. Non toccare le connessioni a meno che l’apparecchio sia stato spento e la capacità interna del carico e dell’alimentatore stesso siano scariche.

  • Page 8: Table Of Contents

    TABLE OF CONTENTS Paragraph Title Page SECTION 1 - GENERAL INFORMATION Purpose of the Equipment Description Options Safety Terms SECTION 2 - OPERATION Installation Front Panel Controls and Displays Rear Panel Controls, Connectors and Terminals Polarity Reversing Preparations for Use Local Operation Remote Operation Computer Programming...

  • Page 9: Paragraph 2.4

    SECTION 2 OPERATION 1.1 PURPOSE OF THE EQUIPMENT 2.1 INSTALLATION The Series 230 is a family of regulated precision WARNING! This unit produces hazardous laboratory high voltage power supplies. They provide exceptional performance in critical voltage. Do not apply line voltage input unless applications such as nuclear and electro-optical adequate ground is connected to the unit and the high voltage output has been properly...

  • Page 10: Rear Panel Controls, Connectors And Terminals

    A continuous multi-turn digital dial is used to mechanism that is easily accessible upon adjust the high voltage output. The resolution removal of the top cover. The polarity reversal 0.2% of maximum. module is a clear plastic assembly identified by the exiting silicone high voltage cables.

  • Page 11: Local Operation

    Set the front panel controls to: is reached. Apply power to the load by a. Power Switch - OFF switching the High Voltage - ON. The output b. Output Voltage Switch(s) – 0 (205B will quickly reach the value set by the controls. only).

  • Page 12: Computer Programming

    All Series 230 instruments can be provided with Enable/Disable. Input logic zero disables high voltage generation. Open circuit or input a factory-installed option for remote digital logic one enables high voltage generation. programming of the high voltage output. The Precision +5Vdc reference output referenced programming inputs are TTL compatible and the to analog ground.

  • Page 13: Input Power

    used, with logic 0 on all 16 data lines needed for Pin 23: Enable. If strapped to "0" or open the 0 volts output. output of the latch (input of the DAC) is at high impedance and the input of the DAC set to zero. The incremental resolution is a function of the If strapped to "1"...

  • Page 14: High Voltage Output

    The high voltage output connector is located on voltage power supplies. The B+ supply is a the rear panel. An appropriate shielded mating filtered full wave rectifier circuit located on the connector is supplied with each unit. These chassis. The regulated low voltage power connectors are as listed in Table 2.3.

  • Page 15: Section 4 - Maintenance

    4.3 CALIBRATION SERVICES maximum current at zero output voltage. Maximum output current available at any Your BERTAN high voltage power supply is desired voltage can be calculated by applying designed to provide many years of reliable the following formula: service. For a nominal charge it can be returned to the factory for calibration and certification to Imax = Vset(.7Irated/Vrated)+.3Irated its original specification.
  • Page 16 The buyer’s sole remedy for a claimed breach of this warranty, and Spellman’s sole liability is limited, at Spellman’s discretion, to a refund of the purchase price or the repair or replacement of the power supply at Spellman’s cost. The buyer will be responsible for shipping charges to and from Spellman’s plant. The buyer will not be entitled to make claim for, or recover, any anticipatory profits, or incidental, special or consequential damages resulting from, or in any way relating to, an alleged breach of this warranty.
