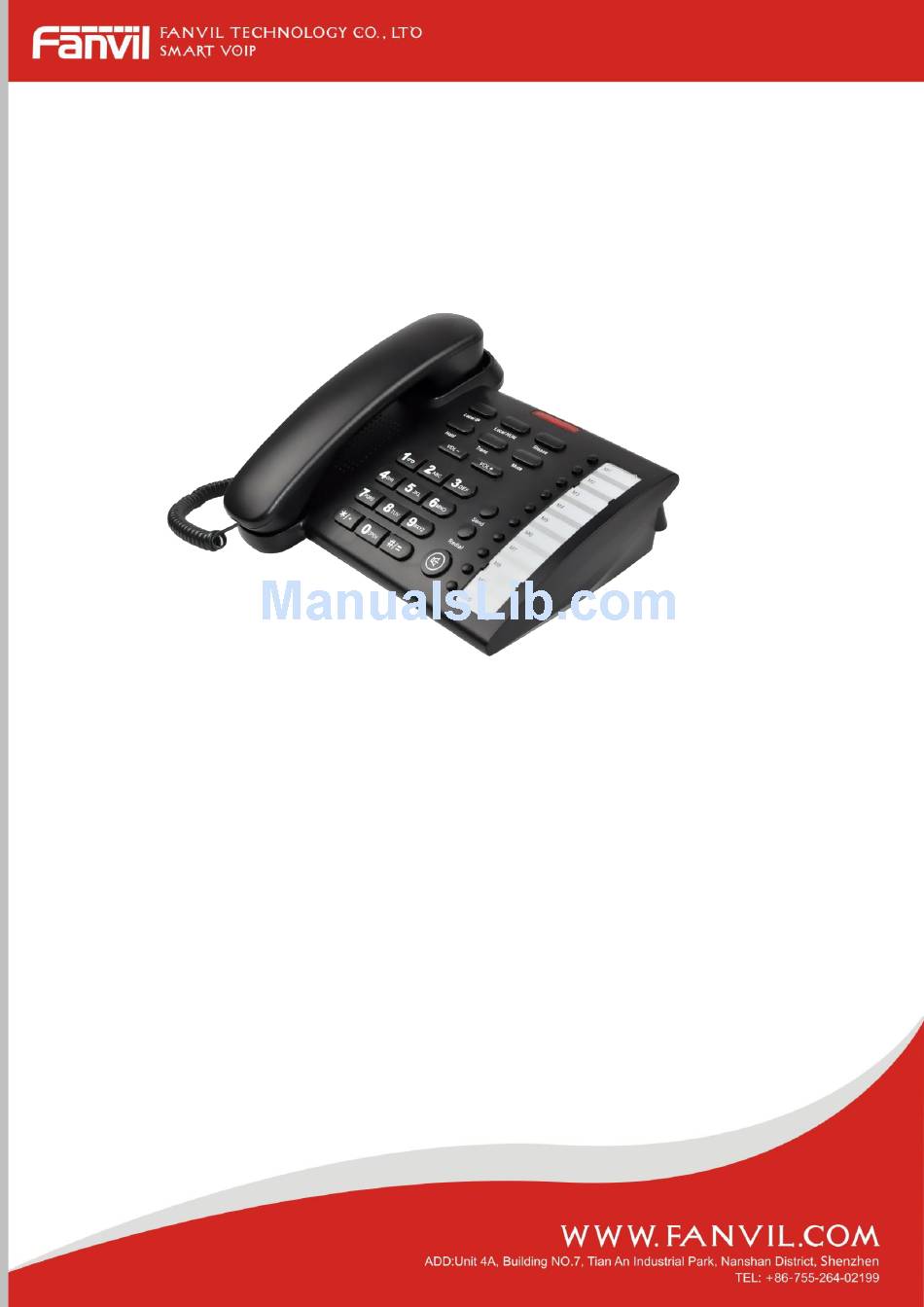

Fanvil Product User Manual
IP Phone
Model: BW206
© 2005 Fanvil technology Co,. Ltd
All rights reserved.
This document is supplied by Fanvil Technology Co., Ltd, No part of this document may
be reproduced, republished or retransmitted in any form or by any means whatsoever,
whether electronically or mechanically, including, but not limited to, by way of
photocopying, recording, information recording or through retrieval systems, without
the express written permission of Fanvil Technology Co., Ltd. Fanvil Technology Co., Ltd
reserves the right to revise this document and make changes at any time and without the
obligation to notify any person and/or entity of such revisions and/or changes. Product
specifications contained in this document are subject to change without notice.

Advertisement

Table of Contents
loading

Related Manuals for Fanvil BW206

Summary of Contents for Fanvil BW206

  • Page 1 © 2005 Fanvil technology Co,. Ltd All rights reserved. This document is supplied by Fanvil Technology Co., Ltd, No part of this document may be reproduced, republished or retransmitted in any form or by any means whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying, recording, information recording or through retrieval systems, without the express written permission of Fanvil Technology Co., Ltd.

  • Page 2: Safety Notices

    Safety Notices Please read the following safety notices before installing or using this phone. They are crucial for the safe and reliable operation of the device.  Please use the external power supply that is included in the package. Other power supplies may cause damage to the phone, affect the behavior or induce noise.

  • Page 3: Table Of Contents

    Table of Content INTRODUCING BW206 VOIP PHONE ...................... 4 1.1. T BW206 ....................4 HANK YOU FOR YOUR PURCHASING 1.2. D ............................4 ELIVERY ONTENT PLEASE CHECK WHETHER THE DELIVERY CONTAINS THE FOLLOWING PARTS: ...... 4 THE BASE UNIT WITH KEYPAD ........................4 THE HANDSET ...............................

  • Page 4: Introducing Bw206 Voip Phone

    1. Introducing BW206 VoIP Phone 1.1. Thank you for your purchasing BW206 Thank you for your purchasing BW206, BW206 is a full-feature telephone that provides voice communication over the same data network that your computer uses. This phone functions not only much like a traditional phone, allowing to place and receive calls, and enjoy other features that traditional phone has, but also it own many data services features which you could not expect from a traditional telephone.

  • Page 5: Key Mapping

    Key mapping: Key name Function Description Local IP Press speaker, and then press the key, you would hear the human voice with phone’s active IP address. Local Numer Press speaker, and then press the key, you would hear the human voice with phone’s SIP phone number. Release During talking by handset, pressing the key would let you close the current call and get new dial tone.

  • Page 6: Initial Connecting And Setting

    2. Initial connecting and Setting 2.1. Connect the phone Step 1: Connect the IP Phone to the corporate IP telephony network. Before you connect the phone to the network, please check if your network can work normally. You can do this in one of two ways, depending on how your workspace is set up. Direct network connection—by this method, you need at least one available Ethernet port in your workspace.

  • Page 7: Initial Setting

    2.2. Initial Setting This VoIP Phone provides you with rich function and parameters setting. If you have enough knowledge about network and SIP protocol, it is better for you to understand many parameters. But if you know little about network and SIP protocol, you can also easily make initial setting according to the following steps to enjoy rapidly high quality voice and low cost from this VoIP Phone.

  • Page 8: Basic Functions

    3. Basic Functions 3.1. Basic operation 3.1.1. Accepting a call There are four methods to accept an incoming call:  Pick up handset to accept incoming calls.  Press the button.  If you need switch from a hands-free call to handset, please pick up the handset directly. ...

  • Page 9: Transferring A Call

     Hangs up a call in call waiting state. If you are in call waiting state, you could press # key to hang up the current call, and switch to the other call to keep talking. Note: Pressing # key will not hang up if there is only one call currently. 3.1.4.

  • Page 10: Special Keys

    3.2.1. Special Keys  Realize Secondary Dial by Dialing for only one time When you make secondary dial in off-hook/handsfree mode, press key to postpone input. One hold(--) stands for 2 seconds. For example, you input 123--45, the phone will send DTMF(45) 2 seconds after the phone call 123.

  • Page 11: Click To Dial

    3.2.5. Click to dial When user A browses in an appointed Web page, user A can click to call user B via a link (this link to user B), then user A’s phone will ring, after A hooks off, the phone will dial to B.

  • Page 12: Setting

    4. Setting 4.1. Setting methods VoIP Phone is different from the traditional phone; it need be set to make it active. If your VoIP service provider asks you to set this phone, you can do it easily according to the following methods. This VoIP Phone can be set via three different setting methods: The web browser on PC Telnet...

  • Page 13: Configuration Via Web

    4.3.1.2. Wizard Wizard Field Name Explanation Please select the proper network mode according to the network condition. BW206 provide three different network settings:  Static: If your ISP server provides you the static IP address, please select this mode, and then finish Static Mode setting.
  • Page 14 Static IP Address Input the IP address distributed to you. Netmask Input the Netmask distributed to you. Gateway Input the Gateway address distributed to you. DNS Domain Set DNS domain postfix. When the domain which you inputted can not be parsed, phone will automatically add this domain to the end of the domain which you inputted before and parse it again.

  • Page 15: Network

    Password Input your ADSL password. Notice: Click【Finish】button after finish your setting, IP Phone will save the setting automatically and reboot. After reboot, you can dial by the SIP account. 4.3.1.3. Call Log You can look up all the outgoing calls through this page. Call Log Field name explanation...
  • Page 16 Active IP The current IP address of the phone. Current Netmask The current Netmask address. MAC Address The current MAC address of the phone. Current Gateway The current Gateway IP address. Get MAC Time Shows the time of getting MAC address Please select the proper network mode according to the network condition.
  • Page 17 status and network ID is also same as LAN’s, phone will refuse to accept the IP to configure WAN. 4.3.2.2. QoS Config The VOIP phone support 802.1Q/P protocol and DiffServ configuration. VLAN functionality can use different VLAN IDs by setting signal/voice VLAN and data VLAN. The VLAN application of this phone is very flexible.

  • Page 18: Qos Configuration

    QoS Configuration Field name explanation VLAN Enable Before select it to enable VLAN, you need enable Bridge mode in LAN config. Enable VLAN ID check by selecting it. After enable VLAN ID VLAN ID Check Enable check, if VLAN ID of a data package is not the same with the phone’s or a data package do not have VLAN ID, the data package will be discarded.

  • Page 19: Service Port

    packets will discard. Contrarily, the phone will accept the packets with the distinct VLAN 7) You must gain the IP with the Static mode when you set VLAN, otherwise can't gain the IP in the VLAN and also can not dial with point to point. 4.3.2.3.

  • Page 20: Voip

    SNTP Field name explanation Server Set SNTP Server IP address. Time Zone Select the Time zone according to your location. Time Out Set the time out, the default is 60 seconds. 12 Hours Systems Switch the time mechanism between 12 hours and 24 hours. Default is 24 hours mode SNTP Select the SNTP, and click Apply to make the SNTP Times...

  • Page 21: Sip Config

    SIP Config Field name explanation Choose line to set info about SIP, there are 2 lines to choose. You can switch by 【Load】 button. Register Status Shows if the phone has been registered the SIP server or not; or so, show Unapplied; Server Name Set the server name.
  • Page 22 Phone Number Input the phone number assigned by your VoIP service provider. Phone will not register if there is no phone number configured. Display Name Set the display name. Set proxy server IP address（Usually, Register SIP Server configuration is the same as Proxy SIP Server. But if your VoIP Proxy Server Address service provider give different configurations between Register SIP Server and Proxy SIP Server, you need make different...

  • Page 23: Stun Config

    Server Type Select the special type of server which is encrypted, or has some unique requirements or call flows. Select DTMF sending mode, there are three modes:  DTMF_RELAY  DTMF Mode DTMF_RFC2833  DTMF_SIP_INFO Different VoIP Service providers may provide different modes. Select SIP protocol version to adapt for the SIP server which uses RFC Protocol Edition the same version as you select.

  • Page 24: Dial Peer Setting

    STUN Field name explanation STUN NAT Transverse Shows STUN NAT Transverse estimation, true means STUN can penetrate NAT, while False means not. STUN Server Addr Set your SIP STUN Server IP address STUN Server Port Set your SIP STUN Server Port Set STUN Effective Time.

  • Page 25: Dial Peer

    1、x Match any single digit that is dialed. If user makes the above configuration, after user dials 11 digit numbers started with 13, the phone will send out 0 plus the dialed numbers automatically. 2、 [] Specifies a range that will match digit. It may be a range, a list of ranges separated by commas, or a list of digits.
  • Page 26 Note: There are four types of aliases. 1) add: xxx, it means that you need dial xxx in front of phone number, which will reduce dialing number length. 2) all: xxx, it means that xxx will replace some phone number. 3) del: It means that phone will delete the number with length appointed.

  • Page 27: Phone

    The phone will automatically When dial “8309“, SIP1 send out alias number adding your dialed number, if your server will receive “07558309” dialed number starts with your set phone number. You need set Phone Number, Alias and Delete Length. Phone When dial “0106228”, the SIP1...

  • Page 28: Dsp Configuration

    DSP Configuration Field name explanation First Codec The fist preferential DSP codec: G.711A/u, G.722, G.723, G.729, G.726 Second Codec The second preferential DSP codec: G.711A/u, G.722, G.723, G.729,G.726 Third Codec The third preferential DSP codec: G.711A/u, G.722, G.723, G.729,G.726 Forth Codec The forth preferential DSP codec: G.711A/u, G.722, G.723, G.729,g.726 Fifth Codec...

  • Page 29: Call Service

    Call Service Field name explanation Hotline Specify Hotline number. If you set the number, you can not dial any other numbers. No Answer Time Specify No Answer Time Set Prefix in peer to peer IP call. For example: what you want to dial is P2P IP Prefix 192.168.1.119, If you define P2P IP Prefix as 192.168.1., you dial only #119 to reach 192.168.1.119.

  • Page 30: Digital Map Configuration

    4.3.4.3. Digital Map Configuration This phone supports 4 dial modes: 1). End with “#”: dial your desired number, and then press #. 2). Fixed Length: the phone will intersect the number according to your specified length. 3). Time Out: After you stop dialing and waiting time out, system will send the number collected. 4).

  • Page 31: Maintenance

    911: Cause 911 to be dialed immediately after it is entered. 99T4: Cause 99 to be dialed after 4 seconds. 9911x.T4: Cause any number started with 9911 to be dialed 4 seconds after dialing ceases. Notice: End with “#”, Fixed Length, Time out and Digital Map Table can be used simultaneously, System will stop dialing and send number according to your set rules.

  • Page 32: Syslog Config

    keep blank. Password Set FTP server Password. Set configuration file’s name which need to update. System will use Config File Name MAC as config file name if config file name keep blank. For example, 000102030405.。 Config Encrypt Key Input the Encrypt Key, if the configuration file is encrypted. Protocol Type Select the Protocol type FTP、TFTP or HTTP.

  • Page 33: Config Setting

    4.3.5.3. Config Setting Config Setting Field name explanation You can save all changes of configurations. Click the Save button, Save Config all changes of configuration will be saved, and be effective immediately. . Right clicks on “Right click here…” and select “Save Target As….” Backup Config then you will save the config file in .txt format User can restore factory default configuration and reboot the phone.

  • Page 34: Account Config

    can be IP address or Domain name with subdirectory. Username Set the FTP server Username for download/upload. Password Set the FTP server password for download/upload. File name Set the name of update file or config file. The default name is the MAC of the phone, such as 000102030405.

  • Page 35: Security

    General can only read. Password Set the password. Confirm Confirm the password. Select the account and click the Modify to modify the selected account, and click the Delete to delete the selected account. General user only can add the user whose level is General. 4.3.5.6.

  • Page 36: Firewall Configuration

    MMI Filter Select it or not to enable or disable MMI Filter. Click Apply to make it effective. Notice: Do not set your visiting IP outside the MMI filter range; otherwise, you can not logon through the web. 4.3.6.2. Firewall Firewall Configuration In this web interface, you can set up firewall to prevent unauthorized Internet users from accessing private networks connected to the Internet (input rule), or prevent unauthorized...

  • Page 37: Logout

    Deny/Permit Specify current adding rule by selecting Deny rule or Permit rule. Protocol Type Filter protocol type. You can select TCP, UDP, ICMP, or IP. Port Range range Set the filter Port Src Addr Set source address. It can be single IP address, network address, complete address 0.0.0.0, or network address similar to *.*.*.0 Des Addr Set the destination address.

  • Page 38: Appendix

    5. Appendix 5.1. Specification 5.1.1. Device specification Item this VoIP Phone Adapter(Input/Output) Input:100-240VAC 50～60Hz Output:5V/1A 10/100Base- T RJ-45 for LAN, Auto MDIX Port 10/100Base- T RJ-45 for PC, Auto MDIX Power Consumption Idle:1.5W/Active:1.8W Operation Temperature 0～40℃ Relative Humidity 10～65% Main Chipset Broadcom SDRAM 8Mbits...
