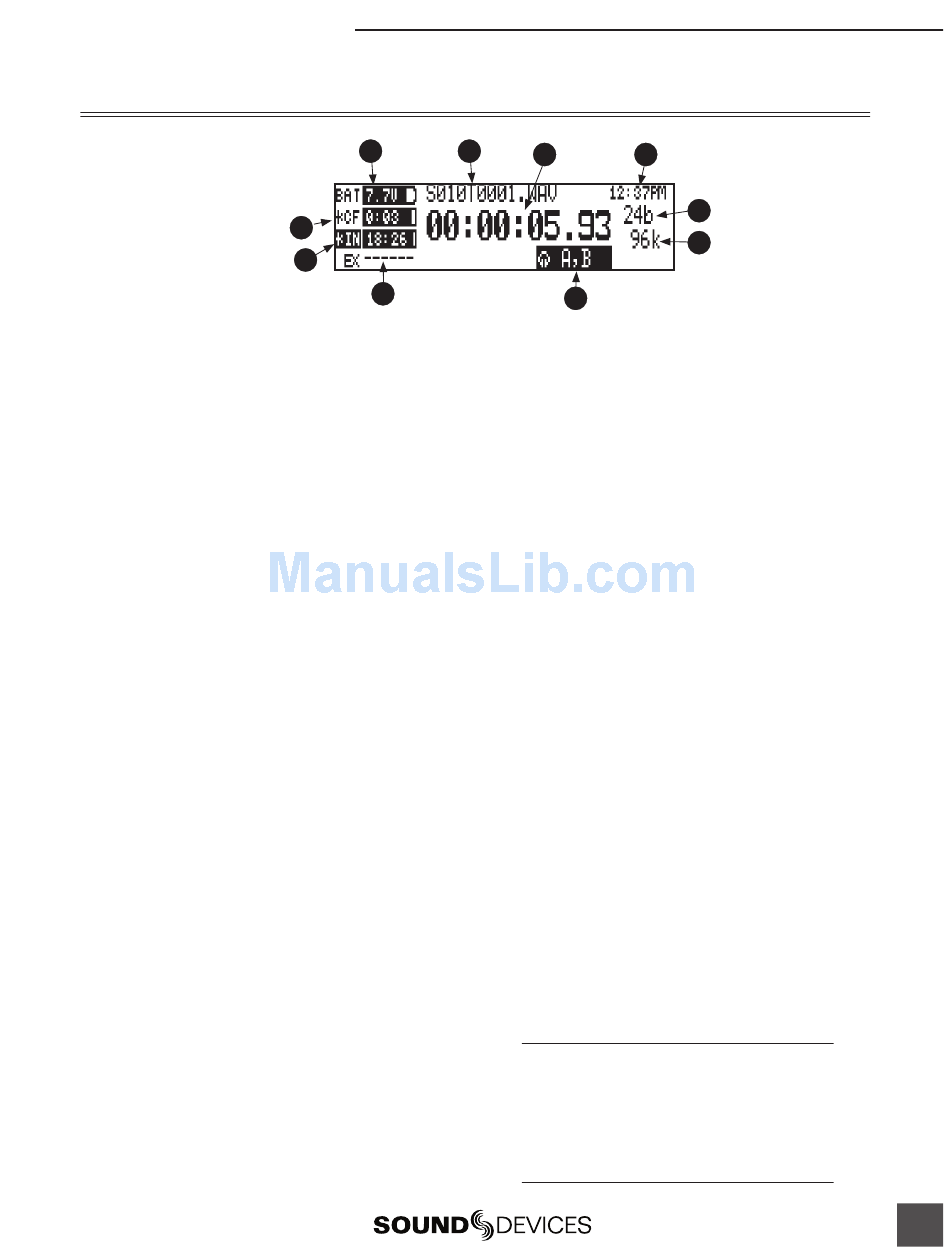

LCD Display Descriptions

Battery Level Indicator
1)
Shows the voltage level of the remov-
able rechargeable battery or external
power sources. External power over-
rides internal power when present.
Graphical bar for relative level and
numeric indicator for precise voltage
measurement.
File Name Display
2)
Shows fi le name actively being recorded
or played back. In playback-stop mode,
fl ashing fi le name indicates that the fast-
forward and rewind keys can be used to
step through fi les in the current play-
back directory.
Absolute Time (A-time) Display
3)
Shows the elapsed time of the fi le be-
ing recorded or played back. Flashes
in playback pause mode. In this mode
the FF/REW keys will scrub through
an open audio fi le. This display can be
set to reverse or fl ash during recording.
Flashes in playback-pause mode.
Time & Date Display
4)
Alternating display between the set date
and time of the 744T. This information is
written as the creation and modifi cation
date for generated audio fi les.
Bit Depth Indicator
5)
Shows the set record bit depth. In play-
back, shows the fi le bit depth.
Sample Rate Indicator
6)
Shows the set record sample rate. In
playback, shows the fi le sample rate.
1 2
10
9
8
722 User Guide and Technical Information
3 4
5
6
7
Headphone Source Display
7)
Indicates the source for headphone out-
put. Sources and selection order are user
selectable in the setup menus.
External Drive Status
8)
(space remaining/record ready)
Bar graph indicates amount of record
time remaining on the external FireWire
volume. Numbers show time in hours
and minutes based on the presently se-
lected number of record tracks, sample
frequency, bit rate, and fi le type. An as-
terisk next to any of the available drives
indicates that it is selected as a destina-
tion for recorded audio.
Internal Hard Drive Status
9)
(space remaining/record ready)
Bar graph indicates amount of record
time remaining on the internal hard
drive. Numbers show time in hours and
minutes based on the presently selected
of number of record tracks, sample fre-
quency, bit rate, and fi le type.
Compact Flash Status
10)
(space remaining/record ready)
Bar graph indicates amount of record
time remaining on the Compact Flash
media. Numbers show time in hours
and minutes based on the presently se-
lected number of record tracks, sample
frequency, bit rate, and fi le type.
For all three media types, an asterisk in front
of the media descriptor indicates that the
media is selected for recording. Highlighted
drive descriptor indicates drive selected for
record monitoring, playback or fi le directory
display.
