Vortex MINI ROK Owner's Manual page 13

VORTEX FACTORY: Via E. Fermi, 5 – 27040 Campospinoso (PV)– ITALY – Tel. +39 0385 765200
31

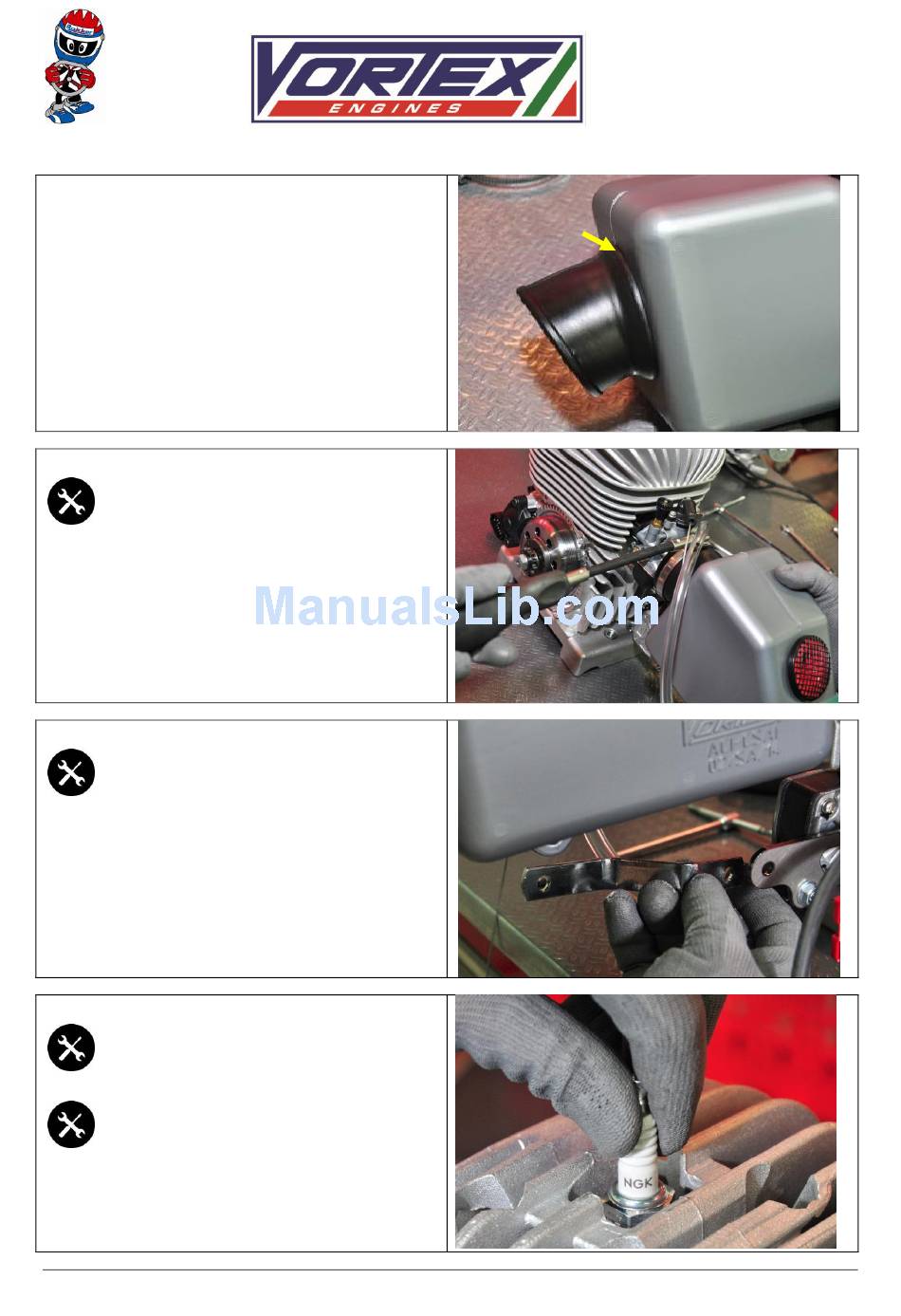

Check the foam filter is properly fixed in intake
silencer. Wrong assembly will cause the loss of
the foam filter and intake silencer.
32
Flat Screwdriver
Attach the assembled intake silencer to the
adaptor and fix it by using the specific clamp
provided.
33
4 mm Allen Wrench + 10 mm Fixed
Wrench
Use the specific "S" bended bracket to connect
the intake silencer to the main bracket where
fuel pump is attached.
6x25 screw (to the intake silencer)
by using one
6x20 (to the bracket)
and one
plastic spacer and nut.
34
Flat Screwdriver
Remove the plastic cap from the head.
Spark Plug Wrench
Tighten the spark plug in the engine head.
Tighten and loosen the spark plug 2/3 times to
allow the gasket to seat. Then tighten the spark
plug securely.
Via dei Soprini, 16 – 25080 PREVALLE (Brescia) ITALY-Tel. +39 030 6804601 – Fax +39 030 6804698
intake silencer
Secure the
screw, washer,
