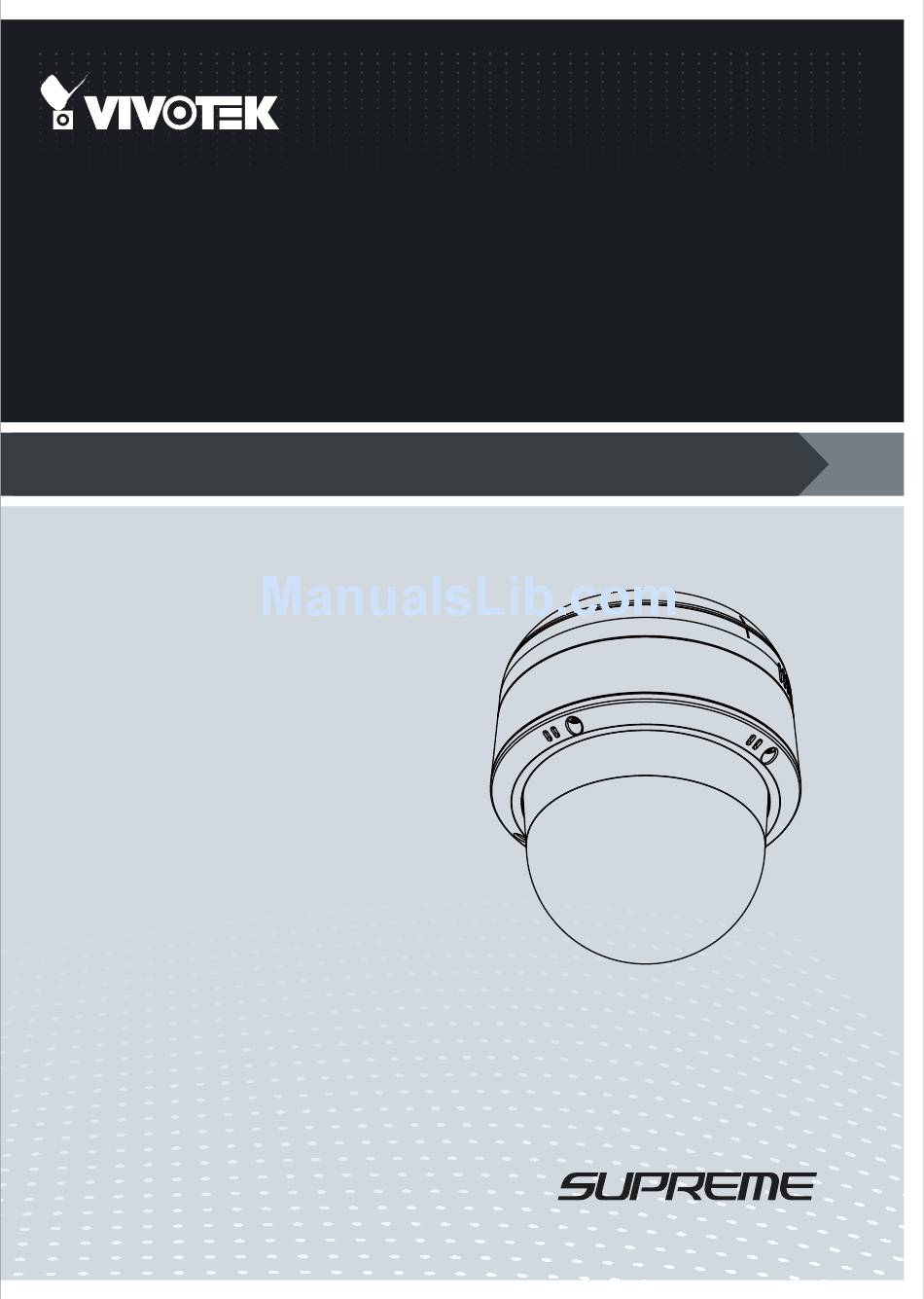

- Page 1 SD8161 Speed Dome Network Camera Quick Installation Guide English 1080P HD • 18x Zoom • PoE...
-
Page 2: Package Contents
Do not insert sharp or tiny objects into the Network Camera. Do not manually pan and tilt the Network Camera when the power is on. Package Contents PC/ABS / Smoked Dome Cover (Sold SD8161 separately) Screws / Alignment Sticker / T25 Stardriver Front Cable hole... -
Page 3: Physical Description
Physical Description Outer View This drawing shows a camera with its dome cover removed. Reset Button Network LED Status LED Lens The MicroSD card slot is accessed by removing the dome cover using the T25 stardriver. icro EN-2... -
Page 4: Hardware Installation
Hardware Installation The camera weighs 2.2kg. Select a rigid mounting location to prevent vibration to the camera. 1. Turn and detach the top section. 2. Attach the alignment sticker to the wall. Drill 3 pilot holes into the wall, and drill another hole for routing cables. - Page 5 4. Hammer in the threaded anchors. 5. Secure the top section to ceiling using the included screws. 6. Pass cables through the pre-drilled hole or the side openings, and then connect to the camera. IMPORTANT: The product is not likely to require connection to an Ethernet network with outside plant routing, including the campus environments;...
-
Page 6: Mounting The Camera
Mounting the Camera 7. Align the camera body with the top section. Align the alignment mark on the camera with that on the top section. Push the camera up to match the top section. 8. Rotate the camera clockwise. 9. Use the included T25 stardriver to tighten the anti-tamper screw on the side to secure the connection. -
Page 7: Network Deployment
Network Deployment General Connection 1. Connect the Network Camera's Ethernet cable (CAT5e/CAT6) to a PoE Plus switch. IEEE 802.3at PoE Switch (30W output) and / or AC 24V 3.5A Adapter (User-supplied) 2. Connect the power wires to an AC 24V power adaptor (user-supplied). You can connect both power sources for redundancy in power supply. -
Page 8: Assigning Ip Address
2. The program will conduct an analysis of your network environment. After your network is analyzed, please click on the "Next" button to continue the program. 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. - Page 9 Further, consequential and incidental damages are not recoverable under this warranty. What VIVOTEK Will Do: VIVOTEK will, in our sole discretion, repair or replace any product that proves to be defective in material or workmanship. Any repair or replaced part of the product will receive a THREE-MONTH warranty extension.
- Page 10 2050 Ringwood Avenue, San Jose, CA 95131 |T: +886-2-82455282| F: +886-2-82455532| E: sales@vivotek.com |T: 408-773-8686| F: 408-773-8298| E: salesusa@vivotek.com VIVOTEK Netherlands B.V. Busplein 36, 1315KV, Almere, The Netherlands |T: +31 (0)36 5389 149| F: +31 (0)36 5389 111| E: saleseurope@vivotek.com...
