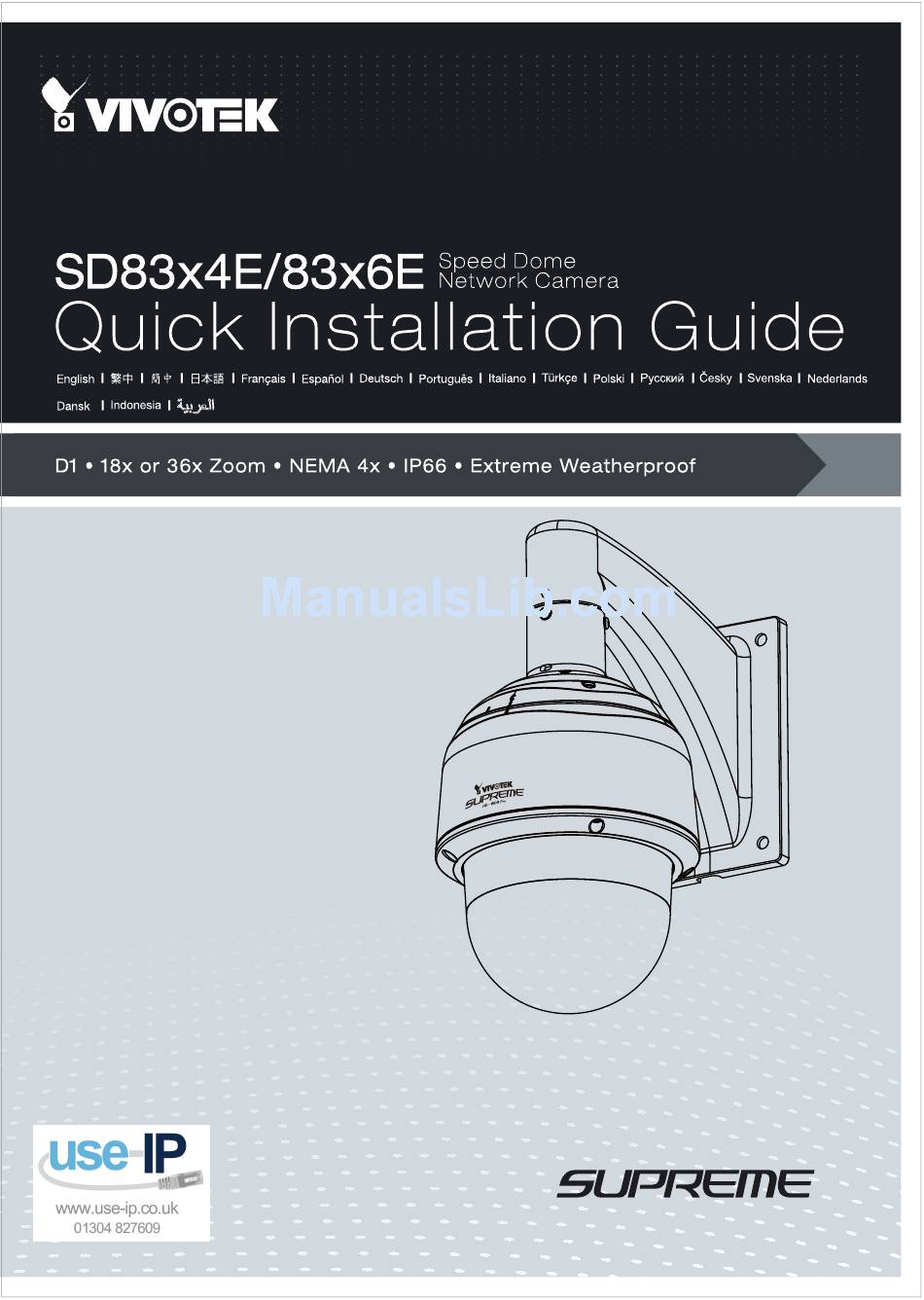

Vivotek SD83X4E Quick Installation Manual
  1. Manuals
  2. Brands
  3. Vivotek Manuals
  4. Security Camera
  5. SD83X4E
  6. Quick installation manual
Vivotek SD83X4E Quick Installation Manual

Vivotek SD83X4E Quick Installation Manual

Hide thumbs Also See for SD83X4E:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD83X4E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivotek SD83X4E

Summary of Contents for Vivotek SD83X4E

  • Page 2: Package Contents

    Network Camera. Do not manually pan and tilt the Network Camera when the power is on. Package Contents SD83x4E/83x6E Wall Mount Bracket / Screws Screws / Alignment Sticker / T25 Waterproof Connectors / Terminal Blocks / Stardriver / Desiccant Bags...

  • Page 3: Inner View

    Physical Description Outer View This drawing shows a camera with its dome cover removed. Reset Button Network LED Status LED Lens The SD card slot is accessed by removing the top section using the T25 stardriver. Inner View Camera Body Board-to-board Connector SD/SDHC/SDXC Card Slot...

  • Page 4: Hardware Installation

    Hardware Installation 3-1. Connecting RJ45 Ethernet Cable RJ45 Cable Dimension (unit: mm) Use CAT5e cables only. Components of the Waterproof Connector Sealing Nut (A) Seal (B) Screw Nut (C) Housing (D) Gasket (E) Assembling Steps Insert the housing into the Insert the seal into the housing.
  • Page 5 3-2. Connecting Power and I/O Wires If you need to connect I/O wires and 24V power, disassemble the top section of the camera. It is highly recommended to complete the following before you can mount the speed dome camera at the installation site: Skip this section and move to Section 3-3 if you connect the Ethernet cable only.

  • Page 6: Connect Cables

    1. Use a small-size flat-blade screwdriver to secure IO Strip length: 6~7mm wires to the included terminal blocks. You may aslo Screw: M2 purchase an IO combo cable from VIVOTEK. The max. output load on DO pins is 50mA. AC24V...
  • Page 7 2. Feed the Ethernet cable and IO wires through the mounting bracket, the openings on the dome cap, and to the interface section. Attach the rubber seal plug to dome cap for water proofing. 3. Secure the included ground wire to the dome cap, pass it through the mount bracket, and connect the other end to a grounded conduit later.
  • Page 8 3-2-3. Connect with the Mount Bracket Combine the components of the top section. 1. Press the seal ring into the groove on canister. Use the black machine screws (M4x8) to attach the interface section to the dome cap. Note that you should orient and align the spring contacts with the dehumidifier unit on the dome cap.
  • Page 9 IMPORTANT: You should examine whether the color of the silica gel inside the chassis has turned red. If so, you should replace the desiccant bag. To replace the desiccant bags: 1. Remove the dome cover by loosening 4 T25 anti-tamper screws. 2.

  • Page 10: Mounting The Network Camera

    3-3. Mounting the Network Camera NOTE: Before mounting the camera, install an SD card if you prefer recording to local storage. 3-3-1. Mounting with Ethernet Connection Only 1. The camera weighs 3.66kg. Select a rigid mounting location to prevent vibration to the camera.
  • Page 11 3-3-2. Mounting with Ethernet & I/O Wires 1. The camera weighs 3.66kg. Select a rigid mounting location to prevent vibration to the camera. Attach the alignment sticker to the wall. 2. Drill 4 pilot holes (10mm in diameter and 4cm deep) into the wall, and then hammer in threaded anchors.

  • Page 12: Network Deployment

    Network Deployment General Connection 1. Connect the Network Camera's Ethernet cable (CAT5e) to a PoE Plus switch. A 30W PoE output port alone can not drive the onboard heater, and hence if using the PoE switch alone, the application does not apply in low-temperature condition. The 30W PoE plus can only drive the camera when it is working at a temperature higher than -5ºC.

  • Page 13: Assigning Ip Address

    2. The program will conduct an analysis of your network environment. After your network is analyzed, please click on the "Next" button to continue the program. 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN.
  • Page 14 , consequential and incidental damages are not recoverable under this warranty. What VIVOTEK Will Do: VIVOTEK will, in our sole discretion, repair or replace any product that proves to be defective in material or workmanship. Any repair or replaced part of the product will receive a THREE-MONTH warranty extension.
