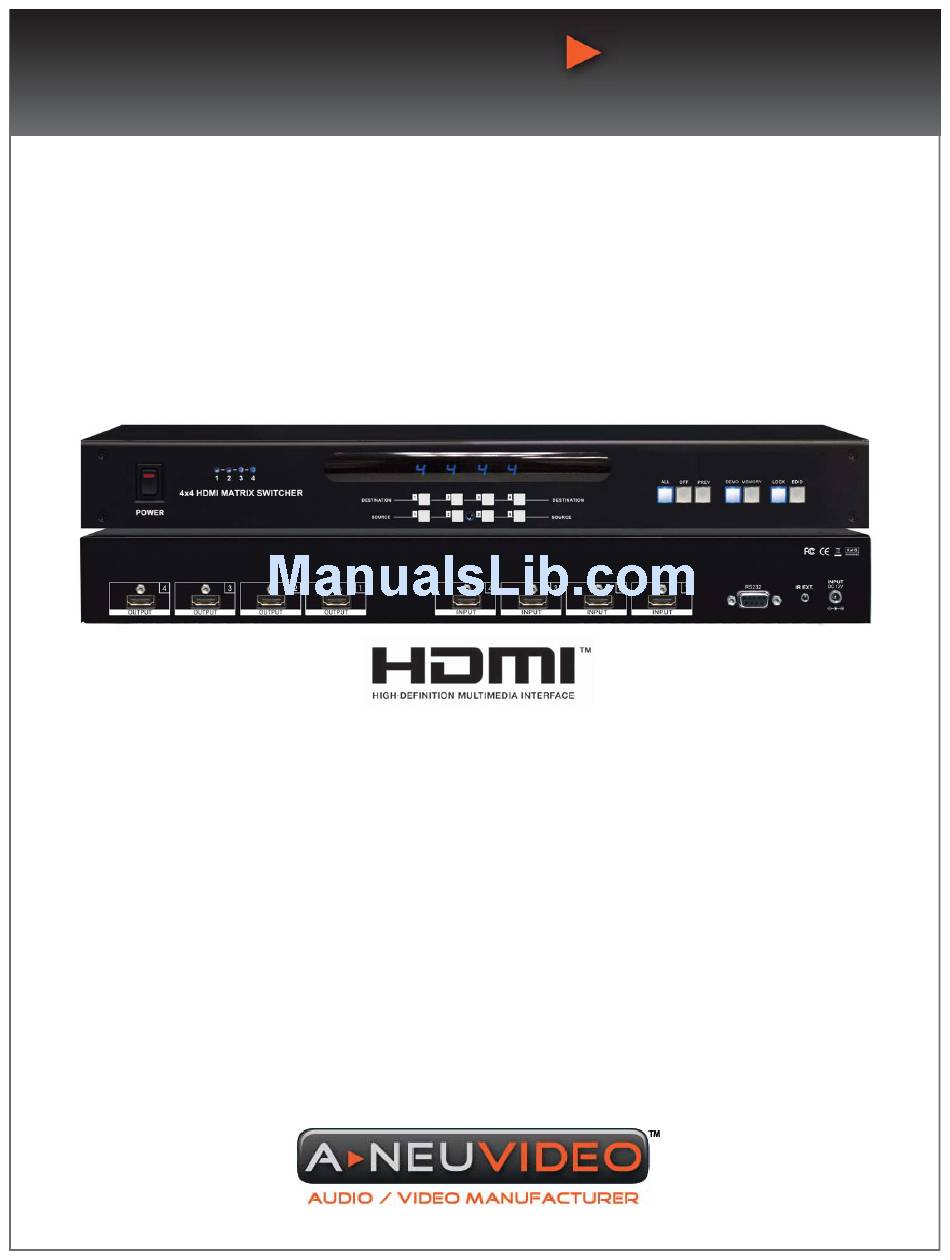

- Page 1 HD-44 4x4 HDMI Matrix Switcher INSTRUCTION MANUAL A-NeuVideo.com | Frisco, Texas 75034 (317) 456-2461 V.2.2...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
The information in this manual has been carefully checked and is believed to be accurate. We assume no responsibility for any The HD-44 is a 4x4 HDMI Matrix Switcher featuring 4 inputs and infringements of patents or other rights of third parties which may pre-emphasized 4 outputs. -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • Support 4 x HDMI digital source devices matrix switched to 4 x HDMI devices. • HDMI digital video w/ embedded audio, DVI format and HDCP compliant • Seven (7) function key control and worldwide EDID modes for HDTV resolutions. •... -
Page 5: Edid Functions
EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER To view the current EDID status: Press EDID button; the button will flash blue and the display will show the current EDID Status. Step 1. Press EDID button to exit. Step 2. To change the current EDID status: Method 1 Press EDID button;... -
Page 6: Front Panel
FRONT PANEL FRONT PANEL POWER SWITCH The power switch turns the unit on and off. The LED will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi... - Page 7 FRONT PANEL FRONT PANEL FUNCTION KEY - OFF Disables (mute) video to selected channels. Either destinations. - Press OFF button followed by any Destination channel. - Press 1 thru 4 output destination. The display will show ” 0 “ for the selected channel indicating no video selected. FUNCTION KEY - RECALL ( preview ) The system will show previously stored presets, up to a total of 8.
-
Page 8: Rear Panel
REAR PANEL REAR PANEL DC POWER INLET Power Jack: The Switcher is fi tted with a DC power plug input connector. ᴓ DC Jack - Inner OD 2.1mm (+ ) Ensure that the used is of an approved type and is of suffi cient ᴓ... -
Page 9: Typical Application
OUTPUT PORT SIGNALS: 1. HDMI (HDCP Compliant) 2. HDMI (HDCP Compliant) 3. HDMI (HDCP Compliant) 4. HDMI (HDCP Compliant) DC POWER INPUT: SUPPORT DC12V POWER INPUT HD-44 SUPPORT FOUR HDMI INPUTS TO FOUR HDMI MATRIX OUTPUTS SUPPORT IR EXTENDER & RS-232 CONTROLS. -
Page 10: Remote Control
REMOTE CONTROL Before making any connections to the switcher. Observe the following: > Ensure the mains voltage supply matches the label on the > Connect all audio video sources and destination equipment supplied plug-pack (+/- 10%) > Power up all source and destination audio-visual sources >... -
Page 11: Ir Extender
IR EXTENDER REAR PANEL IR EXTENDER PORT *** When you plug the External IR extender into the switcher, the front panel IR receiver remains active. *** IR EXTENDER PACKAGE... -
Page 12: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION COMPATIBLE V1.0 & V1.5 RS-232 SERIAL INTERFACE RS-232 Defi nition -------- Not used Transmitter Receiver -------- Not used Ground -------- Not used -------- Not used -------- Not used -------- Not used RS-232... -
Page 13: Rs-232 Serial Commands
RS-232 SERIAL COMMANDS MORE STUFF Note: Turning the unit System Power 011 via RS-232 will extinguish the LED channel display leaving only the Power SW~ LED on. The Video and Audio outputs will also mute. While the unit is turned 011 by RS-232 it will continue to accept and act upon switching commands. -
Page 14: Gui Interface
GUI INTERFACE 1A: Supports routing using Lines... - Page 15 GUI INTERFACE 1B: Supports routing using Cross points...
- Page 16 GUI INTERFACE 2: Select different matrix sizes...
- Page 17 GUI INTERFACE 3: Support COM ports 1 thru 4...
- Page 18 TERMS AND CONDITIONS OF USE PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions.
