Quick-Start user manual
http://www.teltonika.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GH3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Teltonika GH3000

Summary of Contents for Teltonika GH3000

  • Page 1 1.00 Quick-Start user manual http://www.teltonika.eu...

  • Page 2: Table Of Contents

    Quick-Start user manual version 1.00 Table of contents 1. Preface 1.1 Introduction 1.2 Protection of copyrights 1.3 Contacts 2. General information 2.1. Package contents 2.2. Defaults 3. Getting started 3.1 Insert SIM card, battery and neck strap 3.2 Charging the battery 4.
  • Page 3 Quick-Start user manual version 1.00 10.1 Alarm function activation 10.2 Alarm configuration 11. Call function 11.1 Call function configuration 11.2 Call function activation 11.3 Answer incoming call 12. Modem emulation function 12.1 Modem emulation function configuration 12.2 Modem emulation function activation 13.
  • Page 4 Quick-Start user manual version 1.00 30. NMEA function 30.1 NMEA function configuration 30.2. NMEA function activation/deactivation 31. Indicating the status 32. Device characteristics 32.1 Specifications of the device 32.2. Battery life time 32.3. Electronic specification 33. Maintance and repair...

  • Page 5: Product Introduction

    This chapter introduce the device and helps to start it use quickly. Also you will find out how to configure device using SMS messages. Product introduction Quick start guide...

  • Page 6: Preface

    Teltonika reserves a right to modify the functionality of the device without any prior notice.

  • Page 7: General Information

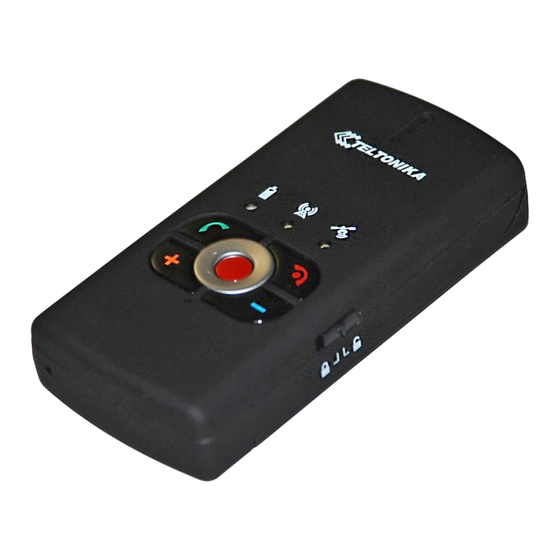

    Quick-Start user manual version 1.00 2. General information 2.1. Package contents 1 x Handheld A-GPS/GSM Tracker GH3000 1 x Li-Ion 1050mAh battery 3.7V 1 x USB – micro USB cable 1 x 230V to 5V USB charger 1 x SETUP CD with User's Manual and software...

  • Page 8: Getting Started

    Quick-Start user manual version 1.00 3. Getting started 3.1 Insert SIM card, battery and neck strap All SIM cards must be kept in a save place. You may request your SIM card supplier to provide SIM cards and information about the use of SIM card-related services.

  • Page 9: Charging The Battery

    Cable Notice! Only approved batteries, chargers and supplements supplied by Teltonika should be used with this device. By using other sorts of batteries, chargers and supplements you risk to be deprived of all guaranties and it may also be dangerous for you and your environment.

  • Page 10: Getting To Know The Device

    Quick-Start user manual version 1.00 4. Getting to know the device 1. LED indicators Indicates the status of device. 2. Earpiece 3. LED indicators Icons 4. Alarm button Activates the alarm function. 5. End call button Turn device on and off, cancel call. 6.

  • Page 11: Quick Configuration

    Quick-Start user manual version 1.00 5. Quick configuration via SMS Quick configuration alows configurate your device without any connection to the PC, just send simply SMS messages to the device and it will be ready to work. If configuration message is correct device will answer you confirmation SMS message back, othervice it will not answer at all.

  • Page 12: Change Periodical Data Logging

    Quick-Start user manual version 1.00 5.3 Change periodical data logging By default device is logging its position in the memory every 10 minutes (600s). You can change this time by sending simple SMS message psw<configuration password> t<time (sec)> Example: psw0000 t3600 Result: Logging interval before 600s after 3600s 5.4 Change Alarm settings There are three alarm methods in which device can work: m1-...

  • Page 13: Change Keyboard Settings

    Quick-Start user manual version 1.00 5.5 Change keyboard settings Every key on the device keyboard have the number and can be configured call to set phone number. By default key1, key2, key3 and key4 does not have set any function. On the Key5 is already set alarm function.

  • Page 14: Change Gprs Settings

    Quick-Start user manual version 1.00 5.8 Change GPRS settings Use the simple configuration SMS message to configure all necessary parameters of GPRS connection to the server. Information about your SIM card connection authentication type, APN (Access point name), user name or password can be acquired from your local supplier of GSM services.

  • Page 15: Battery Notification

    Quick-Start user manual version 1.00 5.9 Battery notification If you need to be informed about the battery charge level turn on the battery notification function. By default this function is activated and you need to set the messages destination number only.

  • Page 16: Device Monitoring

    Send SMS request (Fix?) to get location of Text Message the device from your mobile phone. Be 156(1) sure your device is in the open sky, To: GH3000 otherwise device will fail to find its location. Psw:0000;fix? Read received SMS message and find out...
  • Page 17 This chapter describes how the device function works, how to use device safely and how to install Track Assistant, what is the system requirement and what function parameters you can change using this software. We can much more...

  • Page 18: For Your Safety

    Quick-Start user manual version 1.00 7. For your safety Please read these basic explanations. In disregarding them you may face danger or trespassing of existing laws. In case if you wish to have more information, please read the concise user manual.

  • Page 19: Prepare Your Computer

    The device may be disconnected from the PC or charger by pulling out the USB connection from the computer USB socket or by pulling out the micro USB connection from GH3000. To avoid mechanical damages, it is advisable to carry the equipment in a blow-proof package.

  • Page 20: Installing Software

    8. Installing software Drivers and software necessary for installing are written on a SETUP CD disk supplied with the device. We are recommend to check www.teltonika.eu for software updates. The software version indicated on the splash screen. Minimum system requirements...
  • Page 21 Quick-Start user manual version 1.00 Choose installation Enable bouth method for all users on checboxes in the list this computer Choose the track where the software will be installed At the end of installation the wizard will ask you to connect the device to your PC.

  • Page 22: Alarm Function

    Quick-Start user manual version 1.00 10. Alarm function Alarm function - sends alarm data via GPRS, calls or sends special warning SMS messages to more than one set phone number. When the Alarm function was activated device starts searching its location all the time.

  • Page 23: Call Function

    Quick-Start user manual version 1.00 Time for alarm stop - if the conversation time or overtime will be braked before the conversation time is reached device will start waiting request for call termination or completely alarm stopping. When the time for waiting request will be reached device starts call to second phone number in the list.

  • Page 24: Call Function Activation

    Quick-Start user manual version 1.00 11.2 Call function activation When the configuration is made press the button you configured and device starts calling. The call process will be indicated by LED indicators. 11.3 Answer incoming call The incoming call indicating by LED indicators and the ringing tone.

  • Page 25: Geofence Function

    Quick-Start user manual version 1.00 13. Geofence function A Geofence is an area set up with invisible boundaries to monitor movement of your assets. Device will inform you about movement into and out of an area by special SMS message.This function will activated when the configuration will be written into device.

  • Page 26: Man-Down Function

    Quick-Start user manual version 1.00 15. Man-down function This function monitors how the device base position angle is changing. If the angle change more than 45 deg. device activate the alarm function and starts sending data using one of the established methods.

  • Page 27: Authorized Sms Number List

    By default device is sending: Message indentification word Op:24602 Cell:030B Sign_Lvl:26 Bat_Lvl:94 (FIX!), device id (GH3000), IMEI number (IMEI), time (Time), device location (Fix), number of visible sattelites (Sat), operator code (Op), GSM station number (Cell), GSM signal level (Sign_Lvl) and battery charge level.

  • Page 28: A-Gps Function

    Quick-Start user manual version 1.00 19. A-GPS function Assisted GPS, generally abbreviated as A-GPS, enhances the startup performance of a GPS satellite-based positioning system. For more description please read http://en.wikipedia.org /wiki/Assisted_GPS 19.1 A-GPS function configuration Use the Track assistant to configure A-GPS parameters. Using software you will be able to set up A-GPS data update timer.

  • Page 29: Sound Indication

    Quick-Start user manual version 1.00 If a SIM card with an activated PIN Code has been inserted into the device, it will not be able to connect to the GSM network and perform certain functions. Therefore, if you want the device to be fully operational, the PIN Code must be either removed by using a Mobile Phone, if available.

  • Page 30: List Of Supported Maps

    Quick-Start user manual version 1.00 25. List of supported maps The program is designed in a way that it will detect a digital map or maps if they are installed. If the user has installed just one digital map, the map list of the Track assistant will show the installed map.

  • Page 31: Autoanswer Function

    GH3000 device status and provide response via SMS to the requesting person. Example: The requesting person sends a SMS with the content FIX? using a Mobile Phone to GH3000 and GH3000 will send back a status SMS. FIX? – GH1202 starts the GPS receiver (if...
  • Page 32 Restriced to Mobile Phones operating on Symbian Series 60 basis. You need to have the licensed NAVIGON Mobile Navigator 6 Software, Version 6.3 or higher , for this service. Please contact NAVIGON or Teltonika for further information Smstrack on is a special request message...

  • Page 33: Nmea Function

    Quick-Start user manual version 1.00 INF? – GH1202 will send all information Text Message Text Message about it´s status (L). 156(1) (1)129 To: GH3000 From: GH3000 INF! Id:GH3000 Psw:0000;i nf? Imei:35397601XXXXXXX Time: YYYY.MM.DD HH:MM:SS Version:HH_1.X.X.X CF:1 Live:21511 Op:24602 Cell:030B Sig_Lvl:32 Bat_Lvl:94 TRACK? –...

  • Page 34: Indicating The Status

    Quick-Start user manual version 1.00 31. Indicating the status If you wish to correctly find out the parameters under which the device operates, observe as carefully as possible the status of the three indicators. Each status indicator consists of 2-coloured lamps - one of which is indicating a failure (red) and the other one is indicating a process in progress (green).

  • Page 35: Device Characteristics

    Quick-Start user manual version 1.00 32. Device characteristics 32.1 Specifications of the device Specification GH3000 GPS Receiver uBlox 50-channels Snsitivity Indoor GPS: -160 dBm Internal Antena Patch GSM frequencies Dual-Band 900 / 1800 or 850 / 1900 MHz Vibro Vibro...

  • Page 36: Battery Life Time

    Quick-Start user manual version 1.00 Roaming detection (Optional) Configurable keyboard tones (Optional) Incoming SMS notification Outgoing SMS notification SMS templates Configuration protection Authorized SMS p.n. list Incoming Call authorization p.n. list Incoming/outgoing/missed call Logging Transferred/received GPRS data logging Device status identification via GPRS Data transfering by request Tracking by SMS Parking...
  • Page 37 Quick-Start user manual version 1.00 Do not use or keep the device in dusty and dirty places. Its moving and electronic parts may be damaged. Do not keep the device in high temperatures. High temperature may reduce the life time of the electronic parts or damage the batteries and deform or melt some plastic parts.
