Summary of Contents for Teltonika WORKER BADGE PLUS

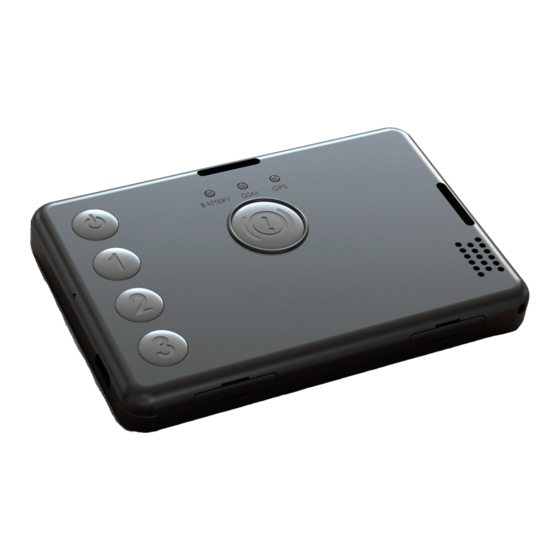

  • Page 1 GH5200 WORKER BADGE PLUS Quick Start Guide...
  • Page 2: Getting Started

    GETTING STARTED Preparing GH5200 for use: Remove the cover. Insert Micro-SIM card as shown with PIN request disabled. Make sure that Micro-SIM card cut-off corner is pointing forward to slot. Insert the battery as shown to device. Position the battery in place where it does not obstruct other components.
  • Page 3 CONFIGURATOR (WINDOWS) At first the device will have default factory settings set unless you order pre-configured device. These settings should be changed according to the user’s needs. Main configuration can be performed via Teltonika Configurator software: https://wiki.teltonika-mobility.com/view/GH5200_Stable_firmware Configurator operates on Microsoft Windows OS and uses prerequisite MS .NET Framework.
  • Page 4 • Most important configurator section is GPRS – where all your server and GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured. Detailed device configuration instructions using Teltonika Configurator can be found in the GH5200 configuration wiki page: https://wiki.teltonika-mobility.com/view/GH5200_Configuration •...
  • Page 5 CHARACTERISTICS MODULE Quad-band GSM 2G bands 850 / 900 / 1800 / Name Teltonika TM2500 1900 MHz GSM/GPRS/GNSS/ Technology Data Bluetooth SMS (text) support GNSS POWER GPS, GLONASS, Internal Li-Ion battery GNSS GALILEO, BEIDOU, batteries internal battery SBAS, QZSS, DGPS...
  • Page 6 Temperature, -20 to +60°C for Temperature humidity, 1 month; -5 to Supported Storage movement, +30°C peripherals range magnet sensors, for 6 months beacon GPRS: max average95.57 mA; INTERFACE Nominal: average GNSS, GSM 45.10 mA; GNSS Internal High Gain antenna Current sleep: average 2.0 Micro-USB consumption...
  • Page 7 FEATURES Configuration and FOTA WEB (Cloud-based firmware over the air firmware update solution); Teltonika configurator (USB) Tracking on Move/Stop, RealTime tracking, Alarm button, Man-Down Detection, Home Zone, Proximity Detection, Amber Alert, Inside Tracking, Movement/No Movement Events, Auto Geofence, Manual Geofence, Over Speed-...
  • Page 8: Safety Information

    PHYSICAL SPECIFICATION Dimensions 95 x 64 x 11 mm (L x W x H) Device + case + battery weight 80 g Ingress Protection Rating IP30 SAFETY INFORMATION This message contains information on how to operate GH5200 safely. By following these requirements and recommendations, you will avoid dangerous situations.
  • Page 9 Limit the use of device in operation at high tem- hospitals peratures. Do not attempt Please follow all restric- charging battery directly tions. Turn off the device from the electrical mains. in the vicinity of medical All utilised batteries shall devices when required.
  • Page 10 To be able to disconnect UAB Teltonika manager in the charging cable from the such a case. mains as quickly as possible Use the right screwdriver in the event of a failure, con- In order to prevent device’s...
  • Page 11 Use only Teltonika Telemat- Do not immerse the device ics approved batteries in any liquids including salt for replacement. Using water, ionized water, or uncertified manufacturer or soapy water, or alcoholic different type batterie may beverage. Liquid dam- cause the device to malfunc- age not covered under tion or even explode.
  • Page 12: Troubleshooting

    More information about troubleshooting can be found in: https://wiki.teltonika-mobility.com/view/FAQ If these recommendations did not help, please contact your sales manager or contact us directly through Teltonika VipHelpDesk. Find recommendations on how to fill in a query in our FAQ page in the Teltonika Wiki Knowledge base.
  • Page 13: Installation Recommendations

    • When using the Man-down feature, the device must be stably fixed in the configured base position. WARRANTY AND RETURN POLICIES TELTONIKA devices are given with 24 months warranty. All batteries carry a reduced 6 month warranty period. If a product fails within mentioned warranty period the product can be: •...
  • Page 14: Certifications And Approvals

    • GH5200 RoHS • Declaration of IMEI assignment DECLARATION OF CONFORMITY Hereby, Teltonika Telematics UAB declares that the radio equipment GH5200 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://wiki.teltonika-mobility.com/view/GH5200_CE_RED...
  • Page 15 The full text of the UK declaration of conformity is available at the following internet address: https://wiki.teltonika-mobility.com/view/GH5200_UKCA...
  • Page 16 Manufacturer: Full product instructions TELTONIKA TELEMATICS, UAB in different languages Saltoniškių st. 9B-1, LT-08105, can be found under this Vilnius, Lithuania QR code...
