GH3000
Quick Start Guide
Document version 2.05
L t d . T e l t o n i k a
S a l t o n i š k i ų s t . 1 0 c
L T - 0 8 1 0 5 , V i l n i u s , L i t h u a n i a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GH3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Teltonika GH3000

Summary of Contents for Teltonika GH3000

  • Page 1 GH3000 Quick Start Guide Document version 2.05 L t d . T e l t o n i k a S a l t o n i š k i ų s t . 1 0 c L T - 0 8 1 0 5 , V i l n i u s , L i t h u a n i a...

  • Page 2: Table Of Contents

    [GH3000 QUICK START GUIDE] Contents Preface ..................................5 Introduction ..............................5 Protection of copyrights ............................ 5 Contacts ................................5 General information ..............................6 Package contents .............................. 6 Defaults ................................6 Getting started ................................7 Insert SIM card, battery, attach a neck strap ....................7 Charging the battery ............................
  • Page 3 [GH3000 QUICK START GUIDE] 7.10 Use the battery safely ............................. 16 7.11 Safely disconnect the device ........................... 17 Installing software ..............................17 Connecting device to a PC ............................17 Alarm function ..............................19 10.1 Alarm function activation ..........................20 10.2 Alarm configuration ............................
  • Page 4 [GH3000 QUICK START GUIDE] 27.1 Parking configuration ............................27 27.2 Parking activation/deactivation ........................27 Auto answer function ............................27 28.1 Auto answer configuration ..........................27 Silent call function ............................... 27 29.1 Silent call configuration ..........................27 Special SMS requests ............................27 NMEA function ..............................
  • Page 5 [GH3000 QUICK START GUIDE] This chapter introduces the device and helps to start using it quickly. Also you will find out how to configure your device using SMS messages. Product Introduction - Quick Start Guide Teltonika Ltd. | 4...

  • Page 6: Preface

    1 . P R E F A C E Introduction GH3000 is a device with built-in function characteristics of a mobile phone and an integrated A-GPS receiver. This device is intended for the surveillance and protection of people, cargos and other objects. The A-GPS receiver will find the current location of the device and will sends this data to a person in charge or the operation centre.

  • Page 7: General Information

    The manufacturer's set does not include a SIM card which is necessary to connect to the GSM network. A SIM card can be acquired from your local supplier of GSM services If any part is missing in the set, please contact the representative of the manufacturer or dealer (www.teltonika.eu). Defaults The device automatically saves its position data in to the memory and has other default configuration.

  • Page 8: Getting Started

    [GH3000 QUICK START GUIDE] 3 . G E T T I N G S T A R T E D Insert SIM card, battery, attach a neck strap All SIM cards must be kept in a safe place. You may request your SIM card supplier to provide SIM cards and information about the use of SIM card related services.
  • Page 9 Note! GH3000 should be fully charged (100%). If charged not fully (less than 95%) indication of the battery discharge level can be not accurate. Teltonika Ltd. | 8...

  • Page 10: Getting To Know The Device

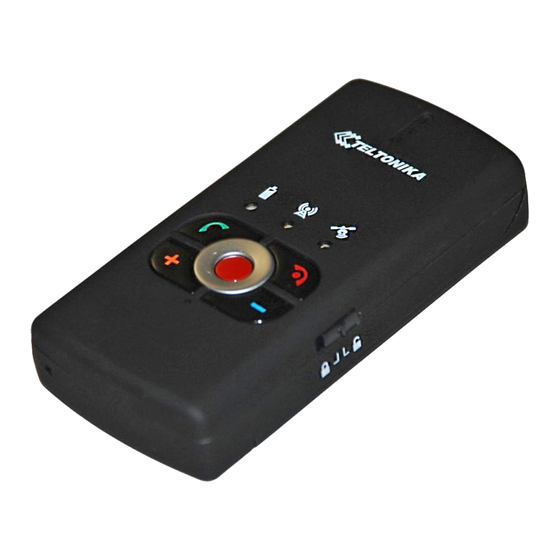

    [GH3000 QUICK START GUIDE] 4 . G E T T I N G T O K N O W T H E D E V I C E 1. LED indicators Indicates the status of device. 2. Speaker 3. Icons 4.

  • Page 11: Quick Device Configuration Via Sms

    [GH3000 QUICK START GUIDE] 5 . Q U I C K D E V I C E C O N F I G U R A T I O N V I A S M S You can configure the device either connecting it to the computer and using Track Assistant software or sending special SMS commands.

  • Page 12: Change Alarm Settings

    [GH3000 QUICK START GUIDE] Change Alarm settings There are three alarm modes in which device can work: m1 – SMS mode, m2 – Call mode and m3 – GPRS or SMS mode. For more details about these modes please read chapter Alarm function.

  • Page 13: Change Parking Settings

    [GH3000 QUICK START GUIDE] To learn more about this function please read the chapter Man-down function. To switch this function on/off a quick configuration SMS messages can be used. By default this function is off. mandown <configuration password> <on/off> Example SMS Message...

  • Page 14: Battery Charge Level Notification

    [GH3000 QUICK START GUIDE] In case server does not require a password or a user name, you can send such SMS: gprssp <configuration password> <send period in sec.> <IP> <PORT> <authentication type> <Access Point Name> Example SMS Message Response Result Every 60s device will connect to the server and psw0000 gprs sp60 ip127.0.0.1...

  • Page 15: Device Monitoring

    [GH3000 QUICK START GUIDE] 6 . D E V I C E M O N I T O R I N G Review device location on the map Step1 Download and install Google Earth from the internet. It can be found athttp://earth.google.com/download-...
  • Page 16 [GH3000 QUICK START GUIDE] This chapter describes how the functions work, how to use device safely and how to install software. Also, what are the system requirements and what function parameters you can change using this software. We can do much more...

  • Page 17: For Your Safety

    [GH3000 QUICK START GUIDE] 7 . F O R Y O U R S A F E T Y Please read these basic recommendations. In disregarding them you may face danger or trespass existing laws. In case you wish to have more information, please read the brief user manual.

  • Page 18: Safely Disconnect The Device

    Power supply chains available at a place used for connecting GH3000 must have safety devices (automatic bipolar switch off devices) which protect from power supply excess, short circuit and failure of grounding. The switch off device must be installed at a place which is easy to access.
  • Page 19 [GH3000 QUICK START GUIDE] Teltonika Ltd. | 18...

  • Page 20: Alarm Function

    [GH3000 QUICK START GUIDE] Note! The device has a special configuration mode. The mode will be switched on immediately after it is connected to Track Assistant program. When the device is in configuration mode, all processes, such as GPS data logging and transmission via GPRS, will be suspended. To return the device to normal working mode disconnect it from the program.

  • Page 21: Alarm Function Activation

    [GH3000 QUICK START GUIDE] 10.1 Alarm function activation Alarm function can be activated by pressing button (4) (Chapter. Getting know the device) or automatically by events, depending on the configuration and parameters used. 10.2 Alarm configuration To configure Alarm warning you need to know three basic alarm warning methods: SMS, cycle call, GPRS or SMS. The simplest Alarm configuration can be made in two ways: quick configuration SMS messages (Chapter.

  • Page 22: Call Function

    [GH3000 QUICK START GUIDE] SMS method Similar as in the GPRS or SMS method you need to configure data logging period, alarm duration time, SMS messages sending period and create a phone number list. Note! Parameters conversation time, overtime and time for alarm stop are made to avoid the fake situations such as unlimited time for a voice mail or operator notification about turned off mobile phone or out of GSM coverage.

  • Page 23: Modem Emulation Function Configuration

    [GH3000 QUICK START GUIDE] 12.1 Modem emulation function configuration To activate modem emulation function you need to set up this function on the button. To perform this, use Track assistant software. Note! If the modem emulation mode is enabled the device functions that worked before do not work anymore.

  • Page 24: Man-Down Function

    [GH3000 QUICK START GUIDE] The format of configuration SMS and requests is: Note! Request: PSW:<password>; fix? Quick configuration: PSW<password> Park on r450 1 5 . M A N - D O W N F U N C T I O N This function monitors how the device base position angle is changing.

  • Page 25: Authorized Sms Number List Configuration

    What will be the SMS the user can set using Track Assistant software. By default device sends: Message identification word (FIX!), device id (GH3000), IMEI number (IMEI), time (Time), device location (Fix), number of visible satellites (Sat), operator code (Op), GSM station number (Cell), GSM signal level (Sign_Lvl) and battery charge level.

  • Page 26: A-Gps Function Configuration

    [GH3000 QUICK START GUIDE] 20.1 A-GPS function configuration Use the Track assistant to configure A-GPS parameters. Using software you will be able to set up A-GPS data update timer. 2 1 . L O W B A T T E R Y L E V E L N O T I F I C A T I O N M E S S A G E S The device monitors the battery charge level all the time and when the charge level becomes less than set, you will be notified about it by an SMS message.

  • Page 27: Sound Indication

    [GH3000 QUICK START GUIDE] Note! Please pay attention, if the GSM indicator is blinking red, the PIN code maybe enabled on your SIM card. The PIN code can be entered within the window of Track Assistant software. 2 3 .

  • Page 28: Parking Configuration

    S P E C I A L S M S R E Q U E S T S Special requests – these are special text messages which check the GH3000 device’s status and provide response via SMS to the requesting person. Example: The requesting person sends an SMS with the content FIX? The device receives such an SMS message and will send back a status SMS.
  • Page 29 [GH3000 QUICK START GUIDE] FIX? – GH3000 turns on the GPS receiver (if satellites are available), gets its location and sends it (in case of reception) to the requesting person. If no current coordinates are detected, the device sends the latest coordinates (date/time) from its internal memory.

  • Page 30: Nmea Function

    [GH3000 QUICK START GUIDE] TRACK? – GH3000 will send all collected records from internal memory to the Server (via GPRS, Server Solution needed). 3 1 . N M E A F U N C T I O N NMEA (National Marine Electronics Association) is a standard adapted for use in a variety of third-party mapping software programs.

  • Page 31: Indicating The Status

    [GH3000 QUICK START GUIDE] 3 2 . I N D I C A T I N G T H E S T A T U S If you wish to find out in which mode and what the device is doing at the time, observe as carefully as possible the status of the three indicators.

  • Page 32: Device Characteristics

    [GH3000 QUICK START GUIDE] 3 3 . D E V I C E C H A R A C T E R I S T I C S 33.1 Specifications of the device Specification GPS Receiver uBlox 50-channels Sensitivity Indoor GPS: -160 dBm...

  • Page 33: Battery Life Time

    [GH3000 QUICK START GUIDE] 33.2 Battery life time Transmissions per 24 hr. 1440 1440 Fixes per 24h 17280 1440 Duty cycle 100% Life Time (hr.) >6 33.3 Electronic specification Parameter Min.(aver.) Norm. (aver.) Max. (aver.) Supply voltage 4.5V DC 5V DC 5.5V DC...
  • Page 34 [GH3000 QUICK START GUIDE] All these recommendations are equally important for your device, battery, charger and any other supplement. If any of the devices do not function properly, bring it for examination to the nearest authorized repair centre. This sign on the packaging means that the electric and electronic equipment to be utilized must be stored separately.
