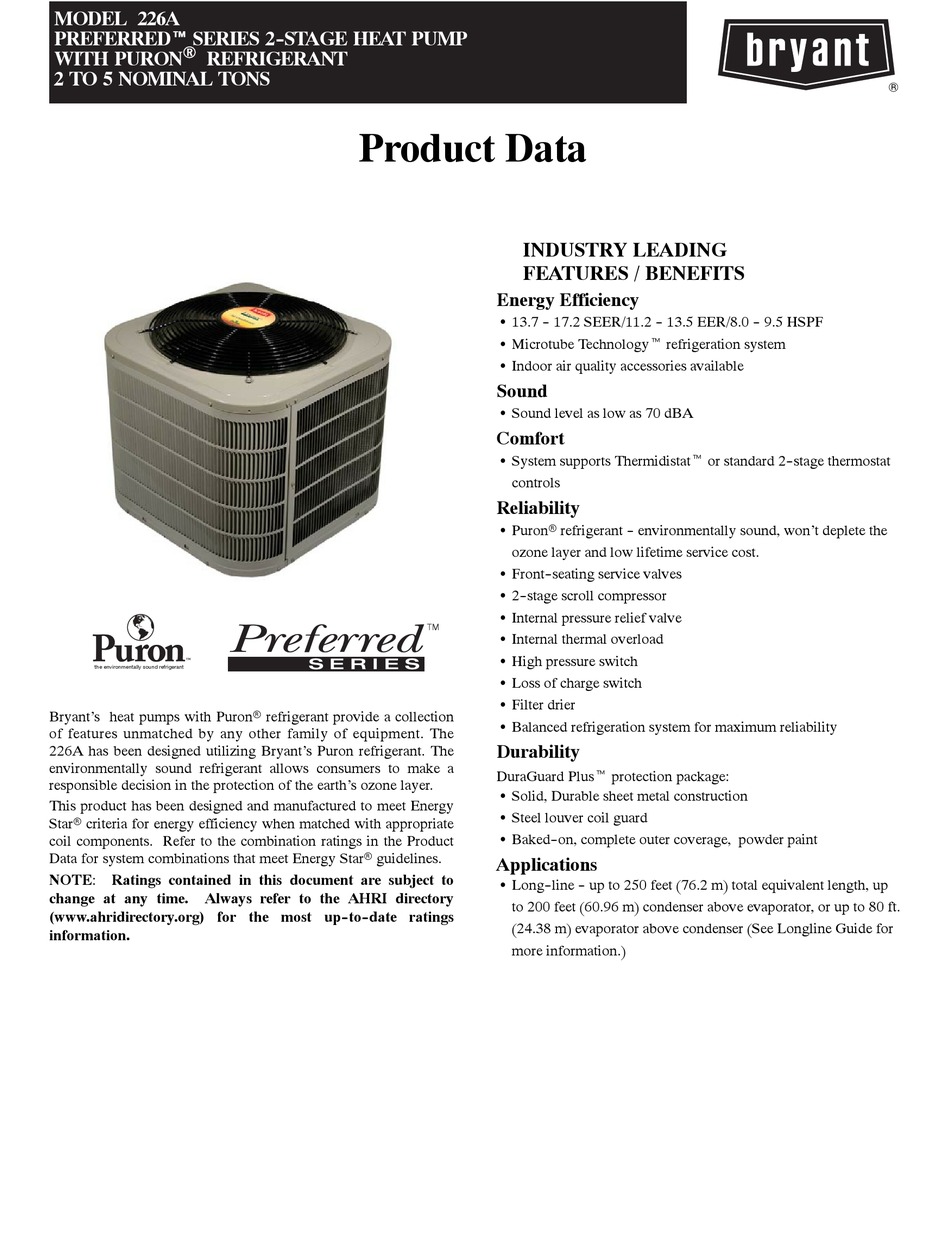

Bryant PREFERRED 226A Series Product Data

MODEL 226A
PREFERRED™ SERIES 2- -STAGE HEAT PUMP
®
WITH PURON REFRIGERANT
2 TO 5 NOMINAL TONS
the environmentally sound refrigerant
Bryant's heat pumps with Puronr refrigerant provide a collection
of features unmatched by any other family of equipment. The
226A has been designed utilizing Bryant's Puron refrigerant. The
environmentally sound refrigerant allows consumers to make a
responsible decision in the protection of the earth's ozone layer.
This product has been designed and manufactured to meet Energy
Starr criteria for energy efficiency when matched with appropriate
coil components. Refer to the combination ratings in the Product
Data for system combinations that meet Energy Starr guidelines.
NOTE: Ratings contained in this document are subject to
change at any time. Always refer to the AHRI directory
(www.ahridirectory.org) for the most up- -to- -date ratings
information.

Product Data

INDUSTRY LEADING
FEATURES / BENEFITS
Energy Efficiency
S 13.7 - - 17.2 SEER/11.2 - - 13.5 EER/8.0 - - 9.5 HSPF
S Microtube Technologyt refrigeration system
S Indoor air quality accessories available
Sound
S Sound level as low as 70 dBA
Comfort
S System supports Thermidistatt or standard 2- -stage thermostat
controls
Reliability
S Puronr refrigerant - - environmentally sound, won't deplete the
ozone layer and low lifetime service cost.
S Front- -seating service valves
S 2- -stage scroll compressor
S Internal pressure relief valve
TM
S Internal thermal overload
S High pressure switch
S Loss of charge switch
S Filter drier
S Balanced refrigeration system for maximum reliability
Durability
DuraGuard Plust protection package:
S Solid, Durable sheet metal construction
S Steel louver coil guard
S Baked- -on, complete outer coverage, powder paint
Applications
S Long- -line - - up to 250 feet (76.2 m) total equivalent length, up
to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft.
(24.38 m) evaporator above condenser (See Longline Guide for
more information.)
