Bryant PURONT 213A Product Data

Legacy line rnc heat pump with puron refrigerant
Hide thumbs Also See for PURONT 213A:
Table of Contents

Advertisement

Quick Links

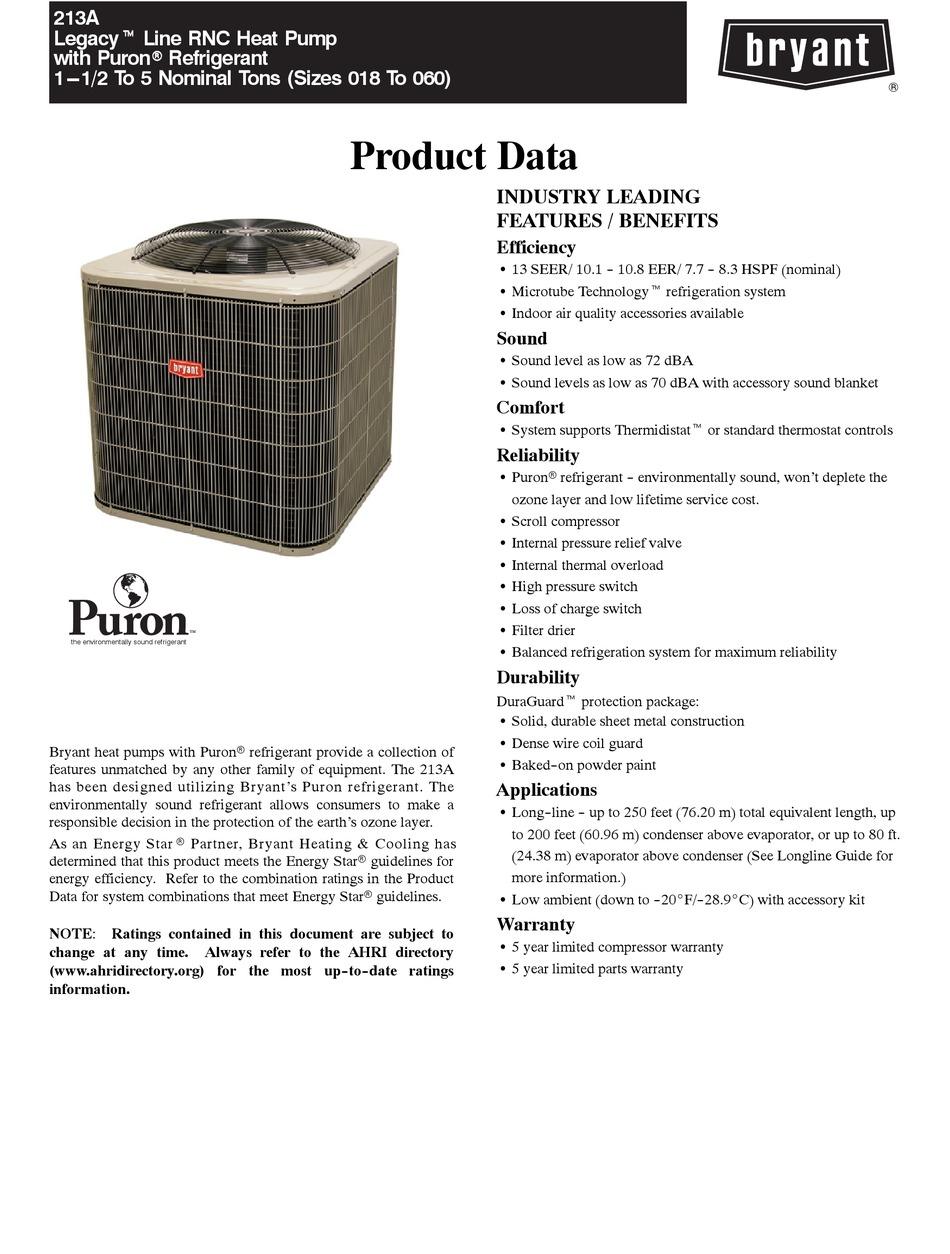

213A
Legacyt Line RNC Heat Pump
with Puronr Refrigerant
1---1/2 To 5 Nominal Tons (Sizes 018 To 060)
the environmentally sound refrigerant
Bryant heat pumps with Puronr refrigerant provide a collection of
features unmatched by any other family of equipment. The 213A
has been designed utilizing Bryant's Puron refrigerant. The
environmentally sound refrigerant allows consumers to make a
responsible decision in the protection of the earth's ozone layer.
As an Energy Star r Partner, Bryant Heating & Cooling has
determined that this product meets the Energy Starr guidelines for
energy efficiency. Refer to the combination ratings in the Product
Data for system combinations that meet Energy Starr guidelines.
NOTE: Ratings contained in this document are subject to
change at any time.
Always refer to the AHRI directory
(www.ahridirectory.org) for the most up- -to- -date ratings
information.

Product Data

INDUSTRY LEADING
FEATURES / BENEFITS
Efficiency
S 13 SEER/ 10.1 - - 10.8 EER/ 7.7 - - 8.3 HSPF (nominal)
S Microtube Technologyt refrigeration system
S Indoor air quality accessories available
Sound
S Sound level as low as 72 dBA
S Sound levels as low as 70 dBA with accessory sound blanket
Comfort
S System supports Thermidistatt or standard thermostat controls
Reliability
S Puronr refrigerant - - environmentally sound, won't deplete the
ozone layer and low lifetime service cost.
S Scroll compressor
S Internal pressure relief valve
S Internal thermal overload
S High pressure switch
S Loss of charge switch
S Filter drier
S Balanced refrigeration system for maximum reliability
Durability
DuraGuardt protection package:
S Solid, durable sheet metal construction
S Dense wire coil guard
S Baked- -on powder paint
Applications
S Long- -line - - up to 250 feet (76.20 m) total equivalent length, up
to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft.
(24.38 m) evaporator above condenser (See Longline Guide for
more information.)
S Low ambient (down to - -20_F/- -28.9_C) with accessory kit
Warranty
S 5 year limited compressor warranty
S 5 year limited parts warranty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PURONT 213A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bryant PURONT 213A

Summary of Contents for Bryant PURONT 213A

  • Page 1: Product Data

    As an Energy Star r Partner, Bryant Heating & Cooling has determined that this product meets the Energy Starr guidelines for energy efficiency. Refer to the combination ratings in the Product Data for system combinations that meet Energy Starr guidelines.

  • Page 2: Model Number Nomenclature

    MODEL NUMBER NOMENCLATURE Product Tier SEER Major Family Series 2=HP 3=13 SEER A=Puron N= 208 ---230 ---1 Legacy the environmentally sound refrigerant STANDARD FEATURES Feature Puron Refrigerant Maximum SEER Rating Scroll Compressor Dense Wire Coil Guard Field Installed Filter Drier Front Seating Service Valves Internal Pressure Relief Valve Internal Thermal Overload...

  • Page 3: Physical Data

    PHYSICAL DATA UNIT SIZE SERIES Operating Weight lb (kg) Shipping Weight lb (kg) Compressor Type REFRIGERANT Control Charge lb (kg) Outdoor Heating Piston # COND FAN Air Discharge Air Qty (CFM) Motor HP Motor RPM COND COIL Face Area (Sq ft) Fins per In.
  • Page 4 * Do not use in zoning heat pump applications. ** Outdoor temperature sensor is an accessory for all Bryant electronic thermostats, except the non ---programmable air conditioner version and builder;s thermostats. It allows the temperature at a remote location (outdoors) to be displayed on the thermostat. The outdoor air temperature sensor must be used with the HybridHeatt (dual fuel) thermostat.
  • Page 5 Recommended 6. Isolation Relay An SPDT relay which switches the low- -ambient controller out of the outdoor fan motor circuit when the heat pump switches to heating mode. Usage Guideline: Required in all heat pumps where low ambient kit has been added.
  • Page 6 Accessory Description and Usage (Listed Alphabetically) - - CONTINUED 10. Outdoor Air Temperature Sensor Designed for use with Bryant Thermostats listed in this publication. This device enables the thermostat to display the outdoor temperature. This device also is required to enable special thermostat features such as auxiliary heat lock out.

  • Page 7: Electrical Data

    ELECTRICAL DATA OPER VOLTS* UNIT SIZE --- V/PH SERIES 018--- E 024--- C 030--- D 036--- D 208/230/1 042--- C 048--- D 060--- D Permissible limits of the voltage range at which the unit will operate satisfactorily If wire is applied at ambient greater than 30_C, consult table 310 ---16 of the NEC (ANSI/NFPA 70). The ampacity of non ---metallic---sheathed cable (NM), trade name ROMEX, shall be that of 60_C conditions, per the NEC (ANSI/NFPA 70) Article 336 ---26.
  • Page 10 MBTUH CAPACITY, HEATING INTEGRATED UNIT LOSS, HEAT BUILDING...
  • Page 11 Wall...
  • Page 12 COMBINATION RATINGS Model ARI Ref. No. Coil Model Number Number 3026270 213ANA018---E †FY4ANF018 3026297 213ANA018---E FE4ANF002+UI 3026298 213ANA018---E FF1ENP018 3026299 213ANA018---E FF1ENP024 3026300 213ANA018---E FV4BNF002 3026307 213ANA018---E FX4CNF018 3026308 213ANA018---E FX4CNF024 3026296 213ANA018---E FY4ANF024 3026301 213ANA018---E CAP**1814A** 3026271 213ANA018---E CAP**1814A** 3026302 213ANA018---E CAP**2414A**...

  • Page 13: Combination Ratings Continued

    COMBINATION RATINGS CONTINUED Model ARI Ref. No. Coil Model Number Number 3026376 213ANA024---C CNPH*2417A** 3026377 213ANA024---C CNPH*2417A** 3026378 213ANA024---C CNPH*2417A** 3026379 213ANA024---C CNPH*2417A** 3026380 213ANA024---C CNPH*2417A** 3121908 213ANA024---C CNPH*2417A** 3121909 213ANA024---C CNPH*2417A** 3121910 213ANA024---C CNPH*2417A** 3026370 213ANA024---C CNPH*2417A** 3026371 213ANA024---C CNPH*2417A** 3026372 213ANA024---C...
  • Page 14 COMBINATION RATINGS CONTINUED Model ARI Ref. No. Coil Model Number Number 3026409 213ANA024---C CSPH*3012A** 3026410 213ANA024---C CSPH*3012A** 3026411 213ANA024---C CSPH*3012A** 3026412 213ANA024---C CSPH*3012A** 3026406 213ANA024---C CSPH*3012A**+TDR 3026519 213ANA030---D †FY4ANF030 3026598 213ANA030---D FE4AN(B,F)003+UI 3026597 213ANA030---D FE4ANF002+UI 3026599 213ANA030---D FF1ENP030 3026600 213ANA030---D FF1ENP036 3026602 213ANA030---D...
  • Page 15 COMBINATION RATINGS CONTINUED Model ARI Ref. No. Coil Model Number Number 3026564 213ANA030---D CNPH*3617A** 3026565 213ANA030---D CNPH*3617A** 3026559 213ANA030---D CNPH*3617A**+TDR 3026535 213ANA030---D CNPV*3014A** 3026534 213ANA030---D CNPV*3014A**+TDR 3026606 213ANA030---D CNPV*3017A** 3026538 213ANA030---D CNPV*3017A** 3121928 213ANA030---D CNPV*3017A** 3121929 213ANA030---D CNPV*3017A** 3121930 213ANA030---D CNPV*3017A** 3121931 213ANA030---D...
  • Page 16 COMBINATION RATINGS CONTINUED Model ARI Ref. No. Coil Model Number Number 3121952 213ANA036---D CAP**3617A** 3121953 213ANA036---D CAP**3617A** 3121954 213ANA036---D CAP**3617A** 3121955 213ANA036---D CAP**3617A** 3026726 213ANA036---D CAP**3617A** 3026725 213ANA036---D CAP**3617A**+TDR 3026810 213ANA036---D CAP**3621A** 3026811 213ANA036---D CAP**3621A** 3026732 213ANA036---D CAP**3621A** 3121956 213ANA036---D CAP**3621A** 3026729 213ANA036---D...
  • Page 17 COMBINATION RATINGS CONTINUED Model ARI Ref. No. Coil Model Number Number 3026742 213ANA036---D CNPV*3617A**+TDR 3026815 213ANA036---D CNPV*3621A** 3026816 213ANA036---D CNPV*3621A** 3026749 213ANA036---D CNPV*3621A** 3121962 213ANA036---D CNPV*3621A** 3026746 213ANA036---D CNPV*3621A** 3026747 213ANA036---D CNPV*3621A** 3026748 213ANA036---D CNPV*3621A** 3026745 213ANA036---D CNPV*3621A**+TDR 3121966 213ANA036---D CNPV*4217A** 3121965 213ANA036---D...
  • Page 18 COMBINATION RATINGS CONTINUED Model ARI Ref. No. Coil Model Number Number 3027075 213ANA042---C FX4CN(B,F)048 3027038 213ANA042---C FY4ANF048 3027046 213ANA042---C CAP**4221A** 3027047 213ANA042---C CAP**4221A** 3026955 213ANA042---C CAP**4221A** 3121992 213ANA042---C CAP**4221A** 3026952 213ANA042---C CAP**4221A** 3026953 213ANA042---C CAP**4221A** 3026954 213ANA042---C CAP**4221A** 3026951 213ANA042---C CAP**4221A**+TDR 3027048 213ANA042---C...
  • Page 19 COMBINATION RATINGS CONTINUED Model ARI Ref. No. Coil Model Number Number 3122021 213ANA042---C CNPH*4821A** 3122022 213ANA042---C CNPH*4821A** 3027002 213ANA042---C CNPH*4821A** 3027003 213ANA042---C CNPH*4821A** 3027004 213ANA042---C CNPH*4821A** 3027005 213ANA042---C CNPH*4821A** 3027006 213ANA042---C CNPH*4821A** 3027007 213ANA042---C CNPH*4821A** 3027001 213ANA042---C CNPH*4821A**+TDR 3122003 213ANA042---C CNPV*4217A** 3122002 213ANA042---C...
  • Page 20 COMBINATION RATINGS CONTINUED Model ARI Ref. No. Coil Model Number Number 3122033 213ANA042---C CSPH*4812A** 3122034 213ANA042---C CSPH*4812A** 3027027 213ANA042---C CSPH*4812A** 3027028 213ANA042---C CSPH*4812A** 3027029 213ANA042---C CSPH*4812A** 3027030 213ANA042---C CSPH*4812A** 3027031 213ANA042---C CSPH*4812A** 3027032 213ANA042---C CSPH*4812A** 3027026 213ANA042---C CSPH*4812A**+TDR 3027199 213ANA048---D †FY4ANF048 3027264 213ANA048---D...
  • Page 21 COMBINATION RATINGS CONTINUED Model ARI Ref. No. Coil Model Number Number 3027238 213ANA048---D CNPH*6024A**+TDR 3027274 213ANA048---D CNPV*4821A** 3027275 213ANA048---D CNPV*4821A** 3027221 213ANA048---D CNPV*4821A** 3122040 213ANA048---D CNPV*4821A** 3027219 213ANA048---D CNPV*4821A** 3027220 213ANA048---D CNPV*4821A** 3027218 213ANA048---D CNPV*4821A**+TDR 3027276 213ANA048---D CNPV*4824A** 3027224 213ANA048---D CNPV*4824A** 3027225 213ANA048---D...
  • Page 22 COMBINATION RATINGS CONTINUED Model ARI Ref. No. Coil Model Number Number 3027418 213ANA060---D CNPV*6024A** 3027400 213ANA060---D CNPV*6024A** 3027401 213ANA060---D CNPV*6024A** 3027399 213ANA060---D CNPV*6024A** 3027398 213ANA060---D CNPV*6024A**+TDR 3027422 213ANA060---D CSPH*6012A** 3027423 213ANA060---D CSPH*6012A** 3027424 213ANA060---D CSPH*6012A** 3027410 213ANA060---D CSPH*6012A** 3027411 213ANA060---D CSPH*6012A** 3027412 213ANA060---D...
  • Page 43 GUIDE SPECIFICATIONS GENERAL System Description Outdoor- -mounted, air- -cooled, split- -system heat pump unit suitable for ground or rooftop installation. Unit consists of a hermetic compressor, an air- -cooled coil, propeller- -type condenser fan, and a control box. Unit will discharge supply air upward as shown on contract drawings.
  • Page 44 Catalog No. PDS213A ---04 E2008 Bryant Heating & Cooling Systems D 7310 W. Morris St. D Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 09/08 Replaces: PDS213A--- 18--- 3 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
