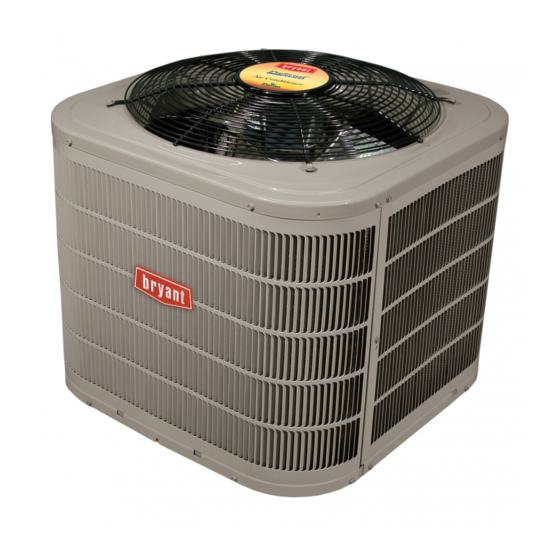

MODEL 225B
PREFERRED™ SERIES 15 HEAT PUMP
WITH PURON® REFRIGERANT
1- -1/2 TO 5 NOMINAL TONS
the environmentally sound refrigerant
Bryant's heat pumps with Puronr refrigerant provide a collection
of features unmatched by any other family of equipment. The
225B has been designed utilizing Bryant's Puron refrigerant. The
environmentally sound refrigerant allows consumers to make a
responsible decision in the protection of the earth's ozone layer.
As an Energy Starr Partner, Bryant Heating & Cooling Systems
has determined that this product meets the Energy Star r
guidelines for energy efficiency. Refer to the combination ratings
in the Product Data for system combinations that meet Energy
Starr guidelines.
NOTE: Ratings contained in this document are subject to
change at any time. Always refer to the AHRI directory
(www.ahridirectory.org) for the most up- -to- -date ratings
information.

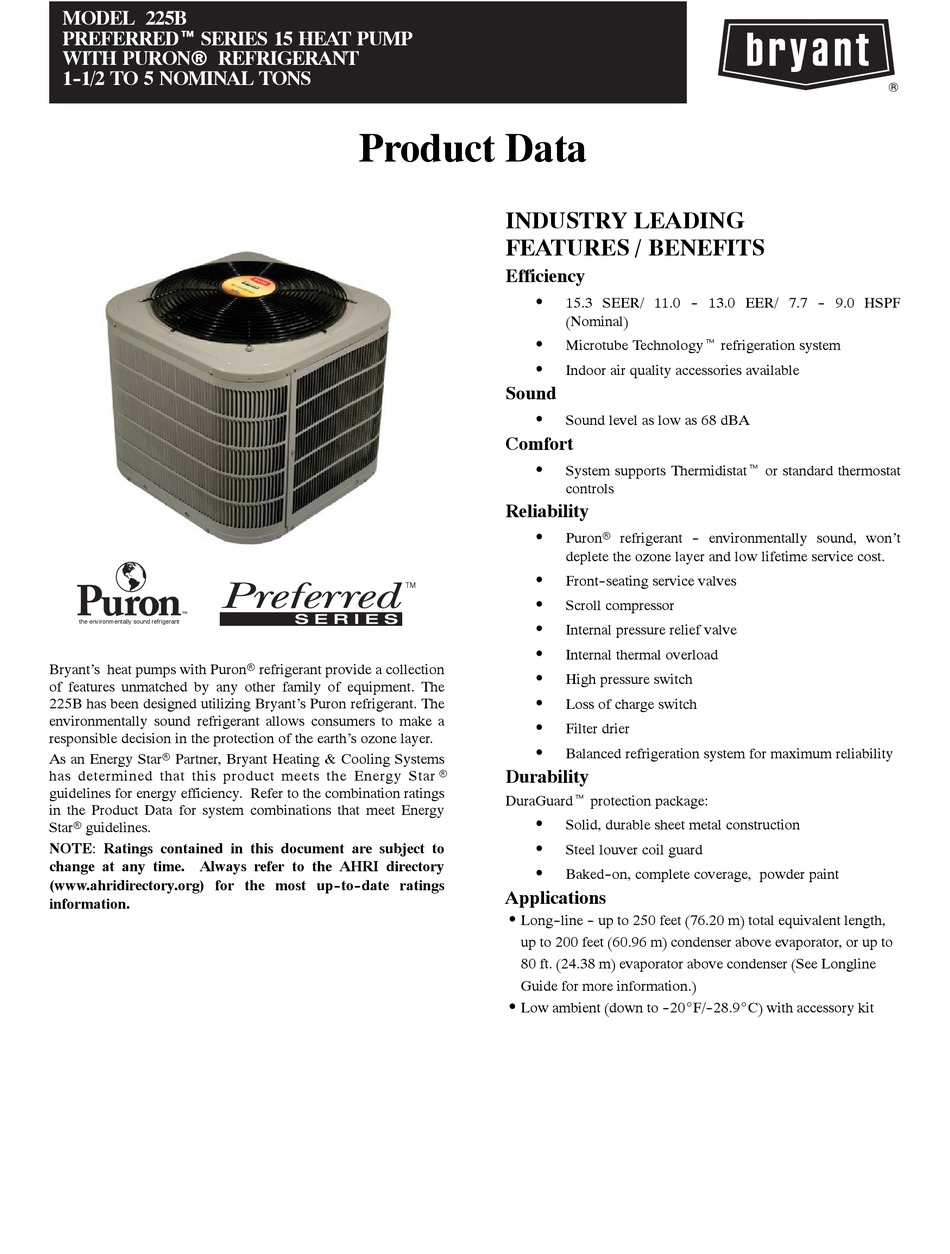

Product Data
INDUSTRY LEADING
FEATURES / BENEFITS
Efficiency
S
S
S
Sound
S
Comfort
S
Reliability
S
S
TM
S
S
S
S
S
S
S
Durability
DuraGuardt protection package:
S
S
S
Applications
S
Long- -line - - up to 250 feet (76.20 m) total equivalent length,
up to 200 feet (60.96 m) condenser above evaporator, or up to
80 ft. (24.38 m) evaporator above condenser (See Longline
Guide for more information.)
S
Low ambient (down to - -20_F/- -28.9_C) with accessory kit
15.3 SEER/ 11.0 - - 13.0 EER/ 7.7 - - 9.0 HSPF
(Nominal)
Microtube Technologyt refrigeration system
Indoor air quality accessories available
Sound level as low as 68 dBA
System supports Thermidistatt or standard thermostat
controls
Puronr refrigerant - - environmentally sound, won't
deplete the ozone layer and low lifetime service cost.
Front- -seating service valves
Scroll compressor
Internal pressure relief valve
Internal thermal overload
High pressure switch
Loss of charge switch
Filter drier
Balanced refrigeration system for maximum reliability
Solid, durable sheet metal construction
Steel louver coil guard
Baked- -on, complete coverage, powder paint
Advertisement
Table of Contents
Related Manuals for Bryant 225B
Summary of Contents for Bryant 225B
-
Page 1: Product Data
Bryant’s heat pumps with Puronr refrigerant provide a collection High pressure switch of features unmatched by any other family of equipment. The 225B has been designed utilizing Bryant’s Puron refrigerant. The Loss of charge switch environmentally sound refrigerant allows consumers to make a Filter drier responsible decision in the protection of the earth’s ozone layer. -
Page 2: Model Number Nomenclature
MODEL NUMBER NOMENCLATURE Product Tier SEER Major Voltage Variations Cooling Capacity Open Open Open Series Family Series 2=HP 5=15 SEER B=Puron A = Standard 0=Not 0=Not 0=Not A = Origi- Legacy 208--- 230--- 1 Defined Defined Defined nal Series Series 208/230--- 1 ISO 9001:2000 Use of the AHRI Certified... -
Page 3: Physical Data
PHYSICAL DATA UNIT SIZE SERIES 018--- A 024--- A 030--- A 036--- A 042--- A 048--- A 060--- A Operating Weight lb (kg) Shipping Weight lb (kg) Compressor Type Scroll REFRIGERANT R---410A Control TXV (R---410A Hard Shutoff) Charge (lb) 12.5 COND FAN Propeller Type, Direct Drive Air Discharge... -
Page 4: Refrigerant Piping Length Limitations
REFRIGERANT PIPING LENGTH LIMITATIONS Maximum Line Lengths: The maximum allowable total equivalent length for heat pumps varies depending on the vertical separation. See the tables below for allowable lengths depending on whether the outdoor unit is on the same level, above or below the outdoor unit. MAXIMUM LINE LENGTHS FOR HEAT PUMP APPLICATIONS MAXIMUM ACTUAL LENGTH MAXIMUM EQUIVALENT LENGTH{... - Page 5 Thermostat Conversion Kit (4 to 5 Wire) — 10 Pack * Outdoor temperature sensor is an accessory for all Bryant electronic thermostats, except the non ---programmable air conditioner version and builder;s thermostats. It allows the temperature at a remote location (outdoors) to be displayed on the thermostat. The outdoor air temperature sensor must be used with the HybridHeatt (dual fuel) thermostat.
- Page 6 ACCESSORY USAGE GUIDELINE REQUIRED FOR LOW --- AMBIENT REQUIRED FOR REQUIRED FOR Accessory COOLING APPLICATIONS SEA COAST APPLICATIONS LONG LINE APPLICATIONS* (Below 55°F / 12.8°C) (Within 2 miles / 3.22 km) Accumulator Standard Standard Standard Ball Bearing Fan Motor Yes{ Compressor Start Assist Capacitor and Relay Crankcase Heater...
- Page 7 Accessory Description and Usage (Listed Alphabetically) - - CONTINUED 10. Outdoor Air Temperature Sensor 13. Snow Stand Designed for use with Bryant Thermostats listed in this Coated wire rack which supports unit 18 in. (457.2 mm) above publication. This device enables the thermostat to display the mounting pad to allow for drainage from unit base.
-
Page 8: Electrical Data
ELECTRICAL DATA FUSE** OPER VOLTS* COMPR WIRE WIRE LENGTH LENGTH UNIT or CKT V/PH SIZE{ SIZE{ ft (m)†† ft (m)†† SIZE 60° C 75° C 60° C 75° C AMPS 018--- A 48.0 9.00 11.8 67 (20.4) 63 (19.2) 024--- A 58.3 12.80 16.5... - Page 12 Wall...
- Page 13 COMBINATION RATINGS High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3677484 225BNA018****A †FX4DNF019 17,800 12.6 15.3 17,400 3.88 10,600 2.56 3677410 225BNA018****A FE4ANF002+UI 17,700 12.5 15.5...
-
Page 14: Combination Ratings Continued
COMBINATION RATINGS CONTINUED High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3677429 225BNA024****A FV4BN(B,F)003 23,800 12.5 15.5 24,000 3.92 14,400 2.72 3677442 225BNA024****A FV4BNF002 23,800 12.5... - Page 15 COMBINATION RATINGS CONTINUED High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3676626 225BNA024****A CNPH*3117A** 359BAV036060 24,000 12.5 15.0 24,000 4.16 15,000 2.76 3676869 225BNA024****A CNPV*2414A** 313*AV024045...
- Page 16 COMBINATION RATINGS CONTINUED High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3677421 225BNA030****A FF1ENP030 27,400 11.2 13.0 29,000 3.68 17,400 2.48 3677423 225BNA030****A FF1ENP031 28,000 12.0...
- Page 17 COMBINATION RATINGS CONTINUED High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3676635 225BNA030****A CNPH*3617A** 315(A,J)AV036070 27,800 12.0 14.5 28,200 3.80 16,700 2.58 3676636 225BNA030****A CNPH*3617A** 315(A,J)AV048090...
- Page 18 COMBINATION RATINGS CONTINUED High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3677189 225BNA030****A CSPH*3012A** 353(A,B)AV048080 28,000 12.0 14.5 28,400 3.92 17,000 2.64 3677186 225BNA030****A CSPH*3012A** 353AAV036040...
- Page 19 COMBINATION RATINGS CONTINUED High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3676405 225BNA036****A CAP**3621A** 315(A,J)AV060110 33,600 12.0 14.5 34,200 3.66 21,400 2.54 3676408 225BNA036****A CAP**3621A** 353(A,B)AV060100...
- Page 20 COMBINATION RATINGS CONTINUED High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3676732 225BNA036****A CNPH*4221A** 355BAV042080 33,600 12.0 14.0 34,600 3.66 21,600 2.54 3676733 225BNA036****A CNPH*4221A** 355BAV060080...
- Page 21 COMBINATION RATINGS CONTINUED High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3677234 225BNA036****A CSPH*3612A** 313*AV024045 33,400 11.5 13.5 35,200 3.66 22,200 2.52 3677235 225BNA036****A CSPH*3612A** 313*AV048070...
- Page 22 COMBINATION RATINGS CONTINUED High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3676430 225BNA042****A CAP**4221A** 353(A,B)AV060100 41,000 12.5 14.5 42,000 3.72 26,000 2.56 3676424 225BNA042****A CAP**4221A** 355(A,C)AV042080...
- Page 23 COMBINATION RATINGS CONTINUED High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3676760 225BNA042****A CNPH*4821A** 313*AV048070 41,500 12.0 14.0 42,000 3.72 27,000 2.54 3676761 225BNA042****A CNPH*4821A** 313*AV048090...
- Page 24 COMBINATION RATINGS CONTINUED High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3677070 225BNA042****A CNPV*4824A** 315(A,J)AV066135 41,500 12.5 15.0 42,000 3.82 26,000 2.62 3677071 225BNA042****A CNPV*4824A** 315(A,J)AV066155...
- Page 25 COMBINATION RATINGS CONTINUED High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3677487 225BNA048****A FY4ANB060 47,000 11.5 13.5 47,000 3.72 29,000 2.56 3677499 225BNA048****A FY4ANF048 46,000 11.2...
- Page 26 COMBINATION RATINGS CONTINUED High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3676811 225BNA048****A CNPH*6024A** 359BAV060100 46,500 12.0 14.0 45,500 3.74 28,000 2.60 3676825 225BNA048****A CNPH*6024A**+TDR 46,500...
- Page 27 COMBINATION RATINGS CONTINUED High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3677373 225BNA048****A CSPH*6012A** 313*AV048090 46,500 12.0 14.5 45,500 3.80 27,800 2.64 3677374 225BNA048****A CSPH*6012A** 313*AV060110...
- Page 28 COMBINATION RATINGS CONTINUED High Temp Low Temp AHRI Model Furnace Cooling Coil Model Number SEER HSPF Ref. No. Number Model Number Capacity E COP H COP Capacity Capacity 3677383 225BNA060****A CSPH*6012A** 315(A,J)AV066135 56,000 12.0 14.5 56,500 3.76 35,600 2.64 3677384 225BNA060****A CSPH*6012A** 315(A,J)AV066155...
- Page 53 GUIDE SPECIFICATIONS AIR- -COOLED, SPLIT- -SYSTEM HEAT PUMP 225B GENERAL 1- -1/2 TO 5 NOMINAL TONS System Description Fans Outdoor- -mounted, air- -cooled, split- -system heat pump unit — Condenser fan will be direct- -drive propeller type, suitable for ground or rooftop installation. Unit consists of a discharging air upward.
- Page 54 SYSTEM DESIGN SUMMARY 1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01- -in. wc. 2. Minimum outdoor operating air temperature without low- -ambient operation accessory is 55_F (12.8_C). 3.
