Bryant LEGACY LINE 13 HEAT PUMP WITH PURONR REFRIGERANT 223A Product Data

Line 13 heat pump with puron refrigerant
Hide thumbs Also See for LEGACY LINE 13 HEAT PUMP WITH PURONR REFRIGERANT 223A:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual

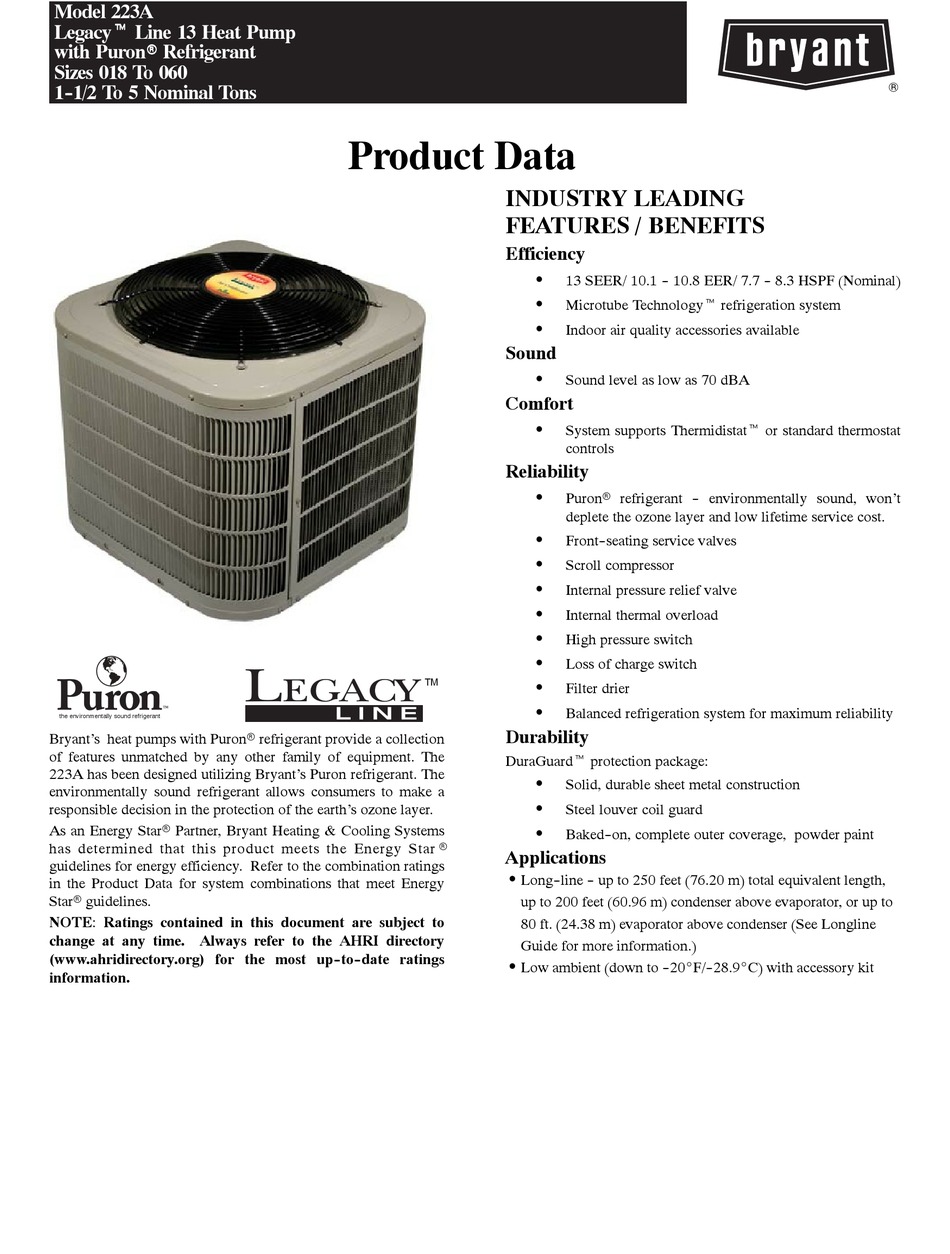

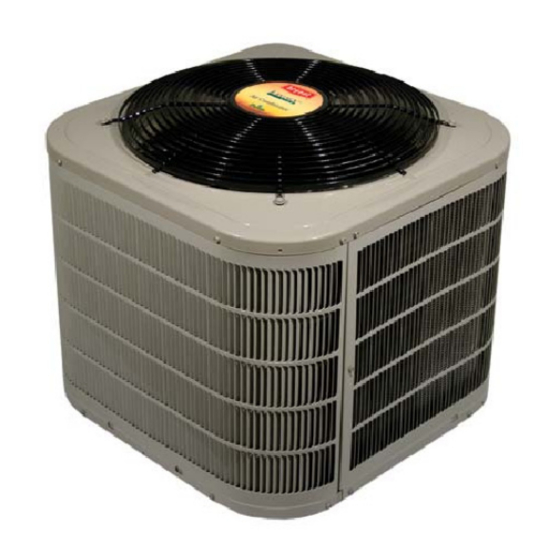

Model 223A
Legacyt Line 13 Heat Pump
with Puronr Refrigerant
Sizes 018 To 060
1- -1/2 To 5 Nominal Tons
the environmentally sound refrigerant
Bryant's heat pumps with Puronr refrigerant provide a collection
of features unmatched by any other family of equipment. The
223A has been designed utilizing Bryant's Puron refrigerant. The
environmentally sound refrigerant allows consumers to make a
responsible decision in the protection of the earth's ozone layer.
As an Energy Starr Partner, Bryant Heating & Cooling Systems
has determined that this product meets the Energy Star r
guidelines for energy efficiency. Refer to the combination ratings
in the Product Data for system combinations that meet Energy
Starr guidelines.
NOTE: Ratings contained in this document are subject to
change at any time. Always refer to the AHRI directory
(www.ahridirectory.org) for the most up- -to- -date ratings
information.

Product Data

INDUSTRY LEADING
FEATURES / BENEFITS
Efficiency
Sound
Comfort
Reliability
TM
Durability
DuraGuardt protection package:
Applications
Long- -line - - up to 250 feet (76.20 m) total equivalent length,
S
up to 200 feet (60.96 m) condenser above evaporator, or up to
80 ft. (24.38 m) evaporator above condenser (See Longline
Guide for more information.)
S
Low ambient (down to - -20_F/- -28.9_C) with accessory kit
S
13 SEER/ 10.1 - - 10.8 EER/ 7.7 - - 8.3 HSPF (Nominal)
S
Microtube Technologyt refrigeration system
S
Indoor air quality accessories available
S
Sound level as low as 70 dBA
S
System supports Thermidistatt or standard thermostat
controls
S
Puronr refrigerant - - environmentally sound, won't
deplete the ozone layer and low lifetime service cost.
S
Front- -seating service valves
S
Scroll compressor
S
Internal pressure relief valve
S
Internal thermal overload
S
High pressure switch
S
Loss of charge switch
S
Filter drier
S
Balanced refrigeration system for maximum reliability
S
Solid, durable sheet metal construction
S
Steel louver coil guard
S
Baked- -on, complete outer coverage, powder paint

Advertisement

Table of Contents
loading

Related Manuals for Bryant LEGACY LINE 13 HEAT PUMP WITH PURONR REFRIGERANT 223A

Summary of Contents for Bryant LEGACY LINE 13 HEAT PUMP WITH PURONR REFRIGERANT 223A

  • Page 1: Product Data

    As an Energy Starr Partner, Bryant Heating & Cooling Systems has determined that this product meets the Energy Star r guidelines for energy efficiency. Refer to the combination ratings in the Product Data for system combinations that meet Energy Starr guidelines.

  • Page 2: Model Number Nomenclature

    MODEL NUMBER NOMENCLATURE Prod- Tier SEER Major Series Family 2=HP 3=13 SEER A=Puron N= 208 ---230 ---1 Legacy Series P = 208/230 ---3 the environmentally sound refrigerant Use of the AHRI Certified TM Mark indicates a manufacturer’s participation in the program For verification of certification for individual products, go to...

  • Page 3: Physical Data

    UNIT SIZE --- SERIES 018--- C (Voltage) Operating Weight lb (kg) (78.9) Shipping Weight lb (kg) (91.2) Compressor Type Refrigerant Control Charge lb (kg) 6.4 (2.9) Outdoor Heating Piston # Cond Fan Air Discharge Air Qty (CFM) 2614 Motor HP 1/10 Motor RPM Cond Coil...
  • Page 5 * Do not use in zoning heat pump applications. ** Outdoor temperature sensor is an accessory for all Bryant electronic thermostats, except the non ---programmable air conditioner version and builder;s thermostats. It allows the temperature at a remote location (outdoors) to be displayed on the thermostat. The outdoor air temperature sensor must be used with the HybridHeatt (dual fuel) thermostat.
  • Page 6 55_F (12.8_C). Suggested for all commercial applications. 10. Outdoor Air Temperature Sensor Designed for use with Bryant Thermostats listed in this publication. This device enables the thermostat to display the outdoor temperature. This device also is required to enable special thermostat features such as auxiliary heat lock out.

  • Page 7: Electrical Data

    ELECTRICAL DATA OPER VOLTS* UNIT SIZE --- V/PH SERIES 018--- C 024--- B 030--- C 036--- C 208/230/1 042--- B 048--- B 060--- B 030--- B 036--- C 042--- B 208/230/3 048--- B 060--- B 036--- C 042--- B 460/3 048--- B 060--- B Permissible limits of the voltage range at which the unit will operate satisfactorily...
  • Page 10 MBTUH CAPACITY, HEATING INTEGRATED UNIT LOSS, HEAT BUILDING...
  • Page 11 Wall...
  • Page 12 COMBINATION RATINGS AHRI Model Coil Ref. No. Number Model Number 3034819 223ANA018---C †FY4ANF018 3034850 223ANA018---C FE4ANF002+UI 3034851 223ANA018---C FF1ENP018 3034852 223ANA018---C FF1ENP024 3034853 223ANA018---C FV4BNF002 3034848 223ANA018---C FX4CNF018 3034849 223ANA018---C FX4CNF024 3034847 223ANA018---C FY4ANF024 3034854 223ANA018---C CAP**1814A** 3034821 223ANA018---C CAP**1814A** 3034820 223ANA018---C CAP**1814A**+TDR...

  • Page 13: Combination Ratings Continued

    COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3034943 223ANA024---B CNPH*2417A** 3034888 223ANA024---B CNPH*2417A** 3034889 223ANA024---B CNPH*2417A** 3034890 223ANA024---B CNPH*2417A** 3034891 223ANA024---B CNPH*2417A** 3034892 223ANA024---B CNPH*2417A** 3121556 223ANA024---B CNPH*2417A** 3121557 223ANA024---B CNPH*2417A** 3121558 223ANA024---B CNPH*2417A** 3034882 223ANA024---B CNPH*2417A** 3034883 223ANA024---B...
  • Page 14 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3034923 223ANA024---B CSPH*3012A** 3034924 223ANA024---B CSPH*3012A** 3034918 223ANA024---B CSPH*3012A**+TDR 3034947 223ANA030---C †FY4ANF030 3035042 223ANA030---C FE4AN(B,F)003+UI 3035041 223ANA030---C FE4ANF002+UI 3035043 223ANA030---C FF1ENP030 3035044 223ANA030---C FF1ENP036 3035046 223ANA030---C FV4BN(B,F)003 3035045 223ANA030---C FV4BNF002 3035047 223ANA030---C...
  • Page 15 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3034977 223ANA030---C CNPV*3014A**+TDR 3034951 223ANA030---C CNPV*3017A** 3034981 223ANA030---C CNPV*3017A** 3121576 223ANA030---C CNPV*3017A** 3121577 223ANA030---C CNPV*3017A** 3121578 223ANA030---C CNPV*3017A** 3121579 223ANA030---C CNPV*3017A** 3034980 223ANA030---C CNPV*3017A** 3034979 223ANA030---C CNPV*3017A**+TDR 3034952 223ANA030---C CNPV*3617A** 3034984 223ANA030---C...
  • Page 16 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3057970 223APA030---B CAP**3617A** 3057969 223APA030---B CAP**3617A**+TDR 3057950 223APA030---B CAP**3621A** 3057976 223APA030---B CAP**3621A** 3057973 223APA030---B CAP**3621A** 3057974 223APA030---B CAP**3621A** 3057975 223APA030---B CAP**3621A** 3057972 223APA030---B CAP**3621A**+TDR 3058014 223APA030---B CNPF*3618A**+TDR 3057954 223APA030---B CNPH*3017A** 3057955 223APA030---B...
  • Page 17 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3058033 223APA030---B CSPH*3612A** 3058027 223APA030---B CSPH*3612A**+TDR 3035048 223APA030---C †FY4ANF030 3035143 223APA030---C FE4AN(B,F)003+UI 3035142 223APA030---C FE4ANF002+UI 3035144 223APA030---C FF1ENP030 3035145 223APA030---C FF1ENP036 3035147 223APA030---C FV4BN(B,F)003 3035146 223APA030---C FV4BNF002 3035148 223APA030---C FX4CN(B,F)036 3035141 223APA030---C...
  • Page 18 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3035082 223APA030---C CNPV*3017A** 3122867 223APA030---C CNPV*3017A** 3122868 223APA030---C CNPV*3017A** 3122869 223APA030---C CNPV*3017A** 3122870 223APA030---C CNPV*3017A** 3035081 223APA030---C CNPV*3017A** 3035080 223APA030---C CNPV*3017A**+TDR 3035053 223APA030---C CNPV*3617A** 3035085 223APA030---C CNPV*3617A** 3122871 223APA030---C CNPV*3617A** 3122872 223APA030---C...
  • Page 19 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3035479 223AEA036---C CAP**3621A** 3035395 223AEA036---C CAP**3621A** 3123005 223AEA036---C CAP**3621A** 3035392 223AEA036---C CAP**3621A** 3035393 223AEA036---C CAP**3621A** 3035394 223AEA036---C CAP**3621A** 3035391 223AEA036---C CAP**3621A**+TDR 3035480 223AEA036---C CAP**4221A** 3035481 223AEA036---C CAP**4221A** 3035400 223AEA036---C CAP**4221A** 3123006 223AEA036---C...
  • Page 20 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3123015 223AEA036---C CNPV*4217A** 3123014 223AEA036---C CNPV*4217A** 3123016 223AEA036---C CNPV*4217A** 3123017 223AEA036---C CNPV*4217A** 3123018 223AEA036---C CNPV*4217A** 3123019 223AEA036---C CNPV*4217A** 3123013 223AEA036---C CNPV*4217A** 3123012 223AEA036---C CNPV*4217A**+TDR 3035485 223AEA036---C CNPV*4221A** 3035486 223AEA036---C CNPV*4221A** 3035418 223AEA036---C...
  • Page 21 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3035242 223ANA036---C CAP**3621A** 3035243 223ANA036---C CAP**3621A** 3035159 223ANA036---C CAP**3621A** 3121604 223ANA036---C CAP**3621A** 3035156 223ANA036---C CAP**3621A** 3035157 223ANA036---C CAP**3621A** 3035158 223ANA036---C CAP**3621A** 3035155 223ANA036---C CAP**3621A**+TDR 3035244 223ANA036---C CAP**4221A** 3035245 223ANA036---C CAP**4221A** 3035164 223ANA036---C...
  • Page 22 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3035173 223ANA036---C CNPV*3621A**+TDR 3121614 223ANA036---C CNPV*4217A** 3121613 223ANA036---C CNPV*4217A** 3121615 223ANA036---C CNPV*4217A** 3121616 223ANA036---C CNPV*4217A** 3121617 223ANA036---C CNPV*4217A** 3121618 223ANA036---C CNPV*4217A** 3121612 223ANA036---C CNPV*4217A** 3121611 223ANA036---C CNPV*4217A**+TDR 3035249 223ANA036---C CNPV*4221A** 3035250 223ANA036---C...
  • Page 23 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3035270 223APA036---C CAP**3617A**+TDR 3035360 223APA036---C CAP**3621A** 3035361 223APA036---C CAP**3621A** 3035277 223APA036---C CAP**3621A** 3122895 223APA036---C CAP**3621A** 3035274 223APA036---C CAP**3621A** 3035275 223APA036---C CAP**3621A** 3035276 223APA036---C CAP**3621A** 3035273 223APA036---C CAP**3621A**+TDR 3035362 223APA036---C CAP**4221A** 3035363 223APA036---C...
  • Page 24 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3035294 223APA036---C CNPV*3621A** 3035291 223APA036---C CNPV*3621A**+TDR 3122905 223APA036---C CNPV*4217A** 3122904 223APA036---C CNPV*4217A** 3122906 223APA036---C CNPV*4217A** 3122907 223APA036---C CNPV*4217A** 3122908 223APA036---C CNPV*4217A** 3122909 223APA036---C CNPV*4217A** 3122903 223APA036---C CNPV*4217A** 3122902 223APA036---C CNPV*4217A**+TDR 3035367 223APA036---C...
  • Page 25 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3035758 223AEA042---B CAP**4221A**+TDR 3035858 223AEA042---B CAP**4224A** 3035766 223AEA042---B CAP**4224A** 3035767 223AEA042---B CAP**4224A** 3123042 223AEA042---B CAP**4224A** 3035764 223AEA042---B CAP**4224A** 3035765 223AEA042---B CAP**4224A** 3035763 223AEA042---B CAP**4224A**+TDR 3035859 223AEA042---B CAP**4817A** 3035770 223AEA042---B CAP**4817A** 3123043 223AEA042---B...
  • Page 26 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3035782 223AEA042---B CNPV*4221A** 3035783 223AEA042---B CNPV*4221A** 3035784 223AEA042---B CNPV*4221A** 3035781 223AEA042---B CNPV*4221A**+TDR 3035865 223AEA042---B CNPV*4821A** 3035866 223AEA042---B CNPV*4821A** 3035790 223AEA042---B CNPV*4821A** 3123056 223AEA042---B CNPV*4821A** 3035787 223AEA042---B CNPV*4821A** 3035788 223AEA042---B CNPV*4821A** 3035789 223AEA042---B...
  • Page 27 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3035511 223ANA042---B CAP**4224A** 3035509 223ANA042---B CAP**4224A**+TDR 3035605 223ANA042---B CAP**4817A** 3035516 223ANA042---B CAP**4817A** 3121642 223ANA042---B CAP**4817A** 3121643 223ANA042---B CAP**4817A** 3035515 223ANA042---B CAP**4817A** 3035514 223ANA042---B CAP**4817A**+TDR 3035606 223ANA042---B CAP**4821A** 3035607 223ANA042---B CAP**4821A** 3035521 223ANA042---B...
  • Page 28 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3035531 223ANA042---B CNPV*4221A** 3121654 223ANA042---B CNPV*4221A** 3035528 223ANA042---B CNPV*4221A** 3035529 223ANA042---B CNPV*4221A** 3035530 223ANA042---B CNPV*4221A** 3035527 223ANA042---B CNPV*4221A**+TDR 3035611 223ANA042---B CNPV*4821A** 3035612 223ANA042---B CNPV*4821A** 3035536 223ANA042---B CNPV*4821A** 3121655 223ANA042---B CNPV*4821A** 3035533 223ANA042---B...
  • Page 29 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3035635 223APA042---B CAP**4221A** 3122931 223APA042---B CAP**4221A** 3035632 223APA042---B CAP**4221A** 3035633 223APA042---B CAP**4221A** 3035634 223APA042---B CAP**4221A** 3035631 223APA042---B CAP**4221A**+TDR 3035731 223APA042---B CAP**4224A** 3035639 223APA042---B CAP**4224A** 3035640 223APA042---B CAP**4224A** 3122932 223APA042---B CAP**4224A** 3035637 223APA042---B...
  • Page 30 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3122940 223APA042---B CNPV*4217A** 3122939 223APA042---B CNPV*4217A** 3122941 223APA042---B CNPV*4217A** 3122942 223APA042---B CNPV*4217A** 3122943 223APA042---B CNPV*4217A** 3122944 223APA042---B CNPV*4217A** 3122938 223APA042---B CNPV*4217A** 3122937 223APA042---B CNPV*4217A**+TDR 3035736 223APA042---B CNPV*4221A** 3035737 223APA042---B CNPV*4221A** 3035728 223APA042---B...
  • Page 31 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3036140 223AEA048---B FE4ANB006+UI 3036137 223AEA048---B FV4BN(B,F)005 3036138 223AEA048---B FV4BNB006 3036135 223AEA048---B FX4CN(B,F)048 3036136 223AEA048---B FX4CN(B,F)060 3036134 223AEA048---B FY4ANB060 3036072 223AEA048---B CAP**4817A** 3123082 223AEA048---B CAP**4817A** 3036071 223AEA048---B CAP**4817A**+TDR 3036141 223AEA048---B CAP**4821A** 3036142 223AEA048---B...
  • Page 32 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3036100 223AEA048---B CNPV*6024A** 3123089 223AEA048---B CNPV*6024A** 3036098 223AEA048---B CNPV*6024A** 3036097 223AEA048---B CNPV*6024A**+TDR 3036157 223AEA048---B CSPH*4812A** 3036158 223AEA048---B CSPH*4812A** 3036159 223AEA048---B CSPH*4812A** 3036122 223AEA048---B CSPH*4812A** 3036123 223AEA048---B CSPH*4812A** 3036124 223AEA048---B CSPH*4812A** 3036125 223AEA048---B...
  • Page 33 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3121690 223ANA048---B CNPH*4821A** 3121691 223ANA048---B CNPH*4821A** 3035916 223ANA048---B CNPH*4821A** 3035917 223ANA048---B CNPH*4821A** 3035918 223ANA048---B CNPH*4821A** 3035915 223ANA048---B CNPH*4821A**+TDR 3035968 223ANA048---B CNPH*6024A** 3035969 223ANA048---B CNPH*6024A** 3035970 223ANA048---B CNPH*6024A** 3035927 223ANA048---B CNPH*6024A** 3035928 223ANA048---B...
  • Page 34 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3036048 223APA048---B CAP**4821A** 3036049 223APA048---B CAP**4821A** 3035983 223APA048---B CAP**4821A** 3122973 223APA048---B CAP**4821A** 3035981 223APA048---B CAP**4821A** 3035982 223APA048---B CAP**4821A** 3035980 223APA048---B CAP**4821A**+TDR 3036050 223APA048---B CAP**4824A** 3035986 223APA048---B CAP**4824A** 3035987 223APA048---B CAP**4824A** 3122974 223APA048---B...
  • Page 35 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3036031 223APA048---B CSPH*4812A** 3036032 223APA048---B CSPH*4812A** 3122986 223APA048---B CSPH*4812A** 3122987 223APA048---B CSPH*4812A** 3122988 223APA048---B CSPH*4812A** 3036026 223APA048---B CSPH*4812A** 3036027 223APA048---B CSPH*4812A** 3036028 223APA048---B CSPH*4812A** 3036025 223APA048---B CSPH*4812A**+TDR 3036067 223APA048---B CSPH*6012A** 3036068 223APA048---B...
  • Page 36 COMBINATION RATINGS CONTINUED AHRI Model Coil Ref. No. Number Model Number 3036188 223ANA060---B CNPH*6024A** 3036189 223ANA060---B CNPH*6024A** 3036173 223ANA060---B CNPH*6024A** 3036174 223ANA060---B CNPH*6024A** 3036175 223ANA060---B CNPH*6024A** 3121704 223ANA060---B CNPH*6024A** 3121705 223ANA060---B CNPH*6024A** 3121706 223ANA060---B CNPH*6024A** 3036172 223ANA060---B CNPH*6024A**+TDR 3036186 223ANA060---B CNPV*6024A** 3036170 223ANA060---B...
  • Page 57 GUIDE SPECIFICATIONS GENERAL System Description Outdoor- -mounted, air- -cooled, split- -system heat pump unit suitable for ground or rooftop installation. Unit consists of a hermetic compressor, air- -cooled condenser fan, and a control box. Unit will discharge supply air upward as shown on contract drawings. Unit will be used in a refrigeration circuit to match up to a packaged fan coil or coil unit.
  • Page 58 Catalog No. PDS223A ---05 EBryant Heating & Cooling Systems 7310 W. Morris St. Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 02/09 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Replaces: PDS223A--- 04...
