Bryant 225A Product Data

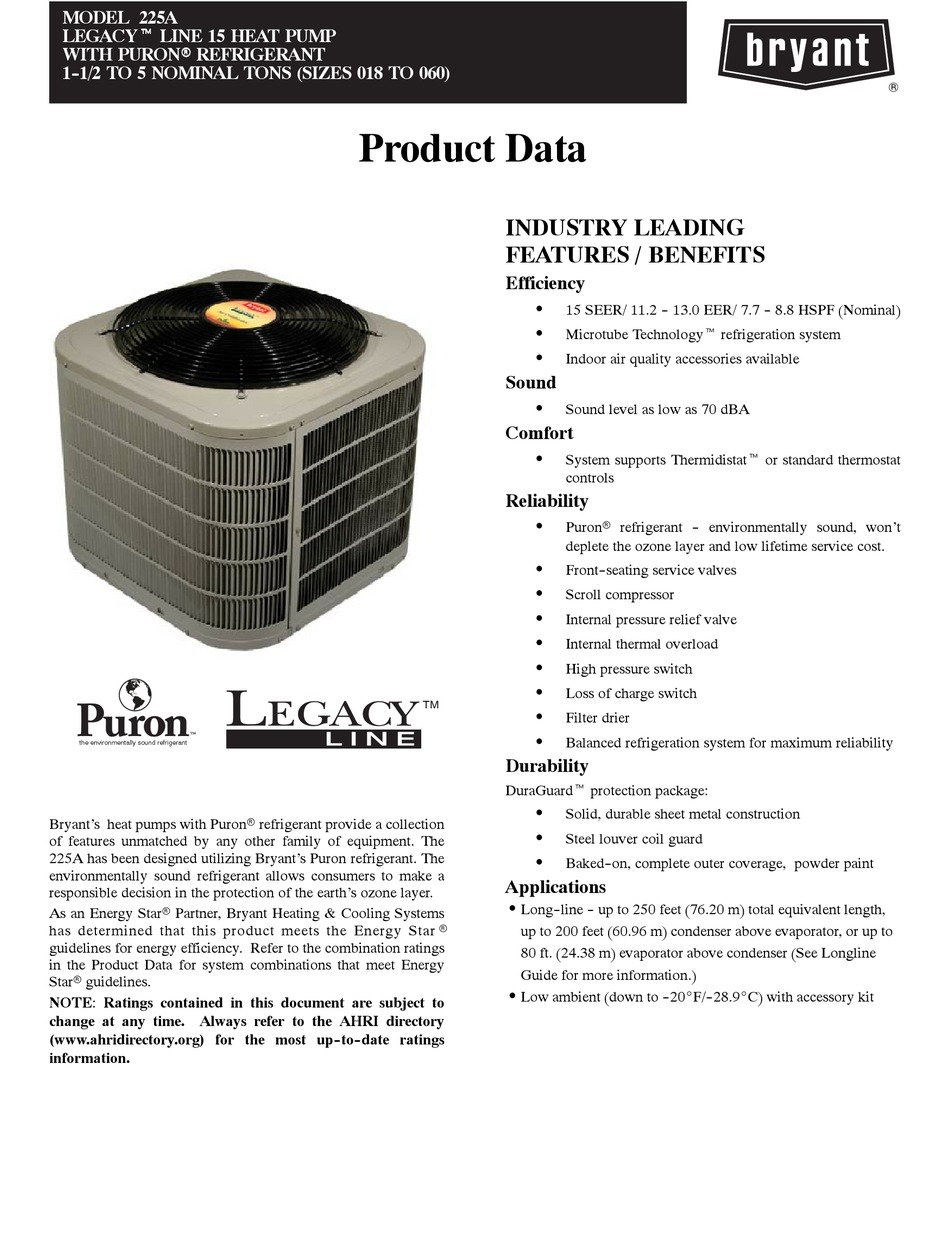

Legacy line 15 heat pump with puron refrigerant 1--1/2 to 5 nominal tons (sizes 018 to 060)
Hide thumbs

Advertisement

Table of Contents

MODEL 225A
LEGACYt LINE 15 HEAT PUMP
WITH PURONr REFRIGERANT
1- -1/2 TO 5 NOMINAL TONS (SIZES 018 TO 060)
the environmentally sound refrigerant
Bryant's heat pumps with Puronr refrigerant provide a collection
of features unmatched by any other family of equipment. The
225A has been designed utilizing Bryant's Puron refrigerant. The
environmentally sound refrigerant allows consumers to make a
responsible decision in the protection of the earth's ozone layer.
As an Energy Starr Partner, Bryant Heating & Cooling Systems
has determined that this product meets the Energy Star r
guidelines for energy efficiency. Refer to the combination ratings
in the Product Data for system combinations that meet Energy
Starr guidelines.
NOTE: Ratings contained in this document are subject to
change at any time. Always refer to the AHRI directory
(www.ahridirectory.org) for the most up- -to- -date ratings
information.

Product Data

INDUSTRY LEADING
FEATURES / BENEFITS
Efficiency
S
S
S
Sound
S
Comfort
S
Reliability
S
S
S
S
S
S
S
TM
S
S
Durability
DuraGuardt protection package:
S
S
S
Applications
S
Long- -line - - up to 250 feet (76.20 m) total equivalent length,
up to 200 feet (60.96 m) condenser above evaporator, or up to
80 ft. (24.38 m) evaporator above condenser (See Longline
Guide for more information.)
S
Low ambient (down to - -20_F/- -28.9_C) with accessory kit
15 SEER/ 11.2 - - 13.0 EER/ 7.7 - - 8.8 HSPF (Nominal)
Microtube Technologyt refrigeration system
Indoor air quality accessories available
Sound level as low as 70 dBA
System supports Thermidistatt or standard thermostat
controls
Puronr refrigerant - - environmentally sound, won't
deplete the ozone layer and low lifetime service cost.
Front- -seating service valves
Scroll compressor
Internal pressure relief valve
Internal thermal overload
High pressure switch
Loss of charge switch
Filter drier
Balanced refrigeration system for maximum reliability
Solid, durable sheet metal construction
Steel louver coil guard
Baked- -on, complete outer coverage, powder paint
