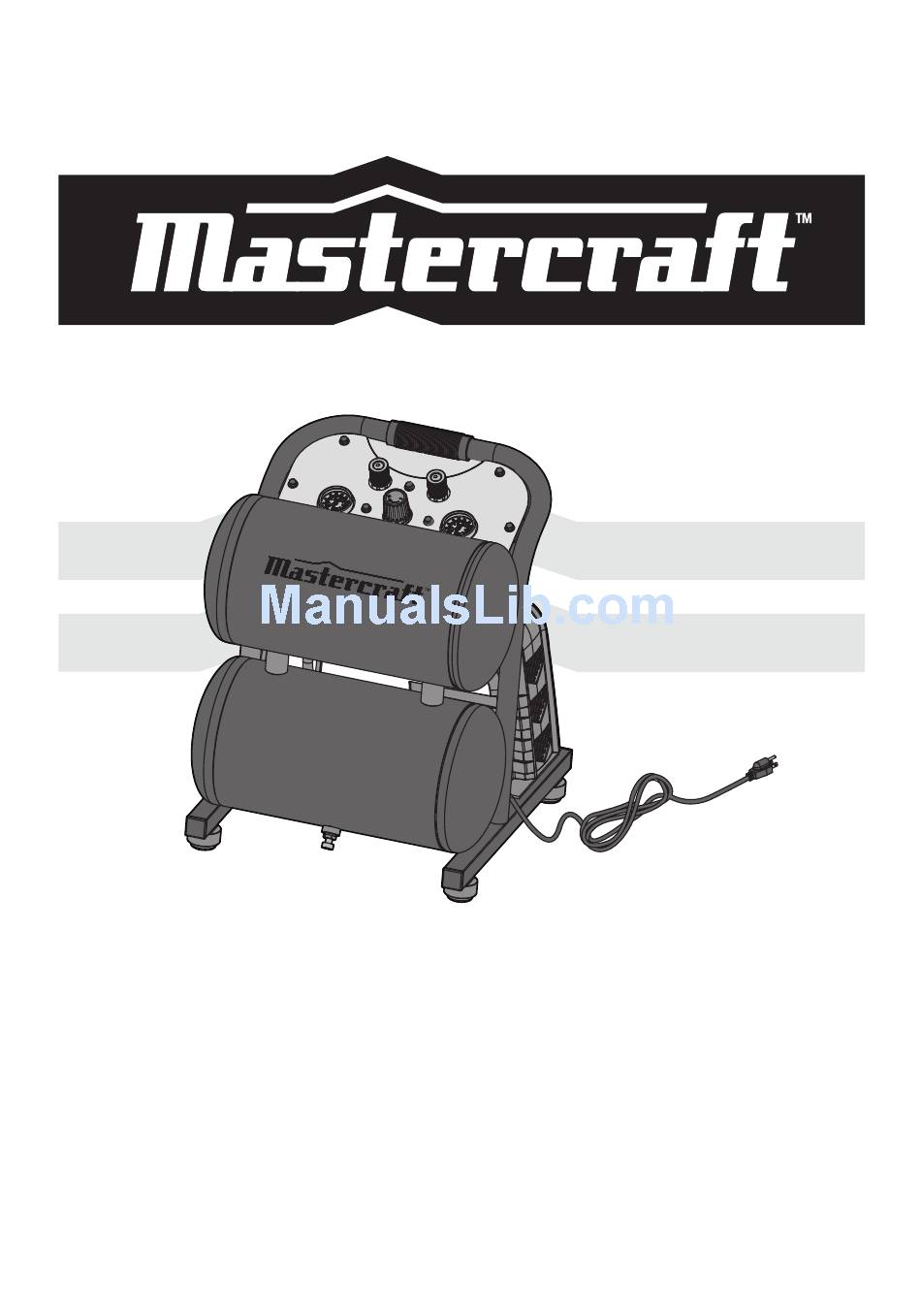

INSTRUCTION MANUAL 5 U.S. GALLONS (18.9 L) • 135 PSI (MAX) AIR COMPRESSOR 058-9315-2... - Page 2 If any parts are missing or damaged, or if you have any questions, please call 1-800-689-9928. Quick Start Guide Read and understand this instruction manual thoroughly before using the product. It contains important information for your safety as well as operating and maintenance advice.
- Page 3 STEP 1 Set the pressure switch (1) to the OFF position. page 14, step 1 MC-589315-01 STEP 2 Turn the air pressure regulator knob (1) counter-clockwise until pressure drops down to zero on output gauge. page 14, step 3 MC-589315-02 5 U.S.
- Page 4 STEP 3 Connect the air hose (1) to the compressor’s air outlet (2) with the quick connector (3). page 13, step 5 MC-589315-03 STEP 4 Close the tank drain valve (1), located on the bottom of the air tank. page 15, step 7 MC-589315-04...
- Page 5 STEP 5 Plug in the power cord (1). page 14, step 4 and page 15, caution MC-589315-05 STEP 6 Set the pressure switch (1) to the ON position. page 15, step 5 MC-589315-06 MC-589315-06 MC-589315-06 MC-589315-06 MC-589315-06 MC-589315-06 MC-589315-06 MC-589315-06 MC-589315-06 MC-589315-06 MC-589315-06...
- Page 6 STEP 7 Turn the air pressure regulator knob (1) clockwise until desired pressure is reached. MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07 MC-589315-07...
- Page 7 QUICK START GUIDE TECHNICAL SPECIFICATIONS SAFETY GUIDELINES 4–8 KEY PARTS DIAGRAM IMPORTANT INFORMATION 10–12 ASSEMBLY INSTRUCTIONS 13–14 OPERATING INSTRUCTIONS 15–18 MAINTENANCE 19–21 TROUBLESHOOTING 22–23 EXPLODED VIEW PARTS LIST WARRANTY 26–27 5 U.S. GALLONS (18.9 L) • 135 PSI (MAX) AIR COMPRESSOR 058-9315-2...
- Page 8 RUNNING HORSEPOWER (18.9 L) TANK SIZE 5 U.S. gallons AIR DELIVERY (CFM*) @ 40 PSI AIR DELIVERY (CFM*) @ 90 PSI MAXIMUM PRESSURE (PSI) PUMP DESIGN Oil-less MOTOR Induction POWER 120 V, 60 Hz, 12 A (26.5 kg) WEIGHT 58 lb 8 oz (1.83 m) POWER CORD SJT 16 AWG / 72"...
- Page 9 Safety guidelines This manual contains information that relates to PROTECTING PERSONAL SAFETY and PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual carefully and understand it thoroughly before using the product. The symbols listed below are used to indicate this information. DANGER! Potential hazard that will result in serious injury or loss of life.
- Page 10 DANGER! Potential hazard that will result in serious injury or loss of life. Risk of fire or explosion: Do not spray a flammable or combustible liquid or • paint near sparks, flames, pilot lights or in a confined area. The spray area must be well-ventilated.
- Page 11 • Risk of burns: The pump and the manifold generate high temperatures. In order to avoid burns or other injuries, do not touch the pump, the manifold or the transfer tube while the compressor is running. Allow the parts to cool down before handling or servicing.
- Page 12 WARNING! Potential hazard that could result in serious injury or loss of life. • The compressor must be located in a well-ventilated area for cooling, and must be a minimum of 12” (31 cm) away from the nearest wall. • Protect the air hose and the power cord from damage and puncture.
-
Page 13: Extension Cords
Extension cords As the distance from the supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power and possible product damage. Refer to the table to determine the required minimum wire size. -
Page 14: Table Of Contents
MC-589315-09 Description Description Tank pressure gauge Air compressor pump Air pressure regulator Electric motor Air outlet Power cord Outlet pressure gauge Air tank Pressure switch Air tank drain valve Safety valve 5 U.S. GALLONS (18.9 L) • 135 PSI (MAX) AIR COMPRESSOR 058-9315-2... -
Page 15: Electric Motor
Compatible compressor and air tool - proper usage and operation ® Always ensure the use of appropriately matched air tools with your Mastercraft Air Compressor. Be sure that the air compressor being used can supply the appropriate volume, pressure and delivery rate of air to the tool(s) without running continuously. -
Page 16: Pressure Switch
Pressure switch This switch turns the compressor on and off. It is operated manually and when it is in the ON position, it allows the motor to start if the pressure in the air tank is below the factory set cut-in pressure, and allows the motor to stop if the pressure in the air tank reaches the factory set cut-out pressure. - Page 17 Tool Compatibility Chart Operates Tool Operates Tool Not Recommended Air Tool Continuously Intermittently Inflation/Recreation Brad Nailer (18-gauge) Finishing Nailer (16-gauge) 3-in-1 Brad/Finishing/Stapler Framing Nailer Roofing Nailer Flooring Nailer Impact Wrench Die Grinder Angle Grinder Air Ratchet Cut-Off Tool Drills Hammer Chisel Shears Sander...
- Page 18 Assembly • Unpack the air compressor unit. Inspect the unit for damage. If the unit has been damaged, contact the retailer immediately. • Check the air compressor’s identification label to ensure that you have purchased the intended model and that it has the required pressure rating for its intended use. Packaging contents Description Illustration...
- Page 19 Air filter assembly 4. Screw the air filter (1) onto the pump fig B (fig B). MC-589315-11 Connect air hose to compressor fig C 5. Connect the air hose (1) to the compressor’s air outlet (2) with the quick (fig C). connector (3) Note: Attach air hose and accessories (not provided).
- Page 20 Break-in procedure fig D 1. Set the pressure switch (1) to the OFF (fig D) position MC-589315-13 2. Open the tank drain valve (1) by turning it counter-clockwise to permit the air to fig E escape and prevent air pressure build-up in the air tank during the break-in period (fig E) MC-589315-14...
- Page 21 CAUTION! Potential hazard that may result in moderate injury or damage to equipment. • Use a dedicated circuit. The compressor will use the full capacity of a typical 15 A household circuit. If any other electrical devices are drawing from the compressor’s circuit, the air compressor may fail to start. Low voltage or an overloaded circuit can result in sluggish starting that causes the motor overload protection system or circuit breaker to trip, especially in cold conditions.
- Page 22 Start-up procedure WARNING! Potential hazard that could result in serious injury or loss of life. • Risk of bursting. Too much air pressure causes a hazardous risk of bursting. Check the manufacturer's maximum pressure rating for air tools and accessories. The regulator outlet pressure must never exceed the maximum pressure rating.
-
Page 23: Shut Down Procedure
4. Check and verify the motor oil level in the pump. fig L 5. Close the tank drain valve (1). Plug-in (fig L) the power cord (2) 6. Set the pressure switch to the ON position and allow the tank pressure to build. -
Page 24: General Maintenance
General maintenance WARNING! Potential hazard that could result in serious injury or loss of life. • If any of the following symptoms appear while operating the product, stop using the product immediately, or serious personal injury could result. Only an authorized service centre should perform repairs on this product. •... - Page 25 WARNING! Potential hazard that could result in serious injury or loss of life. • Be sure to wear protective goggles. • Relieve the air pressure in the system and open the drain valve on the bottom of the tank to drain. •...
-
Page 26: Cleaning The Air Filter
WARNING! Potential hazard that could result in serious injury or loss of life. • Risk of bursting. If the safety valve does not work properly, over-pressurization may occur, causing air tank to rupture or an explosion. Cleaning the air filter A dirty air filter will reduce the air compressor’s performance and life. - Page 27 PROBLEM POSSIBLE CAUSES SOLUTIONS 1. The power cord is not plugged in. 1. Plug the power cord into a grounded outlet. 2. The pressure switch is in the OFF 2. Set the pressure switch to the ON position. position. 3. The extension cord is the wrong 3.
- Page 28 PROBLEM POSSIBLE CAUSES SOLUTIONS The regulator does The regulator or its internal parts Replace the regulator. not regulate the are dirty or damaged. pressure. 1. There is a leak at one of the 1. Check the fittings with soapy water. Tighten fittings.
- Page 29 22-2 22-1 22-3 MC-589315-23 5 U.S. GALLONS (18.9 L) • 135 PSI (MAX) AIR COMPRESSOR 058-9315-2...
- Page 30 Description Description Drain valve On/Off switch Bolt Air filter Rubber foot Switch retainer Frame Cap Pump/Motor assembly Tank 22-1 Capacitor,50 μf Handle sleeve 22-2 Capacitor,200 μf Panel 22-3 Bolt M5x10 Bolt Lock washer Tube Front shroud Regulator Cushion pad Pressure gauge Quick connector Check valve Self-tapping screw ST3.9x17...
- Page 31 ® Mastercraft Limited warranty ® This Mastercraft product is guaranteed for a period of three (3) years from the date of original retail purchase against defects in workmanship and materials. Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase within...
-
Page 32: Additional Limitations
h. this warranty will not apply to normal deterioration of the exterior finish, such as, but not limited to, scratches, dents, paint chips or to any corrosion or discoloring by heat, abrasive and chemical cleaners; this warranty will not apply to component parts sold by and identified as the product of another company, which shall be covered under the product manufacturer’s warranty, if any.
