model no. 299-3118-4
IMPORTANT:
Read and understand this instruction manual thoroughly before using the
product. It contains important information for your safety as well as
operating and maintenance advice.

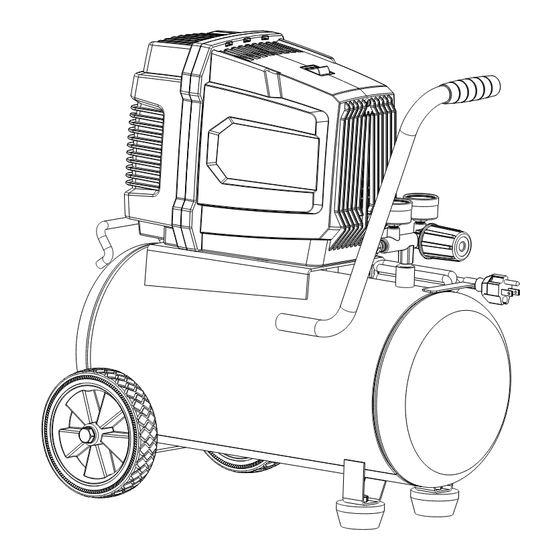

AIR COMPRESSOR

INSTRUCTION
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 299-3118-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MasterCraft 299-3118-4

Summary of Contents for MasterCraft 299-3118-4

  • Page 1: Air Compressor

    299-3118-4 AIR COMPRESSOR INSTRUCTION IMPORTANT: Read and understand this instruction manual thoroughly before using the MANUAL product. It contains important information for your safety as well as operating and maintenance advice.
