MasterCraft 8 U.S. GALLON (30.3 L) AIR COMPRESSOR Instruction Manual

MasterCraft 8 U.S. GALLON (30.3 L) AIR COMPRESSOR Instruction Manual

8 u.s. gallon (30.3 l) air compressor;

Advertisement

INSTRUCTION MANUAL
8 U.S. GALLON (30.3 L)

AIR COMPRESSOR

058-9316-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8 U.S. GALLON (30.3 L) AIR COMPRESSOR and is the answer not in the manual?

Questions and answers

Derek
April 20, 2025

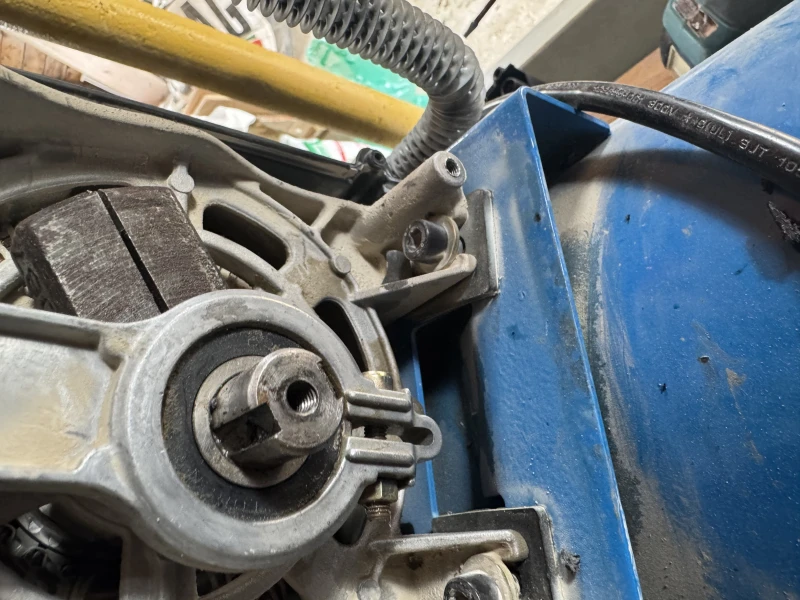

I neeed to know the size of machine screw to mount new fan blade to drive shaft

User image 680554078327c

Summary of Contents for MasterCraft 8 U.S. GALLON (30.3 L) AIR COMPRESSOR

  • Page 1: Air Compressor

    INSTRUCTION MANUAL 8 U.S. GALLON (30.3 L) AIR COMPRESSOR 058-9316-0...
  • Page 2 Keep this instruction manual for future use. Should this product be passed on to a third party, then this instruction manual must be included. 8 U.S. GALLON (30.3 L) AIR COMPRESSOR 058-9316-0...
  • Page 3 STEP 1 Set the pressure switch (1) to the OFF position. page 16, step 1 MC-589316-01 STEP 2 Turn the air pressure regulator knob (1) counter-clockwise until it stops. page 16, step 3 MC-589316-02 8 U.S. GALLONS (30.3 L) AIR COMPRESSOR 058-9316-0...
  • Page 4 STEP 3 Connect the air hose (1) to the compressor’s air outlet (2) with the quick connector (3). MC-589316-03 STEP 4 Close the tank drain valve (1), located on the bottom of the air tank. page 17, step 7 MC-589316-04...
  • Page 5 STEP 5 Plug in the power cord (1). page 16, step 4 and page 17, caution MC-589316-05 STEP 6 Set the pressure switch (1) to the ON position. Turn the air pressure regulator knob (2) clockwise until desired pressure is reached. MC-589316-06...
  • Page 6 QUICK START GUIDE TECHNICAL SPECIFICATIONS SAFETY GUIDELINES 4–8 KEY PARTS DIAGRAM IMPORTANT INFORMATION 10–12 ASSEMBLY INSTRUCTIONS 13–15 OPERATING INSTRUCTIONS 16–20 MAINTENANCE 21–23 TROUBLESHOOTING 24–25 EXPLODED VIEW PARTS LIST WARRANTY 28–29 8 U.S. GALLONS (30.3 L) AIR COMPRESSOR 058-9316-0...
  • Page 7 RUNNING HORSEPOWER 1.5 HP (30.3 L) TANK SIZE 8 U.S. gallons AIR DELIVERY (CFM*) @ 40 PSI AIR DELIVERY (CFM*) @ 90 PSI CUT-IN PRESSURE 105 PSI CUT-OUT PRESSURE 135 PSI PUMP DESIGN Oil-less, direct-drive, single-stage MOTOR 3,400 RPM POWER 120 V, 60 Hz, 12 A (26 kg) WEIGHT...
  • Page 8 Safety guidelines This manual contains information that relates to PROTECTING PERSONAL SAFETY and PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual carefully and understand it thoroughly before using the product. The symbols listed below are used to indicate this information. DANGER! Potential hazard that will result in serious injury or loss of life.
  • Page 9 DANGER! Potential hazard that will result in serious injury or loss of life. Risk of fire or explosion: Do not spray a flammable or combustible liquid or • paint near sparks, flames, pilot lights or in a confined area. The spray area must be well-ventilated.
  • Page 10 • Risk of burns: The pump and the manifold generate high temperatures. In order to avoid burns or other injuries, do not touch the pump, the manifold or the transfer tube while the compressor is running. Allow the parts to cool down before handling or servicing.
  • Page 11 WARNING! Potential hazard that could result in serious injury or loss of life. • The compressor must be located in a well-ventilated area for cooling, and must be a minimum of 12” (31 cm) away from the nearest wall. • Protect the air hose and the power cord from damage and puncture.
  • Page 12: Extension Cords

    Extension cords As the distance from the supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a serious drip in voltage, resulting in loss of power and possible product damage. Refer to the table to determine the required minimum wire size.
  • Page 13: Table Of Contents

    MC-589316-07 Description Description Air tank Outlet pressure gauge Air tank drain valve Tank pressure gauge Power cord Pressure switch Air outlet Electric motor Air pressure regulator Air compressor pump Safety valve 8 U.S. GALLONS (30.3 L) AIR COMPRESSOR 058-9316-0...
  • Page 14: Electric Motor

    Compatible compressor and air tool - proper usage and operation ® Always ensure the use of appropriately matched air tools with your Mastercraft Air Compressor. Be sure that the air compressor being used can supply the appropriate volume, pressure and delivery rate of air to the tool(s) without running continuously.
  • Page 15: Pressure Switch

    Pressure switch This switch turns the compressor on and off. It is operated manually and when it is in the ON position, it allows the motor to start if the pressure in the air tank is below the factory set cut-in pressure, and allows the motor to stop if the pressure in the air tank reaches the factory set cut-out pressure.
  • Page 16 Tool Compatibility Chart Tool Compatibility Chart Operates Tool Operates Tool Not Recommended Air tool Continuously Intermittently Inflation/Recreation Brad Nailer (18-gauge) Finishing Nailer (16-gauge) 3-in-1 Brad/Finishing/Stapler Framing Nailer Roofing Nailer Flooring Nailer Impact Wrench Die Grinder Angle Grinder Air Ratchet Cut-off Tool Drill Hammer Chisel...
  • Page 17 Assembly • Unpack the air compressor unit. Inspect the unit for damage. If the unit has been damaged, contact the retailer immediately. • Check the air compressor’s identification label to ensure that you have purchased the intended model and that it has the required pressure rating for its intended use. Packaging contents Description Illustration...
  • Page 18 Wheel kit Qty. Illustration Axle Wheel Washer Lock washer Tools required for assembly (not included): Accessory Qty. Illustration 11/16" open end wrench or Adjustable wrench 8 U.S. GALLONS (30.3 L) AIR COMPRESSOR 058-9316-0...
  • Page 19 Positioning of the air compressor 1. Position the air compressor (1) near an (fig A) electrical outlet (2) fig A 2. The compressor must be at least 12" (31 cm) from any wall (3) or obstruction, in a clean, well-ventilated area to ensure (fig A).
  • Page 20 Break-in procedure fig E 1. Set the pressure switch (1) to the OFF (fig E) position MC-589316-13 2. Open the tank drain valve (1) by turning it counter-clockwise to permit the air to fig F escape and prevent air pressure build-up in the air tank during the break-in period (fig F) MC-589316-14...
  • Page 21 CAUTION! Potential hazard that may result in moderate injury or damage to equipment. • Use a dedicated circuit. The compressor will use the full capacity of a typical 15 A household circuit. If any other electrical devices are drawing from the compressor’s circuit, the air compressor may fail to start. Low voltage or an overloaded circuit can result in sluggish starting that causes the motor thermal overload protector or circuit breaker to trip, especially in cold conditions.
  • Page 22 Start-up procedure WARNING! Potential hazard that could result in serious injury or loss of life. • Risk of bursting. Too much air pressure causes a hazardous risk of bursting. Check the manufacturer's maximum pressure rating for air tools and accessories. The regulator outlet pressure must never exceed the maximum pressure rating.
  • Page 23 WARNING! Potential hazard that could result in serious injury or loss of life. • High temperatures are generated by the electric motor and the pump. To prevent burns or other injuries, DO NOT touch the air compressor while it is running.
  • Page 24: Shut Down Procedure

    Shut down procedure fig N 1. Set the pressure switch (1) to the OFF (fig N) position 2. Unplug the power cord. 3. Reduce the pressure in the tank through the outlet hose. Pulling the safety valve ring and keeping it open will also reduce the pressure in the tank.
  • Page 25: General Maintenance

    General maintenance WARNING! Potential hazard that could result in serious injury or loss of life. • If any of the following symptoms appears while operating the product, stop using the product immediately, or serious personal injury could result. Only an authorized service centre should perform repairs on this product. •...
  • Page 26 WARNING! Potential hazard that could result in serious injury or loss of life. • Be sure to wear protective goggles. • Relieve the air pressure in the system and open the drain valve on the bottom of the tank to drain. •...
  • Page 27 WARNING! Potential hazard that could result in serious injury or loss of life. • Risk of bursting. If the safety valve does not work properly, over-pressurization may occur, causing air tank rupture or an explosion. Clean the air filter A dirty air filter will reduce air compressor performance and life. To avoid contaminating the pump, the filter should be cleaned frequently and replaced on a regular basis.
  • Page 28 PROBLEM POSSIBLE CAUSES SOLUTIONS 1. The power cord is not plugged in. 1. Plug the power cord into a grounded outlet. 2. The pressure switch is in the OFF 2. Set the pressure switch to the ON position. position. 3. The extension cord is the wrong 3.
  • Page 29 PROBLEM POSSIBLE CAUSES SOLUTIONS The regulator does The regulator or its internal parts not regulate the Replace the regulator. are dirty or damaged. pressure. 1. There is a leak at one of the 1. Check the fittings with soapy water. Tighten fittings.
  • Page 30 MC-589316-24 8 U.S. GALLONS (30.3 L) AIR COMPRESSOR 058-9316-0...
  • Page 31 Description Qty. Description Qty. Nut M10 Rubber foot Air filter Bolt M10x20 Back shroud Drain valve Bolt M5x18 Air tank Self-tapping screw ST3.9x17 Handle Bolt M8x25 Thumbscrew Washer Ø8 Check valve Cushion pad Regulator Bolt M5x10 Relief valve Lock washer Quick coupler Transfer tube Pressure gauge...
  • Page 32 ® Mastercraft Limited warranty ® This Mastercraft product is guaranteed for a period of three (3) years from the date of original retail purchase against defects in workmanship and materials. Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase within...
  • Page 33: Additional Limitations

    The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal legislation. Imported by Mastercraft Canada Toronto, Canada M4S 2B8. 8 U.S. GALLONS (30.3 L) AIR COMPRESSOR 058-9316-0...
