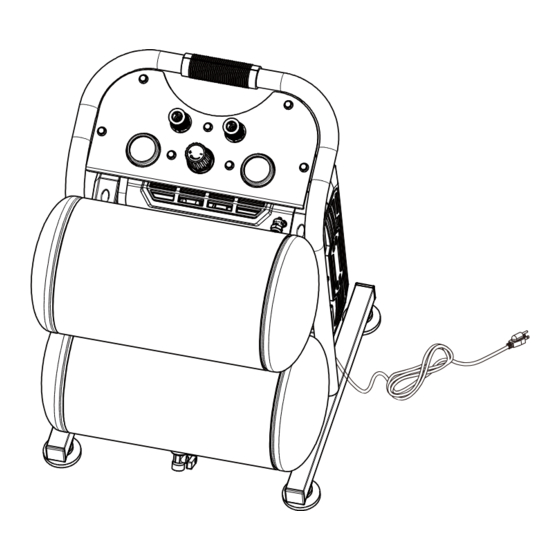

MasterCraft 058-1893-2 Instruction Manual

5 u.s. gallons (18.9 l) air compressor
Hide thumbs

Advertisement

Quick Links

Download this manual
abs
Model no. 058-1893-2
IMPORTANT:
Read and understand this instruction manual thoroughly before using the
product. It contains important information for your safety as well as
operating and maintenance advice.
5 U.S. GALLONS (18.9 L)
AIR COMPRESSOR
INSTRUCTION
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the 058-1893-2 and is the answer not in the manual?

Questions and answers

Related Manuals for MasterCraft 058-1893-2

Summary of Contents for MasterCraft 058-1893-2

  • Page 1 5 U.S. GALLONS (18.9 L) AIR COMPRESSOR Model no. 058-1893-2 INSTRUCTION IMPORTANT: Read and understand this instruction manual thoroughly before using the MANUAL product. It contains important information for your safety as well as operating and maintenance advice.
  • Page 2 headline bars TABLE OF CONTENTS TECHNICAL SPECIFICATIONS headline bars SAFETY GUIDELINES KEY PARTS DIAGRAM KEY PARTS LIST continuation tabs INTENDED USE ASSEMBLY OPERATING INSTRUCTIONS MAINTENANCE notes TROUBLESHOOTING EXPLODED VIEW PARTS LIST WARRANTY continuation tabs warnings notes NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928.
  • Page 3 058-1893-2 | contact us 1-800-689-9928 This manual contains information that relates to PROTECTING PERSONAL SAFETY TECHNICAL SPECIFICATIONS and PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual RUNNING HP carefully and understand it thoroughly before using the product. The symbols listed TANK SIZE 5 U.S.
  • Page 4 058-1893-2 | contact us 1-800-689-9928 Extension cords RISK OF BURNS. The pump and the manifold generate high temperatures. In order to avoid burns or other injuries, do not touch the pump, the manifold or the transfer tube As the distance from the supply outlet increases, you must use a heavier gauge extension cord.
  • Page 5 058-1893-2 | contact us 1-800-689-9928 A. ELECTRIC MOTOR: The motor is used to power the pump. It is equipped with a thermal overload protector. If the motor overheats for any reason, the thermal overload protector will shut it down in order to prevent the motor from being damaged.
  • Page 6 Compatible compressor and air tool: proper usage and operation Finishing Nailer (16 gauge) Always ensure the use of appropriately matched air tools with your Mastercraft Air Compressor. Be sure ® 3-in-1 Brad/Finishing/Stapler that the air compressor being used can supply the appropriate volume, pressure and delivery rate of air to the tool(s) without running continuously.
  • Page 7 058-1893-2 | contact us 1-800-689-9928 Assembly 4. Connect air hose to compressor Unpack the air compressor unit. Inspect the unit for damage. If the unit has been damaged, contact the retailer immediately. • Connect the air hose (1) to the compressor’s air outlet (2) with the quick connector (3).
  • Page 8 058-1893-2 | contact us 1-800-689-9928 Break-in procedure 1. Set the ON/OFF switch (B) to the OFF position. 5. Set the ON/OFF switch (B) to the ON position. The compressor will start. Run the compressor for 30 minutes.
  • Page 9 058-1893-2 | contact us 1-800-689-9928 Before each start-up How to start 1. Set the ON/OFF switch (B) to the OFF position. 1. Close the tank drain valve (H). Plug in the power cord (J).
  • Page 10 058-1893-2 | contact us 1-800-689-9928 To check safety valve SERVICE ITEM DESCRIPTION/REASON INTERVAL Before starting compressor, pull the ring on the safety valve (C) to make sure • Through normal operation of your air compressor, condensation water that the safety valve operates freely.
  • Page 11 058-1893-2 | contact us 1-800-689-9928 model no. 058- PROBLEM POSSIBLE CAUSES SOLUTIONS PROBLEM POSSIBLE CAUSES SOLUTIONS The regulator The power cord is not plugged in. Plug the power cord into a grounded outlet. The regulator or its internal parts does not Replace the regulator.
  • Page 12 058-1893-2 | contact us 1-800-689-9928 Description QTY. Description QTY. Panel Cam lock Plastic end cap Quick connector Rubber foot Pressure gauge Lower shroud Pressure regulator Rubber hose Check valve Drain valve Handle sleeve continuation tabs...
  • Page 13 058-1893-2 | contact us 1-800-689-9928 This Mastercraft product is guaranteed for a period of three (3) years from the date of original retail purchase ® Additional Limitations against defects in workmanship and materials, except for the following component: This warranty applies only to the original purchaser and may not be transferred.
