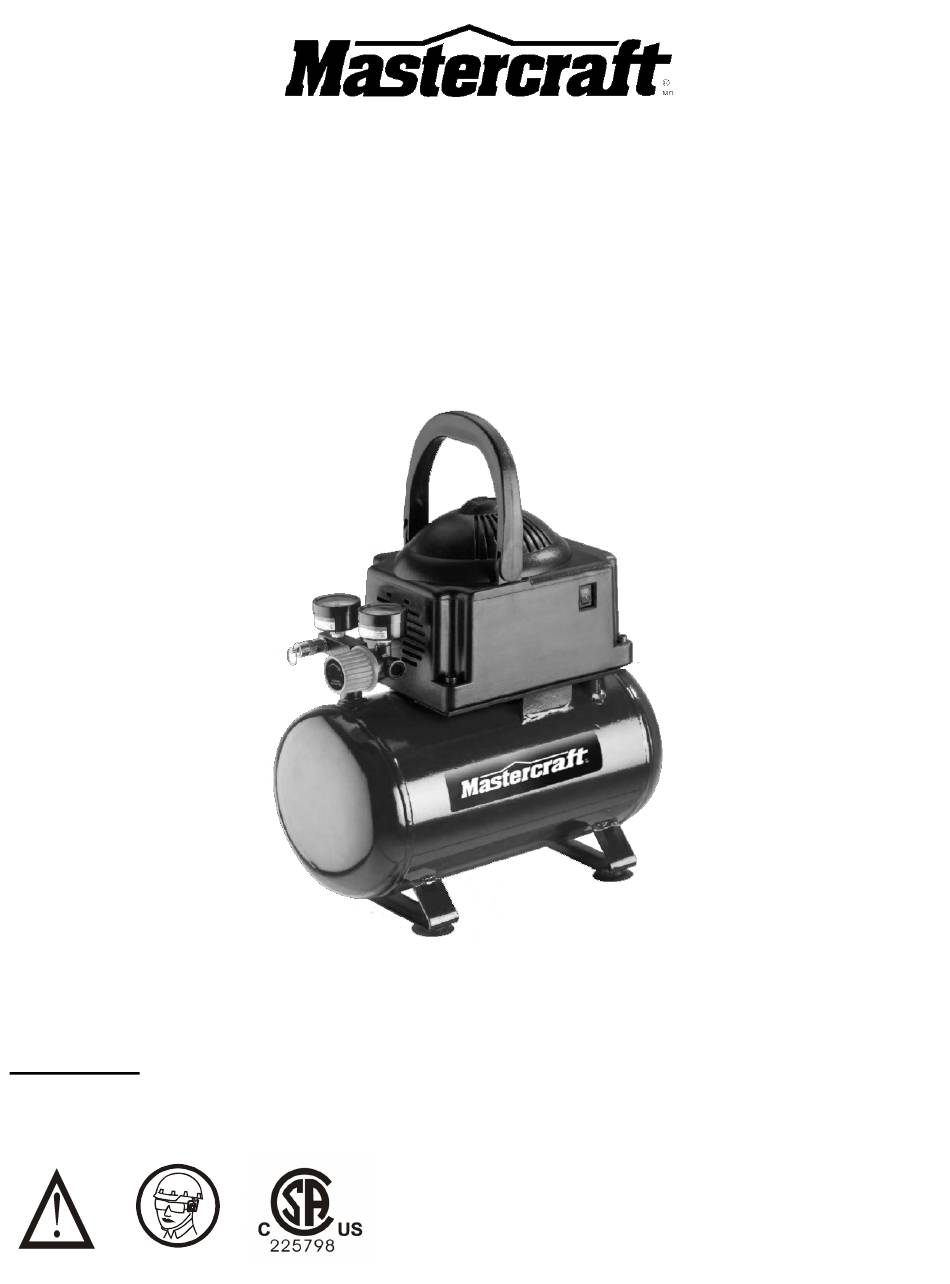

Air Compressor
2-Gallon
058-7936-6
Owner's Manual
Parts Missing or Damaged? Questions? Toll-Free Help Line – 1-800-689-9928
IMPORTANT: Ensure that all users have read all safety rules and operating instructions
carefully before using this product. Keep this Owner's Manual in a safe place for future
reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 058-7936-6 and is the answer not in the manual?

Questions and answers

Chris
February 4, 2025

Where can i order parts for this compressor MasterCraft 058-7936-6 in Canada

2 comments:
Mr. Anderson
May 14, 2025

You can contact the Toll-Free Help Line at 1-800-689-9928 for parts for the MasterCraft 058-7936-6 compressor in Canada.

This answer is automatically generated

douglas cole
August 8, 2025

@Mr. Anderson im looking for brushes for the motor

Rhéaume Laplante
March 19, 2025

I **** looking for brushes for the motor

Summary of Contents for MasterCraft 058-7936-6

  • Page 1 Air Compressor 2-Gallon 058-7936-6 Owner’s Manual Parts Missing or Damaged? Questions? Toll-Free Help Line – 1-800-689-9928 IMPORTANT: Ensure that all users have read all safety rules and operating instructions carefully before using this product. Keep this Owner’s Manual in a safe place for future...
  • Page 2: Table Of Contents

    DAILY STARTUP------------------------------------------------------------------------------------------------------------8 SHUTDOWN-----------------------------------------------------------------------------------------------------------------8 MAINTENANCE---------------------------------------------------------------------------------------------------------------------9 TROUBLESHOOTING CHART -------------------------------------------------------------------------------------------10-11 PARTS SCHEMATIC-------------------------------------------------------------------------------------------------------------12 PARTS LIST------------------------------------------------------------------------------------------------------------------------12 WARRANTY-----------------------------------------------------------------------------------------------------------------------13 SPECIFICATIONSSPECIFICATION PRODUCT NUMBER 058-7936-6 PUMP 1/3 peak HP direct drive, oil-less PEAK HORSEPOWER 1/3 HP MOTOR 3900 RMP POWER 120 V, 60 Hz, 1.6 A, Single AIR TANK CAPACITY 2 GALLONS (7.5 litres)
  • Page 3: Safety Guidelines

    SAFETY GUIDELINES This manual contains information that relates to PROTECTING PERSONAL SAFETY and PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual carefully and understand it thoroughly before using the air compressor. The symbols listed below are used to indicate this information. POTENTIAL HAZARD THAT WILL RESULT IN SERIOUS INJURY OR LOSS OF LIFE POTENTIAL HAZARD THAT COULD RESULT IN SERIOUS INJURY OR LOSS OF LIFE POTENTIAL HAZARD THAT MAY RESULT IN MODERATE INJURY OR DAMAGE TO EQUIPMENT...
  • Page 4: Know Your Air Compressor

    KNOW YOUR AIR COMPRESSOR BASIC COMPRESSOR FEATURES A--------ELECTRIC MOTOR & AIR COMPRESSOR PUMP (not visible) B--------ON/OFF SWITCH C--------AIR LINE OULET D--------REGULATED PRESSURE GAUGE E--------TANK PRESSURE GAUGE F--------AIR PRESSURE REGULATOR G--------PRESSURE RELIEF VALVE H-------- AIR TANK I----------AIR TANK DRAIN VALVE J--------- POWER CORD - 4 -...
  • Page 5 Standard Equipment Standard Equipment: 1) 25’ recoil hose with ¼” NPT male fitting on both ends 2) Teflon Tape 3) Blow Gun 4) Blow-gun adaptor 5) Tapered inflation nozzle 6) Inflation needle 7) Ball-style tire-inflation chuck 8) ¼” NPT female quick connector - 5 -...
  • Page 6 KNOW YOUR AIR COMPRESSOR A. ELECTRIC MOTOR: The motor is used to power the pump. It is equipped with a thermal overload protector and an automatic reset. If the motor overheats for any reason, the thermal overload protector will shut it down in order to prevent the motor from being damaged. The motor will automatically restart when it has cooled completely.
  • Page 7: Before You Start

    BEFORE YOU START General Usage Description This Mastercraft® Air Compressor is ideal for a number of light-duty applications such as inflation and cleaning. The small 2-gallon tank is lightweight for easy portability. It features an oil-less pump for low maintenance and comes standard with a 25’ coil hose and a 7-piece accessory kit so it’s ready to use, right out of the box.
  • Page 8: Daily Startup

    OPERATION Daily Start-Up 1. Close the tank drain valve (see D). Turn in the clockwise direction. 2. Plug in the power cord. High temperatures are generated by the electric motor the pump. To prevent burns or other injuries, DO NOT touch the air compressor while it is running.
  • Page 9: Maintenance

    MAINTENANCE To avoid personal injury, always shut off and unplug the unit and relieve all air pressure from the system before performing any service on the air compressor. Regular maintenance will ensure trouble-free operation. The items listed in the chart should be inspected on a regular basis.
  • Page 10: Troubleshooting Chart

    TROUBLESHOOTING If any of the following symptoms appears while operating the tool, stop using the tool immediately, or serious personal injury could result. Only authorized service centre should perform repairs on this tool. Disconnect the electrical plug and disconnect any tools from air supply before attempting any adjustment.
  • Page 11 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Pressure switch does not shut off Move the pressure switch to the OFF position. If motor when air compressor reaches the motor does not shut off, unplug the air cut-out pressure and safety relief compressor. Contact authorized service centre Motor runs valve activates.
  • Page 12: Parts Schematic

    PARTS SCHEMATIC / PARTS LIST Item# Description Quantity Item# Description Quantity Rubber Foot Power Cord Drain Valve Rubber Pad Tank Bolt Circuit Board Cushion Pad Washer Bolt Transfer Tube Fuse Nut M10x1 Pressure Switch Brass Nipple Bolt Motor Assembly Brass Nipple On/off Switch Regulator Bolt...
  • Page 13: Warranty

    MASTERCRAFT® LIMITED WARRANTY This MASTERCRAFT® product is guaranteed for a period of three (3) years from the date of original retail purchase against defects in materials and workmanship. Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase within the stated warranty period and if covered under this warranty, will be repaired or replaced (with the same model, or one of equal value or specification), at our option.
