Benchmark Alpha InTec 24X Installation And Servicing Instructions page 21

Wall mounted, fan assisted, room sealed, gas fired, high efficieny condensing combination boilers
Table of Contents

Advertisement

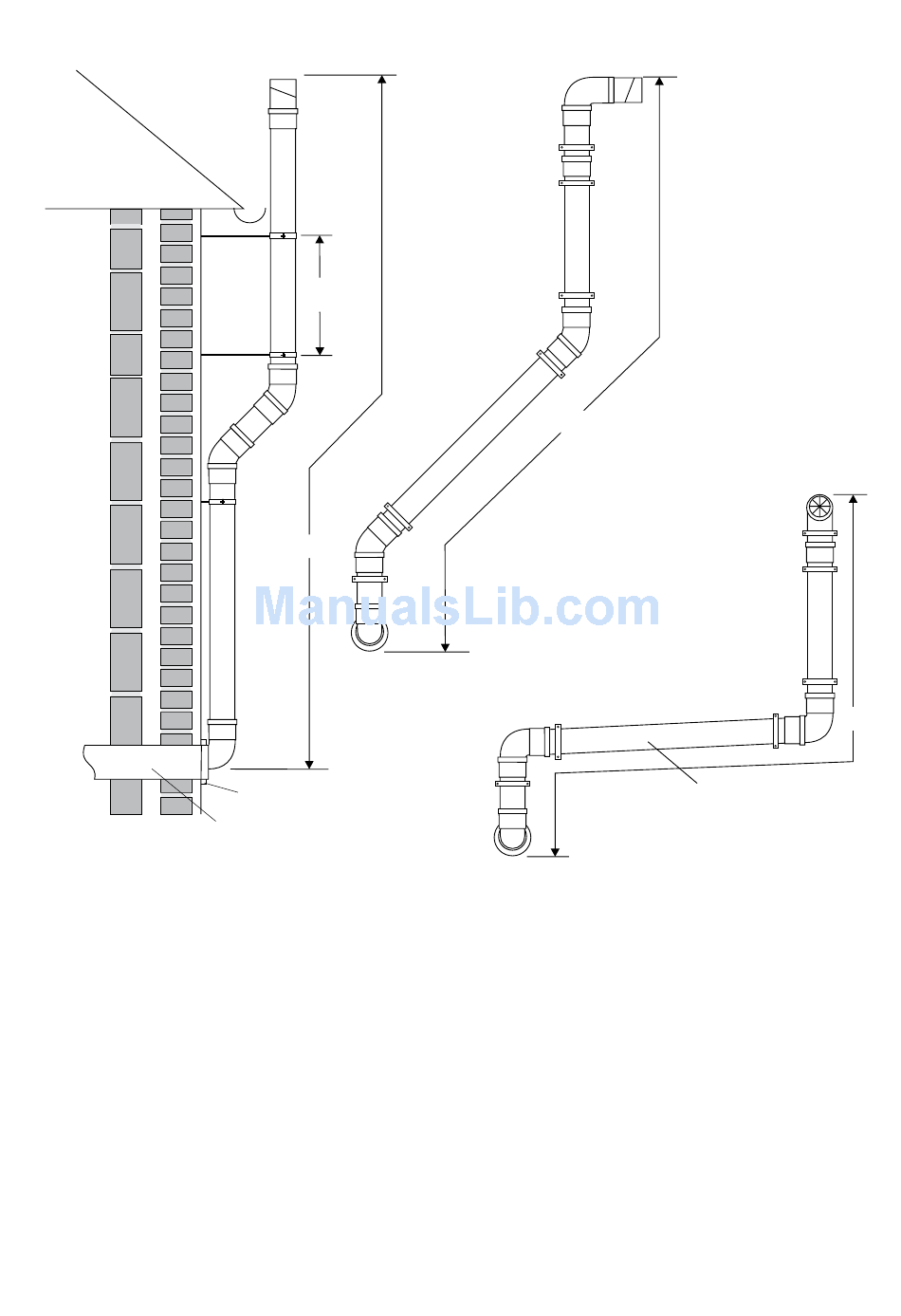

Terminal end section
from CD Easy-Flue
PM length = C + (1 x 93° bend = 1.3 m) + (2 x 45° bends = 1.8 m)
Note: The equivalent horizontal flue assem ly length + the equivalent plume management length (PM length) must not
exceed the maximum flue length stated or each boiler, i.e.
Alpha InTec boiler maximum equivalent flue length
Min.
400 mm
C
PM length = C + (2 x 93° bend = 2.6 m) + (2 x 45° bends = 1.8 m)
Flue sealing collar
CD Easy-Flue
C
Fig. 22
ust not exceed 12 metres.
Terminal end section
from CD Easy-Flue
Note:
1. Ensure each joint is
secured with the screw
supplied.
2. Ensure there is always
a slight slope towards
the CD Easy-Flue so
that there is no part
of the pipework where
condensate will collect.
Terminal end section
from CD Easy-Flue
Ensure there is a slope of approximately
3° back towards the Easy-Flue
PM length = C + (4 x 93° bend = 5.2 m)
Alpha InTec C and X - Installation
C
21
