To create a new rule:
Hercules Wireless G ADSL Modem Router
- In the Port Forwarding window, click the
Create anew rule button.

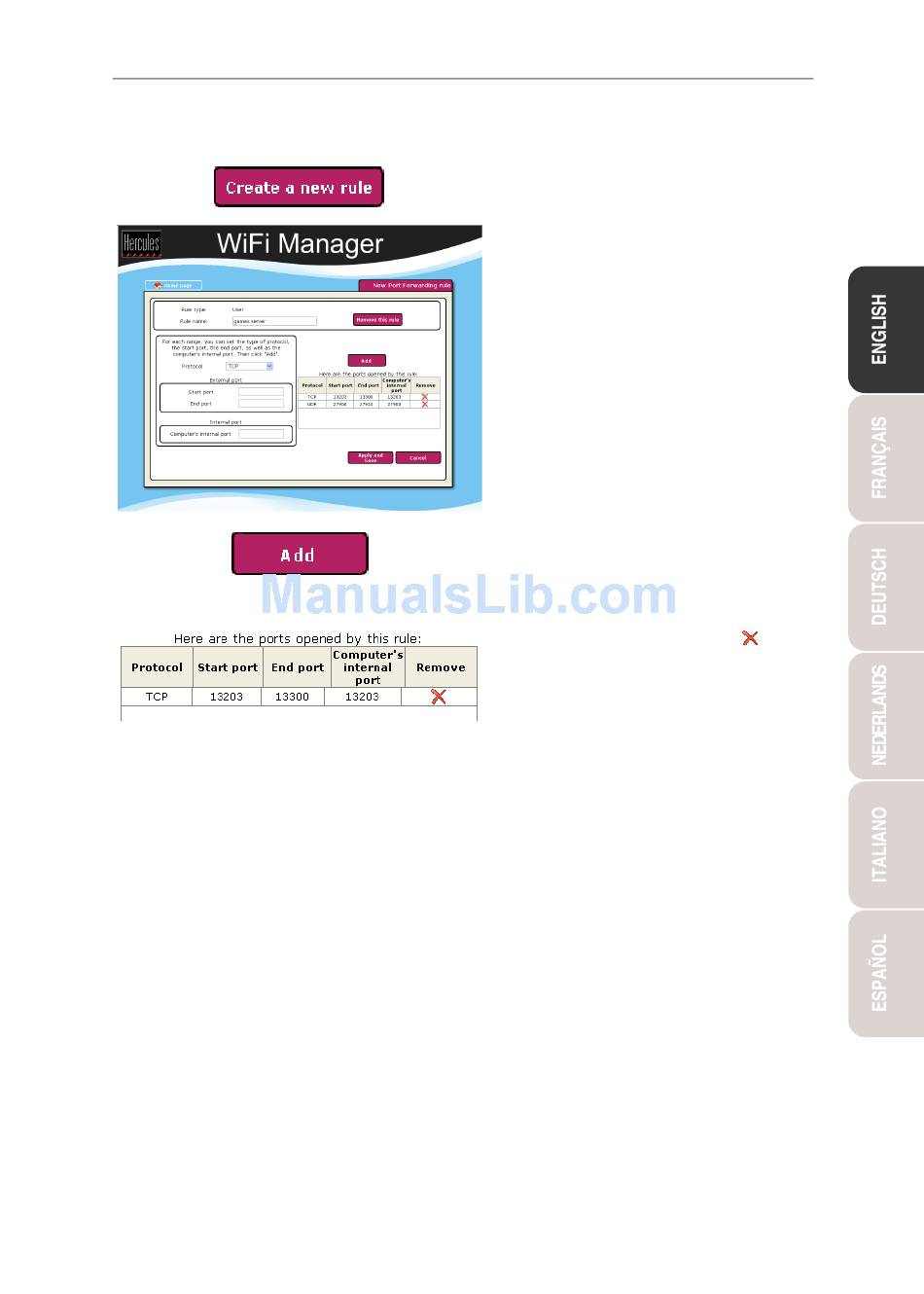

The editing window (opposite) is displayed.
- Enter a name for the rule.
- Select the Protocol (TCP, UDP or TCP/UDP).
- Enter a value in the Start port, End port and
Computer's internal port fields (between 1 and
65536).
If you only open one port, the Start port and the
End port (external ports) have the same value.
The Computer's internal port is generally
equal to the Start port.
- Click the Add button to validate the range and
display it in the table, opposite.
- Repeat this procedure for each range of ports
you wish to add.
- To remove a range, click the
Remove column next to the range in question.
- Once you have finished modifying the settings
for the new rule, click Apply and Save.
The new rule is stored in the Type of service
provided category, under the name New.
