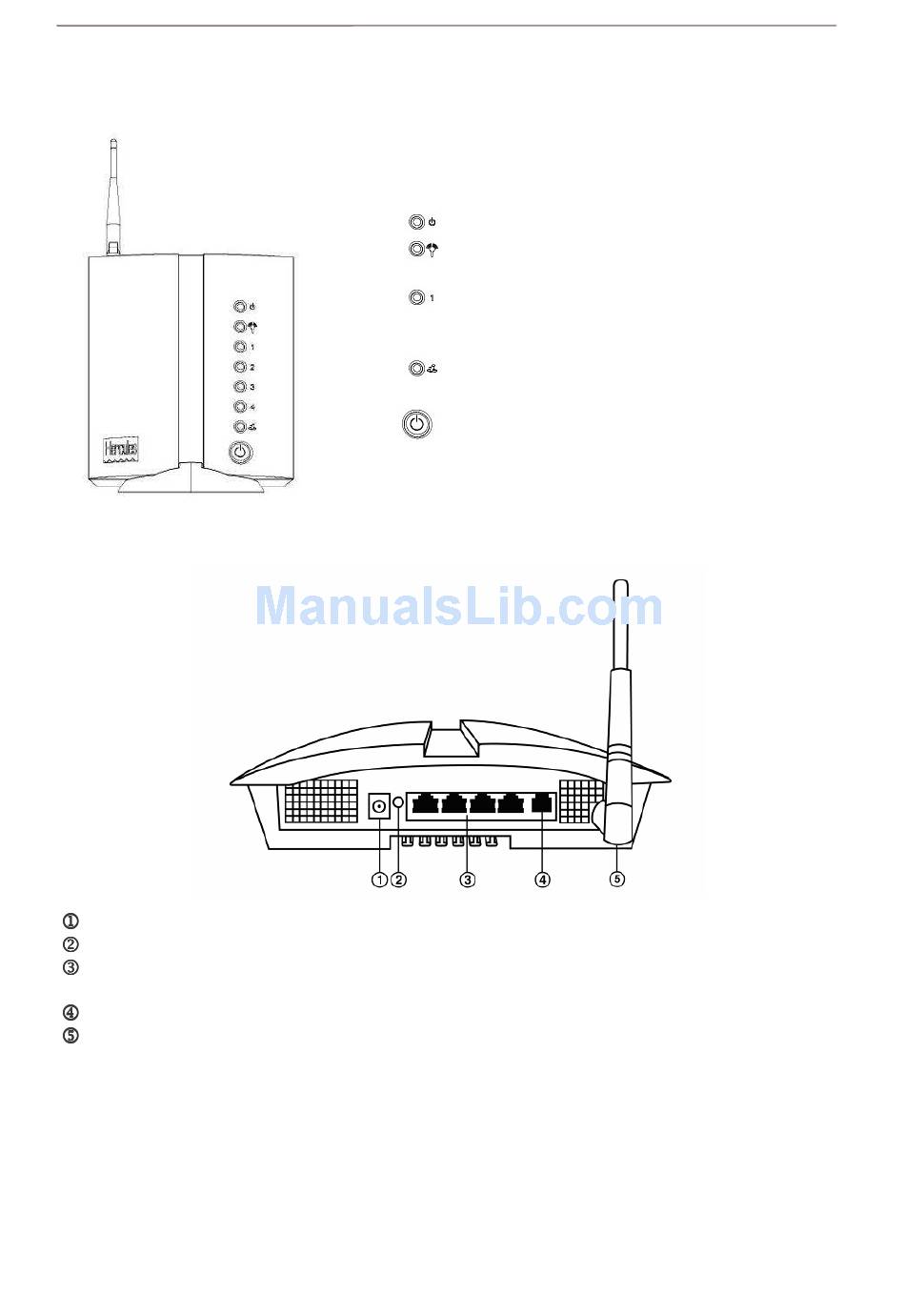

1.5. Front face overview
1.6. Connectivity overview
Power plug to connect power adapter
Restore factory default settings button
Four
Ethernet ports
laptop computers and/or game consoles equipped with Ethernet (RJ-45) ports, in order to create a network
ADSL plug to connect the Hercules Modem Router to a telephone jack
Gold antenna connector (SMA)
6/80 – User Manual
allowing the Hercules Modem Router to be connected to 4 desktop computers and/or
: Power LED
: WiFi LED: lights up when WiFi connection is active,
flashes during data transfer
: 4 LEDs corresponding to the 4 Ethernet ports: each
LED lights up when a peripheral is connected to the
corresponding port, and flashes during data transfer
: Internet LED: lights up when ADSL line is active,
flashes during data transfer
: On/Off button
Modem Router 802.11G-A-54
