5.2. Entering your ADSL connection settings

If you are configuring a PPPoE connection:
Once you have configured your connection, don't forget to click the Apply and Save button to save
your settings. Doing so will establish an Internet connection, which you can then test (please refer to
chapter 5.2.1. Testing your ADSL connection).
56/80 – User Manual

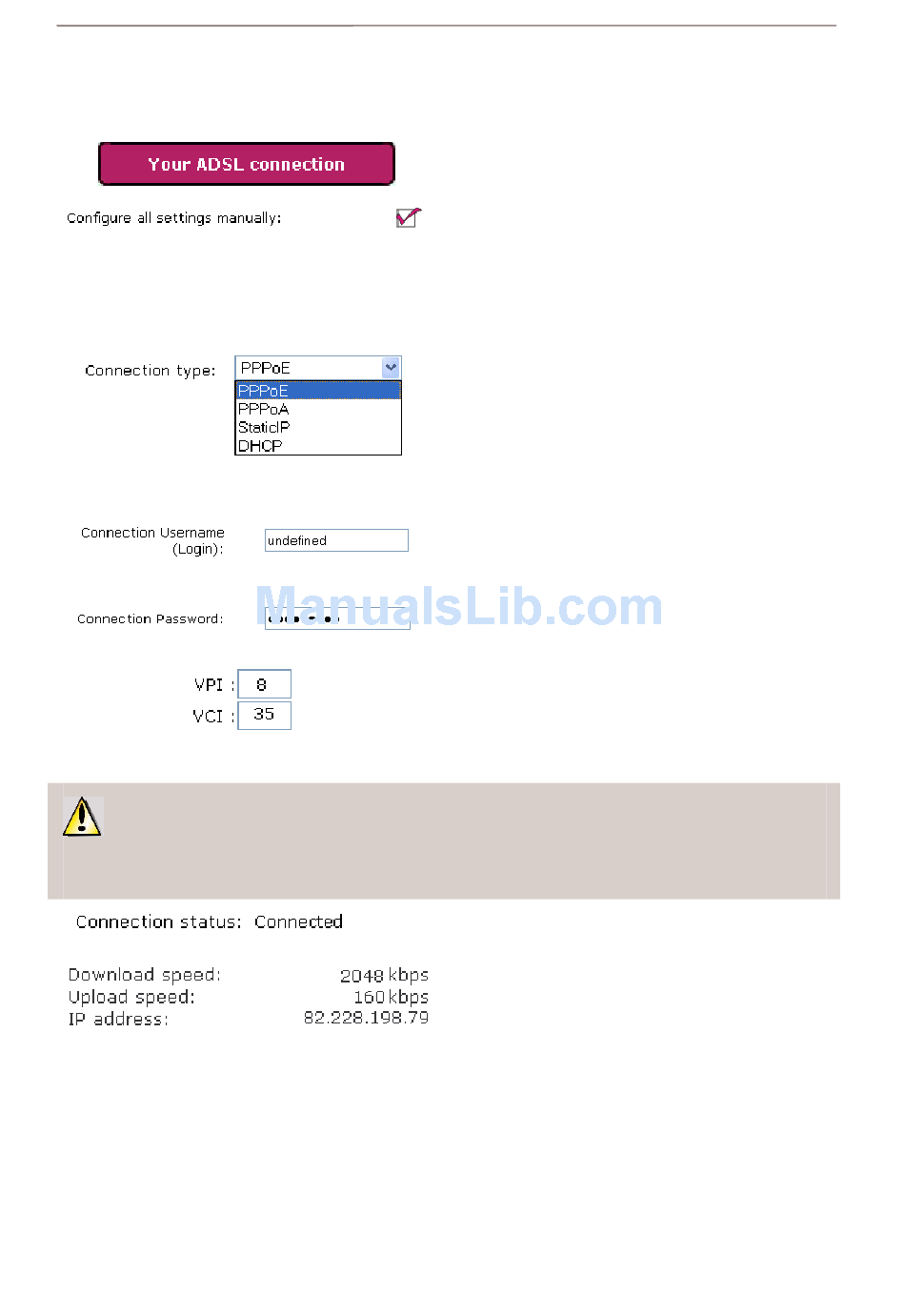

- On the Home page, click Your ADSL connection.
- Tick the Configure all settings manually box.
All of the requested information will be found on the
reminder sheet which you have already filled in
5.1. Gathering
(see chapter
connection settings).
- First off, select your Connection Type (PPPoE,
PPPoA, DHCP or StaticIP).
- Enter your Connection Username (Login) and
Connection password.
This information is found in the confirmation of
membership email or letter sent to you by your ISP,
and is already entered on your reminder sheet.
- Enter the VPI (Virtual Path Identifier) and VCI
(Virtual Circuit Identifier).
The default values are 8 for the VPI and 35 for the
VCI.
- Verify that your modem router is properly
connected.
- Have a look at the information in the Download
speed (transfer speed of Internet data to your
computer) and Upload speed (transfer speed of
data on your computer to the Internet) sections.
This information is quoted in Kilobits per second. A
download speed of 1024Kbps is the equivalent of 1
Megabit per second.
- Finally, you will find your computer's
which you will need later on in WiFi Manager.
Modem Router 802.11G-A-54
your ADSL
IP address,
