Hercules Wireless G ADSL Modem Router User Manual page 64

Hercules Wireless G ADSL Modem Router
64/80 – User Manual

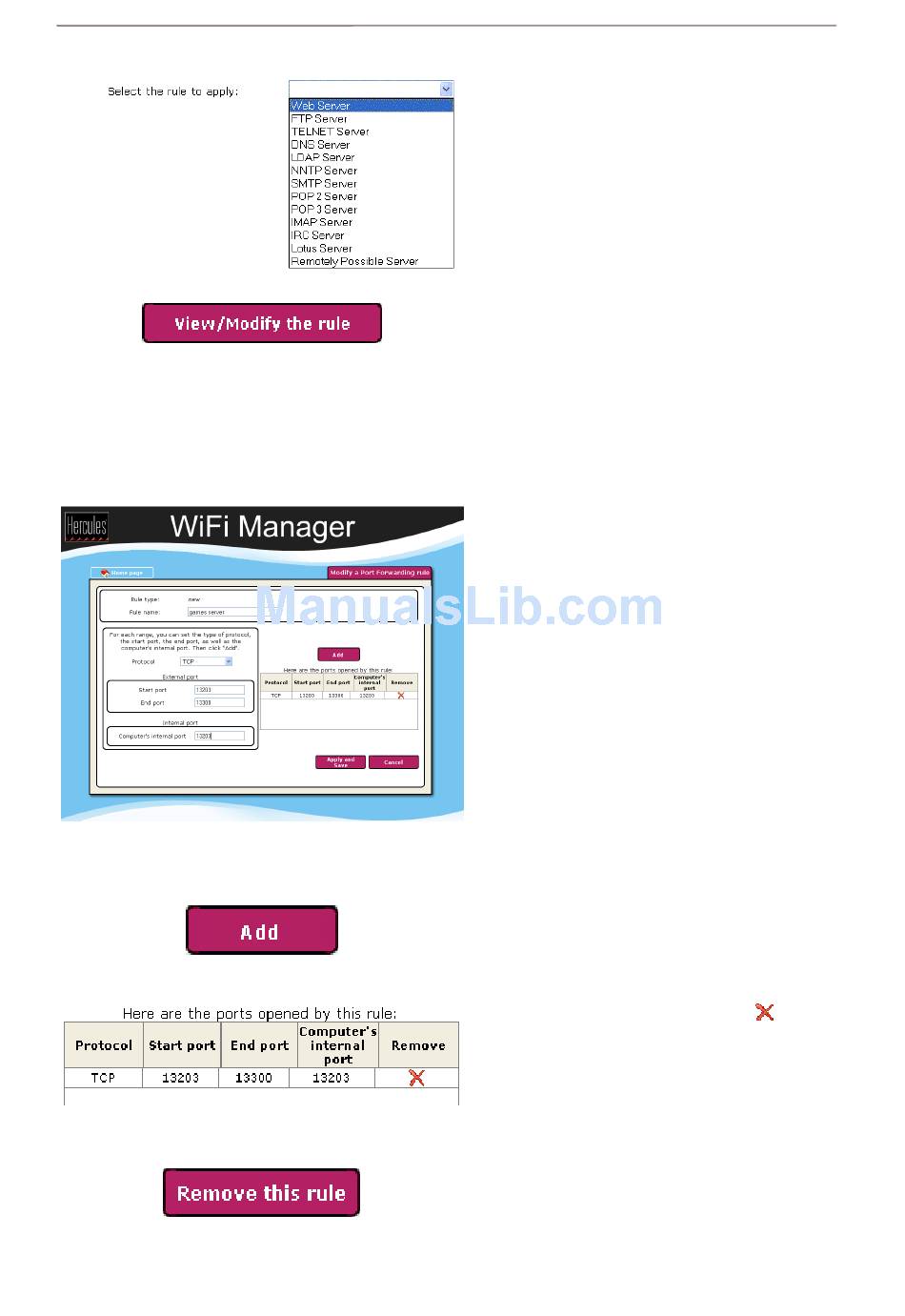

- Select the rule to view or modify.
This list sums up all available rules.
- Click the View/Modify the rule button.
If you have selected a rule created
by WiFi Manager :
You can only view this rule; you are not able to
modify it.
If you have selected a rule created
manually:
The editing window (opposite) is displayed.
- Select the Protocol (TCP, UDP or TCP/UDP).
- Enter a value in the Start port, End port and
Computer's internal port fields (between 1 and
65536).
If you only open one port, the Start port and the
End port (external ports) have the same value.
The Computer's internal port corresponds to
the port used by the service provided by the
computer and is generally equal to the Start
port.
- Click the Add button to validate the range and
display it in the table, opposite.
- Repeat this procedure for each range of ports
you wish to add.
- To remove a range, click the
Remove column next to the range in question.
- Once you have finished modifying the settings
for the new rule, click Apply and Save.
The new rule is stored in the Type of service
provided category, under the name New.
- If you wish to remove this rule from the list of
rules to be applied, click the Remove this rule
button.
Modem Router 802.11G-A-54
