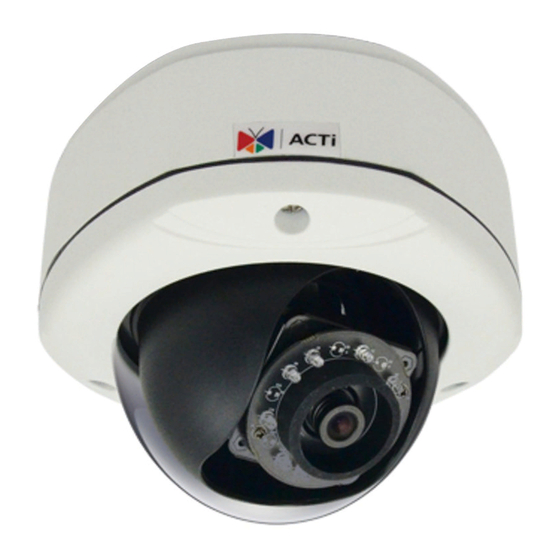

ACTi D71 Hardware Manual

4” outdoor dome series
Hide thumbs Also See for D71:
Table of Contents

Advertisement

Quick Links

See also: User Manual
4" Outdoor Dome Series
Hardware Manual
D71, D72, D81, D82, E71, E72, E73,
E74, E81, E82, E83, E84, E85, E86
2013/12/11
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D71 and is the answer not in the manual?

Questions and answers

Related Manuals for ACTi D71

Summary of Contents for ACTi D71

  • Page 1 4” Outdoor Dome Series Hardware Manual D71, D72, D81, D82, E71, E72, E73, E74, E81, E82, E83, E84, E85, E86 2013/12/11 VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 2: Table Of Contents

    Step 8: Close the Dome Cover ..............23 Other Adjustments and Accessories ....24 Focus and Viewing Angle Adjustments ..........24 D7x / E7x Series ................... 24 D8x / E8x Series ................... 26 www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 3 Hardware Manual Replacing the Dome Cover ..............27 Accessing the Camera ......... 30 Configure the IP Addresses ..............30 Access the Camera .................. 34 www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 4: Precautions

    We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 5 Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 6: Safety Instructions

    Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 7: Introduction

    3MP Outdoor Dome with D/N, IR, Superior WDR, Vari-focal lens From the installation perspective these models are very similar; therefore you can use one manual for all of them. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 8: Package Contents

    Conduit Gland Cable Gland Hexagon Screwdriver Lens Focus Tuner Drill Template (Available in select models only) (for D7x / E7x series only) Drill Template Quick Installation Guide Warranty Card www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 9: Physical Description

    (card not included in the camera package). For more information on using the memory card, please refer to the Firmware User Manual. 3) Ethernet Port Connects to a network using an Ethernet cable. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 10: Mounting Options

    PMAX-1003 Pendant Suitable when mounting the camera on hard and high ceilings. Mount PMAX-0101 PMAX-0103 (Straight Tube with Bracket) PMAX-0101 PMAX-0102 (Straight Tube) www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 11 Horizontal Suitable when mounting the camera on horizontal poles. Pole Mount PMAX-0101 PMAX-0102 PMAX-0503 Corner Suitable when mounting the camera on a corner wall. Mount PMAX-0101 PMAX-0305 PMAX-0402 www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 12: Other Mounting Accessories

    PMAX-0104 (Extension Tube) NOTE:  For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector).  The above mounting accessories are not included in the package. Contact your sales agents to purchase. www.acti.com...

  • Page 13: Installing The Camera On A Surface

    Route the network cable to pass this hole from the surface.  If the cables will be routed along the surface, skip to the next step. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 14: Step 2: Open The Dome Cover

    3. Carefully lift to open the dome cover and place it on the side of the camera. NOTE: Do not abruptly lift the dome cover; it is attached to the camera with a spring wire. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 15: Step 3: Prepare For Waterproof Installation

    NOTE: The bundled conduit gland may vary. Check the conduit gland that came with your package to determine if 3/8” or 1/2" is the suitable flexible conduit size. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 16: Waterproof Solution With Naked Cable

    1. Disassemble the cable gland as shown below: Sealing Insert Body Clamping with Claw (with Washer) 2. Insert the clamping nut into the Ethernet cable. 3. Insert the sealing insert with claw. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 17 Make sure the clamping nut is tightly attached to the cable gland body and the sealing insert is squeezed tightly. 6. Proceed with on page 21. Step 4: Install the Camera to the Surface www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 18: Waterproof Solution With Conduit

    NOTE: The bundled conduit gland may vary. Check the conduit gland that came with your package to determine if 3/8” or 1/2" is the suitable flexible conduit size. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 19 Please set the lock nut aside. 3. Pull the network cable through the flex conduit. 4. Insert the clamping nut through the flex conduit. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 20 7. If the cable will be routed along the surface, skip this step. If the cable will pass through the surface, do the following: a. Pull the network cable through the bottom conduit hole. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 21: Step 4: Install The Camera To The Surface

    Since electric screwdrivers vary in sizes, speed, and force, they may bruise and damage the internal camera components. DISCLAIMER: ACTi will not be responsible for camera damage caused by improper installations or the misuse of equipment for installation. www.acti.com...

  • Page 22: Step 5: Connect The Cable

    Then, connect the PoE switch or injector to a network or PC and a power source. See example connection diagram below. Network Ethernet Cable Ethernet Cable (Data) PoE Injector / Power Cable PoE Switch Ethernet Cable AC Power (Data + Power) Source Camera www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 23: Step 6: Access The Camera Live View

    1. Align the position of the dome cover shroud to the direction of the lens. 2. Tighten the three (3) screws to attach the dome cover to the camera body. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 24: Other Adjustments And Accessories

    Focus and Viewing Angle Adjustments This section describes the procedures in adjusting the viewing angle, focus, and pan direction of the camera. D7x / E7x Series Camera Parts Overview Adjustment Procedures www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 25 3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the screw to fix the pan position. 4. Attach the bundled lens focus tuner unto the lens and turn left or right to adjust the focus. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 26: D8X / E8X Series

    3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the screw to fix the pan position. 4. Move the zoom and focus levers left or right to adjust the focus and the viewing angle. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 27: Replacing The Dome Cover

    Hold the spring wire as the screw is being removed to avoid the sudden release of the screw and cause it to fly in the air. 3. Remove the three (3) screws to detach the cover bracket. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 28 4. Remove dome cover from the cover housing. 5. Remove the shroud from the dome cover. 6. Insert the shroud into the replacement dome cover. 7. Insert the replacement dome cover into the cover housing. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 29 9. Fit the screw into the spring wire that is attached to the camera. 10. Attach the screw to the dome cover using a screwdriver. Final installation should look like the illustration below. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 30: Accessing The Camera

    Windows thanks to the UPnP function support of our cameras. In the example below, we successfully found the camera model that had just connected to the network. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 31 The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility With just one click, you can launch the IP Utility and there will be an instant report as follows: You can quickly notice the camera model in the list.

  • Page 32: 2 Www.acti.com

    Manually adjust the IP address of the PC: In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 33 Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 34: Access The Camera

    – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 35 HTTP port of the camera is 80, which can be omitted from the address for convenience. Before logging in, you need to know the factory default Account and Password of the camera. Account: Admin Password: 123456 www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 36 To check the firmware version through the Web Configurator, access the Setup page and click System > System Info. For further operations, please refer to the Firmware User Manual. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
