If you want to re-start the Walk Test mode again, open the Front Cover as shown in
Figure 1 and then re-attach the Front Cover.

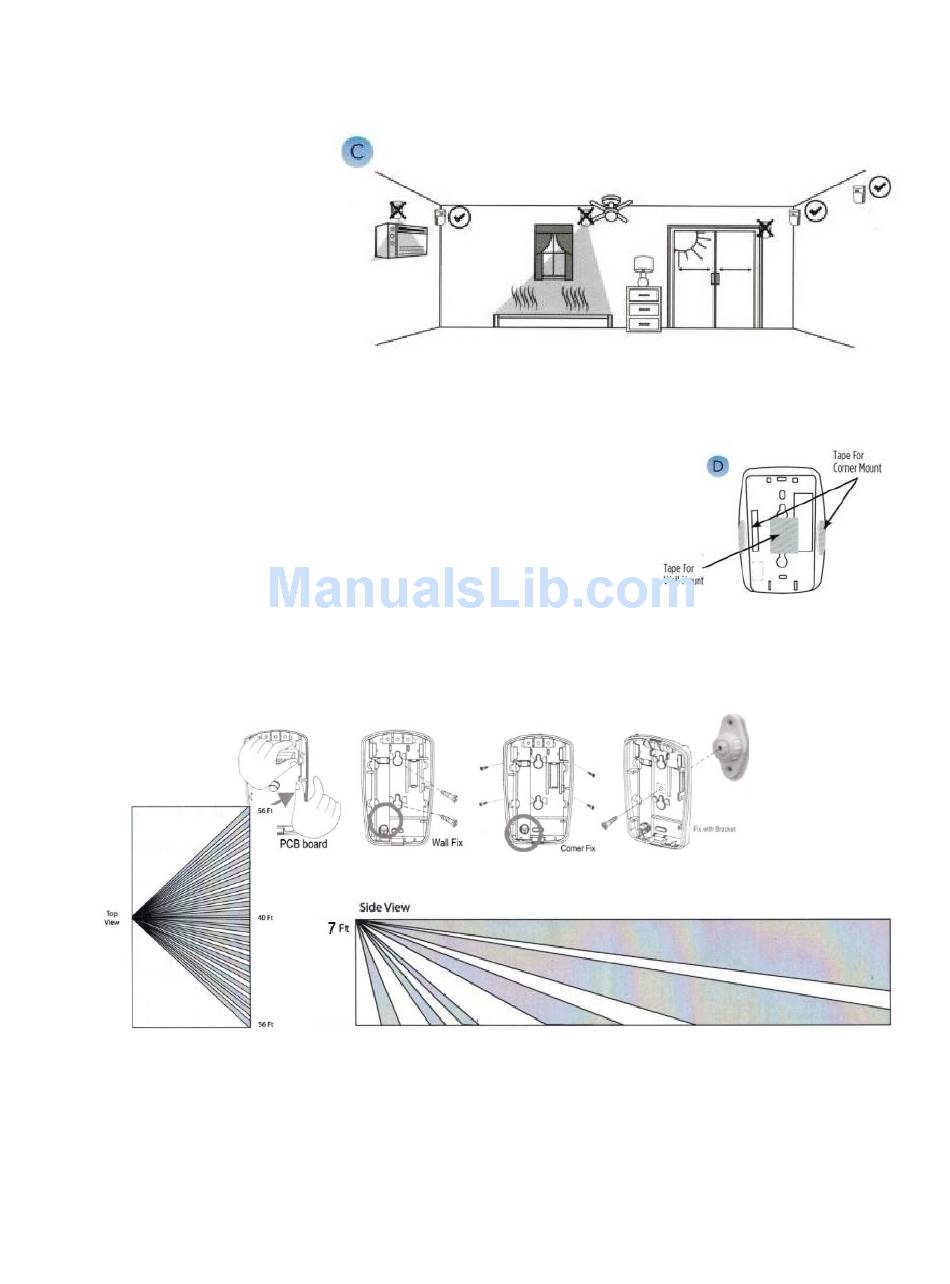

Mount Motion Sensor

C. Place the motion
sensor following the
location
recommendations
(check marked
locations) shown in
Figure C. Avoid the
example location marked with the "X" which are household areas that typically
cause false alarms, such as heat, air conditioning, fans, or direct sunlight. The
recommended mounting height is 6.5-7.0 feet for both
coverage and pet immunity purposes.
D. Apply the 3M adhesive tape in the locations shown in
Figure D for corner mounting or wall mounting
E. If you prefer to use screws to mount the motion sensor, follow the screw position
shown in Figure E (optional)
Detection

Motion sensor Specifications

Replacement Battery: CR123A
Mounting Height: 6.5'-7.0Feet
Range: Approximately 40 feet with 90 degree field of view in Vertical and 110 degree
field of view in Horizon
Patterns
