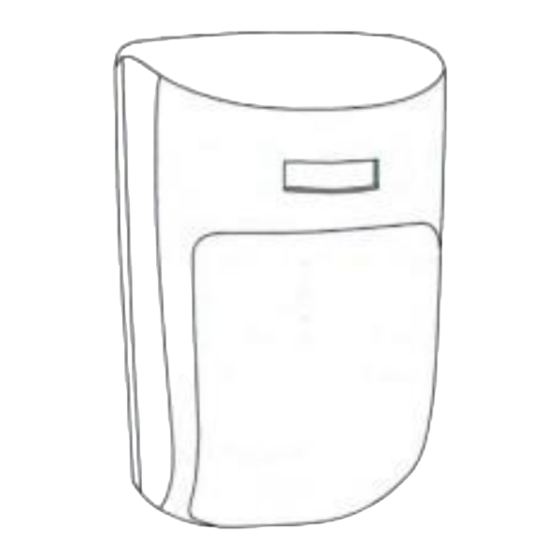

PiSECTOR Passive Infrared Motion Sensor is industrial motion
sensor, made in high quality components and material, the motion
sensor affords you a reliable and trustable detector function and
maximum reduce false alarm. Intelligent Data Analysis system
builds in to refuse the false signal. More accurate and detect real
intruder. The intelligent Data Analysis system analyses the real
intruder signal or false signal. Bi-directional temperature
compensation over a wide operating temperature range to better
support excellent detection probe
PiSECTOR Passive Infrared Motion Sensor is pet immune motion sensor which can
waive pet trigger sensor up to 50Bls.
Program and Mount Motion Sensors:
Prepare Motion Sensor
A. Separate the
your finger or the top of a pen (Figure A.B).
B. Remove insulating paper from the battery and CLOSE the
cover. The sensor needs 1-3 minutes to initialize itself. You
will see a red indicator blink once every 3 seconds during
initialization. If you don't see the indicator blink as
described during initialization, please open the cover,
remove the battery and reinstall the battery again until you
see the indicator flash as described. The sensor will be ready
for use when the indicator stops blink. (Note: DO NOT keep
the cover open since it may affect the sensor during
initialization and cause the sensor to not work properly after)
S1 switch for LED signal light. The default is set to on, but if
you do not want a flashing light when the sensor detects an
intruder, you can turn it off. When the battery is low, the LED light becomes
yellow.
S2 settingS2 at the CH position enables the low battery notification. Setting S2 at
PiSECTOR Passive Infrared Motion Sensor
User Manual
ront and back covers of the Motion Sensor by pressing the tab with
f
Advertisement
Table of Contents
Related Manuals for Pisector Motion sensor
Summary of Contents for Pisector Motion sensor
- Page 1 Program and Mount Motion Sensors: Prepare Motion Sensor A. Separate the ront and back covers of the Motion Sensor by pressing the tab with your finger or the top of a pen (Figure A.B). B. Remove insulating paper from the battery and CLOSE the cover.
- Page 2 3 seconds when motion is detected until the Motion Sensor blinks once again before resuming motion detection for next detector. 1. Move away from the area that is in direct line of sight of the Motion Sensor (move to an adjacent room). Wait 60 seconds until the LED stops blinking.
- Page 3 D. Apply the 3M adhesive tape in the locations shown in Figure D for corner mounting or wall mounting E. If you prefer to use screws to mount the motion sensor, follow the screw position shown in Figure E (optional)
