- Page 1 PiSector GSM Cellular Wireless Alarm System User Manual ( GS08 ) Read manual fully before use. PiSector Inc., USA, www.pisector.com...
- Page 2 This guide will walk you through the easy set up of your PiSECTOR system no matter which one you ordered. We've started with already customizing and tuning your system to your specifications, so everything is ready to go when you open the box.
-
Page 3: Function Keys

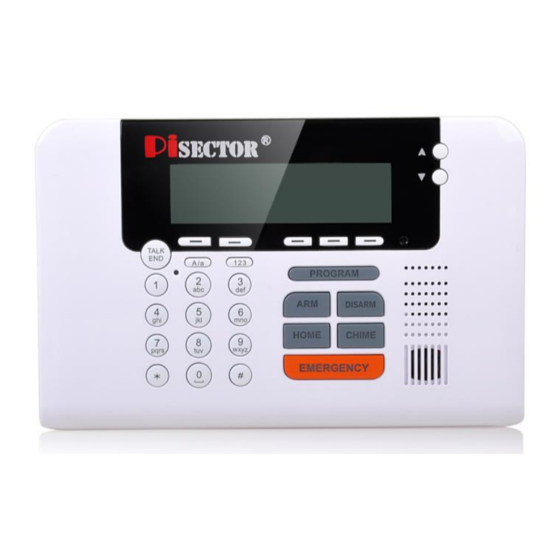

System Components Console Panel Program: press this key then input password, you can enter program status (default password 888888 ) Arm: press this key and input password, you can activate your system as Away from home Disarm: press this key and input password, you can deactivate your system Chime: press this key you will see icon... -
Page 4: Keychain Remote
Connect the regular telephone device to TEL port on back of console. Route the phone cord through the channel toward the side of the console (if you have no landline, you can use OBi110/ MagicJack / Vonage / Ooma VoIP service to connect your internet Router / Modem then connect console to the VoIP device ) if you use landline, priority call by landline, then GSM SIM card. - Page 5 request you add an owner name for this remote. Input a name for this remote and then press SAVE. You will see Record owner Name, then press Enter and record a voice for this remote keychain. Note: Each time you press Add, follow steps above. You can add one remote and a maximum of 8 Keychain Remotes. Edit select Edit press Enter to find the name of remote then press Enter you can edit the remote keychain name or record a voice for the remote keychain.
- Page 6 alarm status, use for door only Delayed Zone Highlight it press Enter, Default is NO, ( if set YES, allows you to come back home and open the door without triggering the system. System default delay alarm time is 45 seconds. You can change this time by going to "System Settings" and set the Alarm Delay time Siren Enable Highlight it press Enter, Default is YES, ( if set NO, siren will disable when this zone triggered, no siren alarm will...
- Page 7 Program and Mount Motion Sensors: Prepare Motion Sensor Separate the front and back covers of the Motion Sensor by pressing the tab with your finger or the top of a pen (Figure A and B). B. Remove insulating paper from the battery and CLOSE the cover. The sensor needs 1-3 minutes to initialize itself.
- Page 8 20-second waiting period since the last trigger has not expired, or (B) the Motion Sensor is not in communication with the PiSECTOR system main console. If you want to re-start the initialization again, open the Front Cover and remove battery waiting for 5 seconds then re-install it again, as shown in Figure 1 and then re-attach the Front Cover.
-
Page 9: Detection Patterns
Detection Patterns Motion sensor Specifications Replacement Battery: CR123A Mounting Height: 6.5-7.0Feet Range: Approximately 40 feet with 90 degree field of view in Vertical and 110 degree field of view in Horizon... -
Page 10: Wireless Sirens
Wireless Sirens Plug the siren into wall outlet, then press PROGRAM key on console. Enter the default password 888 888. Use scroll key to select Wireless Sirens, press ENTER, you will see below list. If you received a pre-Programed system kit, please ignore this step and do not program it again Add an Indoor Wireless Sirens, highlight Add press Enter, you will see a default siren name such as Siren 1, then press Enter You will see "Put siren in Setting Mode". -
Page 11: Sms Numbers
Add Contact Phone Numbers Press PROGRAM key on console. Enter the default password 888 888. Use scroll key to select Phone Numbers, press Enter, you will see below list Select Add press Enter. You will see Input phone number, direct input your area code and phone number, press save. You can add maximum of 6 numbers for emergency contact if the system is triggered. -
Page 12: Daily Schedule
Connect Monitoring Center Press PROGRAM key on console. Enter the default password 888 888. Use scroll key to select Monitoring Center. You can call your Monitoring Company to set up all requests. Please make sure your monitoring company supports ADMECO protocol if you want a third party Monitoring Company to monitor your system (it will cost you a monthly monitoring charges depending on which company you choose.) Monitoring Center Number... -
Page 13: Door/Window Open Reminder
Production Date: press Enter you will see the producing time of your system Manufacture By Pisector Inc. IMEI: press Enter you can find IMEI number for your system, maybe request to active your SIM card Remotely Control Your Home Security Alarm System Dial the number of the main unit console panel by your cell phone, and after 1 ring, you will hear a voice prompt “Please enter... - Page 14 Wireless Panic Button (Option) Program Panic Button If you received a pre-Programed system kit, please ignore this step and do not program it again. Panic Button you need should be programmed to your console. Press PROGRAM button on console, enter the default password 888 888 Use Scroll key to choose Sensor then press Enter on Console.
-
Page 15: Package Includes
Extra Wireless Keypad Instruction ( option) Model: WKP-03 This keypad does not work alone. You need to program it with PiSector Alarm Systems. It supports System model GS07, GS08, PS03 series systems. Anti-Remove Spring Package includes PiSector Keypad x 1 ... -
Page 16: Other Features
Password followed by Chime key to change system to Chime status Use key chain to disarm system directly without entering any password Other features Set Door Open Time During system disarm status, you can press default password 1 2 3 4 5 6 followed by Enter key. You will see Set indicator light on and Enter key flashing and press 5 0 + T T (“T T”...
