PiSector Wireless Alarm System
GS-08 Quick Start
This is a quick guide to help you install and test your system. If you hit any trouble, call PiSector Technical
Support on (732) 317 3300 (10AM to 5PM EST Mon-Fri) or email support@pisector.com
DO NOT MOUNT ANY SENSOR TO ANY DOORS, WINDOWS, OR WALLS YET
Default Program Password is 888888.
DO NOT set the system to call emergency services without permission and never do so while testing.
1) Unpack your package and check that you have received all ordered items. If not, call us immediately.
DO NOT switch on the backup battery on the back side of the unit before finishing points 2) and 3).
2) Put all sensors on a clean surface next to an electricity outlet. Remove insulating paper from the battery and CLOSE the cover
for all door/window sensors and make sure that part A (large size) and part B (magnet small size) of each door/window sensor are
touching each other. Remove insulating paper from the battery and CLOSE the cover for all motion sensors. The motion sensor
needs 1-3 minutes to initialize itself. You will see a red indicator blink once every 3 seconds during initialization. If you don't see the
indicator blink as described during initialization, please open the cover, remove the battery and reinstall the battery again until you
see the indicator flash as described. The motion sensor will be ready for use when the indicator stops blink. (Note: DO NOT keep
the cover open since it may affect the sensor during initialization and cause the sensor to not work properly). Label all sensors with
Post-It paper and write a name for each sensor accordingly.
3) Insert the regular size SIM card into the SIM card slot FACE DOWN and lock. Make sure to insert the SIM card inside into the
plastic swing-out door and not the base. Please handle the door with care so as not to break any hinges (Hint: This system is
designed for a regular sized SIM card. If you need IMEI number to activate your SIM CARD, you may connect the console to a
power source and turn it on, then press Program, input password 888888 on the console, use the arrow key to find System About,
press Enter and you will find the IMEI# , then TURN OFF Power and remove the power adapter.) If you have a landline, connect
a phone line from the wall to the LINE port on the main panel and connect a phone line from the TEL port to your landline phone.
4) This is a PRE-PROGRAMED system kit. All sensors, remote key chains, panic button and sirens are registered to the main
console before arrival. Please DO NOT program them again.
5) If you want to RENAME the sensors, please press PROGRAM and input password 888888, then select Sensors – Enter – Edit
– Enter – Auto search – Enter – trigger an individual sensor and its name will be displayed on the panel. Select the sensor name
and press Enter, high light Edit Zone name, press Enter and you will be able to edit the name or record your own voice
accordingly. If recording a sensor name in your own voice to identify a sensor, when you receive an alarming call on your cell
phone or any other phones, you will hear the sensor name.
6) Connect the included power adapter (12V 1A) to the Console and Repeater; turn on switch on Repeater and press "SET" button
4 times make sure the light flash 4 times then off, connect 9V 500mah adapter to the Wireless Outdoor Siren. Plug indoor siren
directly to the outlet. TURN ON the switch while the power is plugged in to keep the backup battery charging.

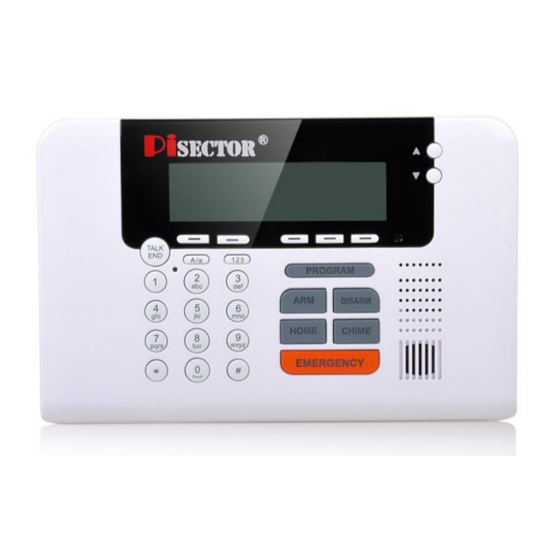

7) The system will sound a long "beep". The LCD Screen will display PiSECTOR Inc for two seconds, and a GSM symbol will start
flashing on the LCD screen searching for a GSM cellular signal for 15-30 seconds. Then you will see the signal bar display the
number of bars for your signal reception, and the system will sound a short "beep" to indicate that it has found a cellular network
signal. If not, turn off power and double check that the SIM card is inserted correctly. Once the signal bar displays, and "System
Disarmed", date, and clock are shown, your system is ready to use.
8) Make sure you are able to call out another phone number using the touch keypad on the main unit. Dial out the phone number
followed by the Talk/End button. If not, ensure that the signal is strong and stable. Try to place the system in a strong cellular
reception area within your house or office.(if you don't insert SIM card and use only Landline, you will not be able to dial out
through the keypad directly. You may need to save your phone number in system first, press SOS key, and the system will auto
dial out your pre-saved phone number.)
Hint 1: To trigger a door sensor, move the two parts (A and B) apart until they show red light, and then put the parts back together again
Hint 2: To trigger a motion sensor, walk a few steps in front of the motion sensor. The LED will remain on when motion is detected (about 3
seconds) until the Motion Sensor blinks once again before resuming motion detection for next detector.
Hint4: If your wireless does not sound, please move it close to the main console for a test. If it still does not sound, it may have lost its
communication from the consol. Then you may need to reprogram the siren. (How to program a wireless siren? See video support at
