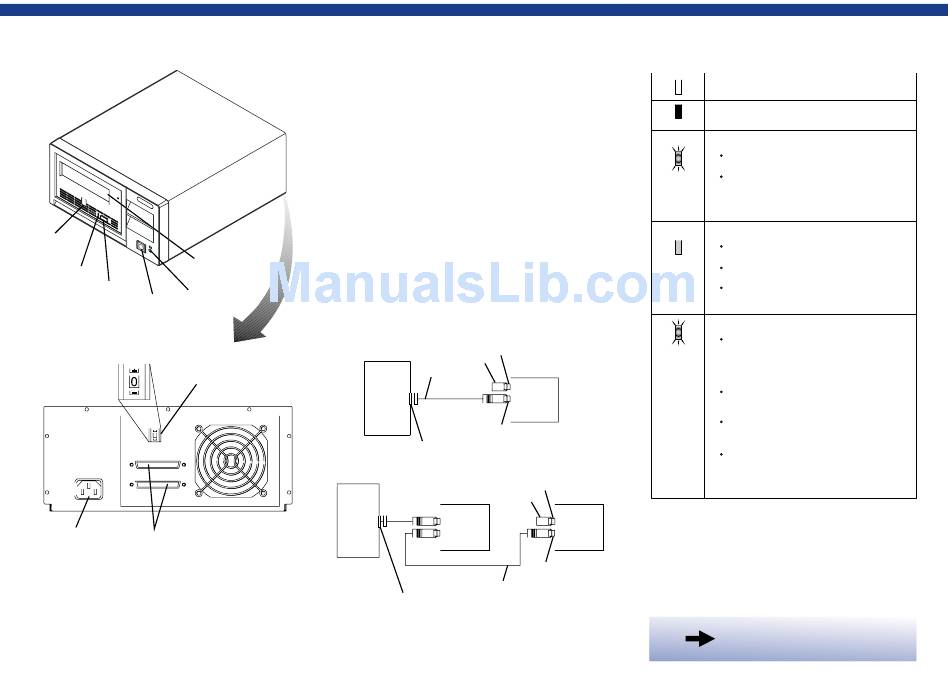

Status Light; Installation And Setup - Tandberg Data 440LTO Quick Start Manual

Single-
Character
Cartridge Load
Display
Compartment
Status
Light Unload
Power
Button
Indicator
Power
Switch
SCSI Address
Switch
Power External
Receptacle
SCSI Connectors

Installation and Setup

1. Set the SCSI ID by pushing the + or - on the SCSI address
switch.
Note: Do not select an address that is already in use.
2. Press the power switch to ensure power is off.
3. Plug the power cord into the power receptacle on the back of
the tape drive and the other end into a grounded electrical
outlet.
4. Connect the SCSI bus cable between the host and the tape
drive.
5. Install he SCSI terminator.
6. Press the power switch to power on the tape drive. The tape
drive runs the Power-On Self T est.
7. Refer to your host and application software manuals to
configure the tape drive for use.
Connecting the SCSI Bus Cable
SCSI Connector
T erminator
SCSI Bus Cable
Host
SCSI Connector
SCSI Host Adapter Card
Single Device on the SCSI Bus (Top View)
T erminator
Host
Another
T ape
Device
SCSI Bus Cable
SCSI Host Adapter Card
Multiple Devices on the SCSI Bus (Top View)

Status Light

Green/Solid
Green/Flashing
Amber/Solid
Amber/Flashing
Tape
Drive
SCSI Connector
Tape
Drive
SCSI Connector
?
The tape drive has no power, or is powered off.
The tape drive is powered on.
One of the following applies:
If the light flashes less than once per second,
the tape drive is in sleep mode.
If the light flashes once per second, the tape
drive is reading from the tape, writing to the
tape, rewinding the tape, or locating data on
the tape.
One of the following applies:
The tape drive is performing a selected
operation
The tape drive is displaying the drive error
code log.
The tape drive is in maintenance mode or is
exiting maintenance mode.
One of the following applies:
If the light flashes less than once per second,
the tape drive is updating firmware using the
field microcode replacement (FMR) tape, or
the drive has exceeded the recommended
temperature.
If the light flashes once per second, an error
occurred and the tape drive or media may
require service.
If the light flashes once per second and the C
displays in the single character display , the
tape drive needs to be cleaned.
If the light flashes twice per second, the tape
drive detected an error and is performing a
firmware recovery. T ape drive resets
automatically.
