CANICOM 5.201 / CANICOM 5.202 / CANICOM 5.500 / CANICOM 5.800 / CANICOM 5.1500
ETSI EN 300 220-1 (V2.3.1-2010/02) / ETSI EN 300 220-2 (V2.3.1-2010/02) / EN 62311 (2008)
WARNING
Any person with individual device for cardiac assistance (pacemaker, defibrillator) must take precautions
when they use products from the CANICOM 5 range.
These devices emit some static magnetic fields (a magnet is located in the remote controls and in the all-
in-one accessory).
Frequency= 869.525 MHz
Typical emission power = 3 mW for CANICOM 5.201 and CANICOM 5.202
Typical emission power = 10 mW for CANICOM 5.500
Typical emission power = 125 mW for CANICOM 5.800
Maximum emission power = 500 mW for CANICOM 5.1500
Thank you for choosing a NUM'AXES product.
Before using your product, please read the instructions in this guide carefully and keep it for future
reference.
CANICOM 5 range - user's guide– indice A
USER'S GUIDE
DECLARATION « CE » DE CONFORMITE
« EC » DECLARATION OF CONFORMITY
déclare que / declares that
les colliers d'éducation / the training collars
sont conformes aux normes suivantes / comply with standards below:
Z.A.C. des Aulnaies – 745 rue de la Bergeresse – BP 30157
45161 OLIVET CEDEX – FRANCE
Tél. + 33 (0)2 38 63 64 40 / Fax + 33 (0)2 38 63 31 00
Février 2013 – M. Pascal GOUACHE – Président du Directoire
NUM'AXES
NUM'AXES
1/12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Num'axes Canicom 5.201
Summary of Contents for Num'axes Canicom 5.201
- Page 1 / declares that les colliers d’éducation / the training collars CANICOM 5.201 / CANICOM 5.202 / CANICOM 5.500 / CANICOM 5.800 / CANICOM 5.1500 sont conformes aux normes suivantes / comply with standards below: ETSI EN 300 220-1 (V2.3.1-2010/02) / ETSI EN 300 220-2 (V2.3.1-2010/02) / EN 62311 (2008) NUM’AXES...
-
Page 2: Contents Of The Product

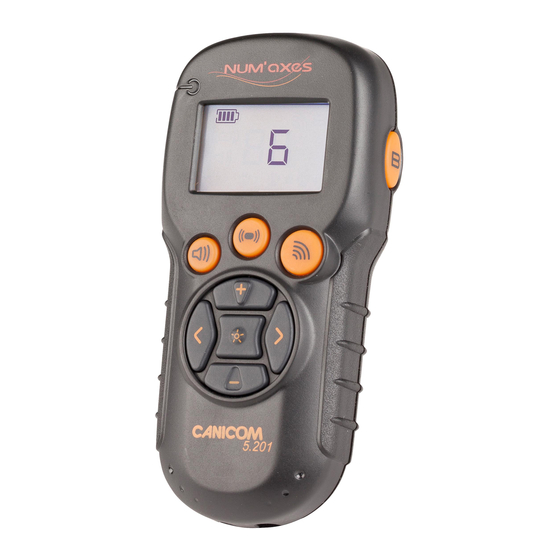

1 lithium 3-V CR2 battery for the collar 1 CANICOM 5.201 remote control equipped with 1 lithium 3-V CR2450 battery 1 CANICOM 5.202 remote control equipped with 1 lithium 3-V CR2450 battery 1 CANICOM 5.500 remote control equipped with 1 lithium 3-V CR2 battery 1 CANICOM 5.800 remote control equipped with 1 lithium 3-V CR2 battery... - Page 3 On/Off button + LCD screen back-lightning button Dog selection buttons buttons Inactive buttons on the CANICOM 5.201 remote control (only 1 dog) Static stimulations level control buttons buttons button Programmable booster button for emergency situations Magnet position indicator: this magnet allows you to switch On/Off the collar...
-
Page 4: Activate/Deactivate The Remote Control
Icons on the LCD screen Definition indicates emission of beep sounds at the collar indicates emission of vibrations at the collar indicates emission of static stimulations at the collar indicates emission of static stimulations at the collar (intensity = level programmed on the Booster button) indicates the intensity level of the static stimulations First use from new ●... - Page 5 3 or On the CANICOM 5.1500 remote control, the symbol appears on the LCD screen. For CANICOM 5.201, you don’t have to select a collar because there is only one. CANICOM 5 range - user’s guide– indice A 5/12...
-
Page 6: Reprogram A Receiver Collar
3 or on the CANICOM 5.1500 remote control, the symbol appears on the LCD screen. NOTE: for CANICOM 5.201, you don’t have to select a collar because there is only one. button: beep sounds If you press the button, the receiver collar will emit beep sounds. - Page 7 Always start with the lowest level of stimulation. 10 levels of stimulation are available on the CANICOM 5.201 remote control. Level 1: very weak stimulation – Level 10: strong stimulation 10 levels of stimulation are available on the CANICOM 5.202 remote control.
- Page 8 Performance (radio range) of the remote control may deteriorate as battery becomes weak. Be prepared to replace battery. The “+” symbol The “+” symbol on the battery on the battery is visible. is visible. WARNING Make sure the polarity is correct. Diagram 7 Replacing the battery in the remote control Checking/replacing battery of the receiver collar...
-
Page 9: Getting The Best Results
3 or 4 appears on the LCD screen. For CANICOM 5.201, you don’t have to select a collar because there is only one. Press the button on the remote control: the collar must emit beep sounds. Press the button on the remote control: the collar must vibrate. -
Page 10: Starting Out With The Training Collar
Starting out with the training collar ● You can start using the collar with 6-month-old puppies that have already received some basic training: ▪ “stay”, “sit” or at least “no”. Do not use the collar with dogs that are not in good physical shape (i.e. cardiac problems, epilepsy) or have ▪... -
Page 11: Remote Controls
CANICOM 5.800: 20 CANICOM 5.1500: 25 Use temperature Between – 20°C and +40°C CANICOM 5.201: 106 x 51 x 21 mm CANICOM 5.202: 106 x 51 x 21 mm Dimensions CANICOM 5.500: 125 x 51 x 24 mm CANICOM 5.800: 179 x 51 x 24 mm CANICOM 5.1500: 185 x 56 x 30 mm... -
Page 12: Guarantee Conditions
Guarantee ● NUM’AXES guarantees the products against production defects for two years after purchase. All postage and packing charges will be the purchaser’s sole responsibility. Guarantee conditions ● The guarantee will be valid only if the proof of purchase (invoice or sales receipt), without cancellation, is submitted to the distributor or to NUM’AXES.
