To replace the wheel:

1. Turn off the power to the controller.
2. Set the Go-Chair up on blocks.
3. Remove the drive wheel nut and washer from the axle. See figure 25.
4. Pull the wheel off the axle.
5. Slide the new wheel back onto the shaft. Make sure that the key is in the axle slot.
6. Reinstall the drive wheel nut and washer onto the axle and tighten.
7. Remove the Go-Chair from the blocks.

Battery Replacement

A battery wiring diagram is printed on a decal lo-
cated on the front battery tray. See the Specifica-
tions Table for correct battery specifications.
M A N DAT O R Y ! B a t t e r y p o s t s ,
terminals and related accessories
contain lead and lead compounds.
Wear goggles and gloves when
handling batteries and wash hands
after handling.
WARNING! The batteries in your
travel chair should only be serviced
or replaced by an authorised Pride
Dealer or a qualified technician.
WARNING! Do not replace the
batteries when seat is occupied.
WARNING! Travel chair batteries are
heavy. See specifications table. If
you are unable to lift that much
weight, be sure to get help. Use
proper lifting techniques and avoid
lifting beyond your capacity.
WARNING! Do not mix old and new
batteries. Always replace both
batteries at the same time.
To replace the batteries:
1. Remove the battery box from the Go-Chair.
2. Turn the pack upside down.
3. Remove all screws that hold the battery box halves together. See figure 26.
4. Flip the battery box back over so the handle is up and remove the lid.
5. Remove the red (+) positive and black (-) negative battery leads from each battery.
6. Remove the batteries.
7. Put the new batteries back into the battery box (battery terminals up).
8. Reconnect the two (2) battery leads to the battery terminals. Make sure the red lead is connected to the (+) positive
terminal and the black lead is connected to the (-) negative terminal.
9. Replace the lid and carefully flip the battery box over so the handle is down.
10. Replace and tighten all the screws that hold the battery box together.
11. Reinstall the battery box back onto the Go-Chair.
34
C A R E A N D
www.pridemobility.com
M A I N T E N A N C E

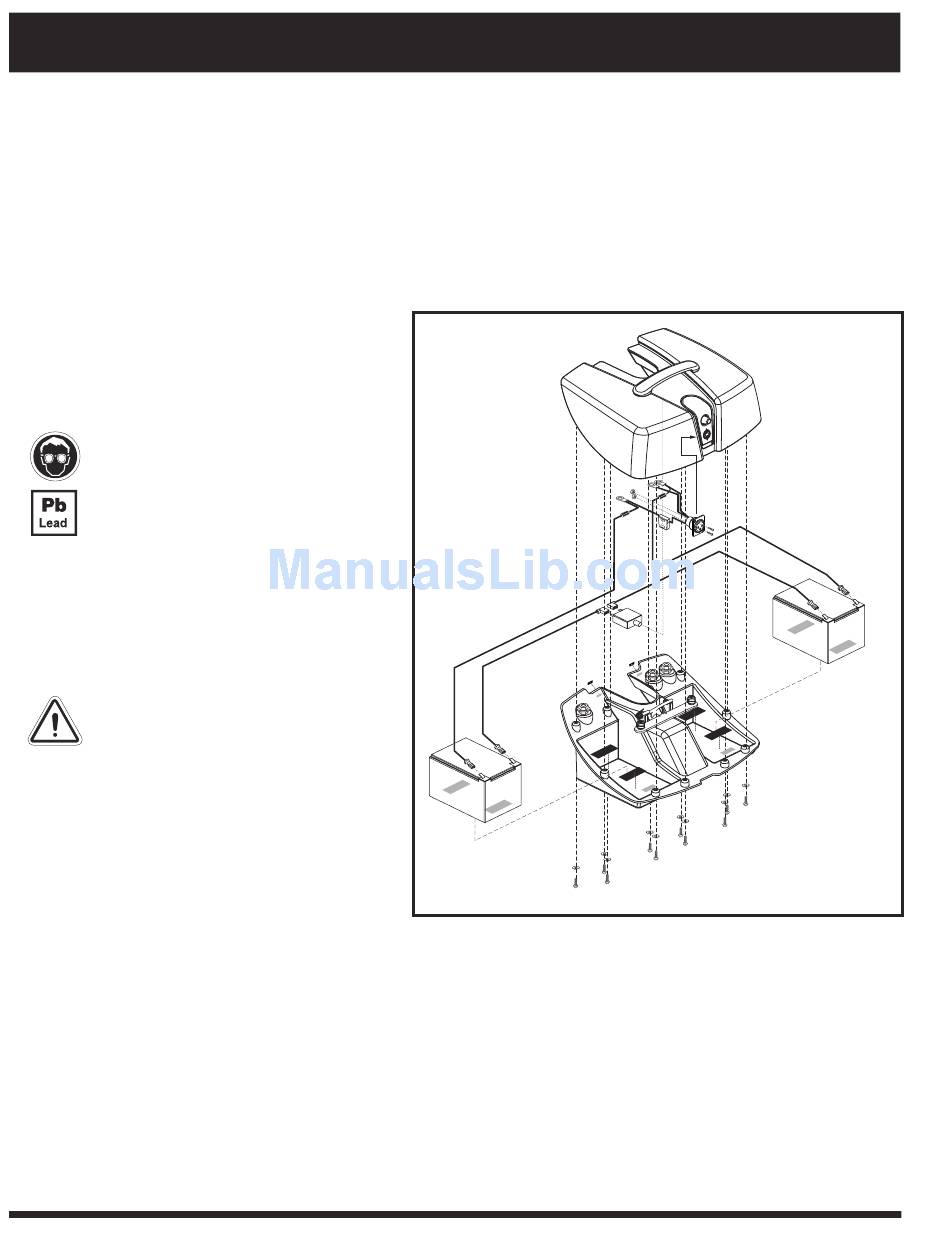

Figure 26. Go-Chair Battery Box
