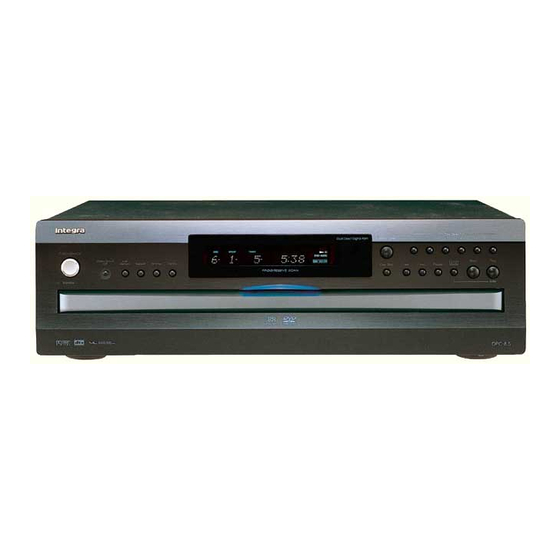

Super audio cd & dvd audio/video changer
Hide thumbs Also See for DPC-8.5:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
Super Audio CD & DVD
Audio/Video Changer
DPC-8.5
Instruction Manual
Downloaded From Disc-Player.com Integra Manuals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPC-8.5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Integra DPC-8.5

Summary of Contents for Integra DPC-8.5

  • Page 1 Super Audio CD & DVD Audio/Video Changer DPC-8.5 Instruction Manual Downloaded From Disc-Player.com Integra Manuals...

  • Page 2: Important Safety Instructions

    Downloaded From Disc-Player.com Integra Manuals...

  • Page 3: Precautions

    In compliance with Federal Regulations, the certifica- REMARQUE: CET APPAREIL NUMÉRIQUE DE tion, identification and the period of manufacture are LA CLASSE B EST CONFORME À LA NORME indicated on the rear panel. NMB-003 DU CANADA. Downloaded From Disc-Player.com Integra Manuals...
  • Page 4 To reduce the risk of condensa- ture and sound quality may be affected. If this occurs, tion, keep this unit connected to a wall outlet. move this unit away from the TV, radio, or VCR. Downloaded From Disc-Player.com Integra Manuals...

  • Page 5: Table Of Contents

    Precautions ........3 achieve optimum performance and enjoyment. Keep this manual for future reference. Introduction........7 Before Using the DPC-8.5 .... 13 Getting to Know the DPC-8.5..14 Connecting the DPC-8.5....20 Turning On the DPC-8.5 & First Time Setup ......... 27 Basic Playback......
  • Page 6 Using Progressive Scanning ....47 Using the Remote Controller....13 Using Last Memory ......... 48 Displaying Information ......48 Getting to Know the DPC-8.5 ....14 Turning Off the Video Circuits ....51 Front Panel ..........14 Display ............ 15 Configuring the DPC-8.5 ......

  • Page 7: Introduction

    , in addition to an connection, you must AV connecting cable (5 ft.) make an analog audio connection (RCA) between the DVD player and your Integra AV receiver. Power cord Shape may vary depending on the area which it was pur- chased.

  • Page 8: Dpc-8.5 Features

    • Coaxial and optical digital outputs * In catalogs and on packaging, the letter added to the end of the product name indicates the color of the DPC-8.5. Spec- ifications and operation are the same regardless of color. *1. Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are registered trademarks of Dolby Laboratories.

  • Page 9: Disc Notes

    Disc Notes rental discs with peeling labels, or discs with custom- made labels or stickers. Doing so may damage the Supported Discs DPC-8.5 and you may not be able to remove the disc properly. The DPC-8.5 supports the following discs. Disc Logo Format or file type...
  • Page 10 Track 3 Track 1 Track 2 Track 3 • The DPC-8.5 supports up to 999 folders and up to 672 files per folder. • If you try to play an incompatible file, the message CD layer of a hybrid SACD “This format cannot be played”...

  • Page 11: Terminology

    Macrovision, and is intended for home and other limited viewing uses only that can be recorded only once. Can be used for unless otherwise authorized by Macrovision. Reverse DVD-Video or DVD-Audio. engineering or disassembly is prohibited. Downloaded From Disc-Player.com Integra Manuals...
  • Page 12 With progressive scanning, each picture ( frame ) is made by scanning the entire screen in one go, resulting is a clearer and stabler picture. Contrast with Interlaced scanning. Downloaded From Disc-Player.com Integra Manuals...

  • Page 13: Before Using The Dpc-8.5

    Before Using the DPC-8.5 Installing the Remote’s Batteries Using the Remote Controller To use the remote controller, point it at the DPC-8.5’s Open the battery compartment, as shown. remote control sensor, as shown below. Remote control sensor DPC-8.5 30˚ Insert the two supplied batteries (AA) in 30˚...

  • Page 14: Getting To Know The Dpc-8.5

    These buttons are used to select discs. Playback starts automatically when discs are selected with Standby/On button (27) these buttons This button is used to set the DPC-8.5 to On or Standby. Disc tray (29) Don’t turn on the DPC-8.5 until you’ve completed The disc tray has six bays for loading up to six discs.

  • Page 15: Display

    Getting to Know the DPC-8.5 —Continued Display A C E 0 B D CHAIN M CD DVD ALL MEMORY RANDOM LAST M V.OFF PRGSV REPEAT A - B DISC TITLE GROUP CHP TRACK TOTAL REMAIN JPEG D PL DVD - AUDIO...

  • Page 16: Rear Panel

    Dolby Digital soundtrack is selected. The Dolby Pro Logic ( PL) indicator appears when the Title & group number DPC-8.5’s Dolby Pro Logic decoder is on. The DTS Title and group numbers appear here. indicator appears when a DTS soundtrack is Chapter & track number selected.
  • Page 17 IR receiver, which can be used to pickup signals from the remote controller when the DPC-8.5 is located in another room, installed in a rack, or is out of range of the remote controller The IR OUT connector can be used to connect a...

  • Page 18: Remote Controller

    Memory button (44) Standby button (27) This button is used with the Memory function. This button is used to set the DPC-8.5 to Standby. Open/Close [ ] button (29) On button (27) This button is used to open and close the disc tray.
  • Page 19 Getting to Know the DPC-8.5 —Continued Display button (48) This button is used to display information about the current disc, title, chapter, group, or track, including the elapsed time, remaining time, total time, and so Clear button (33, 36, 46) This button is used to cancel functions and to clear entered numbers.

  • Page 20: Connecting The Dpc-8.5

    Connecting the DPC-8.5 RCA AV Connection Color Coding This chapter explains how to connect the DPC-8.5 to your other AV components. RCA-type AV connections are usually color coded: red, white, and yellow. Use red plugs to connect right-chan- Before Making Any Connections nel audio inputs and outputs (typically labeled “R”).

  • Page 21: Connecting Your Tv Or Projector

    S-Video offers better picture quality than composite video, so if your TV supports it, use the supplied S-Video cable to connect one of the DPC-8.5’s S VIDEO OUTPUTs to an S-Video input on your TV. Failing that, use the supplied composite video cable to connect one of the DPC-8.5’s VIDEO OUTPUTs to a composite video...
  • Page 22 (yellow) (white) Notes Compatibility of this unit with progressive-scan and • Before making any connections, turn off the DPC-8.5 high-definition TVs. and your TV and disconnect their power cords from This player is compatible with progressive video Macro the wall outlets.

  • Page 23: Connecting An Av Receiver

    Analog Audio Connection Connecting an AV Receiver (Dolby Digital, DTS, DVD-Audio & SACD) This section shows how to connect the DPC-8.5 to an AV To fully enjoy the multichannel audio of DVD-Audio receiver for Dolby Digital, DTS, DVD-Audio, and and SACD, you need to connect the DPC-8.5’s 5.1-chan- SACD playback.

  • Page 24: Connecting A Stereo Amp

    Connecting a Stereo Amp equipment. • The output formats for the OPTICAL and COAXIAL This section explains how to connect the DPC-8.5 to a digital audio outputs can be set independently (see stereo amp or receiver for sound quality better than that possible with most TV’s built-in speakers.

  • Page 25: Controlling Components That Are Out Of

    IR emitter in front of the other AV component’s remote control sensor (usually located on its front If the DPC-8.5 is located in another room, installed in a panel), as shown below. See the instructions supplied cabinet, or is out of range of its remote controller, you with the IR emitter.

  • Page 26: Connecting The Power Cord

    • Do not use a power cord other than the one supplied with the DPC-8.5, which is designed exclusively for use with the DPC-8.5 and should not be used with any other component. • Never disconnect the power cord from the DPC-8.5 while the other end is still plugged into a wall outlet.

  • Page 27: Turning On The Dpc-8.5 & First Time Setup

    Before connecting the power cord, connect all of your AV components (see pages 20 to 24). Here you need to make a few settings to get the DPC-8.5 Don’t forget to turn on your TV or projector and select up and running. You can change these settings later (see the video input to which the DPC-8.5 is connected.
  • Page 28 Turning On the DPC-8.5 & First Time Setup —Continued On the Analog Audio Out menu, Use the Left and Right [ use the Up and Down [ buttons to set the Front Speaker Remote controller Remote controller buttons to select 2 Channel or...

  • Page 29: Basic Playback

    Disc Skip Progressive Dimmer Diec Skip • To open the disc tray and turn on the DPC-8.5 at the same time, press the Open/Close [ ] button. (The RC- 543DV disc tray will take slightly longer to open.) •...

  • Page 30: Loading Discs During Playback

    What happens next depends on the type The disc that’s currently playing Remote controller of disc you selected, as follows: remains inside the DPC-8.5 and its disc Open/ bay is empty and won’t come to the DVD-Video: Typically a menu appears Close front.

  • Page 31: Starting, Pausing & Stopping Playback

    DVD, DVD-AUDIO, SACD, VCD, or CD (see Playback pauses and the Pause indi- page 15). cator appears on the display. • You can select discs while the DPC-8.5 is stopped or To resume playback, press the Play [ ] during playback. button. Remote controller •...

  • Page 32: Navigating Disc Menus

    Play [ ] button to display the select tracks on a VCD. menu. • PBC menus can be hidden or displayed while play- back is stopped by pressing the [Top Menu] button. Downloaded From Disc-Player.com Integra Manuals...

  • Page 33: Selecting Titles & Chapters By Number

    Chapter Cur- • With some discs you may not be able to select titles rent/Total information is not displayed. and chapters by number. Some discs won’t allow you to select titles. Downloaded From Disc-Player.com Integra Manuals...

  • Page 34: Using The Disc Navigator

    first nine pictures may be dis- played automatically. The number of the currently selected disc is shown on the disc icon. The Folder column lists the folders. The Track column lists the tracks in the open folder. Downloaded From Disc-Player.com Integra Manuals...

  • Page 35: Memory Playback In The Disc Navigator

    Remote controller To add a track to the playlist, use Stop the arrow [ ], [ ], [ ], [ ] buttons Remote controller to select it in the track column, and then press [Enter]. Enter Downloaded From Disc-Player.com Integra Manuals...

  • Page 36: Selecting Tracks By Number

    (see page 32). • With VCDs that support PBC, you can use the number buttons to select tracks from a menu. • You can’t use the [Search] button during random playback. Total number of tracks Current track Downloaded From Disc-Player.com Integra Manuals...

  • Page 37: Fast Forward & Reverse

    • Prolonged display of the same picture or menu may cause irreparable damage to your TV screen called screen burn-in . To prevent this, don’t display the same frame for too long. The DPC-8.5 features a screen saver to protect your TV from the effects of burn-in (page 63).

  • Page 38: Slow-Motion Playback

    Dimmer Slow-motion Playback DVD-VR DVD-V Notes: • When the display brightness on another Integra AV With slow-motion playback you can watch a scene component that’s connected via is changed, the slowly either forward or backward. “disc tray light off” option might not work.

  • Page 39: Using Jpeg Cds

    five seconds. To JPEG Remote controller display an image for longer, press the The DPC-8.5 supports JPEG CDs, so you can view your Play Pause [ ] button. Press the Play [ ] photos on TV either individually or as a slideshow.

  • Page 40: Using Chain Mode

    Notes: ALL: All discs are played sequentially. • If the folder containing the JPEG images also contains some MP3 tracks, the DPC-8.5 will play those tracks While the CHAIN M indicator is while showing the slideshow. flashing, press the Play [ ] or •...

  • Page 41: Advanced Playback

    VCD: Track, 1 Disc, All Disc, Repeat + 10 Off. To enter 2 minutes, 15 seconds, press the [2], [1], and [5] buttons. CD: Track, 1 Disc, All Disc. MP3/JPEG: Track, Folder, 1 Disc, All Disc. Downloaded From Disc-Player.com Integra Manuals...

  • Page 42: A-B Repeat Playback

    Display Clear Clear Menu Top Menu Enter Return Setup Audio Angle Subtitle Play Stop Play Pause Down Disc 1 Disc 2 Disc 3 Step/Slow Down Disc 4 Disc 5 Disc 6 Disc Skip Progressive Dimmer Downloaded From Disc-Player.com Integra Manuals...

  • Page 43: Random Playback

    If you press the [Random] button dur- ing playback, random playback begins after the current disc, title, chapter, group, track, or folder has finished. Press the Play [ ] button to start random playback. Random playback starts. Remote controller Play Downloaded From Disc-Player.com Integra Manuals...

  • Page 44: Memory Playback

    The Memory Play Setup window must [ ]/[ ] buttons to select numbers from Play be open when you press the Play [ ] 001 to 999. button. The number of the current disc is already entered. Downloaded From Disc-Player.com Integra Manuals...
  • Page 45 The cursor moves to the top row. Enter Enter the title/group/folder and chapter/track numbers of the item that you want to insert. Press [Enter]. The new item is inserted into the Mem- Remote controller ory List. Enter Downloaded From Disc-Player.com Integra Manuals...

  • Page 46: Selecting Camera Angles

    [Memory] Memory button. Notes: • The playlist is deleted when the DPC-8.5 is set to Standby. • To use this function with a VCD that supports PBC, you must first turn off PBC (see page 64). • With some discs you won’t be able to make a playlist.

  • Page 47: Selecting Languages & Audio Formats

    Remote controller tor must support it and be connected to one of the [Audio] button repeatedly to Audio DPC-8.5’s component video outputs (see page 21). select the available soundtracks. The name of the selected soundtrack Press the [Progressive] button. appears onscreen for several seconds.

  • Page 48: Using Last Memory

    [ ] button once or twice. DPC-8.5’s display. At this point you may choose to play another disc, or to turn off the DPC-8.5. During playback, press the [Dis- play] button repeatedly. Remote controller...
  • Page 49 Remaining disc time disc time. 4th press Title, artist name, album name. Disc title 5th press No display Elapsed track time If the disc has no title, “No Title” appears. Downloaded From Disc-Player.com Integra Manuals...
  • Page 50 • When playback is started, paused, stopped, and so on, the status is displayed onscreen for five seconds. • For DVD-VR discs, the bit rate is not displayed. • No information is displayed when playing a VCD with PBC. Downloaded From Disc-Player.com Integra Manuals...

  • Page 51: Turning Off The Video Circuits

    You can turn off all of the internal video circuitry, elimi- nating the possibility of interference, for a pure-audio experience when playing audio-only discs. Press the DPC-8.5’s [Video Cir- cuit Off] button. The internal video circuitry is turned off, the [Video Circuit Off] button indi- cator lights up, and the V.OFF indicator...

  • Page 52: Configuring The Dpc-8.5

    Turns onscreen messages and indicators on and off. Display On-Screen Display Color Selects a color for onscreen setup menus and messages. Background Selects a background color for when playback is stopped. Screen Saver Sets the Screen Saver. Downloaded From Disc-Player.com Integra Manuals...
  • Page 53 Sets the Auto power off function. TV Shape Initial On-Screen Language Setup This is the menu that appears automatically the very first 2 Channel time the DPC-8.5 is turned on. Analog Multi Speaker Audio Out Chan- Setting Downloaded From Disc-Player.com Integra Manuals...

  • Page 54: Using The Onscreen Setup Menus

    This section explains how to use the onscreen setup TV Shape menus. With this setting you can select a picture format to match Turn on the DPC-8.5 and your TV. the aspect ratio of your TV. On your TV, select the video input to 4:3 Letter box (default): which the DPC-8.5 is connected.
  • Page 55 Configuring the DPC-8.5 —Continued Random Display Clear Top Menu Menu Remote controller Enter Enter Return Setup Setup Audio Angle Subtitle Enter Stop Play Pause Down Disc 3 Step/Slow Disc 1 Disc 2 Interlaced Setting With this setting you can adjust various picture parame- Select Interlaced Setting 1, 2, or ters for interlaced scanning.

  • Page 56: Audio Menu

    There are three setup memories (1, 2, 3) for storing your favorite settings. You With these settings you can determine how the DPC-8.5 could, for example, use one for daytime viewing (e.g., outputs digital audio from its OPTICAL DIGITAL sun shining through window) and one for nighttime AUDIO OUTPUT.
  • Page 57 AUDIO OUTPUT on or off. Depending on how you con- ITAL AUDIO OUTPUT to output MPEG audio as it is nect the DPC-8.5 to your other components, this can be or to downmix it into 2-channel PCM. useful in certain situations.
  • Page 58 • Speaker Setting • Speaker Distance • Test Tone ■ Dolby Pro Logic Setting This setting determines how the DPC-8.5’s built-in Dolby Pro Logic decoder works with 2-channel material. Auto (default) Use the Up and Down [ The Dolby Pro Logic decoder automatically detects buttons to select Subwoofer, and decodes only Dolby Surround material.
  • Page 59 Configuring the DPC-8.5 —Continued When you’ve finished, press the Use the Up and Down [ [Setup] button to exit setup, or buttons to select Front Speaker, Remote controller press the Left [ ] button repeat- Remote controller press the [Enter] button, use the...
  • Page 60 Configuring the DPC-8.5 —Continued When you’ve finished, press the When you’ve finished, press the [Setup] button to exit setup, or [Setup] button to exit setup, or Remote controller Remote controller press the Left [ ] button repeat- press the Left [...
  • Page 61 Configuring the DPC-8.5 —Continued Dynamic Range Control Use the Left and Right [ (Dolby Digital Only) buttons to set the delay time. Remote controller DVD-V DVD-A Memory Range Default With the Dynamic Range Control you can reduce the 0 ms...

  • Page 62: Language Menu

    Configuring the DPC-8.5 —Continued Audio Language Language Menu DVD-V On-Screen Language With this setting you can specify your preferred lan- guage for soundtracks. When you play a DVD with mul- With this setting you can select a language for the tiple language soundtracks, your preferred language will onscreen setup menus and messages.

  • Page 63: Display Menu

    Configuring the DPC-8.5 —Continued Display Menu Operation Menu On-Screen Display Pause/Still DVD-V With this setting you can turn on or off onscreen mes- sages, such as “Play,” “Stop,” and “Resume.” The Pause/Still setting determines how still pictures are displayed when playback is paused and when frame-by- Off: Onscreen messages off.
  • Page 64 DVD-VIDEO • When using a disc that supports parental control, The DVD-Video material is played. depending on the DPC-8.5’s operating status, some- times you may not be able to remove the disc simply Auto power off by pressing the [Open/Close] button. In this case,...

  • Page 65: Initial Setup Menu

    Initial Setup Menu Aymara Occitan This menu appears automatically the very first time you Azerbaijani Oromo Bashkir Oriya turn on the DPC-8.5. See “First Time Setup” on page 27 Byelorussian Panjabi for more information. Bulgarian Polish Bihari Pashto, Pushto Bislama...

  • Page 66: Troubleshooting

    Connect the power cord to a suitable wall outlet The power cord is not connected. (page 26). Turn off the DPC-8.5, wait five seconds, then try Can’t turn on the DPC-8.5? External interference is affecting the turning it on again. If that fails, disconnect the DPC-8.5’s digital circuitry.
  • Page 67 ■ Restoring the Default Settings To reset the DPC-8.5 to its factory defaults, turn it on and, while holding down the Stop [ ] button, press the [Standby/ On] button. “Initialize” appears on the display. When the reset is complete, “Complete” is displayed, and the DPC-8.5 enters Standby mode.

  • Page 68: Specifications

    Sales & Product Planning Div.: 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN I0404-1 Tel: 072-831-8023 Fax: 072-831-8124 SN 29343716 (C) Copyright 2004 ONKYO CORPORATION Japan. All rights reserved. * 2 9 3 4 3 7 1 6 * Downloaded From Disc-Player.com Integra Manuals...
