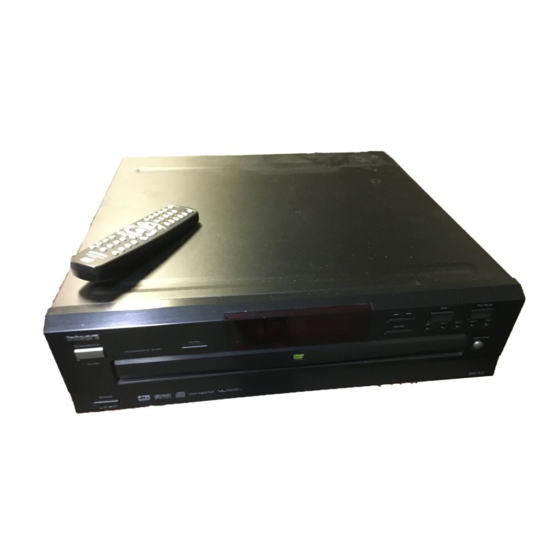

DVD Changer
DPC-5.3
Instruction Manual
Thank you for purchasing the Integra DVD
Changer.
Please read this manual thoroughly before making
connections and turning on the power.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new DVD Changer.
Please retain this manual for future reference.
Contents
Before Using Your DVD Changer

Getting Started

Facilities and Connections

Basic Operation

Advanced Operation

Function Setup

Others
2
6
10
17
20
30
37
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPC-5.3 and is the answer not in the manual?

Questions and answers

Related Manuals for Integra DPC-5.3

Summary of Contents for Integra DPC-5.3

  • Page 1: Getting Started

    DPC-5.3 Facilities and Connections Instruction Manual Basic Operation Advanced Operation Thank you for purchasing the Integra DVD Changer. Please read this manual thoroughly before making connections and turning on the power. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new DVD Changer.

  • Page 2: Important Safeguards

    WARNING: WARNING AVIS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, RISK OF ELECTRIC SHOCK RISQUE DE CHOC ELECTRIQUE DO NOT OPEN NE PAS OUVRIR DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated CAUTION: “dangerous voltage”...
  • Page 3 Precautions This unit contains a semiconductor laser system and is classified as a “CLASS 1 LASER PRODUCT”. So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit. To prevent being exposed to the laser beam, do not try to open the enclosure.
  • Page 4 Precautions 1. Regional Restriction Codes (Region Number) 8. Notes on Handling Regional restriction codes are built into DVD Changers and • When shipping the unit, use the original shipping carton and DVD-Video media for each sales region. If the regional code of packing materials.

  • Page 5: Table Of Contents

    Table of Contents Important Safeguards / Precautions / Table of Contents ......2 - 5 Getting Started Notes on Discs ....................6 Playable Discs / The Structure of the Disc Content / About Video CDs / MP3 Compatibility Information / Handling Discs / Cleaning Discs / Storing Discs / Notes on Copyright Features/Supplied Accessories .................

  • Page 6: Notes On Discs

    Notes on Discs This section shows you how to handle, clean, and store discs. The Structure of the Disc Content Playable Discs This DVD Changer can playback the following discs. DVD-Video Normally, the contents of DVD-Video are divided into titles, and the Disc mark Contents Disc size...

  • Page 7: Handling Discs

    Notes on Discs Handling Discs Notes on Copyright • Do not touch the playback side of the disc. It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, and rent copyrighted material without permission. The video recorded on DVD-Video is copy protected, and any recordings made from these discs will be distorted.

  • Page 8: Features/Supplied Accessories

    Features/Supplied Accessories Features G Plays DVD-Video Discs, Video CDs, CDs “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. G 10-bit Video DAC Manufactured under license from Dolby Laboratories. G Simultaneous outputs to all video connections “Dolby” and the double-D symbol are trademarks of Dolby G Digital Outputs pass DTS ®...

  • Page 9: Preparing The Remote Controller

    Preparing the Remote Controller Inserting the Batteries Using the Remote Controller Point the remote controller toward the remote control sensor. 1 Remove the battery compartment cover by pressing the tab and lifting up the cover. Remote control sensor 30˚ 30˚ 2 Insert the two batteries (size AAA/R3).

  • Page 10: Control Position And Names

    Control Position and Names Front Panel For operational instructions, see the page indicated in brackets [ ]. DPC-5.3 1 Power button [17] 8 Stop 7 button [18] Stops playing a disc. When disc is playing, if you press 7 and Turns on the main power supply.

  • Page 11: Rear Panel

    Control Position and Names Rear Panel For operational instructions, see the page indicated in brackets [ ]. AC INLET VIDEO OUTPUT COMPONENT AUDIO DIGITAL OUTPUT DVD CHANGER OUTPUT MODEL NO. DPC-5.3 VIDEO COAXIAL OPTICAL RS 232 S VIDEO 3 4 5 6 7 1 RS 232 port 5 AUDIO OUTPUT jacks [14, 16] This port is to be used in conjunction with an external controller...

  • Page 12: Display Examples

    Control Position and Names Display 2 3 4 I Display Examples 1 Inserted disc indicators Indicate the type of current disc that is loaded. During DVD-Video playback: 2 PROGRESSIVE indicator Illuminate when the DVD Changer is set to progressive mode. TITLE CHAPTER 3 Parental Lock indicator...

  • Page 13: Remote Controller

    Control Position and Names Remote Controller 7 ON SCREEN button [20-24] For operational instructions, see the page indicated in brackets [ ]. Press this button while you’re playing a disc to see Banner Display on the screen. The Banner Display contains various playback features and gives you the information about the disc you’re playing.

  • Page 14: Making Connections

    Making Connections To accommodate a wide range of home entertainment systems, this player features numerous connection types for both audio and video. Please refer to the instructions on this and the following pages to determine the best possible type of connections for your system. Before Connecting •...

  • Page 15: Optional Video Connections

    Making Connections Optional Video Connections Visible improvements in DVD-Video quality can be achieved by making either S-video or component video connections to a TV or monitor compatible with these types of connections. Note When either an S-video or component video connection is made, it is not necessary to make composite video connections using the yellow cord of the audio-video cable.

  • Page 16: Optional Audio Connections

    Making Connections Optional Audio Connections This DVD Changer provides numerous ways to take full advantage of the digital multi-channel sound recorded on DVD and some CD media. Be sure to set Digital Audio Out after connection using the setup menu explained in “Customizing the Settings” starting on page 30.

  • Page 17: Turning On

    Turning on Connecting the Power Notes The DPC-5.3 is shipped with the main power (Power) switch in the on • Make sure that all appropriate connections have been completed as position (_ On). When the power cord is plugged in for the first time, described on pages 14 to 16.

  • Page 18: Basic Playback

    Basic Playback Before playing Warning • DVD-Video, Video CD, CD can be played with the DVD Changer (see “Playable Discs” on page 6). Do not play anything else. If the DVD Changer is connected to the TV or • When playing DVD-Video or Video CD with video features, turn on the TV and set the TV to the DVD amplifier through the analog audio jacks, do not Changer’s input.

  • Page 19: Various Playback

    Basic Playback Various Playback I To remove the disc Press 0 to open the disc tray. Remove the disc after the disc tray opens completely. After removing the disc, be sure to press the button again to close the tray. Press Disc Skip to rotate the disc tray while the tray is open.

  • Page 20: Using Banner Display

    Using Banner Display Using the On-screen Banner Display The on-screen Banner Display contains many playback features. To see the Banner Display, press ON SCREEN on the remote controller while a disc is playing. Use 2/3 to move through the different features in the Banner Display. Each feature is illustrated with an icon.

  • Page 21: Selecting A Title

    Using Banner Display Selecting a Title Selecting a Chapter or Track DVD-Video DVD-Video Title 1 Title 2 Title 1 Title 2 Chapter 1 Chapter 2 Chapter 2 Chapter 3 Chapter 1 Some discs contain more than one title. For example, there might Video CD/CD be four movies on one disc (each movie might be considered a title).

  • Page 22: Selecting A Playback Audio Setting

    Using Banner Display Selecting a Playback Audio Setting Changing the Subtitle Language Good morning! Bon jour! ¡Buenos días! Good evening! Bon soir! ¡Buenas tardes! You can display subtitles on the TV screen and select a subtitle You can select the preferred audio language and sound system as a set language from those included on the DVD-Video.

  • Page 23: Changing The Camera Angle

    Using Banner Display Changing the Camera Angle Using IntroScan Function Track : 1 Track : 2 Track : 3 Angle : 1 Angle : 2 Angle : 3 If the scene was recorded from multiple angles, you can easily IntroScan plays the first 10 seconds of each track on the Video CD change the camera angle of the scene you are watching.

  • Page 24: Using A Bookmark

    Using Banner Display To clear the bookmark Using a Bookmark The bookmark is cleared when a disc is removed from the DVD Changer, when the power is turned off, or when the DVD Changer enters the standby mode. Notes • If all 9 bookmarks are in use, you can still mark new scenes, but the previous bookmarks will be erased.

  • Page 25: Other Operations

    Other Operations CD Play Function Random Play The chapters or tracks of the disc are played in random order. Since the DVD Changer allows you to insert up to five discs in any combination, there may be times when you only want to listen to music.

  • Page 26: Repeat Play

    Other operations Repeat Play A-B Repeat Play The A-B repeat function lets you mark a segment to repeat between Desired disc or title can be played back repeatedly. the beginning “A” and the end “B” of the segment you want to There are five repeat options: replay.
  • Page 27 Other operations Insert disc, title, chapter or track Memory Edit Play 1 Press MEMORY during stop mode. The MEMORY EDIT display appears. Title : 2 Title : 2 Title : 2 Title : 2 Title : 1 Title : 1 Chapter : 25 Chapter : 25 Chapter : 12...

  • Page 28: Mp3 Function

    MP3 Function Playing Back MP3 MP3 On-screen Display The DVD Changer can play back MP3 files recorded on CD-R or Folders within a root CD-RW. Playback Playing file Press £. Track information name Time elapsed When you insert MP3 media, playback will start automatically.

  • Page 29: Mp3 Repeat Play

    MP3 Function MP3 Memory Play Press 5/∞ to select the file, then press ENTER. You can listen to the files in any desired order. During stop mode, press MEMORY. « Press 5/∞ to select the file, then press ENTER. Playback will start from selected file. Files in the next folder will be played back when no files exist in the selected folder.

  • Page 30: Customizing The Settings

    Customizing the Settings When you insert a DVD-Video, Video CD, or CD, the various functions of the DVD Changer will be set (reset) according to the setting menu. You can customize this setting menu according to your preferences. Making Adjustments to Setting Press MENU during stop mode.

  • Page 31: Language Setting

    Customizing the Settings Language-related settings Language Setting Audio Language English: To display subtitles in English. Spanish: To display subtitles in Spanish. French: To display subtitles in French. This sets the language to be used when playing a disc. If a disc German: To display subtitles in German.

  • Page 32: Operation Setting

    Customizing the Settings General utility settings Operation Setting Rating/Parental lock To input password Select “Set Password”. This can restrict playback of adult-oriented DVD discs that you do Press the numeric buttons to enter password. not want to be seen by children. However, even when a DVD disc is marked “Adult-oriented”...
  • Page 33 Customizing the Settings Operation Setting (continued) To change password Press the numeric buttons to enter new password. Press the numeric buttons to enter password. Select OK button and press ENTER. Select OK button and press ENTER. Password setup menu appears. To clear password Select “Change Password”.

  • Page 34: Picture Setting

    Customizing the Settings Audio output setting Picture-related setting Picture Setting Audio Setting TV Aspect Dynamic Range Dynamic Range setting allows you to “compress” the dynamic This sets the screen size (4:3 or 16:9 aspect ratio) according to the range of a DVD’s sound track, so that you can lower the volume connected TV.
  • Page 35 Customizing the Settings Audio Setting (continued) Digital Audio Out DOLBY DIGITAL Surround DVD Video that have the mark are recorded using this system. D I G I T A L This sets the type of audio output from the digital audio output jack. DTS Surround DVD Video and CD that have the mark are recorded using this system.

  • Page 36: Table Of Languages

    Table of Languages Table of Languages and Their Code No. Code No. Language Code No. Language Code No. Language Abkhazian Russian 6566 Hungarian 7285 8285 Afar Samoan 6565 7383 Icelandic 8377 Afrikaans Sangho 6570 7378 Indonesian 8371 Albanian Sanskrit 8381 7365 Interlingua 8365...

  • Page 37: Others

    Operating Components not Reached by the Remote Controller Signals (IR IN/OUT) The following equipment (sold separately) is essential for operation: • Onkyo’s Multi-Room System kits (IR Remote Controller Extension System), or ® ® • Multiroom A/V distribution and control systems from Niles and Xantech to name a few.

  • Page 38: Troubleshooting

    DVD Changer. again. If not recovered, disconnect the power cord, then connect it again. • The AC fuse is blown. • Contact your Integra/Onkyo authorized – service center. The DVD Changer doesn’t • No disc is inserted.

  • Page 39: Specifications

    Specifications DVD Changer Power supply AC 120 V, 60 Hz Power consumption 20 W Weight 15.0 lbs External dimensions " x 5 " x 16 " (W/H/D) Signal system NTSC Frequency range (digital audio) 48 kHz sampling 4 Hz to 22 kHz 96 kHz sampling 4 Hz to 42 kHz Signal-to-noise ratio (digital audio) More than 98 dB...
  • Page 40 Integra Division of ONKYO U.S.A. CORPORATION 18 park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.integrahometheater.com Integra Division of ONKYO CORPORATION Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8111 Fax: 072-833-5222...
