SECTION
2
PLAN YOUR INSTALLATION

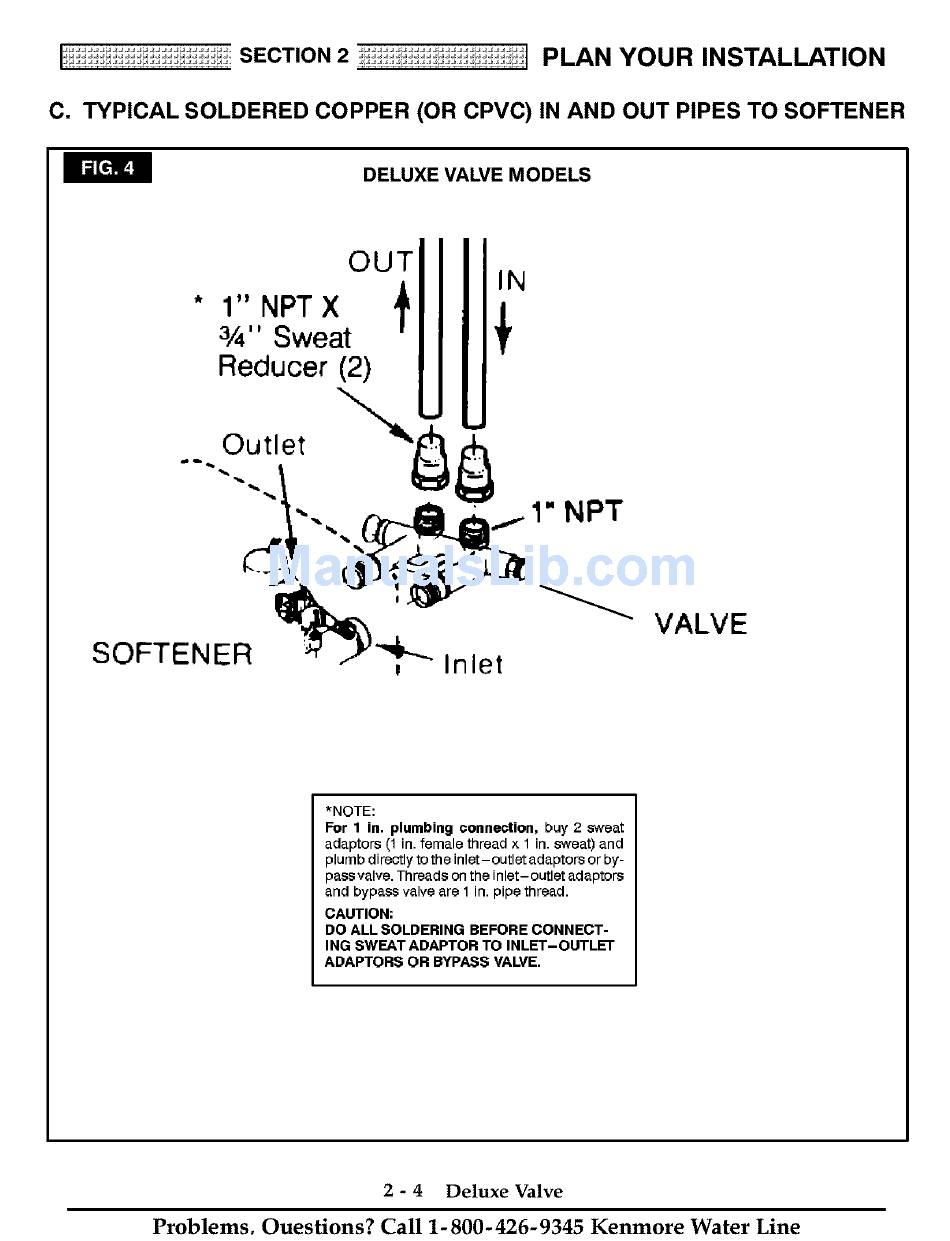

C. TYPICAL
SOLDERED
COPPER
(OR CPVC) IN AND OUT PIPES TO SOFTENER
DELUXE VALVE MODELS
* 1" NPT X
3/4" Sweat
Reducer (2)
Outlet
SOFTENER
Inlet
VALVE
*NOTE:
For 1 in. plumbing _onne_tion,
buy 2 sweat
adaptors (1 in. female thread x 1 in. sweat) and
plumb directly to the inlet- outlet adaptors or by-
pass valve. Threads on the inlet-outlet adaptors
and bypass valve are 1 in. pipe thread.
CAUTION;
DO ALL SOLDERING
BEFORE CONNECT-
ING SWEAT ADAPTOR TO INLET-OUTLET
ADAPTORS OR BYPASS VALVE,
2 - 4
Deluxe Valve
Problems,
Ouestions?
Call 1-800-426-9345
Kenmore
Water Line
