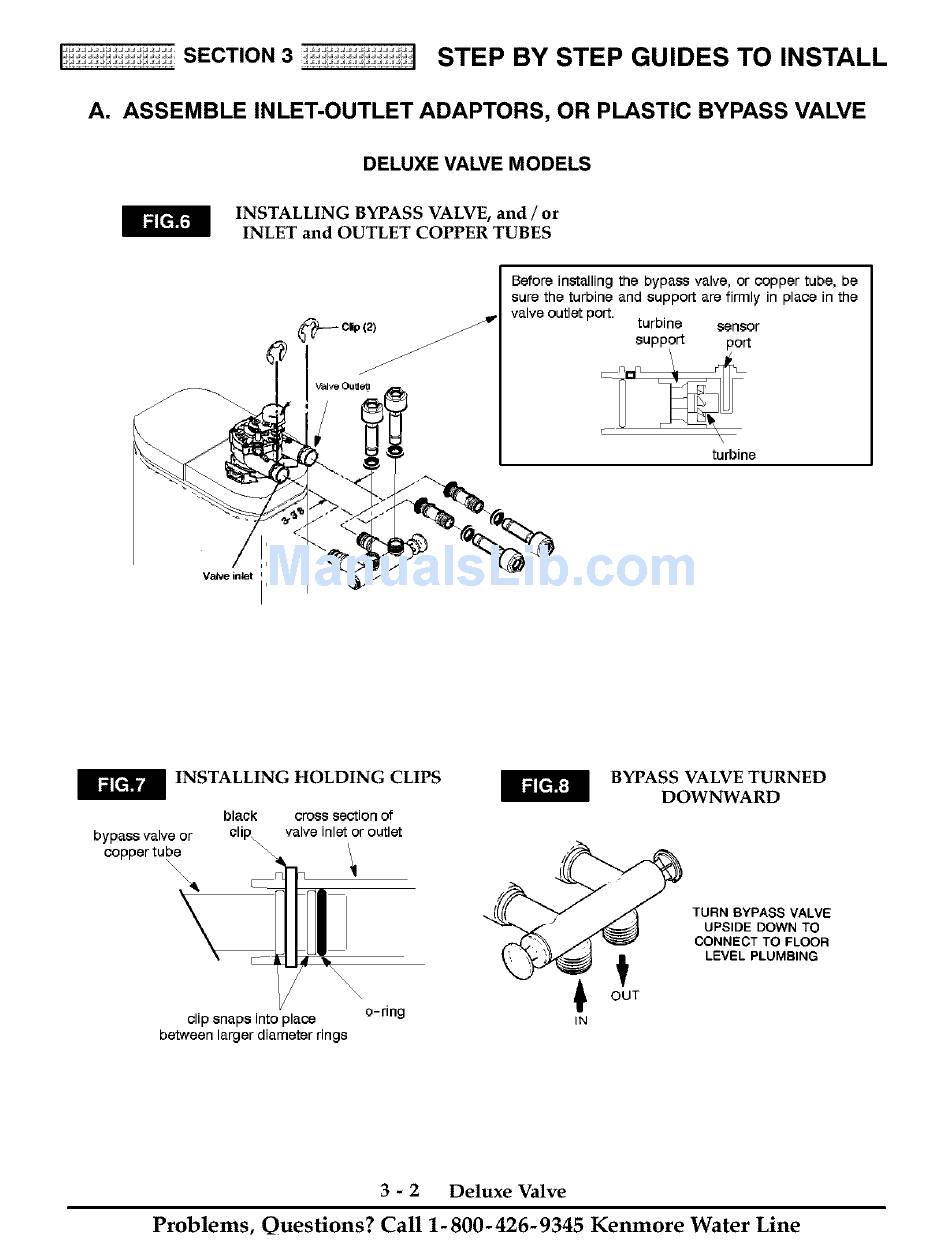

SECTION3 STEP BY STEP GUIDES TO INSTALL
A. ASSEMBLE INLET-OUTLET ADAPTORS, OR PLASTIC BYPASS VALVE
DELUXE VALVE MODELS
INSTALLING BYPASS VALVE, and/or
INLET and OUTLET COPPER TUBES
Before ins'telling the bypass valve, or copper tube, be
sure the turbine and support are firmly in place in the
valve outlet port. turbine sensor
support port
\
\
turbine
ii
Valve inlet
INSTALLING HOLDING CLIPS
black cross section of
bypass 'calve or clip\ valve inlet or outlet
\\\ /
copper
\
clip snaps into place e-ring
between larger diameter rings
BYPASS VALVE TURNED
DOWNWARD
IN
TURN BYPASS VALVE
UPSIDE DOWN TO
CONNECT TO FLOOR
LEVEL PLUMBING
3 - 2 Deluxe Valve
