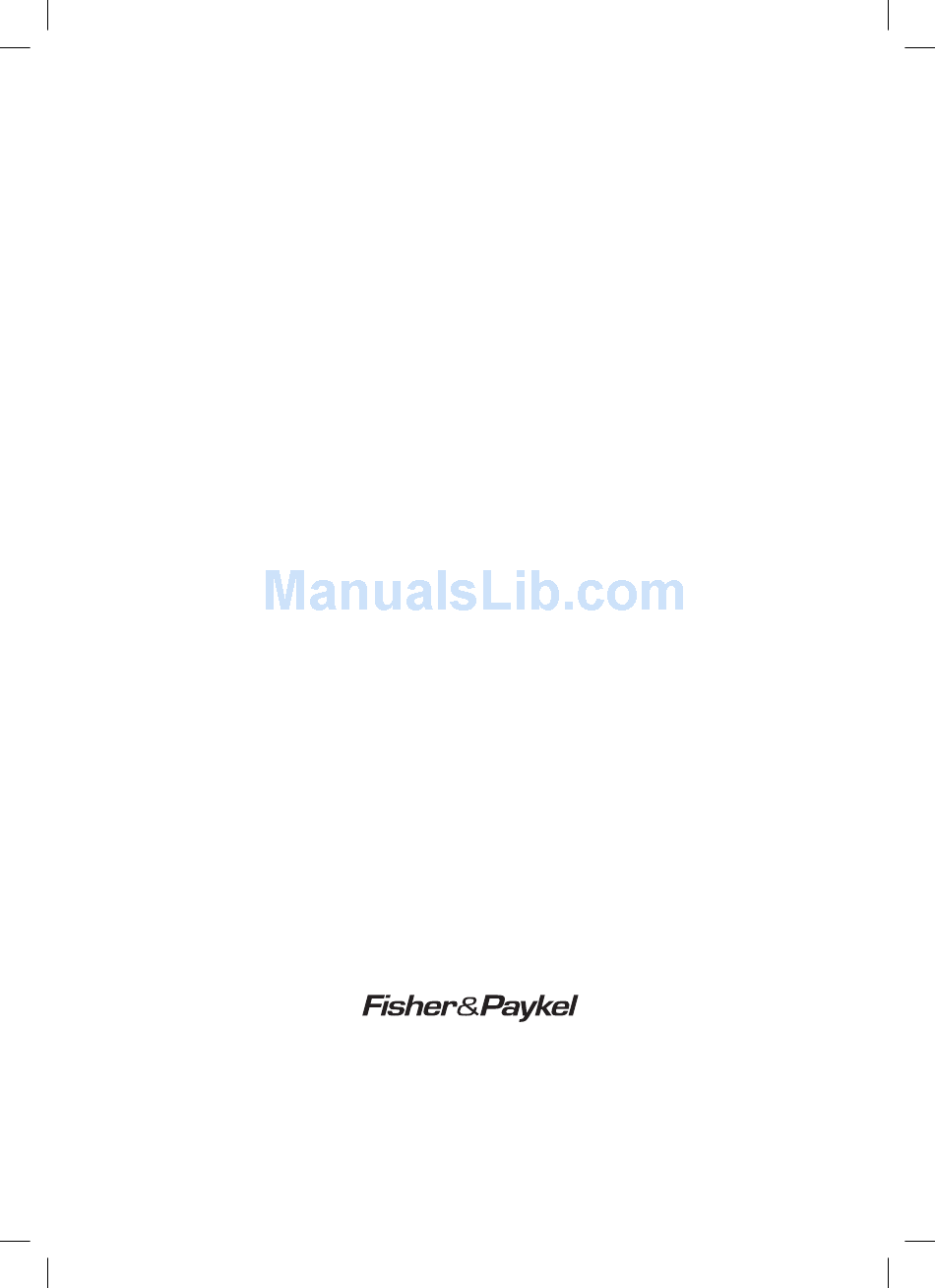

- Page 1 INSTALLATION INSTRUCTIONS USER GUIDE Side by side refrigerator RX611DUX, RX628DX and RX628DW models NZ AU...
-
Page 3: Table Of Contents
CONTENTS Introduction Safety and warnings Installation instructions Moving and storing your appliance About your refrigerator – Ice & Water About your refrigerator – Non Ice & Water Operating instructions – Ice & Water control panel Operating instructions – Non Ice & Water control panel Using your water dispenser / Ice maker –... -
Page 4: Introduction
As your life changes, so can your refrigerator. This book explains the features and functions, and will help you get the most out of your refrigerator. We hope you enjoy your new refrigerator. RX611DUX RX628DW/RX628DX... -
Page 5: Safety And Warnings
SAfETy AND wARNINgS wARNINg! Electric Shock Hazard Read and follow the SAfETy AND wARNINgS outlined in this user guide before operating this appliance. failure to do so can result in death, electric shock, fire or injury to persons. This refrigerator contains flammable refrigerant Isobutane (R600a). R600a Use this appliance only for its intended purpose as described in this user guide. -
Page 6: Important Safety Instructions
SAfETy AND wARNINgS IMPORTANT SAfETy INSTRUCTIONS Electrical This appliance must be installed in accordance with the installation instructions ● ● before use. Never unplug your refrigerator by pulling on the power cord. ● ● Always grip the plug firmly and pull straight out from the outlet. ●... - Page 7 SAfETy AND wARNINgS IMPORTANT SAfETy INSTRUCTIONS Power failure – food safety Do not refreeze frozen foods that have thawed completely. The food may be ● ● dangerous to eat. follow the recommendations below if you discover food in your freezer has thawed: –...
-
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS Please follow the installation steps below to ensure your appliance operates correctly. Power The appliance must be installed so the plug is accessible. ● ● To ensure that the appliance is not accidentally switched off, connect your refrigerator ●... -
Page 9: Product/Cabinetry Dimensions
INSTALLATION INSTRUCTIONS Product and cabinetry dimensions PLAN VIEW FLUSH WITH REFRIGERATOR CHASSIS – FULL ROTATION PLAN VIEW FLUSH WITH REFRIGERATOR CHASSIS – FULL ROTATION FRONT VIEW PROFILE VIEW PRODUCT DIMENSIONS FRONT VIEW PROFILE VIEW Overall height of product 1795 (to top of hinge) Overall width of product Overall depth of product (excludes handle, includes rear cover) - Page 10 INSTALLATION INSTRUCTIONS Positioning your appliance 50 mm 50 mm Choosing the right location This appliance should be installed in a room that is dry and well ventilated. To provide adequate ventilation, make sure the refrigerator is at least 20 mm clear on all sides from kitchen cabinetry, and 30 mm from the back wall.
- Page 11 INSTALLATION INSTRUCTIONS Removing and installing the doors ImpORTANT! In the event that you need to remove the refrigerator doors, please follow the door ● ● removal and installation instructions below. It is suggested for your safety to have two or more people to assist you in completing ●...
- Page 12 INSTALLATION INSTRUCTIONS The fridge door 1 Undo the hinge cover screw and remove the cover (Fig. 5), the clips holding the cover must be released first. Unclip the front section of the hinge cover, then push the cover towards the centre of the appliance and pull upwards to release. 2 Undo screws holding down the hinge bracket (Fig. 6).
- Page 13 INSTALLATION INSTRUCTIONS Levelling the refrigerator and adjusting the doors Make sure that the appliance is on solid level flooring. If the refrigerator Fig.4-9 Fig.4-10 Fig.4-9 Fig.4-10 is placed on a plinth, the plinth must be flat and constructed from strong, fire resistant materials.
- Page 14 INSTALLATION INSTRUCTIONS water supply connection ImpORTANT! It is recommended to have this product installed by a qualified technician. ● ● DO NOT use with water that is microbiologically unsafe or of unknown quality. ● ● wARNINg – connect to potable water supply only to ensure water hygiene in the ●...
- Page 15 INSTALLATION INSTRUCTIONS fitting the water filter 1 Measure out and cut the length of tube required from the filter to the refrigerator, and from the filter to the water supply. When cutting, make sure tube ends are square and clean. Fig. 7 Filter connection 2 Push fit one of the tubes into the water filter (Fig. 7).
-
Page 17: Moving And Storing Your Appliance
MOVINg AND STORINg yOUR APPLIANCE If your refrigerator is turned off for any reason, wait 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting. Moving your appliance Turn off the appliance and unplug from the power point. Remove all food. ●... -
Page 18: About Your Refrigerator - Ice & Water
AbOUT yOUR REfRIgERATOR – ICE & wATER RX611DUX Internal view 1 Ice maker/ice box 2 Freezer main shelves 3 Ice & water dispenser 4 Freezer light 5 Freezer drawers 6 Freezer door shelves 7 Fridge light 8 Fridge door shelves... -
Page 19: About Your Refrigerator - Non Ice & Water
AbOUT yOUR REfRIgERATOR – NON ICE & wATER RX628DX and RX628Dw Internal view 1 Freezer light 2 Freezer door shelves 3 Freezer main shelves 4 Ice trays 5 Ice box 6 Freezer drawers 7 Fridge light 8 Fridge door shelves 9 Fridge main shelves !0 Vegetable drawers !1 Fridge drawer... -
Page 20: Operating Instructions - Ice & Water Control Panel
OPERATINg INSTRUCTIONS – ICE & wATER CONTROL PANEL Ice & water control panel Ice & water control panel 1 Water and ice dispenser button 8 Filter change status icon 2 Ice maker on/off button 9 Ice maker on status icon 3 Freezer temperature button !0 Max Cool icon 4 Fridge temperature button... - Page 21 OPERATINg INSTRUCTIONS – ICE & wATER CONTROL PANEL Holiday function ImpORTANT! before selecting the holiday function remove all perishable food and drink from the fridge compartment as perishable items may become unsafe to consume. This feature allows you to leave the fridge section unused while the freezer section operates as normal.
- Page 22 OPERATINg INSTRUCTIONS – ICE & wATER CONTROL PANEL ImpORTANT! you cannot adjust the temperature settings when in fast freeze or when Lock has been activated. If you try to adjust the settings under these conditions, the special function icon beside the freezer temperature display will blink, and a beep will sound to indicate that the adjustment cannot be made at this time.
- Page 23 OPERATINg INSTRUCTIONS – ICE & wATER CONTROL PANEL Adjusting the fridge temperature. 1 Press . The fridge temperature display will start blinking, indicating that the fridge is in the temperature setting mode. 2 Press to scroll though the fridge temperature range from 9°C to 1°C. When the desired temperature is displayed, wait 5 seconds.
-
Page 24: Operating Instructions - Non Ice & Water Control Panel
OPERATINg INSTRUCTIONS – NON ICE & wATER CONTROL PANEL Non Ice & water control panel Non Ice & Water control panel 1 Lock button 4 Fridge temperature button 2 Fast Freeze button 5 Max Cool button 3 Freezer temperature button 6 Holiday button Lock This feature will lock the temperature and... - Page 25 OPERATINg INSTRUCTIONS – NON ICE & wATER CONTROL PANEL Holiday ImpORTANT! before selecting the holiday function remove all perishable food and drink from the fridge compartment as perishable items may become unsafe to consume. This feature allows you to leave the fridge Holiday section unused while the freezer section operates as normal.
- Page 26 OPERATINg INSTRUCTIONS – NON ICE & wATER CONTROL PANEL fast freeze This function is designed to freeze food quickly to ensure freshness, texture and taste are retained during the freezing process. The Fast Freeze function will automatically deactivate after a set time duration. Fast Freeze Use this feature before putting large quantities of food in to the freezer (for example after food...
-
Page 27: Using Your Water Dispenser / Ice Maker - Ice & Water
USINg yOUR wATER DISPENSER / ICE MAKER – ICE & wATER first use of the ice maker/water dispenser Check your refrigerator is switched on and has been cooling for at least 2 hours before ● ● use (refer to page 21 – The temperature of your refrigerator and freezer). Check that the water isolation tap has been connected and turned on. - Page 28 USINg yOUR wATER DISPENSER / ICE MAKER – ICE & wATER Removing and replacing the ice box To remove the icebox, lift the box and then pull towards you, releasing the unit (Fig. 11). Note: water moisture may have condensed and frozen the icebox in place. Icebox When replacing the ice bin, if it does not fit easily, remove the box and turn the cam...
-
Page 29: Special Features
SPECIAL fEATURES fruit and vegetable bins The fruit and vegetable bin provides a humid environment for your produce ensuring moisture and nutrients are retained, and your fruit and vegetables are kept fresher for longer. To remove the bin, pull it out until it stops, then lift and continue to slide the bin until it is fully extended. -
Page 30: Cleaning Care - Exterior
CLEANINg CARE – EXTERIOR Exterior Stainless exterior doors It is important when cleaning the exterior door surface of your refrigerator, to only use ● ● liquid dishwashing detergent dissolved in warm water and a soft cloth. Dry the door with a clean, lint free cloth. ●... -
Page 31: Cleaning Care - Interior
CLEANINg CARE – INTERIOR Interior It is important to keep the interior of the refrigerator and freezer clean to help prevent ● ● food from becoming contaminated during storage. The amount and types of food stored determines how often cleaning should be carried ●... -
Page 32: Storing Food In Your Refrigerator
STORINg fOOD IN yOUR REfRIgERATOR Your refrigerator helps to extend the storage times of fresh perishable foods. The cold temperature slows down the major causes of food spoilage – namely, the growth of bacteria, moulds and yeasts, and any chemical and physical reactions. fresh food care The quality of food before it is placed in the refrigerator is critical to successful storage. - Page 33 STORINg fOOD IN yOUR REfRIgERATOR Red meat Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil. ● ● Store cooked and raw meat on separate plates. This will prevent any juices lost from the ●...
-
Page 34: Storing Food In Your Freezer
STORINg fOOD IN yOUR fREEZER We recommend the use of temperatures -18°C or colder to store food. This means that the food can be kept for longer periods than when refrigeration temperatures are used. This is because the growth of bacteria, moulds and yeasts are stopped, and chemical and physical reactions are severely restricted at such low temperatures. - Page 35 STORINg fOOD IN yOUR fREEZER Meat, poultry and game Do not try to freeze more than 1 kg meat per 25 L of freezer storage volume at any one ● ● time. Meat must be frozen quickly in order to maintain its texture. Do not stuff poultry before freezing.
-
Page 36: Troubleshooting
TROUbLESHOOTINg If there is a problem with your appliance, please check the following points before contacting your local Fisher & Paykel Authorised Repairer or the Customer Care Centre. Product parts and accessories can be purchased through Fisher & Paykel Customer Care or online at www.fisherpaykel.com (this service is available to selected markets only). - Page 37 TROUbLESHOOTINg All models PRObLEM POSSIbLE CAUSES wHAT TO DO Water in the Condensation is formed A small amount of condensation is vegetable bins. by the water produced beneficial for fruit and vegetable by fruit and vegetables. storage. Wipe out water with a cloth. Exterior of This is normal.
- Page 38 TROUbLESHOOTINg Ice & water models only PRObLEM POSSIbLE CAUSES wHAT TO DO Automatic ice Ice maker has not been Switch on ice maker (refer to page 25). maker does turned on. not work. Water supply turned off or Connect water supply. not connected. Freezer compartment not Contact Customer Care.
- Page 39 TROUbLESHOOTINg Ice & water models only PRObLEM POSSIbLE CAUSES wHAT TO DO Water has poor Refrigerator not used for an Dispense 10 L of water so fresh taste/odour. extended period. water supply is replenished. Water dispenser Water supply turned off or Turn water on.
-
Page 40: Manufacturer's Warranty
MANUfACTURER’S wARRANTy You will receive a 2 year Manufacturer’s Warranty with the purchase of this refrigerator covering parts and labour for servicing within the countries New Zealand, Australia, Singapore and The republic of Ireland and Northern Ireland. All other countries are excluded. - Page 41 MANUfACTURER’S wARRANTy Service under this Manufacturer’s Warranty must be provided by a Fisher & Paykel Authorised Repairer (refer to the ‘Customer care’ section at the back of this book). Such service shall be provided during normal business hours. This warranty certificate should be shown when making any claim.
-
Page 42: Customer Care
CUSTOMER CARE before you call for service or assistance... Check the things you can do yourself. Refer to the installation instructions and your user guide and check that: 1 Your product is correctly installed. 2 You are familiar with its normal operation. 3 You have read the ‘Troubleshooting’... - Page 43 CUSTOMER CARE Complete and keep for safe reference: Model Serial No. Purchase Date Purchaser Dealer Suburb Town Country...
- Page 44 www.fisherpaykel.com Copyright © Fisher & Paykel 2014. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
