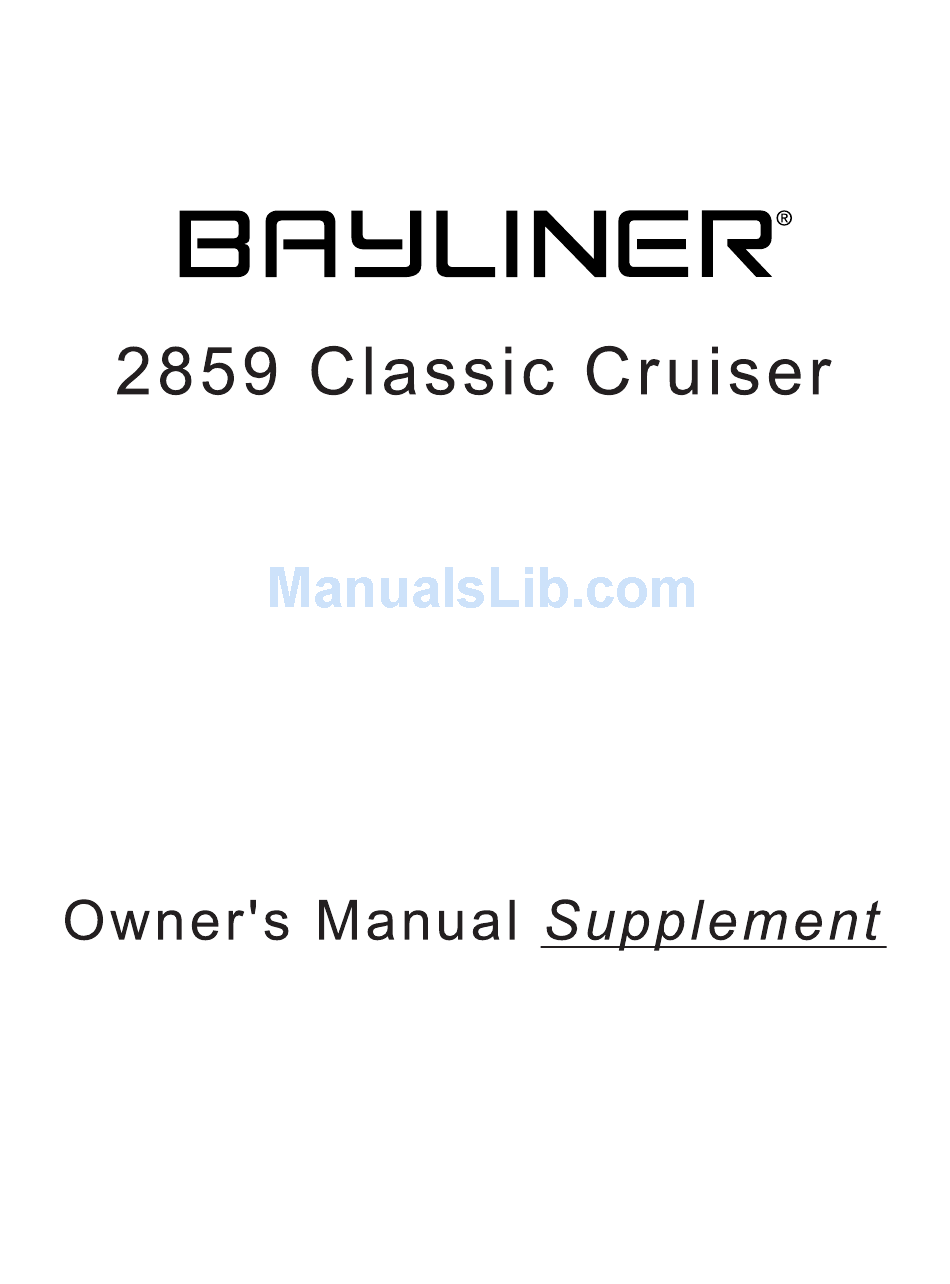

Summary of Contents for Bayliner 2859 Classic Cruiser
-
Page 3: Engine Serial Number
This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated by and are the prop- erty of Bayliner. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the document or any part thereof, any information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Bayliner. -
Page 4: Table Of Contents
CONTENTS Chapter 1: Welcome Aboard! Chapter 3: Propulsion & Related Systems Dimensions and Tank Capacities Engine Layout View Engine Room Ventilation System Dealer Service Fuel System Warranty Information 16 Diagram Boating Experience 17 Fuel Fill and Vent 17 Fuel Filters Engine &... - Page 5 Chapter 7: Deck Equipment Chapter 12: Electrical System Cleats and Tow Eyes 12-Volt DC System 36 Batteries 36 Fuses and Circuit Breakers Chapter 8: Appliances & 36 Battery Switch Entertainment Systems 36 Battery Switch Positions 37 Alternator Refrigerator 37 Battery Charger Alcohol/Electric Stove (If Equipped) 37 12-Volt Accessory Outlet Audio &...
- Page 6 Hazard Boxes & Symbols The hazard boxes and symbols shown below are used throughout this Supplement to call attention to potentially dan- gerous situations which could lead to either personal injury or product damage. Read ALL warnings carefully and follow all safety instructions. DANGER! This box alerts you to immediate hazards which WILL cause severe personal injury or death if the warning is ignored.
-
Page 7: Chapter 1: Welcome Aboard
• Buy replacement parts from any authorized Bayliner dealer. Warranty Information • Bayliner offers a Limited Warranty on each new Bayliner purchased through an authorized Bayliner dealer. • A copy of the Limited Warranty was included in your owner’s packet. -
Page 8: Boating Experience
Chapter 1: Welcome Aboard! 2859 Classic Cruiser • Owner’s Manual Supplement Boating Experience WARNING! CONTROL HAZARD! A qualified operator must be in control of the boat at all times. DO NOT operate your boat while under the influence of alcohol or drugs. -
Page 9: Safety Standards
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 1: Welcome Aboard! Safety Standards DANGER! FALLING and ROTATING PROPELLER HAZARD! NEVER allow anyone to ride on parts of the boat not designed for such use. • Sitting on seat backs, lounging on the forward deck, bow riding, gunwale riding or occupy- ing the transom platform while underway is especially hazardous and will cause personal injury or death. -
Page 10: Special Care For Moored Boats
Chapter 1: Welcome Aboard! 2859 Classic Cruiser • Owner’s Manual Supplement Special Care For Moored Boats NOTICE • To help seal the hull bottom and reduce the possibility of gelcoat blistering on moored boats, apply an epoxy barrier coating. The barrier coating should be covered with several coats of anti-fouling paint. -
Page 11: Carbon Monoxide (Co)
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 1: Welcome Aboard! Carbon Monoxide (CO) DANGER! • Carbon monoxide gas (CO) is colorless, odorless, tasteless, and extremely dangerous. • All engines, generators, and fuel burning appliances produce CO as exhaust. • Prolonged exposure to low concentrations or very quick exposure to high concentrations will cause BRAIN DAMAGE or DEATH. -
Page 12: Where And How Co Can Accumulate
Chapter 1: Welcome Aboard! 2859 Classic Cruiser • Owner’s Manual Supplement Where and How CO Can Accumulate Stationary Conditions That Increase CO Accumulations Include: A. Using engine, generator, or other fuel burn- ing device when boat is moored in a confined space. -
Page 13: Trip Checklist
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 1: Welcome Aboard! Trip Checklist ❏ Make sure you know where the exhaust outlets are located on your boat. ❏ Educate all passengers about the symptoms of CO poisoning and where CO may accumulate. -
Page 14: More Information
Chapter 1: Welcome Aboard! 2859 Classic Cruiser • Owner’s Manual Supplement More Information For more information about how you can prevent carbon monoxide poisoning on recreational boats and other ways to boat more safely, contact: United States Coast Guard National Marine Manufacturers American Boat &... -
Page 15: Boat Lifting
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 1: Welcome Aboard! Boat Lifting WARNING! PERSONAL INJURY and /or PRODUCT or PROPERTY DAMAGE HAZARD! • Lift slings may slip on the hull. Avoid serious injury or death by securing the slings together before lifting. -

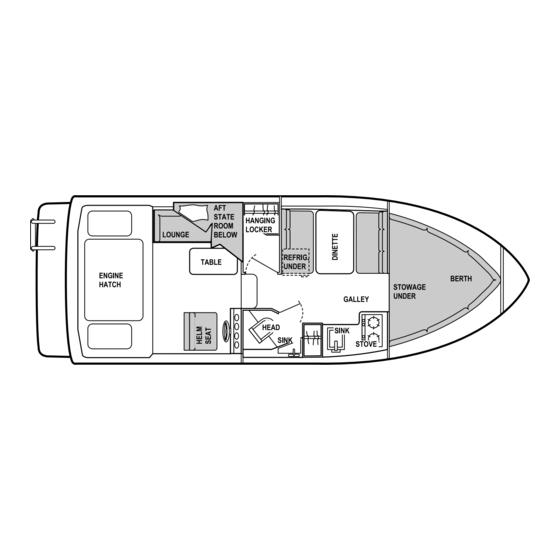

Page 16: Chapter 2: Locations
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 2: Locations Exterior Views Hull Views AFT BILGE FORWARD BILGE HOLDING TANK HEAD SINK GALLEY SINK PUMP DRAIN PUMP DRAIN VENT DRAIN DRAIN STARBOARD HULLSIDE ANCHOR LOCKER DRAIN OVERBOARD COCKPIT STEP AIR CONDITIONER... -
Page 17: Forward Deck Views
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 2: Locations Forward Deck Views WIPER GRAB GRAB RAIL RAIL VENTILATION HATCH ANCHOR LOCKER NAVIGATION NAVIGATION LIGHT LIGHT CLEAT (STRONG POINT) ROPE CHOCK ROPE CHOCK ANCHOR ROLLER... -
Page 18: Aft Deck Views
Chapter 2: Locations 2859 Classic Cruiser • Owner’s Manual Supplement Aft Deck Views HORN GRAB GRAB RAILS RAILS CLEAT CLEAT (STRONG POINT) (STRONG POINT) FUEL FILL DECK FITTING PORT SIDE STARBOARD SIDE CLEAT FRESHWATER SHORE POWER WASTE PUMP-OUT CLEAT (STRONG POINT) -
Page 19: Helm
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 2: Locations Helm NOTE: TYPICAL HELM LAYOUT SHOWN ACTUAL LAYOUT MAY VARY DEPENDING ON ENGINE AND ACCESSORY OPTIONS OIL PRESSURE VOLTMETER SWITCH GAUGE PANEL FUEL GAUGE TEMPERATURE GAUGE 12-VOLT ADAPTER (IF EQUIPPED) -
Page 20: Component Locations
Chapter 2: Locations 2859 Classic Cruiser • Owner’s Manual Supplement Component Locations 12-Volt Accessory Outlet: At the helm on the dash panel. Air Conditioner Seawater Pickup Seacock: Under the salon floor. Access is through the center floor hatch. Air Conditioner Unit: In the aft V-berth bunk storage. -
Page 21: Chapter 3: Propulsion & Related Systems
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 3: Propulsion & Related Systems Engine The owner’s packet contains detailed engine operation and maintenance manuals. Be sure to read and understand these manuals before starting or doing any maintenance on the engine. -
Page 22: Fuel System
Chapter 3: Propulsion & Related Systems 2859 Classic Cruiser • Owner’s Manual Supplement Fuel System WARNING! FIRE, EXPLOSION AND OPEN FLAME HAZARD! • It is very important that the fuel system be inspected thoroughly the first time it is filled and at each subsequent filling. -
Page 23: Fuel Fill And Vent
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 3: Propulsion & Related Systems Fuel Fill and Vent • The fuel fill fitting is marked “GAS”. • The fuel tank vent is located below the fuel fill. • If you experience difficulty filling the fuel tank, check to see if the fuel fill hose or vent hose is kinked or col- lapsed. -
Page 24: Quick Oil Drain System
Chapter 3: Propulsion & Related Systems 2859 Classic Cruiser • Owner’s Manual Supplement Quick Oil Drain System QUICK OIL DRAIN SYSTEM TRANSOM OIL DRAIN HOSE OIL DRAIN PLUG ENGINE OIL PAN GARBOARD DRAIN PLUG DRAW CORD BILGE GARBOARD DRAIN To drain the engine oil: 1. -
Page 25: Chapter 4: Controls
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 4: Controls Steering • This boat features a power assisted rack-and-pinion steering system. • Check the fluid level in the power steering reservoir every time you use your boat. • Boat steering is not self-centering. -
Page 26: Trim Tabs
Chapter 4: Controls 2859 Classic Cruiser • Owner’s Manual Supplement Trim Tabs WARNING! LOSS OF CONTROL HAZARD! Improper use of trim tabs will cause loss of control! • Do not allow anyone unfamiliar with trim tabs to use them. • Do not use trim tabs in a following sea as they will cause broaching or other unsafe handling characteristics. -
Page 27: Chapter 5: Navigation & Communication Equipment
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 5: Navigation & Communication Equipment The owner’s packet contains manuals for all navigation & communication equipment installed on your boat. Thor- oughly read and understand these manuals before using these systems for the first time and observe the following: VHF Radio (If Equipped) Your boat may include a VHF (Very High Frequency) radio. -
Page 28: Chapter 6: Plumbing
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 6: Plumbing Bilge Pumps NOTICE Discharge of oil, oil waste or fuel into navigable waters is prohibited by law. Violators are sub- ject to legal action by the local authorities. FORWARD ENGINE COMPARTMENT... -
Page 29: Bilge Pump Testing
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 6: Plumbing Bilge Pump Testing Bilge pumps are critical to the safety of your boat. Check the bilge pumps often to make sure they are working. Individually test each pump as follows: BILGE PUMP 1. -
Page 30: Seawater Systems
Chapter 6: Plumbing 2859 Classic Cruiser • Owner’s Manual Supplement Seawater Systems Seacocks CAUTION! SYSTEM DAMAGE HAZARD! • Before using a seawater pickup system, make sure that the system’s seacock is in the OPEN position before the system is started and keep the seacock Open until the system is shut Off. -
Page 31: Freshwater System
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 6: Plumbing Freshwater System WARNING! • Only use safe drinking (potable) water in your boat’s freshwater system. • Only use a sanitary drinking water hose to fill the water tank or connect to city water. -
Page 32: Water Heater
Chapter 6: Plumbing 2859 Classic Cruiser • Owner’s Manual Supplement Observe the following about the freshwater system: • Turn Off the water pump when the boat is not in use or the water tank is empty. • Inspect and clean the water filter often (located on the water pump). -
Page 33: Drain Systems
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 6: Plumbing Drain Systems Deck Drains Water on the deck is drained overboard through the deck drains. Keep the deck drains free of debris. Sink Drains Gray water (water from the sinks) is gravity drained overboard. -
Page 34: Marine Head With Holding Tank
Chapter 6: Plumbing 2859 Classic Cruiser • Owner’s Manual Supplement Marine Head with Holding Tank NOTICE Check with local authorities for regulations regarding the legal use of marine head systems. OVERBOARD DISCHARGE BALL VALVE MARINE HOLDING TANK HEAD VENT HOSE... -
Page 35: Chapter 7: Deck Equipment
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 7: Deck Equipment Cleats and Tow Eyes WARNING! PERSONAL INJURY and /or PRODUCT or PROPERTY DAMAGE HAZARD! • NEVER lift the boat using the bow and stern eyes or the cleats. Carefully read the section on towing in the Cruiser & Yacht Owner’s Manual before towing anything behind the boat... -
Page 36: Chapter 8: Appliances & Entertainment Systems
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 8: Appliances & Entertainment Systems NOTICE Always keep an approved ABC-type fire extinguisher in galley area. All appliances installed on your boat come with their own manuals. These manuals contain detailed instructions and important safeguards. -
Page 37: Alcohol/Electric Stove (If Equipped)
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 8: Appliances & Entertainment Systems Alcohol/Electric Stove (If Equipped) DANGER! CARBON MONOXIDE POISONING HAZARD! • The alcohol stove is a source of dangerous carbon monoxide gas (CO). • BEFORE using the alcohol stove, Open doors and windows to make sure there is enough fresh air for ventilation. -
Page 38: Chapter 9: Convertible Seats, Beds, & Tables
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 9: Convertible Seats, Beds, & Tables Dinette/Mid Berth The dinette table can be removed and the dinette area can be converted into a berth. 1. Lift the table (A) and remove the table leg (B). -
Page 39: Chapter 10: Lights
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 10: Lights Care and Maintenance All of the lights installed on your boat are of top quality, but you should be aware that failure may periodically occur for a variety of reasons: 1. -
Page 40: Chapter 11: Heating & Air Conditioning
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 11: Heating & Air Conditioning Air Conditioning System (If Equipped) DANGER! CARBON MONOXIDE POISONING HAZARD! Dangerous carbon monoxide gas (CO) can be brought into the boat through the air conditioning system. CAUTION! SYSTEM DAMAGE HAZARD! The air conditioning system’s seacock must be OPENED before turning on the air conditioner... -
Page 41: Chapter 12: Electrical System
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 12: Electrical System DANGER! EXTREME FIRE, SHOCK & EXPLOSION HAZARD! • To minimize the risks of fire and explosion, NEVER install knife switches or other arcing devices in the fuel compartments. • NEVER substitute automotive parts for marine parts. Electrical, ignition and fuel system parts were designed and manufactured to comply with rules and regulations that minimize risks of fire and explosion. -
Page 42: 12-Volt Dc System
Chapter 12: Electrical System 2859 Classic Cruiser • Owner’s Manual Supplement 12-Volt DC System Batteries The batteries supply electricity for lights, accessories, engine and generator (if equipped) starting. The Electrical section of Chapter 8, in the Cruiser & Yacht Owner’s Manual, provides battery, care and maintenance instructions. -
Page 43: 12-Volt Accessory Outlet
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 12: Electrical System Alternator The engine alternator will keep the batteries properly charged when running at cruising speeds. Battery Charger CAUTION! ENGINE & ELECTRICAL SYSTEM DAMAGE HAZARD! NEVER run the boat’s engine and the battery charger at the same time. -
Page 44: 120-Volt Ac System
Chapter 12: Electrical System 2859 Classic Cruiser • Owner’s Manual Supplement 120-Volt AC System CAUTION! WATER HEATER DAMAGE HAZARD! • DO NOT turn On the water heater AC panel electrical circuit until the water heater tank is COMPLETELY filled with water. -
Page 45: Shore Power
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 12: Electrical System Shore Power DANGER! FIRE, EXPLOSION & SHOCK HAZARD! • DO NOT alter shore power connectors and use only compatible connectors. • Before connecting or disconnecting the shore power cord to your boat, make sure all break- ers and switches on the AC master panel are turned OFF. - Page 46 Chapter 12: Electrical System 2859 Classic Cruiser • Owner’s Manual Supplement NOTICE Some dockside installations may be rated less than 30 amps, therefore, you may need to pur- chase lower amp adapters. Whenever a lower amp adapter is used, however, there will be a cor- responding drop in supplied power from the dockside system.
-
Page 47: Connecting To Shore Power
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 12: Electrical System Connecting To Shore Power NOTES: SINGLE INLET IS STANDARD DUAL INLETS IF EQUIPPED SHORE POWER INLET(S) WITH AIR CONDITIONER TYPICAL SHORE POWER INLET DUAL SHORE POWER AC PANEL (IF EQUIPPED) -
Page 48: Transfer Switch (If Equipped With Dual Shore Power)
Chapter 12: Electrical System 2859 Classic Cruiser • Owner’s Manual Supplement 1. Review all hazard information at the beginning of this section, Shore Power. 2. Turn Off all breakers and switches on the AC master panel. 3. Attach the shore power cord to the boat inlet first then to the dockside outlet. -
Page 49: Electrical Routings
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 12: Electrical System Electrical Routings Deck Electrical Harness NOTE: VIEW IS UNDERSIDE OF DECK WINDLASS PLUG (IF EQUIPPED WITH WINDLASS HARNESS) NAVIGATION NAVIGATION LIGHT LIGHT INTERIOR INTERIOR LIGHT LIGHT INTERIOR LIGHT SPEAKER... -
Page 50: Hull Electrical Harness
Chapter 12: Electrical System 2859 Classic Cruiser • Owner’s Manual Supplement Hull Electrical Harness FUEL TANK TO DECK REFRIGERATOR AFT BILGE HARNESS PUMP FWD BILGE SHOWER PUMP ENGINE PUMP 120-Volt AC System REFRIGERATOR AFT HANGING LOCKER OUTLET OUTLET TO BATTERY... -
Page 51: Battery System
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 12: Electrical System Battery System BATTERY SWITCH BATTERIES TO ENGINE GROUND TO ENGINE... -
Page 52: Wire Diagrams
Chapter 12: Electrical System 2859 Classic Cruiser • Owner’s Manual Supplement Wire Diagrams Single Dockside... -
Page 53: Dual Dockside
2859 Classic Cruiser • Owner’s Manual Supplement Chapter 12: Electrical System Dual Dockside... -
Page 54: Engine Electrical System
Chapter 12: Electrical System 2859 Classic Cruiser • Owner’s Manual Supplement Engine Electrical System... -
Page 55: Important Records
2859 Classic Cruiser • Owner’s Manual Supplement Important Records Selling Dealer Key Numbers Name Of Dealership Ignition Other Address Electronics Phone/FAX/E-mail Manufacturer Model Name/Number Sales Manager Serial Number Service Manager Manufacturer Model Name/Number Engine Serial Number Manufacturer Model Name/Number Engine Serial Number... -
Page 56: Float Plan
2859 Classic Cruiser • Owner’s Manual Supplement Float Plan Before going boating, fill out a copy of this float plan (or similar) and leave it with a reliable person whom you can depend on to contact the Coast Guard or other rescue organization, if you do not return as scheduled. - Page 57 2859 Classic Cruiser • Owner’s Manual Supplement Float Plan Survival Equipment Trip Expectations Marine Radio (Yes/No) Type Frequencies Departing From Number of PFDs Flares (Yes/No) Mirror (yes or no) Departure Date Departure Time Smoke Signals (Yes/No) Flashlight (Yes/No) Food (Yes/No)
- Page 58 Owner’s Notes...
- Page 59 Owner’s Notes...
- Page 60 Owner’s Notes...
- Page 61 Owner’s Notes...
- Page 62 Owner’s Notes...
- Page 64 Part Number 1717015 Bayliner • P.O. Box 9029 • Everett, WA 98206 • 360-435-5571...
