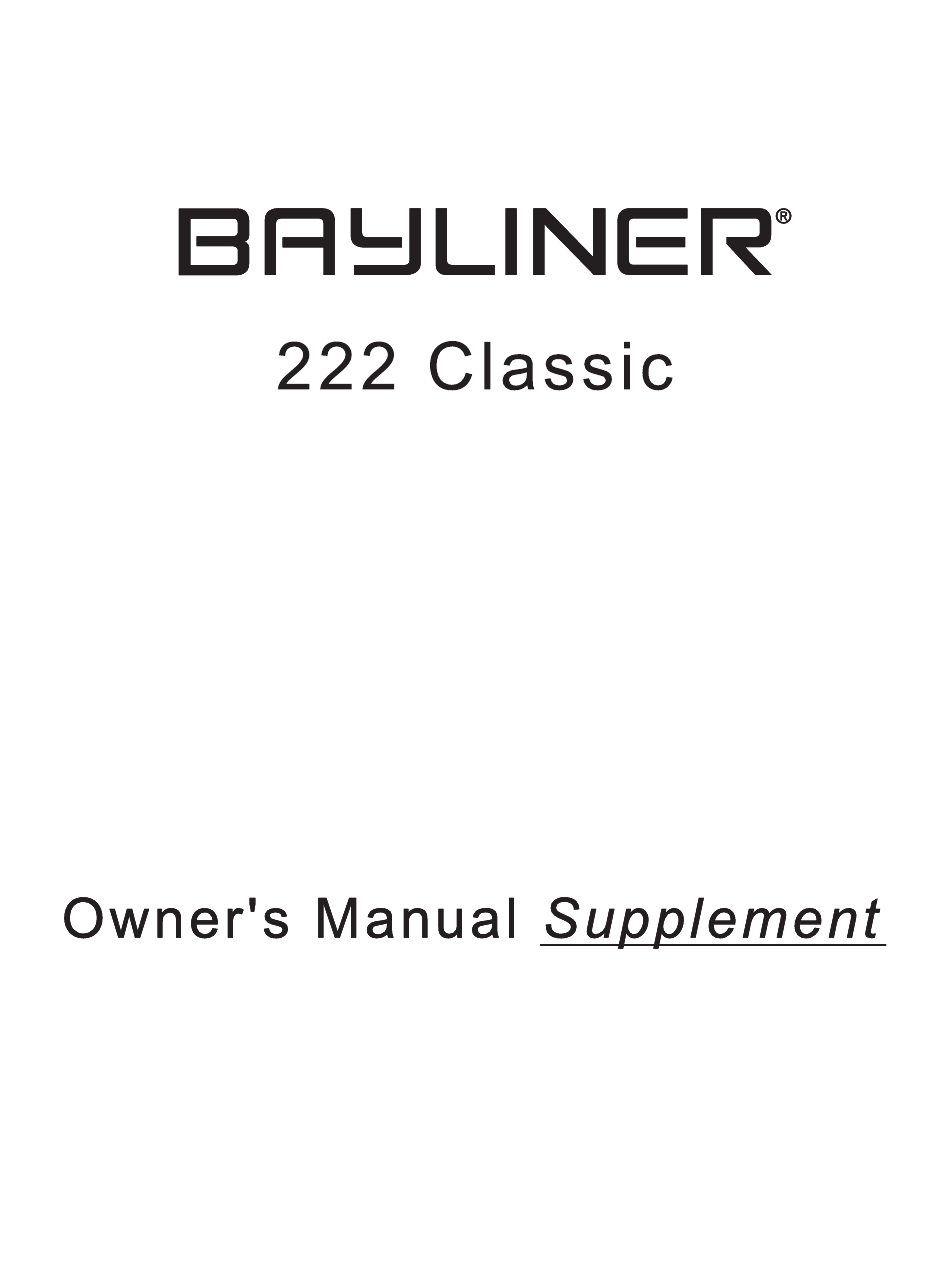

  • Page 3 This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated by and are the prop- erty of Bayliner. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the document or any part thereof, any information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Bayliner.

  • Page 4: Table Of Contents

    CONTENTS Chapter 1: Welcome Aboard! Chapter 4: Controls & Gauges Dimensions and Tank Capacities Steering Layout View Shift/Throttle Control Dealer Service Power Trim and Tilt Warranty Information Trim Tabs (If Equipped) Boating Experience Gauges 26 Cleaning Gauges Qualified Maintenance 26 Gauge Fogging Engine &...
  • Page 5 Chapter 8: Convertible Seats, Beds, & Tables 41 Operating Positions 41 Lounge positions Dinette to V-Berth Conversion Chapter 9: Lights Care and Maintenance Interior & Exterior Lights Navigation Lights Chapter 10: Electrical System 12-Volt DC System 45 Battery 45 Fuses 45 Alternator Electrical Routings 46 Hull Electrical Harnesses...
  • Page 6 Hazard Boxes & Symbols The hazard boxes and symbols shown below are used throughout this Supplement to call attention to potentially dangerous situations which could lead to either personal injury or product damage. Read ALL warnings carefully and follow all safety instructions. DANGER! This box alerts you to immediate hazards which WILL cause severe personal injury or death if the warning is ignored.

  • Page 7: Chapter 1: Welcome Aboard

    • Contact your dealer if you have any problems with your new boat. • If your dealer cannot help, call our customer service hotline: 360-435-8957 or send us a FAX: 360-403-4235. • Buy replacement parts from any authorized Bayliner dealer.

  • Page 8: Warranty Information

    • Bayliner offers a Limited Warranty on each new Bayliner purchased through an authorized Bayliner dealer. • A copy of the Limited Warranty was included in your owner’s packet. • If you did not receive a copy of the Limited Warranty, please contact your Bayliner dealer or call 360-435-8957 for a copy.

  • Page 9: Engine & Accessories Guidelines

    222 Classic • Owner’s Manual Supplement Chapter 1: Welcome Aboard! Engine & Accessories Guidelines NOTICE When storing your boat please refer to your engine’s operation and maintenance manuals. • Your boat’s engine and accessories were selected to provide optimum performance and service.

  • Page 10: Special Care For Moored Boats

    Chapter 1: Welcome Aboard! 222 Classic • Owner’s Manual Supplement Special Care For Moored Boats NOTICE • To help seal the hull bottom and reduce the possibility of gelcoat blistering on moored boats, apply an epoxy barrier coating. • The barrier coating should be covered with several coats of anti-fouling paint.

  • Page 11: Carbon Monoxide (Co)

    222 Classic • Owner’s Manual Supplement Chapter 1: Welcome Aboard! Carbon Monoxide (CO) DANGER! • Carbon monoxide gas (CO) is colorless, odorless, tasteless, and extremely dangerous. • All engines, generators, and fuel burning appliances produce CO as exhaust. • Prolonged exposure to low concentrations or very quick exposure to high concentrations will cause BRAIN DAMAGE or DEATH.

  • Page 12: Where And How Co Can Accumulate

    Chapter 1: Welcome Aboard! 222 Classic • Owner’s Manual Supplement Where and How CO Can Accumulate Stationary Conditions That Increase CO Accumulations Include: A. Using engine, generator, or other fuel burn- B. Mooring too close to another boat that is...

  • Page 13: Co Checklists

    222 Classic • Owner’s Manual Supplement Chapter 1: Welcome Aboard! CO Checklists Trip Checklist Make sure you know where the exhaust outlets are located on your boat. Educate all passengers about the symptoms of CO poisoning and where CO may accumulate.

  • Page 14: More Information

    Chapter 1: Welcome Aboard! 222 Classic • Owner’s Manual Supplement More Information For more information about how you can prevent carbon monoxide poisoning on recreational boats and other ways to boat more safely, contact: United States Coast Guard National Marine Manufacturers American Boat &...

  • Page 15: Chapter 2: Locations

    222 Classic • Owner’s Manual Supplement Chapter 2: Locations Exterior Views Hull Views STARBOARD HULLSIDE ANCHOR LOCKER DRAIN AFT BILGE FISHBOX PUMP DRAIN DRAIN WASTE TANK VENT FRESHWATER (IF EQUIPPED) TANK VENT PORT HULLSIDE BOW EYE GALLEY FORWARD BILGE DRAIN...

  • Page 16: Deck View

    Chapter 2: Locations 222 Classic • Owner’s Manual Supplement Deck View ANCHOR ROLLER CLEAT ROPE CHOCK ROPE CHOCK PORT NAVIGATION LIGHT HORN STARBOARD NAVIGATION LIGHT ANCHOR LOCKER BOW HATCH FISHBOXES WASTE PUMP-OUT DECK FITTING (IF EQUIPPED) FRESHWATER FILL DECK FITTING...

  • Page 17: Hardtop (If Equipped)

    222 Classic • Owner’s Manual Supplement Chapter 2: Locations Hardtop (If Equipped) LIGHT STORAGE CLIP ALL-ROUND LIGHT GRAB RAIL GRAB RAIL...

  • Page 18: Helm Station

    Chapter 2: Locations 222 Classic • Owner’s Manual Supplement Helm Station OIL PRESSURE TEMPERATURE VOLTAGE FUEL TACHOMETER GAUGE GAUGE GAUGE GAUGE SPEEDOMETER ACCESSORY BILGE PUMPS HORN ENGINE IGNITION BILGE BLOWERS INSTRUMENT LIGHT ALL-ROUND LIGHT TRIM TAB SWITCHES NAVIGATION LIGHTS (IF EQUIPPED)

  • Page 19: Component Locations

    222 Classic • Owner’s Manual Supplement Chapter 2: Locations Component Locations Battery: Located in the port aft corner of the engine room. BATTERY Bilge Pump & Float Switch - Aft: Located in the engine room bilge. THRU-HULL DRAIN BILGE PUMP AND FLOAT SWITCH Bilge Pump &...
  • Page 20 Chapter 2: Locations 222 Classic • Owner’s Manual Supplement Carbon Monoxide Monitor: Located on the starboard aft ceiling in the cabin. CO MONITOR Engine Circuit Breaker: Located on the engine. ENGINE CIRCUIT BREAKER Engine Room Access: Access by removing the ENGINE HATCH lounge cushions and lifting the engine hatch.
  • Page 21 222 Classic • Owner’s Manual Supplement Chapter 2: Locations Freshwater Fill Deck Fitting: Located amidship on the port side of the cockpit. FRESHWATER FILL DECK FITTING Freshwater Pump: Located under the floor in the sleeper seat storage compartment. SLEEPER SEAT...
  • Page 22 Chapter 2: Locations 222 Classic • Owner’s Manual Supplement Freshwater Tank: Located under the floor in the sleeper seat storage compartment. SLEEPER SEAT STORAGE COMPARTMENT Fuel Fill Deck Fitting: Located on the aft deck. FUEL FILL DECK FITTING Fuel Tank: •...
  • Page 23 222 Classic • Owner’s Manual Supplement Chapter 2: Locations Fuse Block: Located under the helm dash. FUSE BLOCK Macerator Discharge Seacock (If Equipped): Located on the port aft wall in the engine room. MACERATOR DISCHARGE SEACOCK (IF EQUIPPED) Marine Head Seawater Intake Seacock (If Equipped): •...
  • Page 24 Chapter 2: Locations 222 Classic • Owner’s Manual Supplement Power Trim and Tilt Reservoir: Located on the aft wall of the engine room. TRIM TAB RESERVOIR (IF EQUIPPED) POWER TRIM/ Trim Tab Reservoir (If Equipped) Located on TILT RESERVOIR the port aft wall of the engine room.
  • Page 25 222 Classic • Owner’s Manual Supplement Chapter 2: Locations Waste Pump-Out Deck Fitting (If Equipped): Located on the port side deck, forward of the freshwater fill deck fitting. WASTE PUMP- OUT DECK FITTING (IF EQUIPPED) FRESHWATER FILL DECK FITTING...

  • Page 26: Chapter 3: Propulsion & Related Systems

    222 Classic • Owner’s Manual Supplement Chapter 3: Propulsion & Related Systems Engine Read the engine operation and maintenance manuals before starting or doing any maintenance on the engine. Bilge Blower System WARNING! FIRE/EXPLOSION HAZARD • Use of the bilge blower system is NOT A GUARANTEE that explosive fumes have been removed.

  • Page 27: Fuel System

    222 Classic • Owner’s Manual Supplement Chapter 3: Propulsion & Related Systems Fuel System WARNING! FIRE, EXPLOSION AND OPEN FLAME HAZARD! • It is very important that the fuel system be inspected thoroughly the first time it is filled and at each subsequent filling.

  • Page 28: Fuel Filters

    Chapter 3: Propulsion & Related Systems 222 Classic • Owner’s Manual Supplement Fuel Filters • The fuel pickup tube, located inside the fuel tank, is equipped with a fine mesh screen filter. • In addition, when supplied by the engine manufacturer, a fuel filter is installed on the engine.

  • Page 29: Quick Oil Drain System

    222 Classic • Owner’s Manual Supplement Chapter 3: Propulsion & Related Systems Quick Oil Drain System The quick oil drain hose was attached to the engine oil pan at the factory. However, some minor assembly is still needed before you can use this system.

  • Page 30: Chapter 4: Controls & Gauges

    222 Classic • Owner’s Manual Supplement Chapter 4: Controls & Gauges Steering • This boat features a power assisted rack-and-pinion steering system. • For information about the ‘power assist fluid reservoir’, refer to the engine operation and maintenance manual. • Boat steering is not self-centering.

  • Page 31: Trim Tabs (If Equipped)

    222 Classic • Owner’s Manual Supplement Chapter 4: Controls & Gauges Trim Tabs (If Equipped) WARNING! LOSS OF CONTROL HAZARD! Improper use of trim tabs will cause loss of control! • Do NOT allow anyone unfamiliar with trim tabs to use them.

  • Page 32: Gauges

    Chapter 4: Controls & Gauges 222 Classic • Owner’s Manual Supplement Gauges Cleaning Gauges CAUTION PRODUCT or PROPERTY DAMAGE HAZARD! • Use only mild soap and water to clean the gauge lenses and bezels. • Use of other cleaners, including common window cleaning solutions, may cause the lenses to crack.

  • Page 33: Chapter 5: Plumbing

    222 Classic • Owner’s Manual Supplement Chapter 5: Plumbing Bilge Pumps NOTICE Discharge of oil, oil waste or fuel into navigable waters is prohibited by law. Violators are subject to legal action by the local authorities. • Your boat is equipped with two bilge pumps for pumping water out of the bilge.

  • Page 34: Bilge Pump Testing

    Chapter 5: Plumbing 222 Classic • Owner’s Manual Supplement Bilge Pump Testing • The bilge pumps are vital to the safety of your boat. • Test the bilge pumps often to make sure they are working properly. To test each bilge pump: 1.

  • Page 35: Autofloat Switches

    222 Classic • Owner’s Manual Supplement Chapter 5: Plumbing Autofloat Switches • The automatic bilge pumps use float (autofloat) switches to automatically turn On the pumps whenever water rises to a preset level in the bilge. • The autofloat switches are normally mounted next to the bilge pumps they control.

  • Page 36: Seawater System

    Chapter 5: Plumbing 222 Classic • Owner’s Manual Supplement Seawater System Seacock CAUTION SYSTEM DAMAGE HAZARD! • Before using a seawater intake system, make sure that the system’s seacock is in the Open position before the system is started and keep the seacock Open until the system is shut Off.

  • Page 37: Freshwater System

    222 Classic • Owner’s Manual Supplement Chapter 5: Plumbing Freshwater System WARNING! • ONLY use safe drinking (potable) water in your boat’s freshwater system. • ONLY use an FDA approved, white 'drinking water safe' hose to fill the freshwater tank.

  • Page 38: Freshwater System Winterization

    Chapter 5: Plumbing 222 Classic • Owner’s Manual Supplement Freshwater System Winterization CAUTION WATER SYSTEM DAMAGE HAZARD! NEVER blow compressed air through the water system when ALL of the faucets are Closed. 1. Turn On the freshwater pump switch. 2. Open the galley faucet and let the freshwater system drain completely.

  • Page 39: Marine Head With Holding Tank (If Equipped)

    222 Classic • Owner’s Manual Supplement Chapter 5: Plumbing Marine Head with Holding Tank (If Equipped) NOTICE Check with local authorities for regulations regarding the legal use of marine head systems. • Before using this system, read the marine head operation and maintenance manual.

  • Page 40: Portable Toilet

    Chapter 5: Plumbing 222 Classic • Owner’s Manual Supplement Portable Toilet NOTICE Check with local authorities for regulations regarding the legal use of marine head systems. Read the manufacturer’s operating instructions before using the portable toilet. Drain Systems Deck Drains •...

  • Page 41: Chapter 6: Deck Equipment

    222 Classic • Owner’s Manual Supplement Chapter 6: Deck Equipment Cleats and Tow Eyes WARNING! PERSONAL INJURY and /or PRODUCT or PROPERTY DAMAGE HAZARD! NEVER lift the boat using the bow and stern eyes or the cleats. Read the section on towing in the Cruiser & Yacht Owner’s Manual: •...

  • Page 42: Convertible Top And Camper (If Equipped)

    Chapter 6: Deck Equipment 222 Classic • Owner’s Manual Supplement Convertible Top and Camper (If Equipped) NOTE: YOUR DECK HINGES & JAW SLIDES MAY BE STAINLESS STEEL. SECURING PIN JAW SLIDE DECK HINGE END EYE Installing the Convertible Top: 1. Insert the end eyes of the main bow (A) into the windshield hinge (B) on each side windshield frame and insert the securing pins.

  • Page 43: Hardtop And Camper (If Equipped)

    222 Classic • Owner’s Manual Supplement Chapter 6: Deck Equipment Hardtop and Camper (If Equipped) NOTE: YOUR DECK HINGES & JAW SLIDES MAY BE STAINLESS STEEL. SECURING PIN JAW SLIDE DECK HINGE END EYE Installing the Camper (If Equipped): 1. Insert the end eyes of the main bow (A) into the forward deck hinges (B).

  • Page 44: Canvas Care

    Chapter 6: Deck Equipment 222 Classic • Owner’s Manual Supplement Canvas Care (see also, ‘Clear Vinyl Care’ on next page) • After each use, especially in saltwater, rinse the canvas with cold freshwater. • Before stowing, let the canvas air dry completely.

  • Page 45: Clear Vinyl Care

    222 Classic • Owner’s Manual Supplement Chapter 6: Deck Equipment Clear Vinyl Care CAUTION • NEVER store the clear vinyl pieces wet, as this will cause a milky film to develop. • NEVER fold or crease the clear vinyl pieces as cracking will occur.

  • Page 46: Chapter 7: Entertainment System

    222 Classic • Owner’s Manual Supplement Chapter 7: Entertainment System Audio Equipment NOTICE AM radio reception may be impaired anytime the engine is running. Read the manufacturer’s instruction manual before using the audio equipment.

  • Page 47: Chapter 8: Convertible Seats, Beds, & Tables

    222 Classic • Owner’s Manual Supplement Chapter 8: Convertible Seats, Beds, & Tables Sleeper Seats • The sleeper seats can be adjusted fore and aft in the upright, operating position. • The seat bottoms adjust into backrests when the seats are in the lounge position.

  • Page 48: Dinette To V-Berth Conversion

    Chapter 8: Convertible Seats, Beds, & Tables 222 Classic • Owner’s Manual Supplement Dinette to V-Berth Conversion 3. Lift the table (A) and remove the table leg (B). NOTE: Table leg stowage clips are provided inside the port v-berth storage hatch (C).

  • Page 49: Chapter 9: Lights

    222 Classic • Owner’s Manual Supplement Chapter 9: Lights Care and Maintenance All of the lights installed on your boat are of top quality, but you should be aware that failure may periodically occur for a variety of reasons: 1. There may be a blown fuse - replace the fuse.

  • Page 50: Chapter 10: Electrical System

    222 Classic • Owner’s Manual Supplement Chapter 10: Electrical System DANGER! EXTREME FIRE, SHOCK & EXPLOSION HAZARD! • To minimize the risks of fire and explosion, NEVER install knife switches or other arcing devices in the fuel compartments. • NEVER substitute automotive parts for marine parts. Electrical, ignition and fuel system parts were designed and manufactured to comply with rules and regulations that minimize risks of fire and explosion.

  • Page 51: 12-Volt Dc System

    222 Classic • Owner’s Manual Supplement Chapter 10: Electrical System 12-Volt DC System Battery The battery supplies electricity for lights, 12-Volt accessories, and engine starting. The Electrical section of Chapter 8, in the Cruiser & Yacht Owner’s Manual, provides battery care and maintenance instructions.

  • Page 52: Electrical Routings

    Chapter 10: Electrical System 222 Classic • Owner’s Manual Supplement Electrical Routings Hull Electrical Harnesses AFT BILGE PUMP FUEL FRESHWATER MACERATOR & FLOAT SWITCH SENDER PUMP (IF EQUIPPED) PLUG TO AFT DECK HARNESS BLOWER PLUG TO FORWARD FORWARD BILGE PUMP DECK HARNESS &...

  • Page 53: Hardtop Harness (If Equipped)

    222 Classic • Owner’s Manual Supplement Chapter 10: Electrical System Hardtop Harness (If Equipped) NOTE: VIEW IS UNDERSIDE OF HARDTOP ALL-ROUND LIGHT DOME LIGHTS HARNESS PLUG...

  • Page 54: Wiring Diagram

    Chapter 10: Electrical System 222 Classic • Owner’s Manual Supplement Wiring Diagram 12-Volt DC Electrical System...

  • Page 55: Important Records

    222 Classic • Owner’s Manual Supplement Important Records Selling Dealer Key Numbers Name Of Dealership Ignition Other Address Electronics Phone/FAX/E-mail Manufacturer Model Name/Number Sales Manager Service Manager Serial Number Engine Manufacturer Model Name/Number Manufacturer Model Name/Number Serial Number Engine Serial Number...

  • Page 56: Float Plan

    222 Classic • Owner’s Manual Supplement Float Plan Before going boating, fill out a copy of this float plan (or similar) and leave it with a reliable person whom you can depend on to contact the Coast Guard or other rescue organization, if you do not return as scheduled.
  • Page 57 222 Classic • Owner’s Manual Supplement Float Plan Survival Equipment Trip Expectations Marine Radio (Yes/No) Type Frequencies Departing From Number of PFDs Flares (Yes/No) Mirror (yes or no) Departure Date Departure Time Smoke Signals (Yes/No) Flashlight (Yes/No) Food (Yes/No) Stopover 1...
  • Page 58 Owner’s Notes...
  • Page 59 Owner’s Notes...
  • Page 60 Owner’s Notes...
  • Page 61 Owner’s Notes...
  • Page 62 Owner’s Notes...
  • Page 64 Part Number 1781924 Bayliner • P.O. Box 9029 • Everett, WA 98206 • 360-435-5571...
