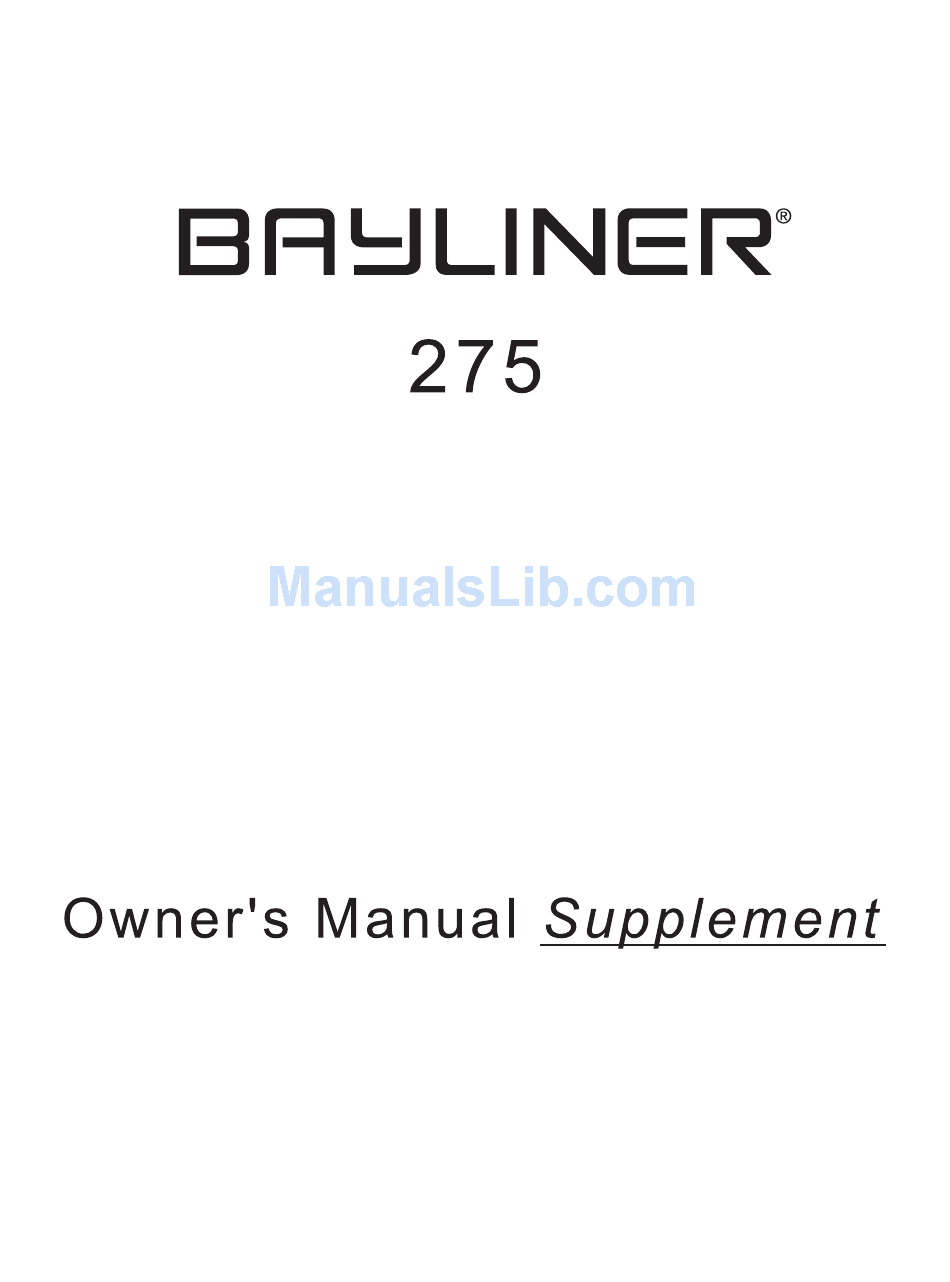

Summary of Contents for Bayliner 275
-
Page 3: Engine Serial Number
This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated by and are the prop- erty of Bayliner. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the document or any part thereof, any information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Bayliner. -
Page 4: Table Of Contents
CONTENTS Chapter 1: Welcome Aboard! Chapter 3: Propulsion & Related Systems Dimensions and Tank Capacities Engine Layout View Bilge Blower System Dealer Service Fuel System Warranty Information 26 Fuel Fill & Vent Boating Experience 26 Gas Engine Fuel Filters 27 Fuel/Water Separator Filter Engine &... - Page 5 Chapter 6: Plumbing Chapter 10: Lights Bilge Pumps Care and Maintenance 34 Bilge Pump Testing Interior & Exterior Lights 35 Autofloat Switches Navigation Lights Seawater Systems Spotlight (If Equipped) 36 Seacocks 36 Seawater Strainers Freshwater System Chapter 11: Heating & Air Conditioning 38 Freshwater System Winterization Air Conditioning System (If Equipped) 39 Water Heating System (If Equipped)
- Page 6 Hazard Boxes & Symbols The hazard boxes and symbols shown below are used throughout this Supplement to call attention to potentially dangerous situations which could lead to either personal injury or product damage. Read ALL warnings carefully and follow all safety instructions. DANGER! This box alerts you to immediate hazards which WILL cause severe personal injury or death if the warning is ignored.
-
Page 7: Chapter 1: Welcome Aboard
• Contact your dealer if you have any problems with your new boat. • If your dealer cannot help, call our customer service hotline: 360-435-8957 or send us a FAX: 360-403-4235. • Buy replacement parts from any authorized Bayliner dealer. -
Page 8: Warranty Information
• Bayliner offers a Limited Warranty on each new Bayliner purchased through an authorized Bayliner dealer. • A copy of the Limited Warranty was included in your owner’s packet. • If you did not receive a copy of the Limited Warranty, please contact your Bayliner dealer or call 360-435-8957 for a copy. -
Page 9: Propeller
Refer to the engine manual for engine RPM ratings. The engine should reach, but not exceed its full rated RPM when full-throttle is applied. Immediately contact your local Bayliner dealer if: • The engine cannot reach its full rated RPM when full-throttle is applied, or;... -
Page 10: Safety Standards
Chapter 1: Welcome Aboard! 275 • Owner’s Manual Supplement Safety Standards DANGER! FALLING and ROTATING PROPELLER HAZARD! • NEVER allow anyone to ride on parts of the boat not designed for such use. • Sitting on seat backs, lounging on the forward deck, bow riding, gunwale riding or occupying the transom platform while underway is especially hazardous and will cause personal injury or death. -
Page 11: Special Care For Moored Boats
275 • Owner’s Manual Supplement Chapter 1: Welcome Aboard! Special Care For Moored Boats NOTICE • To help seal the hull bottom and reduce the possibility of gelcoat blistering on moored boats, apply an epoxy barrier coating. • The barrier coating should be covered with several coats of anti-fouling paint. -
Page 12: Boat Lifting
Chapter 1: Welcome Aboard! 275 • Owner’s Manual Supplement Boat Lifting WARNING! PERSONAL INJURY and /or PRODUCT OR PROPERTY DAMAGE HAZARD! • Lifting slings may slip on the hull. • Avoid serious injury or death by securing the lifting slings together before lifting. -
Page 13: Carbon Monoxide (Co)
275 • Owner’s Manual Supplement Chapter 1: Welcome Aboard! Carbon Monoxide (CO) DANGER! • Carbon monoxide gas (CO) is colorless, odorless, tasteless, and extremely dangerous. • All engines, generators, and fuel burning appliances produce CO as exhaust. • Prolonged exposure to low concentrations or very quick exposure to high concentrations will cause BRAIN DAMAGE or DEATH. -
Page 14: Where And How Co Can Accumulate
Chapter 1: Welcome Aboard! 275 • Owner’s Manual Supplement Where and How CO Can Accumulate Stationary Conditions That Increase CO Accumulations Include: A. Using engine, generator, or other fuel burn- B. Mooring too close to another boat that is ing device when boat is moored in a con- using its engine, generator, or other fuel fined space. -
Page 15: Trip Checklist
275 • Owner’s Manual Supplement Chapter 1: Welcome Aboard! Trip Checklist ❏ Make sure you know where the exhaust outlets are located on your boat. ❏ Educate all passengers about the symptoms of CO poisoning and where CO may accumulate. -
Page 16: More Information
Chapter 1: Welcome Aboard! 275 • Owner’s Manual Supplement More Information For more information about how you can prevent carbon monoxide poisoning on recreational boats and other ways to boat more safely, contact: United States Coast Guard National Marine Manufacturers American Boat &... -
Page 17: Chapter 2: Locations
275 • Owner’s Manual Supplement Chapter 2: Locations Exterior Views Hull Views HOLDING TANK STORAGE SHOWER PORTLIGHTS VENT DRAIN PUMP DRAIN FUEL TANK VENT STARBOARD HULLSIDE BOW EYE COCKPIT AFT BILGE FORWARD BILGE HEAD SINK DRAINS PUMP DRAIN PUMP DRAIN... -
Page 18: Deck Views
Chapter 2: Locations 275 • Owner’s Manual Supplement Deck Views WINDLASS CONTROLS ANCHOR (IF EQUIPPED) WINDLASS FORWARD & STARBOARD SIDE TRANSOM SHOWER (IF EQUIPPED) NAVIGATION LIGHT SPOTLIGHT (IF EQUIPPED) ANCHOR ROLLER HORN NAVIGATION LIGHT BOW HATCH FUEL FILL DECK FITTING... -
Page 19: Helm
275 • Owner’s Manual Supplement Chapter 2: Locations Helm NOTE: TYPICAL HELM LAYOUT SHOWN ACTUAL LAYOUT MAY VARY DEPENDING ON ENGINE AND ACCESSORY OPTIONS TEMPERATURE OIL PRESSURE GAUGE GAUGE VOLTMETER TACHOMETER FUEL GAUGE SPEEDOMETER TRIM & TILT GAUGE 12-VOLT RECEPTACLE... -
Page 20: Component Locations
Chapter 2: Locations 275 • Owner’s Manual Supplement Component Locations 12-Volt Accessory Outlets (2): • One is located at the helm on the dash. 12-VOLT RECEPTACLE • The other is located forward of the AC panel in the galley. AC PANEL... - Page 21 275 • Owner’s Manual Supplement Chapter 2: Locations Air Conditioner Unit (If Equipped): • Located in the aft port storage locker under the AIR CONDITIONER (IF EQUIPPED) v-berth mattress. AC Panel: AC PANEL • Located in the galley. Batteries: • Locations are one on each side of the engine, in...
- Page 22 Chapter 2: Locations 275 • Owner’s Manual Supplement Battery Charger: • Located on the port side of the engine room, on the forward wall. BATTERY CHARGER Battery Switch: • Located inside the storage hatch under the helm seat. BATTERY SWITCH...
- Page 23 275 • Owner’s Manual Supplement Chapter 2: Locations Bilge Pump and Float Switch - Forward: • Located under the bottom entry step. • Access the bilge pump and float switch by lifting up the bottom entry step. CO MONITOR Carbon Monoxide Monitor: •...
- Page 24 Chapter 2: Locations 275 • Owner’s Manual Supplement Engine Circuit Breaker: ENGINE • Located on the engine, in the engine room. CIRCUIT BREAKERS DIESEL ENGINE GAS ENGINE Engine Room: • Access the engine room by lifting the cockpit floor hatch.
- Page 25 275 • Owner’s Manual Supplement Chapter 2: Locations Freshwater Pump: • Located on the port side of the engine room. WATER PUMP Freshwater Pump Switch: WATER PUMP SWITCH • Located at the forward end of the galley. Freshwater Tank: • Located on the port side of the engine room.
- Page 26 Chapter 2: Locations 275 • Owner’s Manual Supplement Fuel Fill Deck Fitting: • Located on the starboard side of the deck just aft of the ventilation cover. FUEL FILL DECK FITTING Fuel Shut-off Valve (Diesel Engine Only): • Located on the port wall of the cockpit.
- Page 27 275 • Owner’s Manual Supplement Chapter 2: Locations Macerator Underwater Discharge Seacock (If Equipped): • Located in the starboard aft corner of the engine room. MACERATOR UNDERWATER DISCHARGE SEACOCK (IF EQUIPPED) Marine Head Seawater Intake Seacock: • Located under the bottom entry step.
- Page 28 Chapter 2: Locations 275 • Owner’s Manual Supplement Shower Drain Pump: • Located in the storage compartment under the sink in the head. SHOWER DRAIN PUMP SWITCH Shower Drain Pump Switch: VANITY DOORS • Located in the head. Spotlight (If Equipped) •...
- Page 29 275 • Owner’s Manual Supplement Chapter 2: Locations Waste Holding Tank: • Located on the starboard side of the engine room. WASTE HOLDING TANK Waste Pump-Out Deck Fitting: • Located on the starboard aft WASTE PUMP-OUT DECK FITTING corner of the deck, just above the swim platform and next to the transom door.
-
Page 30: Chapter 3: Propulsion & Related Systems
275 • Owner’s Manual Supplement Chapter 3: Propulsion & Related Systems Engine Read the engine operation and maintenance manuals before starting or doing any maintenance on the engine. Bilge Blower System WARNING! FIRE/EXPLOSION HAZARD • Use of the bilge blower system is NOT A GUARANTEE that explosive fumes have been removed. -
Page 31: Fuel System
275 • Owner’s Manual Supplement Chapter 3: Propulsion & Related Systems Fuel System WARNING! FIRE, EXPLOSION AND OPEN FLAME HAZARD! • It is very important that the fuel system be inspected thoroughly the first time it is filled and at each subsequent filling. -
Page 32: Fuel Fill & Vent
Chapter 3: Propulsion & Related Systems 275 • Owner’s Manual Supplement DIESEL FUEL LINE ROUTING (IF EQUIPPED) FUEL SHUT- OFF VALVE FUEL FILTER FUEL FEED LINE FUEL TANK FUEL RETURN LINE FUEL TANK FUEL FILL VENT DECK FITTING Fuel Fill & Vent •... -
Page 33: Fuel/Water Separator Filter (Diesel Engine Only)
275 • Owner’s Manual Supplement Chapter 3: Propulsion & Related Systems Fuel/Water Separator Filter (Diesel Engine Only) NOTICE • The frequency of water draining or element replacement is determined by the contamination level in the fuel. • Inspect the collection bowls for water daily. -
Page 34: Fire Suppression System (If Equipped)
Chapter 3: Propulsion & Related Systems 275 • Owner’s Manual Supplement Fire Suppression System (If Equipped) • The fire suppression system is designed to extinguish engine compartment fires. • Before using your boat for the first time, read the fire suppression system’s instruction and maintenance manual and follow all warnings. -
Page 35: Chapter 4: Controls & Gauges
275 • Owner’s Manual Supplement Chapter 4: Controls & Gauges Steering • Stern drive models feature power assisted rack-and-pinion steering. • Check the fluid level in the power steering reservoir every time you use your boat. • Boat steering is not self-centering. -
Page 36: Trim Tabs
Chapter 4: Controls & Gauges 275 • Owner’s Manual Supplement Trim Tabs WARNING! LOSS OF CONTROL HAZARD! Improper use of trim tabs will cause loss of control! • Do not allow anyone unfamiliar with trim tabs to use them. • Do not use trim tabs in a following sea as they will cause broaching or other unsafe handling characteristics. -
Page 37: Gauges
275 • Owner’s Manual Supplement Chapter 4: Controls & Gauges Gauges Cleaning Gauges CAUTION! PRODUCT or PROPERTY DAMAGE HAZARD! • Use only mild soap and water to clean the gauge lenses and bezels. • Use of other cleaners, including common window cleaning solutions, may cause the lens to crack. -
Page 38: Chapter 5: Navigation & Communication Equipment
275 • Owner’s Manual Supplement Chapter 5: Navigation & Communication Equipment Read the manuals for all navigation & communication equipment before using these systems. Compass NOTICE • Compass accuracy can be affected by many factors. • Have a qualified technician calibrate your compass. -
Page 39: Chapter 6: Plumbing
275 • Owner’s Manual Supplement Chapter 6: Plumbing Bilge Pumps NOTICE Discharge of oil, oil waste or fuel into navigable waters is prohibited by law. Violators are subject to legal action by the local authorities. • Your boat is equipped with two... -
Page 40: Bilge Pump Testing
Chapter 6: Plumbing 275 • Owner’s Manual Supplement Bilge Pump Testing • The bilge pumps are vital to the safety of your boat. • Test the bilge pumps often to make sure they are working properly. Testing process: Turn On the manual switches at the helm. -
Page 41: Autofloat Switches
275 • Owner’s Manual Supplement Chapter 6: Plumbing Autofloat Switches • The automatic bilge pumps use float (autofloat) switches to automatically turn On the pumps whenever water rises to a preset level in the bilge. • The autofloat switches are normally mounted next to the bilge pumps they control. -
Page 42: Seawater Systems
Chapter 6: Plumbing 275 • Owner’s Manual Supplement Seawater Systems Seacocks CAUTION SYSTEM DAMAGE HAZARD! • Before using a seawater intake system, make sure that the system’s seacock is in the Open position before the system is started and keep the seacock Open until the system is shut Off. -
Page 43: Freshwater System
275 • Owner’s Manual Supplement Chapter 6: Plumbing Freshwater System WARNING! • Only use safe drinking (potable) water in your boat’s freshwater system. • Only use a sanitary drinking water hose to fill the water tank or connect to city water. -
Page 44: Freshwater System Winterization
Chapter 6: Plumbing 275 • Owner’s Manual Supplement Freshwater System Winterization CAUTION! WATER SYSTEM DAMAGE HAZARD! Never blow compressed air through the water system when all of the faucets are Closed. Turn On the water system switch. Open all of the faucets and showers and let the water system drain completely. -
Page 45: Water Heating System (If Equipped)
275 • Owner’s Manual Supplement Chapter 6: Plumbing Water Heating System (If Equipped) WARNING! SCALDING HAZARD! •Water heated by the water heater can be hot enough to scald the skin. CAUTION! WATER HEATER DAMAGE HAZARD! • DO NOT turn On the water heater electrical circuit on the AC panel until the water heater tank is COMPLETELY filled with water. -
Page 46: Transom Shower (If Equipped)
Chapter 6: Plumbing 275 • Owner’s Manual Supplement Transom Shower (If Equipped) • Read the manufacturer’s instructions before TRANSOM using the transom shower for the first time. SHOWER • The water pump switch must be turned On before using the transom shower. -
Page 47: Marine Head With Holding Tank (If Equipped)
275 • Owner’s Manual Supplement Chapter 6: Plumbing Marine Head with Holding Tank (If Equipped) NOTICE Check with local authorities for regulations regarding the legal use of marine head systems. • Before using this system, read the marine head operation and HEAD maintenance manual. -
Page 48: Chapter 7: Deck Equipment
275 • Owner’s Manual Supplement Chapter 7: Deck Equipment Cleats and Tow Eyes WARNING! PERSONAL INJURY and /or PRODUCT or PROPERTY DAMAGE HAZARD! • NEVER lift the boat using the cleats, bow and stern eyes. Carefully read the section on towing in the Cruiser & Yacht Owner’s Manual before: •... -
Page 49: Canvas
275 • Owner’s Manual Supplement Chapter 7: Deck Equipment Canvas CAUTION PRODUCT or PROPERTY DAMAGE HAZARD! Take down and securely stow ALL canvas before transporting your boat by road. NOTICE Two people are needed for most of the tasks listed in this section. -
Page 50: Canvas Care
Chapter 7: Deck Equipment 275 • Owner’s Manual Supplement Canvas Care (see also, ‘Clear Vinyl Care’ on next page) After each use, especially in saltwater, rinse the canvas with cold freshwater. Before stowing, let the canvas air dry completely. • The canvas can be rolled or folded for stowage. -
Page 51: Clear Vinyl Care
275 • Owner’s Manual Supplement Chapter 7: Deck Equipment Clear Vinyl Care CAUTION • Never store the clear vinyl pieces wet, as this will cause a milky film to develop. • Never fold or crease the clear vinyl pieces as cracking will occur. -
Page 52: Chapter 8: Appliances & Entertainment Systems
275 • Owner’s Manual Supplement Chapter 8: Appliances & Entertainment Systems NOTICE Always keep an approved ABC-type fire extinguisher in galley area. • The separate instruction sheets or manuals for all appliances and entertainment systems contain detailed instruc- tions and important safeguards. -
Page 53: Refrigerator
275 • Owner’s Manual Supplement Chapter 8: Appliances & Entertainment Systems Refrigerator The refrigerator runs on 12-volt DC power unless 120-volt AC power is being supplied by shore power and the refrigerator’s AC breaker is On. Audio Equipment NOTICE AM radio reception may be impaired anytime the engine is running. -
Page 54: Chapter 9: Convertible Seats, Beds, & Tables
275 • Owner’s Manual Supplement Chapter 9: Convertible Seats, Beds, & Tables Dinette Fold the dinette table leg up and lock in place. Place the dinette table (A) in the down position so that if fits securely on the edge lips at the front of the dinette seats. -
Page 55: Chapter 10: Lights
275 • Owner’s Manual Supplement Chapter 10: Lights Care and Maintenance All of the lights installed on your boat are of top quality, but you should be aware that failure may periodically occur for a variety of reasons: There may be a blown fuse - replace the fuse. -
Page 56: Chapter 11: Heating & Air Conditioning
275 • Owner’s Manual Supplement Chapter 11: Heating & Air Conditioning Air Conditioning System (If Equipped) DANGER! CARBON MONOXIDE POISONING HAZARD! Dangerous carbon monoxide gas (CO) can be brought into the boat through the air conditioning system. CAUTION SYSTEM DAMAGE HAZARD! The air conditioning system’s seawater intake seacock must be Opened before turning On... -
Page 57: Chapter 12: Electrical System
275 • Owner’s Manual Supplement Chapter 12: Electrical System DANGER! EXTREME FIRE, SHOCK & EXPLOSION HAZARD! • To minimize the risks of fire and explosion, NEVER install knife switches or other arcing devices in the fuel compartments. • NEVER substitute automotive parts for marine parts. Electrical, ignition and fuel system parts were designed and manufactured to comply with rules and regulations that minimize risks of fire and explosion. -
Page 58: 12-Volt Dc System
Chapter 12: Electrical System 275 • Owner’s Manual Supplement 12-Volt DC System Batteries The batteries supply electricity for lights, 12-Volt accessories, and engine starting. The Electrical section of Chapter 8, in the Cruiser & Yacht Owner’s Manual, provides battery, care and maintenance instructions. -
Page 59: Alternator
275 • Owner’s Manual Supplement Chapter 12: Electrical System Alternator The engine alternator will keep the batteries properly charged when running at cruising speeds. Battery Charger CAUTION • The battery charging systems (alternator and battery charger) installed on your boat are designed to charge conventional lead-acid batteries. -
Page 60: 120-Volt Ac System
Chapter 12: Electrical System 275 • Owner’s Manual Supplement 120-Volt AC System CAUTION WATER HEATER DAMAGE HAZARD! • Do not turn On the water heater breaker on the 120-Volt AC panel until the water heater tank is completely filled with water. -
Page 61: Shore Power
275 • Owner’s Manual Supplement Chapter 12: Electrical System Shore Power DANGER! FIRE, EXPLOSION & SHOCK HAZARD! • DO NOT alter shore power connectors and use only compatible connectors. • Before plugging in or unplugging the shore power cord to your boat, make sure all breakers and switches on the AC master panel are turned Off. -
Page 62: Connecting To Shore Power
Chapter 12: Electrical System 275 • Owner’s Manual Supplement Connecting To Shore Power WARNING! SHOCK & ELECTRICAL SYSTEM DAMAGE HAZARD! • Monitor the polarity indicator lights EVERY TIME you connect to shore power. • If a reversed polarity light turns on when you are connecting to shore power, DO NOT turn On the main breaker switches. -
Page 63: Electrical Routings
275 • Owner’s Manual Supplement Chapter 12: Electrical System Electrical Routings 12-Volt Direct Current Electrical Harness REFRIGERATOR WATER PUMP SWITCH STEP LIGHT SHOWER DRAIN PUMP 12-VOLT ACCESSORY HEAD STEREO TO DASH FORWARD BILGE PUMP FIXED FIRE EXTINGUISHER (IF EQUIPPED) BATTERY SWITCH... -
Page 64: 120-Volt Alternating Current Electrical Harness
Chapter 12: Electrical System 275 • Owner’s Manual Supplement 120-Volt Alternating Current Electrical Harness AIR CONDITIONER (IF EQUIPPED) GALLEY OUTLET MICROWAVE STOVE REFRIGERATOR OUTLET AC PANEL HEAD OUTLET BATTERY CHARGER WATER HEATER... -
Page 65: Battery Cable Routings
275 • Owner’s Manual Supplement Chapter 12: Electrical System Battery Cable Routings POSITIVE BATTERY CABLE ROUTINGS TO WINDLASS (IF EQUIPPED) PORT BATTERY ENGINE STARTER TRIM/TILT PUMP TO DASH BATTERY SWITCH STARBOARD BATTERY NEGATIVE BATTERY CABLE ROUTINGS TO WINDLASS (IF EQUIPPED) -
Page 66: Bonding Harness
Chapter 12: Electrical System 275 • Owner’s Manual Supplement Bonding Harness FUEL TANK AIR CONDITIONER HEAD INTAKE (IF EQUIPPED) BONDING BLOCK MACERATOR MACERATOR THRU-HULL THRU-HULL (IF EQUIPPED) (IF EQUIPPED) GROUNDING BUSS BAR AIR CONDITIONER AIR CONDITIONER AIR CONDITIONER INTAKE (IF EQUIPPED) -
Page 67: Deck Harness Routing System
275 • Owner’s Manual Supplement Chapter 12: Electrical System Deck Harness Routing System NOTE: VIEW IS OF UNDERSIDE OF DECK HORN NAVIGATION LIGHTS WINDLASS SPEAKER (IF EQUIPPED) V-BERTH LIGHTS DINETTE LIGHTS WIPER GALLEY LIGHTS HEAD LIGHT ENTRY LIGHT COMPASS COURTESY... -
Page 68: Wiring Diagrams
Chapter 12: Electrical System 275 • Owner’s Manual Supplement Wiring Diagrams Direct Current Electrical System... -
Page 69: Single Shore Power (If Equipped)
275 • Owner’s Manual Supplement Chapter 12: Electrical System Single Shore Power (If Equipped) -
Page 70: Dual Shore Power (If Equipped)
Chapter 12: Electrical System 275 • Owner’s Manual Supplement Dual Shore Power (If Equipped) -
Page 71: Important Records
275 • Owner’s Manual Supplement Important Records Selling Dealer Key Numbers Name Of Dealership Ignition Other Address Electronics Phone/FAX/E-mail Manufacturer Model Name/Number Sales Manager Service Manager Serial Number Engine Manufacturer Model Name/Number Manufacturer Model Name/Number Serial Number Engine Serial Number... -
Page 72: Float Plan
Float Plan 275 • Owner’s Manual Supplement Float Plan Before going boating, fill out a copy of this float plan (or similar) and leave it with a reliable person whom you can depend on to contact the Coast Guard or other rescue organization, if you do not return as scheduled. - Page 73 275 • Owner’s Manual Supplement Float Plan Survival Equipment Trip Expectations Marine Radio (Yes/No) Type Frequencies Departing From Number of PFDs Flares (Yes/No) Mirror (yes or no) Departure Date Departure Time Smoke Signals (Yes/No) Flashlight (Yes/No) Food (Yes/No) Stopover 1...
- Page 74 Owner’s Notes...
- Page 75 Owner’s Notes...
- Page 76 Owner’s Notes...
- Page 77 Owner’s Notes...
- Page 78 Owner’s Notes...
- Page 80 Part Number 1776943 Bayliner • P.O. Box 9029 • Everett, WA 98206 • 360-435-5571...
