- Page 1 User Manual...
- Page 2 User Manual GENERAL INFORMATION SRX900 Series - User Manual Document Number: 1000365021 Version: A-EN Distribution Date: May 10, 2022 Copyright © 2022 by HARMAN International; all rights reserved JBL PROFESSIONAL 8500 Balboa Blvd Northridge, CA 91329...
-
Page 3: Table Of Contents
5 - SRX900 SERIES . . . . . . . . . . . . . . . . . . - Page 4 User Manual 10.5 Network Topologies ................. 21 11 - HCONTROL .
-
Page 5: Safety
(SPL) sufficient to cause permanent hearing damage to performers, production crew, and audience members. Caution should be taken to avoid prolonged exposure to SPL in excess of 90 dB. 14. Read the SRX900 Series Rigging Manual before installation and use of the product. 1.2 GENERAL HARDW ARE INFORMA TION Any hardware used in an overhead suspension application must be load rated for the intended use. -
Page 6: Are You New To Rigging
For all other hardware and fittings, refer to the hardware manufacturer’s inspection and maintenance guidelines for process . JBL is not responsible for the application of its products for any purpose or the misuse of this information for any purpose. Furthermore, JBL is not responsible for the abuse of its products caused by avoiding compliance with inspection and maintenance procedures or any other abuse. -
Page 7: Symbols
1.8 RESOURCES AND DOCUMENT A TION Several resources are available to SRX900 Series owners to illustrate proper and safe use of the equipment. Below is an overview of what is available and a brief description of each resource: USER MANUAL: This document focuses on the electromechanical aspects of the system, including amplification, wiring, speaker pre- sets, tuning, and optimization. -
Page 8: System Components

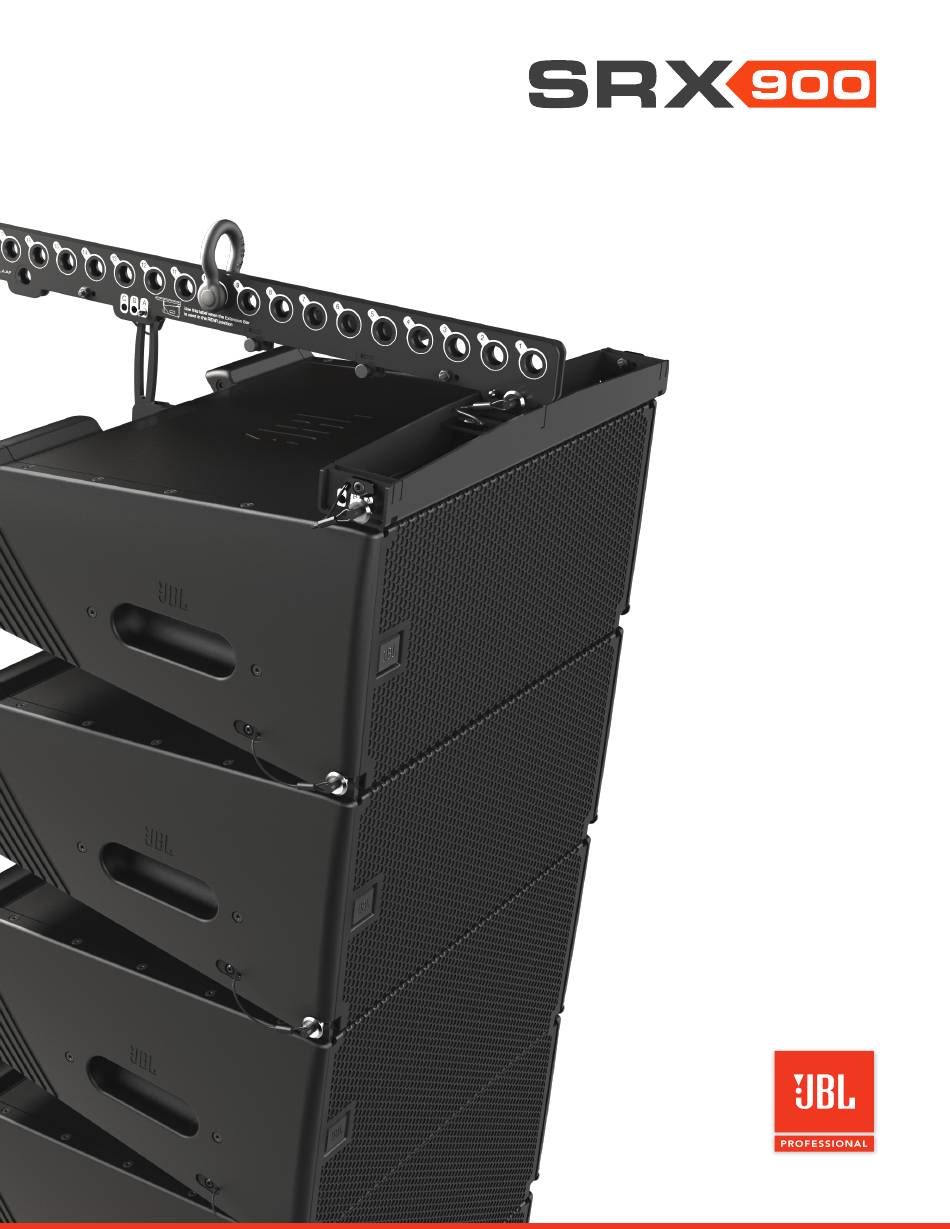

User Manual 2 - SYSTEM COMPONENTS SRX906LA | Line Array Element SRX910LA | Line Array Element SRX918S | Subwoofer SRX928S | Subwoofer... -
Page 9: Compatible Accessories
User Manual 3 - COMPA TIBLE ACCESSORIES All listed accessories are compatible with SRX900 Series products. For more information on the accessories and use cases refer to the SRX900 Series Rigging Manual found at www.jblpro.com. SRX906LA BP | Base Plate... - Page 10 TIP: For rigging-specific instructions, refer to the SRX900 Series Rigging Manual found at www.JBLpro.com. CAUTION: Always use components and accessories specified and approved by JBL Professional . When a cart is used, use caution when moving the cart to avoid injury from tip-over .
-
Page 11: Software Overview
4.1 LINE ARRA Y CALCULA TOR 3 LAC-3 is simulation software for designing and predicting the acoustical performance of JBL line array systems, such as the SRX900 Series, as well as flown and ground-stacked subwoofer arrays. Subwoofer delay values can be generated for electronic delay steering (EDS) using the built-in coverage calculator. -
Page 12: Srx900 Series
The SRX900 Series is a high performance powered loudspeaker system comprising two full-range line array elements and two subwoof- ers. The SRX900 Series boasts an array of premium features that make it the best system solution in its class. Drawing on JBL’s long history of groundbreaking technology and innovative loudspeaker design, the SRX900 Series meets the needs of any application where high performance, comprehensive control, and legendary JBL sound are required. -
Page 13: Amplifier Modules
2 - Locate LED: Software-controlled LED for speaker identification. The speaker can be set to Locate mode via JBL Performance software or from the LCD, for bidirectional visual identification of speaker. This is especially useful during setup, when physical speak- ers are matched with software equivalents. -
Page 14: Srx918S And Srx928S Rear Panel
2 - Locate LED: Software-controlled LED for speaker identification. The speaker can be set to Locate mode via JBL Performance software or from the LCD, to bi-directionally visually identify the speaker. This is especially useful during setup, when physical speak- ers are matched with software equivalents. -
Page 15: Dsp Overview
7 - DSP OVERVIEW A full suite of user-configurable DSP driven by the SRX900 Series’ powerful onboard 400 MHz SHARC DSP includes 24 parametric EQs, up to two seconds of delay, signal generators, monitoring, and device presets. Additionally, the system features 48 kHz 24-bit process- ing, LevelMax limiting, and is compatible with JBL’s Performance Audio catalog of products. -
Page 16: Ac Power
8.1 AC VOL T AGE REQUIREMENTS The SRX900 Series amplifier module includes a universal power supply with Power Factor Correction (PFC), which can be used on any line voltage from 90 V to 250 V depending on the region, the type of wiring, and the power distribution panels available. When the line voltage goes above or below the set voltage limits, a protection circuit engages to protect the amplifier from damage. -
Page 17: Current Draw
Chapter 17 - Specifications . 8.4 POWER ST A TES SRX900 Series speakers can be set to one of two power modes. See Section 15 - LCD for information on how to change between power modes via the rear LCD. -
Page 18: Audio Connectivity
User Manual 9 - AUDIO CONNECTIVITY SRX900 products are equipped with a balanced line level analog input for interfacing with external audio equipment such as mixing consoles. The balanced line input can accept signals of up to +21 dBu and has an input impedance of 100 kOhm. The male XLR output connector allows multiple loudspeakers to be connected together from a single output. -
Page 19: Example: Small System Audio Wiring
User Manual 9.2 EXAMPLE: SMALL SYSTEM AUDIO WIRING In this example, a small SRX900 system is fed from the left and right outputs of a mixer. The signal loops from the subwoofers to the mains. 9.3 EXAMPLE: LARGE SYSTEM AUDIO WIRING In this example, a large SRX900 system consisting of SRX910LA suspended mains and SRX928S subwoofers is fed from three separate signals: left and right sends for the mains and an auxiliary send for the subs. -
Page 20: 10- Networking
Each device must be assigned the same subnet mask and a unique IP address within the subnet mask’s range. IP address and subnet mask values can be entered from the rear LCD or from the NetSetter tool within JBL Performance control software. -
Page 21: Ethernet Ports
10.4 ETHERNET PORTS SRX900 Series amplifier modules are equipped with two fully switched network ports. These ports are used for all data communication between the amplifier module and the control device running JBL Performance control software. Because these two ports are fully switched, devices can be daisy chained together to simplify cabling. - Page 22 User Manual Star Network Topology Pros • Fast and reliable • Ideal for large installation where IT is involved • No single point of failure • Minimizes device-to-device switch hops Cons • Complex and expensive wiring • Requires external Ethernet equipment •...
-
Page 23: Hcontrol
HCIDs are used to give each device a numeric identifier up to six digits long. Each hardware device has a fixed HCID set at the factory that the user can modify, either on the device LCD (See Section 15 - LCD for more information) or in JBL Performance, using the integrated NetSetter tool. -
Page 24: Speaker Presets
12.1 LINE ARRA Y MODES SRX900 Series line arrays can be operated in one of three modes depending on the application and the number of speakers within an array. Operating modes are designed to create a neutral starting point and alter the tonal balance of the speakers to compensate for low frequency changes caused by array conditions. -
Page 25: Srx906La Preset Examples
User Manual 12.3 SRX906LA PRESET EXAMPLES All three preset modes include Full-Range and 80 Hz HPF options. 1 SRX906LA 2-3 SRX906LA 4+ SRX906LA MODE: FILL MODE: SA MODE: ARRAY 12.4 SRX910LA PRESET EXAMPLES Both preset modes include Full-Range and 80 Hz HPF options. 1 SRX910LA 2+ SRX910LA MODE: FILL... -
Page 26: Array Calibration
Each filter serves a specific intended purpose to accelerate the tuning process. Both filters can be applied quickly to all elements in an array from JBL Performance software, or to array elements one at a time from the LCD on the rear of the cabinets. For more information... -
Page 27: Array Calibration Filter Example
User Manual 13.3 ARRA Y CALIBRA TION FIL TER EXAMPLE The example below represents a typical use case for the Array Calibration tool set. The 12-Box SRX906LA array shown below has Array Size Compensation (ASC) subtracted globally from all elements of the array. The individual speakers within the array have additional Throw Distance Compensation applied to improve long-throw performance and remove some excess HF that may be present due to the distance from the array to the front audience members. -
Page 28: Subwoofers
User Manual 14 - SUBWOOFERS 14.1 CARDIOID SUBWOOFERS In some situations, the omnidirectional nature of subwoofers is desirable, but in others, directional coverage is required. The most common use case for directional subwoofers involves preventing excessive low frequency energy from reaching the stage. A single sub- woofer radiates omnidirectionally, but cardioid coverage can be achieved with an array of subwoofers in which the physical orientation of some cabinets is reversed and the Rear speaker mode selected. -
Page 29: Minimum Space Between Cardioid Stacks
User Manual 14.3 MINIMUM SPACE BETWEEN CARDIOID ST ACKS When creating subwoofer arrays using cardioid blocks of subwoofers, a distance of at least 1 meter (3.2 feet) should be allowed between stacks and high-mass structures, like a concrete wall or stage, to avoid disrupting rear radiation patterns. 14.4 SUBWOOFER RA TIOS The minimum recommended subwoofer ratios provide sufficient headroom for both the subwoofers and full-range cabinets to reach MAX SPL (limiters) at the same time, while maintaining a minimum of 10 dB sub to full-range low frequency contour. -
Page 30: Lcd
User Manual 15 - LCD The LCD screen on the rear panel is a powerful tool for accessing speaker parameters, including operating modes (speaker presets) and network settings. Navigating the menus and changing selected parameters is done with the Encoder. Rotate the Encoder to move through menus and parameters. - Page 31 648. 2 9 User EQ DSP: User EQ User EQ is enabled or disabled with this control. User EQ is edited in JBL Performance software. Array Size Compensation and Throw Distance Compensation Array Size Compensation (ASC) and Throw Distance Compensation (TDC) can be enabled or ASC Level : 1.
-
Page 32: Network
User Manual LF Mode DSP: LF MODE LF Mode sets the crossover frequency used in the factory presets. • For full-range systems, the setting options are Full-Range (FR) and 80 Hz 60Hz 80 Hz • For subwoofers, the setting options are 60 Hz and 80 Hz. Reset All DSP RESET The User DSP section can be returned to factory default values by entering this screen, se-... -
Page 33: Hcontrol
The Auto Standby feature can be enabled or disabled by using the encoder to select On or Off, then pressing the knob to commit the change. The threshold level can be set using JBL Performance in the Device Control Panel. Display Brightness SETTINGS: LCD BRIGHT The display brightness can be changed in real time by turning the encoder. -
Page 34: Info
Enabl e desired setting and then pressing it to apply the setting. The threshold time for auto-dim- ming can be set using JBL Performance in the Device Control Panel or by setting Display Auto-Dim Time on the LCD. Display Auto-Dim Time... -
Page 35: System Reset
User Manual Firmware Version INFO MENU This screen displays the loaded firmware version. 1. 5 . 1 0. 5 9 15.7 SYSTEM RESET System Reset SYSTEM RESET This feature resets all user settings and DSP back to factory defaults. It erases all parameter RESET ALL USER PARAMETERS settings, network information, stored presets, and all other user-adjustable settings. -
Page 36: Menu Overview
User Manual 15.8 MENU OVERVIEW The graphic below represents all options and settings available from the rear LCD screen on the SRX900 Series products. • Mode • MAC Address MAIN MENU Network • IP Address HControl • Subnet Mask • Gateway •... -
Page 37: Revert Firmware
User Manual 15.9 REVERT FIRMW ARE SRX9xx products contain two versions of firmware within the devices memory: the current firmware the device uses to operate, and the previous version of firmware. In the event it is necessary to revert an SRX9xx product to the prevous version of firmware, follow the steps below. -
Page 38: Srx900 Rc Rain Cover
16 - SRX900 RC RAIN COVER The SRX900 RC Rain Cover is a rugged weather-resistant protective cover that installs easily over top any SRX900 Series amplifier mod- ule to protect the amplifier LCD screen and connections from moisture. The Rain Cover has Velcro strips sewn to its edges to allow the user to close the cover over top of the connections once system setup is complete. -
Page 39: Product Specifications
Line Array, two-way active TRANSDUCERS Low Frequency : (2) JBL 2186G, 6.5 in diameter, dual 2.0 in diameter voice coil, neodymium Differential Drive ® High Frequency : (1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil... - Page 40 6: Measured RMS inrush current for a 50 ms window. 7: With use of SRX900 RC1 rain cover (JBL-P3239MX ) and front face at -10 degrees or greater down angle. Suspension components fully weather rated for indoor or covered outdoor conditions where humidity is nominally...
- Page 41 Line Array, two-way active TRANSDUCERS Low Frequency : (2) JBL 261G-1, 10 in diameter, dual 2.0 in diameter voice coil, neodymium Differential Drive® High Frequency : (1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil...
- Page 42 6: Measured RMS inrush current for a 50 ms window. 7: With use of SRX900 RC1 rain cover (JBL-P3239MX ) and front face at -10 degrees or greater down angle to allow the cabinet to drain water. Suspension components fully weather rated for indoor or covered outdoor...
- Page 43 134 dB (Preset: 80 Hz) System Type : Active Subwoofer TRANSDUCERS Low Frequency : (1) JBL 2279G-1, 18 in diameter, 4 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive ® AUDIO INPUT Input Type : Balanced line level...
- Page 44 7: Measured RMS inrush current for a 50 ms window. 8: With use of SRX900 RC1 rain cover (JBL-P3239MX ) and front face at 0 degrees or greater down angle to allow the cabinet to drain water. Components fully weather rated for indoor or covered outdoor conditions where...
- Page 45 140 dB (Preset: 80 Hz) System Type : Active Subwoofer TRANSDUCERS Low Frequency : (2) JBL 2279H-1, 18 in diameter, 8 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive ® AUDIO INPUT Input Type : Balanced line level...
- Page 46 7: Measured RMS inrush current for a 50 ms window. 8: With use of SRX900 RC1 rain cover (JBL-P3239MX ) and front face at 0 degrees or greater down angle to allow the cabinet to drain water. Components fully weather rated for indoor or covered outdoor conditions where...
-
Page 47: Regulatory Specifications
User Manual 18 - REGULA TORY SPECIFICA TIONS REGULATORY SPECIFICATIONS Operating Temperature Range : 0-40° C (32-104° F) Maximum Operating Altitude : 2000 m (6,561 ft.) Safety Voltage Range : 100-240 VAC, 50/60 Hz... -
Page 48: Dimensions
User Manual 19 - DIMENSIONS SRX906LA FRONT TOP/BOTTOM 420 mm (16.5 in) 507 mm (19.9 in) REAR LEFT/RIGHT 227 mm (8.9 in) SRX910LA FRONT TOP/BOTTOM 472 mm (18.6 in) 716 mm (28.2 in) REAR LEFT/RIGHT 305 mm (12.0 in) - Page 49 User Manual SRX918S REAR 683 mm (26.9 in) FRONT LEFT/RIGHT 575 mm (22.6 in) 684 mm (26.9 in) SRX928S REAR 681 mm (26.8 in) 1,205 mm (47.4 in) FRONT LEFT 565 mm (22.2 in)
-
Page 50: Contact Information
+1 (844) 776-4899 www.jblpro.com PROFESSIONAL CONT ACTS, OUTSIDE THE U.S.A.: Contact the JBL Professional distributor in your area. A complete list of JBL Professional international distributors is provided at our U.S.A. website: www.jblpro.com HARMAN Professional EMEA HARMAN Professional APAC...
