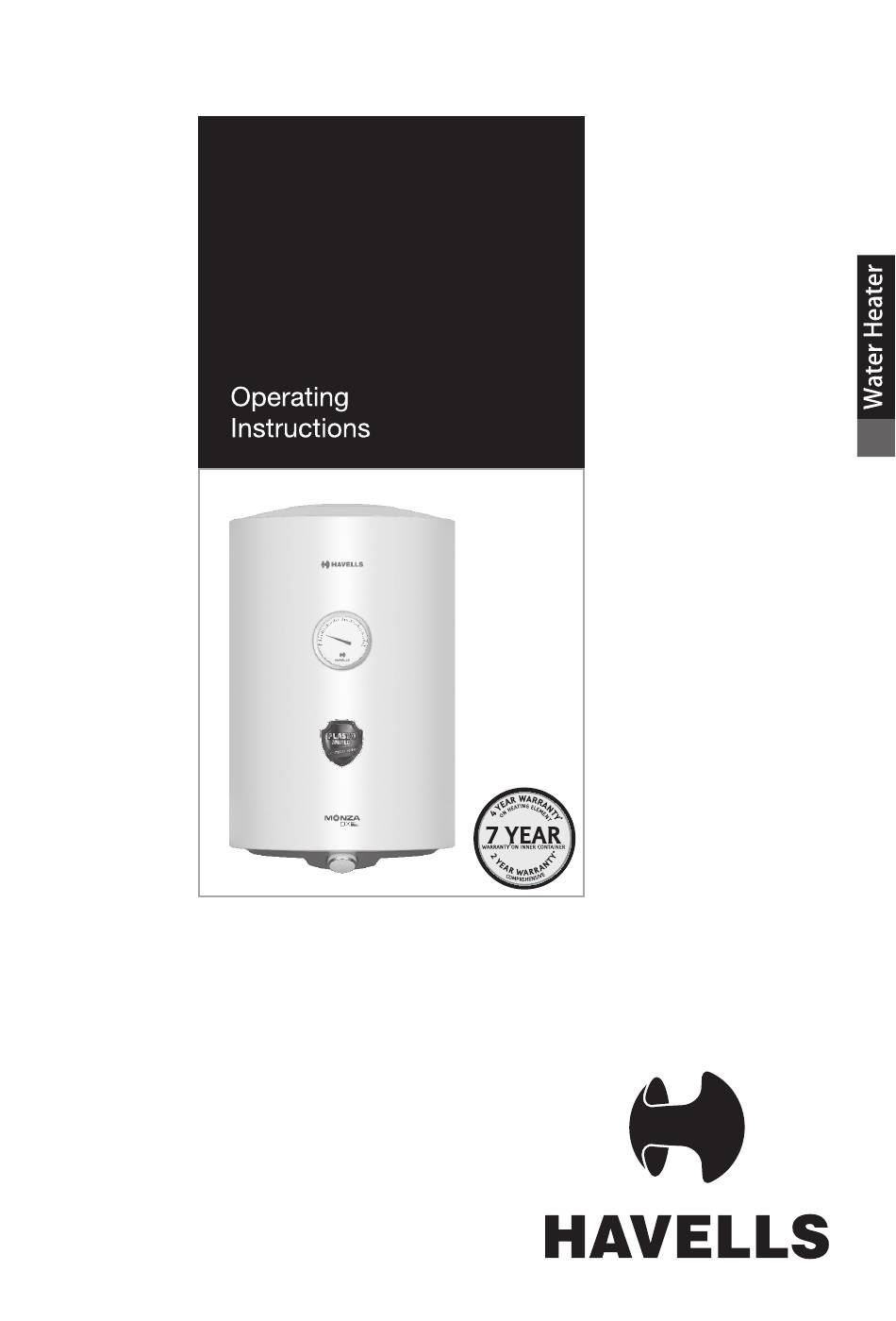

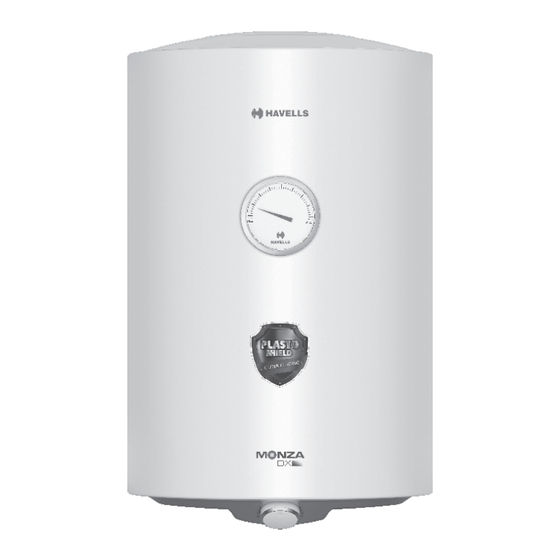

- Page 1 Storage Electric Water Heater Monza DX 10 L, 15 L, 25 L, 35 L, 50 L & 100 L...
- Page 3 1. High quality incoloy 800 glass coated heating element 2. Heavy guage inner tank 3. Fero glass coating layer 4. Heavy-Duty anode rod 5. Energy saving high densityPUF insulation 6. Water tubes with whirlflow 7. Thermostat with adjustable temperature knob 8.
- Page 4 Model Monza DX 10 L 310 mm 428 mm 334 mm 163 mm 101 mm 100 mm 175 mm Monza DX 15 L 310 mm 527 mm 334 mm 163 mm 101 mm 100 mm 175 mm Monza DX 25 L...
- Page 5 Technical Specifications: Parameter Monza DX Monza DX Monza DX Monza DX Monza DX Monza DX Rated Capacity in L 10 L 15 L 25 L 35 L 50 L 100 L Mounting Vertical Vertical Vertical Vertical Vertical Vertical Rated Voltage in Volt 230 V, 1 Phase, 230 V, 1 Phase, 230 V, 1 Phase,...
- Page 6 Key Features: Feroglass Made of Ultra thick superior quality steel. Feroglass...
-
Page 7: Temperature Gauge
4 Bolt Flange 4 Bolt Flange Temperature gauge 11 Shock Safe Plug India’s first integrated shock safe plug is designed to prevent injury to humans due to electric shocks, the plug will cut off the power immediately in case of any current leakage. Shock Safe Plug Safety Devices:... - Page 8 Installation & Safety: 5 cm 50 cm Mounting...
- Page 9 2. Do not install in the area of direct sunlight and water splashes. CAUTION CAUTION Picture 2 Water Connections CAUTION For connecting the inlet & outlet between water heater and bathroom fittings, use metal flexible pipe having plastic nut / plastic adapter. Connect cold water inlet to other end of MFV with metal flexible pipe having plastic nut / plastic adapter.
-
Page 10: Internal Wiring Diagram
CAUTION Electrical Connections 5. C 16 A Double Pole MCB or 16 A fuse must be used as a back up protection for overload. 6. To ensure proper functioning, use test button in the Shock safe plug at least once a month. 7. - Page 11 Operation of Water Heater: LED Color Indication Water is heating to Blue set temperature Water at desired temperature is ready Maintenance & Cleaning:...
- Page 12 If the water heater is not going to be used for a long time,...
-
Page 13: Warranty Terms And Conditions
M/s. Havells India Ltd. (“Company”) hereby offers a limited warranty (“Warranty”) against manufacturing defect/s for a period of 2 (two) years on this Water Heater (“Product”), 7 (seven) years on its inner container and 4 (four) years on its heating element from the date of invoice on the terms and conditions provided hereinafter. - Page 14 None of the employees and /or Authorized Dealers of the Company have any authority whatsoever to vary the Terms and Conditions of this Warranty. In the event that any Terms and Condition of this Warranty becomes invalid and/or unenforceable, the remaining Terms and Conditions shall continue in full force and effect.
- Page 15 Expressway, Noida - 201304 (UP) India, Ph. +91-120-3331000, E-mail: customercare@havells.com, Website: www.havells.com Customer Care No. 08045 77 1313 (All Connections), 011-4166 0303 (Landline) Join us on Facebook at www.facebook.com/havells and share your ways to save the planet! CIN - L31900DL1983PLC016304.
