LRS T7450A User Manual

LRS T7450A User Manual

Paging system transmitter
Table of Contents

Advertisement

Quick Links

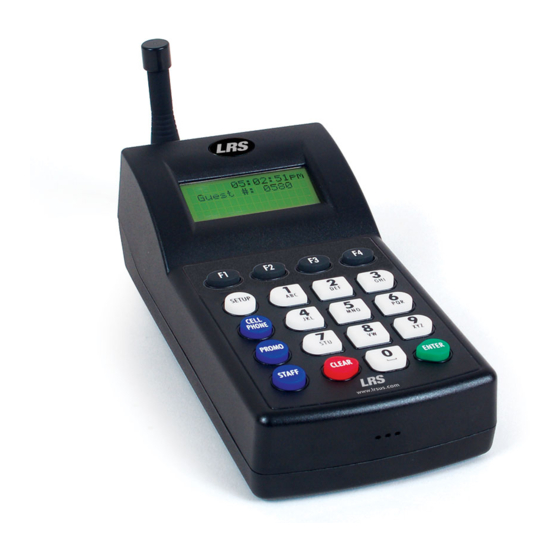

T 7450 A
Paging System Transmitter

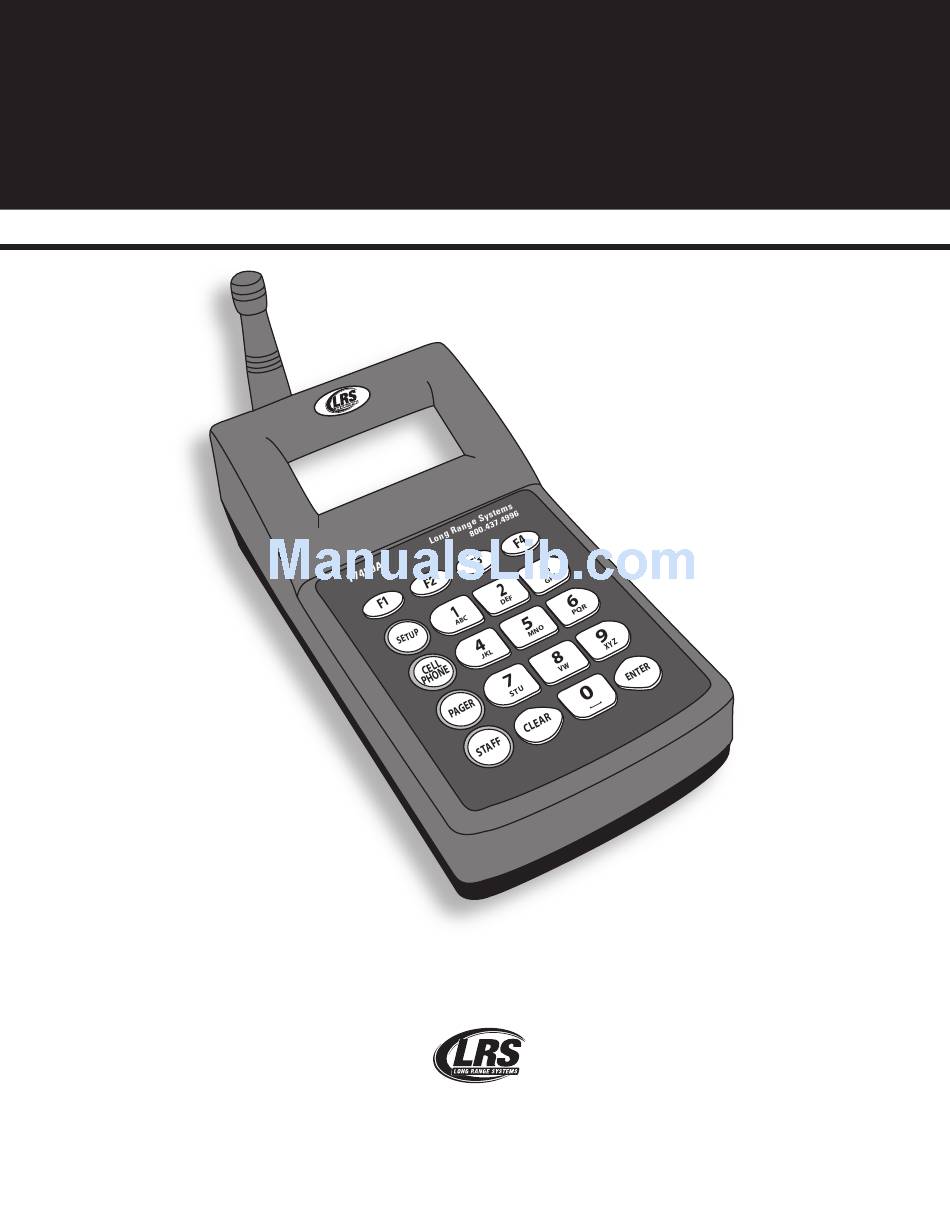

U S E R M A N U A L
Long Range Systems UK Ltd | Link House | Leek Road | Milton | Stoke on Trent | Staffordshire | ST2 7AH | 01782 537000
www.lrspagers.co.uk | www.pagers.co | www.hospitalpagers.co.uk
I I n n s s t t a a l l l l a a t t i i o o n n , , W W a a r r r r a a n n t t y y a a n n d d S S e e r r v v i i c c e e I I n n f f o o r r m m a a t t i i o o n n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T7450A and is the answer not in the manual?

Questions and answers

Summary of Contents for LRS T7450A

  • Page 1 T 7450 A Paging System Transmitter U S E R M A N U A L I I n n s s t t a a l l l l a a t t i i o o n n , , W W a a r r r r a a n n t t y y a a n n d d S S e e r r v v i i c c e e I I n n f f o o r r m m a a t t i i o o n n Long Range Systems UK Ltd | Link House | Leek Road | Milton | Stoke on Trent | Staffordshire | ST2 7AH | 01782 537000 www.lrspagers.co.uk | www.pagers.co | www.hospitalpagers.co.uk...
  • Page 2: Table Of Contents

    Testing Dry Contact ........... ong Range Systems T7450A User Manual...
  • Page 3 Using the Alpha Coaster Guest Pagers ........Cleaning & Charging Instructions for LRS Paging Equipment ... . .
  • Page 4: Long Range Systems

    • Patron provided telephone pagers (cell phones and wide area pagers). On site receivers are paged directly through a radio transmitter located in the T7450A transmitter. Patron cell phones are contacted by calling their service through a dedicated telephone line.
  • Page 5: Compatible Pagers

    • Coaster Call • SP5 1-Line Rechargeable Alpha www.pager.net Numeric Pager • Alpha Coaster • Star Pager • AdverTeaser (Paddle) Pager • RX-E 4-Line Alpha Numeric Pager (Battery Operated) www.pager.net • Pizza Pager • Lobster Pager ong Range Systems T7450A User Manual...
  • Page 6: Installation And Setup

    PAGER STAFF CLEAR ENTER Analog Phone Line Keypad Description Before using the keypad, please read the following descriptions. Note that during any setup functions that the display changes the keys may perform different functions. ong Range Systems T7450A User Manual...
  • Page 7: Initial Power Up

    4. Enter the current Date and press the Enter key. The display will show to enter the date as MM/DD/YY (month/day/year) or DD/MM/YY. (Note: Pressing F1 (EXIT) bypasses this function and sets date to January 1st of current year, example 01/01/07.) ong Range Systems T7450A User Manual...
  • Page 8: Operating Limitations

    • When Group Paging is enabled, Staff Pagers numbered between 1 and 99 cannot be used. Basic Paging Operation Guide The T7450A is shipped from the manufacturer set for use in the most commonly used configuration. Page Guest Pagers: Enter the number assigned to the guest at handout and press Enter.
  • Page 9: Page Staff Group

    Note: The use of the star (*) key and pound (#) keys can be changed from the following default by adjusting the Dial In Paging Mode page 12). • From the remote telephone, dial the telephone line attached to the T7450A. ong Range Systems...
  • Page 10: Paging Staff Pagers From A Remote Telephone

    • Hang up. Preset or Special Alpha-Messages: When prompted by the T7450A for a message, enter the code and a numeric extension before pressing the Enter key (refer to the following chart). Example: To send a message to call extension 123, enter the code 006123.
  • Page 11: Special Operational Procedures

    • Cell Phones and Wide Area Pagers (WAP) can be paged from the transmitter. • On-premise staff pagers can be paged and messaged from a remote telephone. • If paging on premise pagers from a remote telephone, the tracking mode (if in use) will be dis- abled. ong Range Systems T7450A User Manual...
  • Page 12: System Requirements

    1. Press SETUP to enable the function menu. 2. Press F1 (More) until the unit shows 1: Prgm Prompt. 3. Press F1 to Continue 4. Select Voice Prompt to record: - Press 1 for Guest Call message. ong Range Systems T7450A User Manual...
  • Page 13: Setting The Telephone Dial In Or Dial Out Function On Or Off

    This allows you to select the telephone * and # functions used in paging guest and staff pagers when dial- ing in. To set the modes: 1. Press Setup. 2. Press F1 (more) until 3: Phone Settings is shown. 3. Select 3 for Phone Settings. 4. Press F1 (more) then 1: Mode. ong Range Systems T7450A User Manual...
  • Page 14: Locate Misplaced Pagers

    When activated, a signal is sent out to ALL guest pagers and pagers will beep or flash until returned to a charging unit or the batteries are removed. To locate ALL coasters: 1. Press SETUP 2. Press “MORE” (F1) until you are asked for the authorization code. ong Range Systems T7450A User Manual...
  • Page 15: Tracking Modes

    The pager number is cleared on the keypad unit when run time is complete. To turn Custom Tracking on (or off): 1. Press SETUP. ong Range Systems T7450A User Manual...
  • Page 16: Group Paging

    9. Set the run time between 30 and 3600 seconds, and then press ENTER. The run time defines the total amount of time the repeated pages will continue for. For example, if you choose 120 seconds, the T7450A will continue to page at the defined repeat time until the overall 2 minutes (120 Sec- onds) is timed out.
  • Page 17: Auto Shutoff Pocsag Pagers

    Auto Shutoff POCSAG Pagers: POCSAG pagers may be set to shutoff from the T7450A. At the selected time Auto Shutoff sends out a sig- nal to ALL POCSAG pagers. For example, if you close at 11:30PM, the keypad can automatically send out a signal at 12:30AM that will shutoff any pagers not already turned off.
  • Page 18: Feature Setup Procedures

    3 (3: Both) set the number of times the pager will beep and vibrate before shutting off • Choose 1 (Vib/Beep 1), 2 (Vib/Beep 2), 3 (Vib/Beep 3) • Adjust beep volume (Loud/Quiet) level F1 (UP), F2 (DN), F3 (HELP), F4 (EXIT) ong Range Systems T7450A User Manual...
  • Page 19: Set To Page Staff Or Guest Pagers

    • Press YES (F1) to reset the timer and return to the paging menu. • Press NO (F4) to continue to the ON/OFF menu. 8. At Turn ON or OFF select ON (F1) to enable or OFF (F2) to disable the alarm. ong Range Systems T7450A User Manual...
  • Page 20: Set Start Of Poscag Paging

    A telephone line adapter to provide line current is required. 1. Press Setup to enable the function menu 2. Press F1 (More) until the unit shows 3: Phone Settings. 3. Press 3 to select this function. The screen shows: ong Range Systems T7450A User Manual...
  • Page 21: Remember Telephone Numbers

    The Dry Contacts (2 contacts located around the antenna) are a contact or switch that is connected through a wire to the T7450A, for example: Door-Bell. This sensor can send a message to the pager an event hap- pens (e.g., alarm if a door is opened). Default setting for the Contact Sensor is OFF. To program the Contact Sensor (Dry Contact): 1.
  • Page 22: Testing Dry Contact

    ON. If the contacts are separated (open) then the Contact Test will show OFF In normal operation, an active contact in the “OFF” position would notify the pager. 6. When finished, press F2 for DONE. ong Range Systems T7450A User Manual...
  • Page 23: Maintenance Functions

    • To reduce tampering with critical settings the keypad is password protected • The access code 5 6 7 8 9 allows you to enter many of the restricted programming screens. • In some cases additional access codes may be required that can be obtained from LRS. Set the System Time/Date Time on Alpha and Numeric pagers may be reset each time batteries are replaced.
  • Page 24: Review System Status

    Operation of the ID finder to discover your system’s ID and the ID Set function are described in the following paragraphs. Caution: The ID set function should be used only when directed by LRS personnel. Misuse will cause paging problems!!! ong Range Systems...
  • Page 25: Messaging Mode

    This feature allows the user to set a precanned message as a default message when paging alphanumeric pagers. To turn Message Only Mode ON: 1. Press SETUP 2. Press “MORE” (F1) until asked for the authorization code. 3. Type 5-6-7-8-9 ong Range Systems T7450A User Manual...
  • Page 26 CLEAR ENTER CLEAR CLEAR ENTER ENTER ENTER 3. Type 5-6-7-8-9. CLEARS SCREEN 4. Press “MORE” (F1) until 2: Norm/MSG Only 5. Select 2: Norm/MSG only. 6. Select 1: Normal. 7. Press F4 to Exit. ong Range Systems T7450A User Manual...
  • Page 27: Programming Pagers

    Coasters, Pizza pager, and Lobster Call. Note: : Programming Guest Pagers requires an authorization code. 1. At the Menu, select 1: Guest Pagers. 2. Enter the programming authorization code obtained from LRS (once received this step will no longer be required). 3. Select Paddle Pager.
  • Page 28: Staff

    9. When Finished, Press EXIT (F1). Staff Pagers (Battery Operated Alpha Pagers) This procedure is repeated for each pager being programmed. • Only LRS pagers can be programmed from the transmitter. 1. Turn all of the pagers OFF. 2. At the Menu, select 2: Staff.
  • Page 29: Program Alpha Pager Group

    11. When finished turn on all of the pagers and page each one. Reprogram any that do not page. Program Alpha Pager Groups • Only LRS pagers can be assigned groups and be programmed from the transmitter. • The transmitter must be set to Alpha mode to program alpha pagers.
  • Page 30: Alpha Encryption

    F1 (Yes), if not press F4 (NO) and do again. 15. Continue this procedure with the remaining pagers. Alpha Encryption • Only LRS pagers can be encrypted and be programmed from the transmitter. • Encryption does not change the pager numbering. 1. Press Setup.
  • Page 31: Set Pager Vibrator On/Off

    3. Type 5-6-7-8-9. 4. Repeatedly press F1 until you see 2: Program TX Pwr on the menu. 5. Press 2. 6. Set the required power level (from 1 through 5). 7. Press F1 (OK). ong Range Systems T7450A User Manual...
  • Page 32: Set Id Span

    3-4 seconds. 7. The point where the pager does not flash consistently is the maximum range. To increase (or de- crease) range adjust the power level, add a repeater, or add a high gain antenna. Call LRS fro as- sistance.
  • Page 33: System Specifications

    Required voltage: (1) 110/220V outlets for pager charging base Batteries: Nickel Metal Hydride (NiMH). Rechargeable. Lifetime of Batteries: Approximately 3-5 years. Battery life of pager: Approximately 12 - 48 hours (depends on usage). Recharge time: 24 hours min- imum from completely “dead”. ong Range Systems T7450A User Manual...
  • Page 34: Troubleshooting

    1. Be sure the pager is turned on and that the battery is good. 2. If pagers do not turn on, replace battery and retry. 3. If pagers do turn on, and still do not receive page, check transmitter. ong Range Systems T7450A User Manual...
  • Page 35: Rechargeable Pagers

    (800) 437-4996 (24/7 days a week) For weekend or night emergencies: • Long Range Systems has 24/7 live technical support available. • Please keep in mind that options are limited over the weekend. ong Range Systems T7450A User Manual...
  • Page 36: Pager Instructions

    R R e e a a d d A A l l l l 1 1 0 0 / / 2 2 5 5 1 1 0 0 : : 3 3 8 8 a a m m ong Range Systems T7450A User Manual...
  • Page 37 1. Using the Up (or Dn) scroll button scroll until display shows “Set Alert Mode” 2. Use the Up (or Dn) scroll button to select Beep, Vibe, or Both 3. Press Read/Select to set: Beep - Use the Up (or Dn) scroll button to select: ong Range Systems T7450A User Manual...
  • Page 38: Using The Star Pager

    To program the pager see pg. 27 Using the Star Pager Charging Any rechargeable pager will require use of an LRS charger. 1. Place the pager in the charger. 2. Allow unit to fully charge overnight. 3. Remove from charger, and pager will vibrate and light all lights as a verification that it is working.
  • Page 39: Using The Sp5 1-Line Rechargeable Alpha Numeric Pager

    Select Button and press or hold again until the level goes to minimum or desired level. 4. To exit, wait 8 seconds. And the pager will go back to the vibe/contrast menu. VIBE CONTRAST ong Range Systems T7450A User Manual...
  • Page 40 3. Press the Select Button to continue scrolling forward through the message or messages. Time Pager will display the current time. The T7450A transmitter automatically updates this feature. If the time does not appear, a flashing star will appear on the right side of LCD to show pager is operational.
  • Page 41: Using The Non-Alpha Guest

    To program the Alpha Guest Pagers, refer to pg. 26 Charging Any Alpha Coaster pager will require use of an LRS coaster charger. 1. Place the pager in the charger. 15 pagers at a time on a Charger. 2. Allow unit to charge fully overnight.
  • Page 42: Cleaning & Charging Instructions For Lrs Paging Equipment

    Pagers and equipment that are cleaned with unapproved clean- ers and suffer cracking will not be covered under warranty. Do not submerge any LRS paging equipment in any type of liquid as this will also dam- age the equipment and is not covered under the standard warranty.
  • Page 43: Warranty

    If this product should become defective within the war- ranty period, we will repair or replace it with an equivalent product, free of charge. LRS will return your product via UPS ground shipping. All warranty claims must be initiated through our customer service department.
